Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 4 illustrations

Illustrations

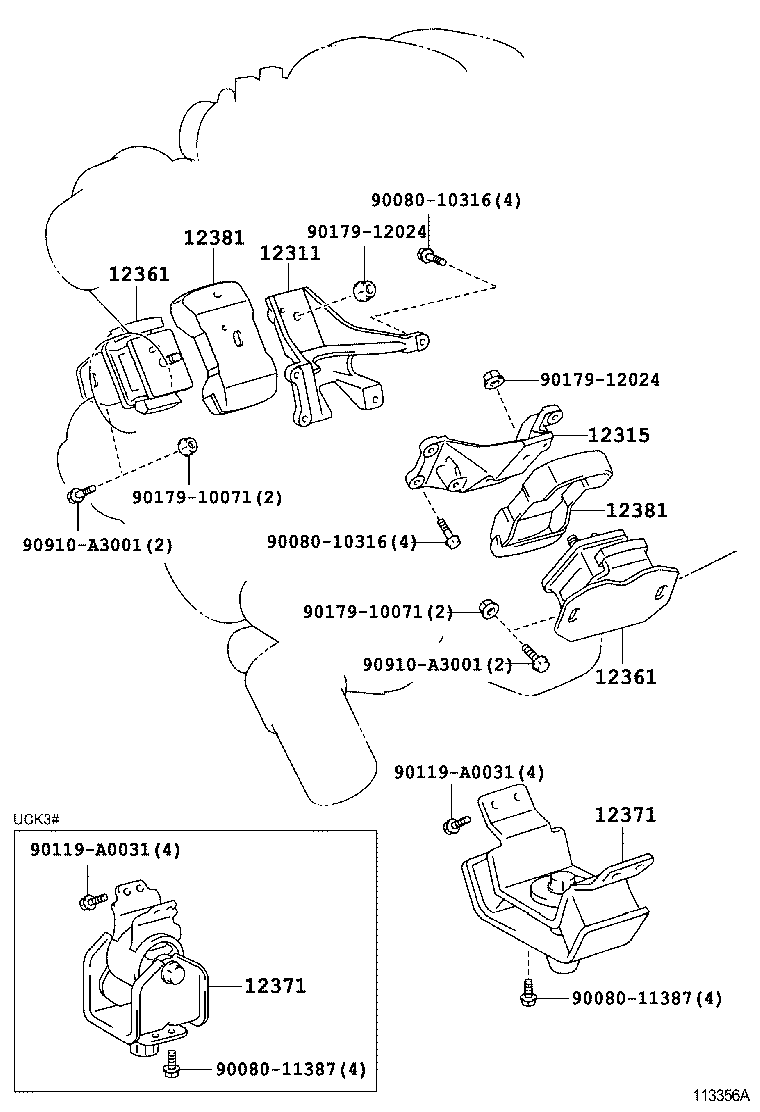

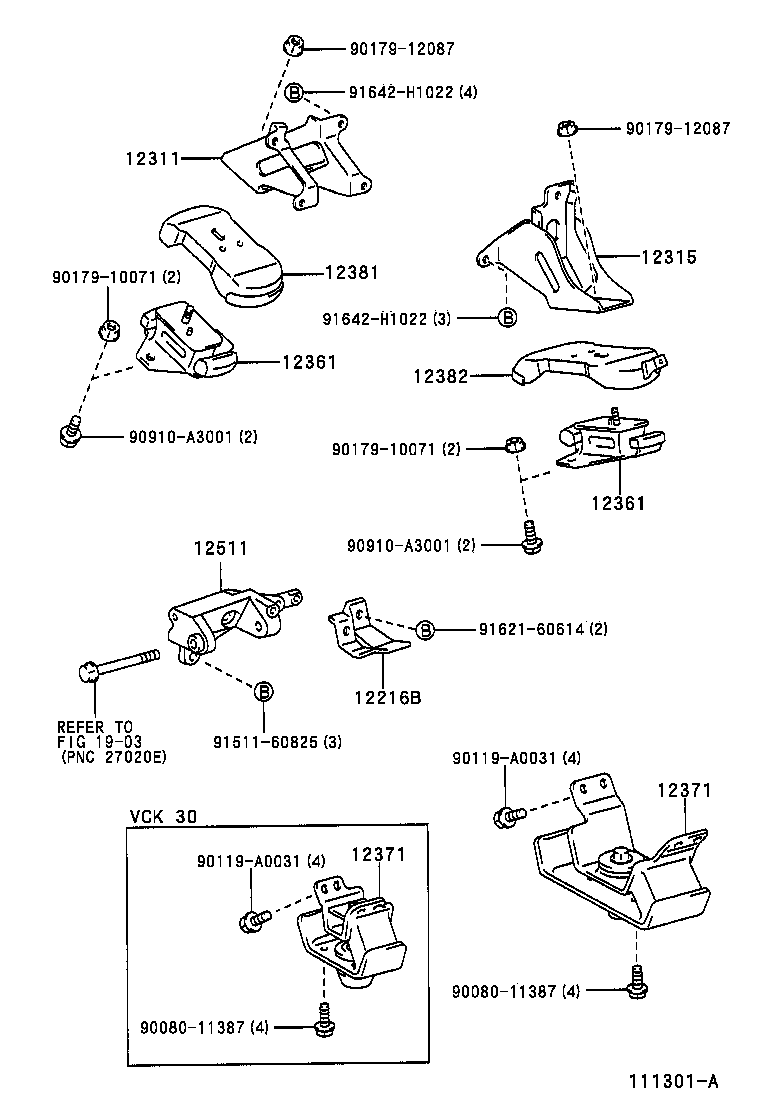

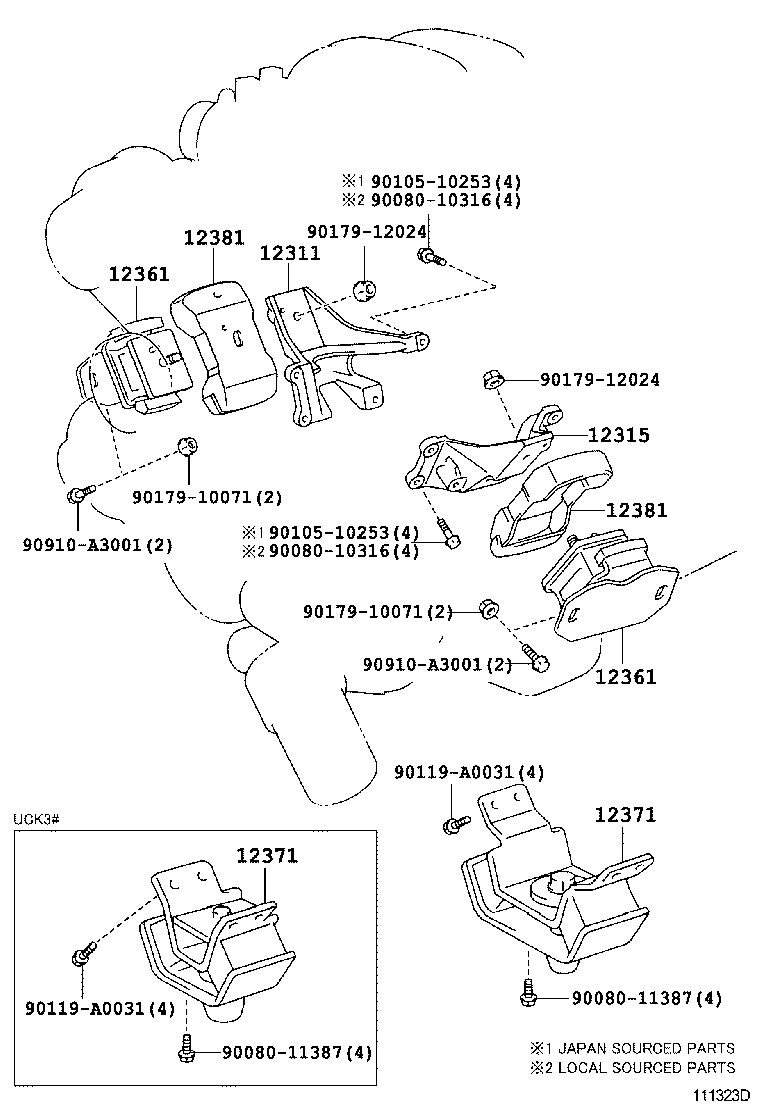

Figure 113361C 113361C 2004-08 → — Figure 111323D 111323D 1999-02 → 2004-08 Figure 113356A 113356A 2004-08 → — Figure 111301A 111301A 1999-02 → —

Part groups

PNCDescription
12216B Plate, Oil Baffle
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
