Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

15 part groups · 4 illustrations

Illustrations

Figure 162546F

162546F 2004-08 → —

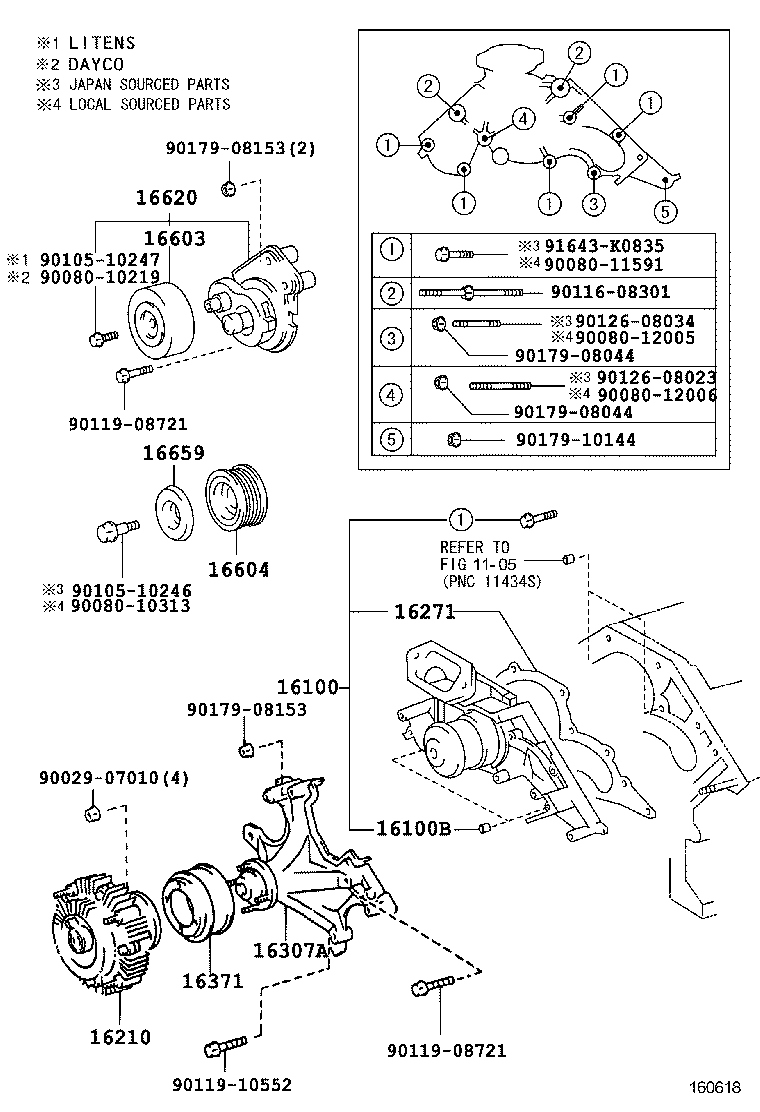

Figure 160618T

160618T 1999-02 → 2004-08

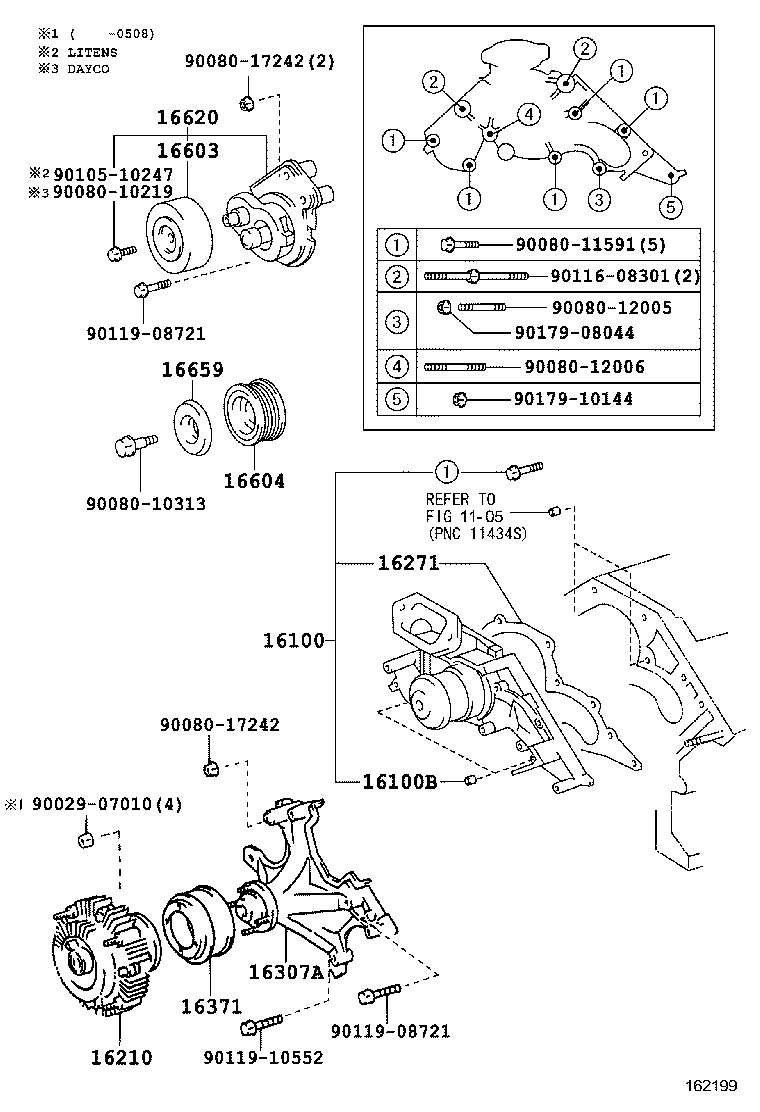

Figure 162199D

162199D 2004-08 → —

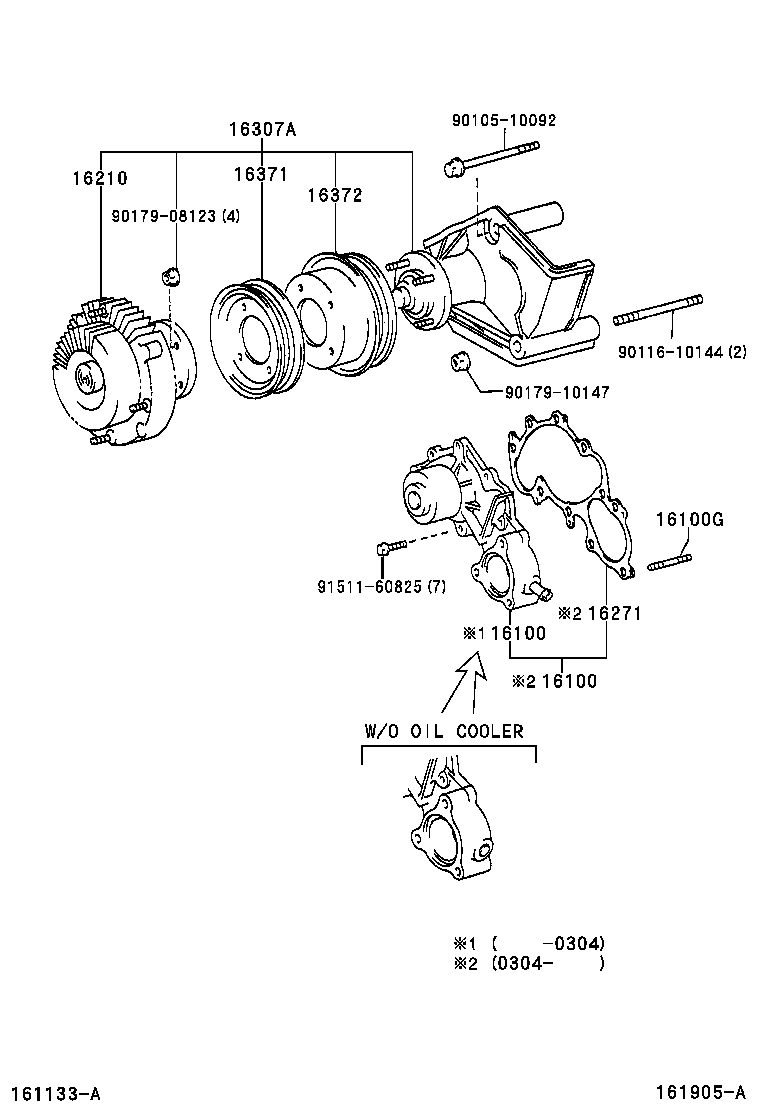

Figure 161905A

161905A 1999-02 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16100G	Bolt, Stud(FOR WATER PUMP SET)
16124	Gasket, Water Pump Cover
16193A	Bolt(FOR WATER PUMP COVER)
16210	Coupling Assy, Fluid
16271	Gasket, Water Pump
16307A	Bracket Sub-assy, Fan
16371	Pulley, Fan
16372	Pulley, Fan, NO.2
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
