Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

55 part groups · 13 illustrations

Illustrations

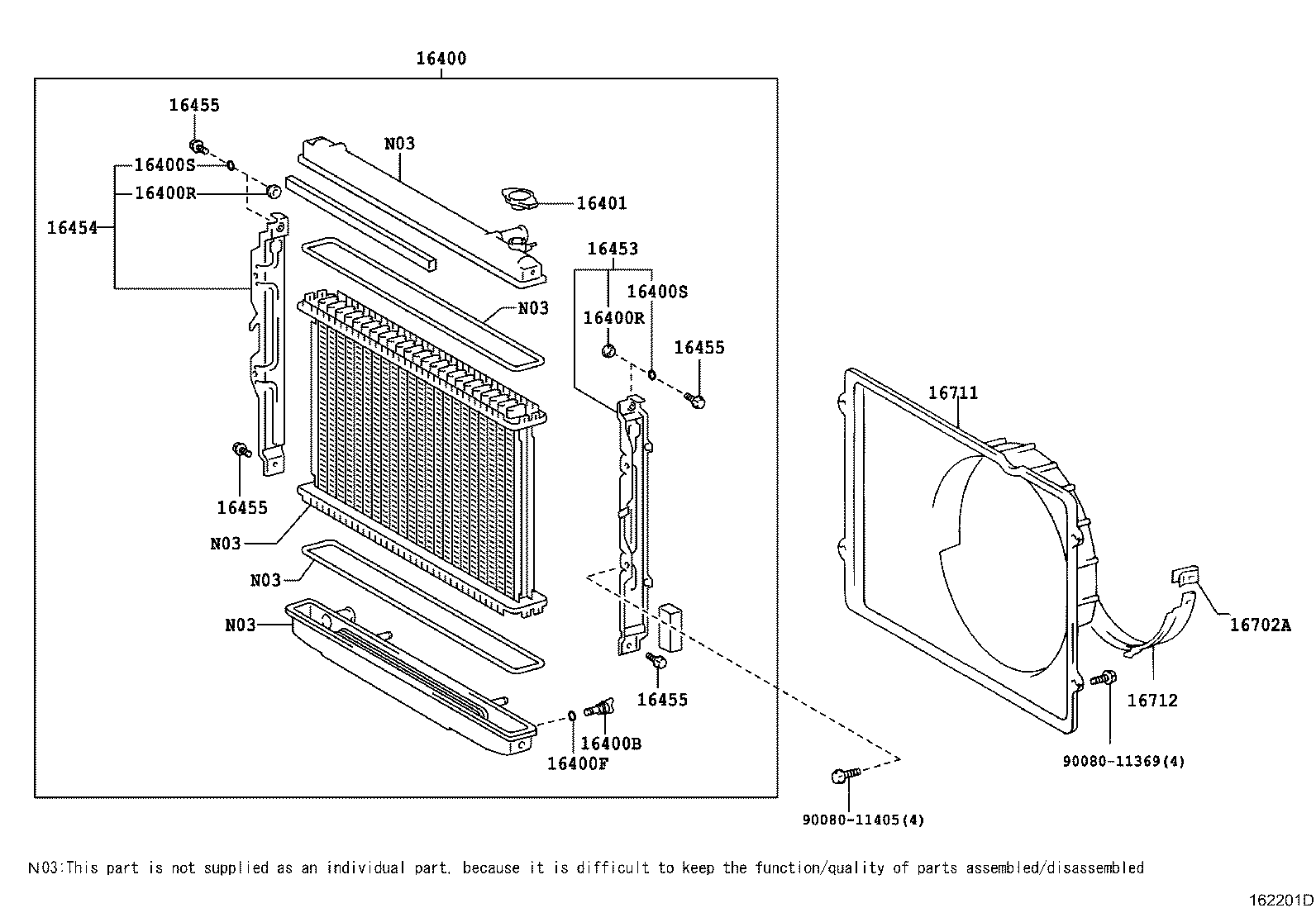

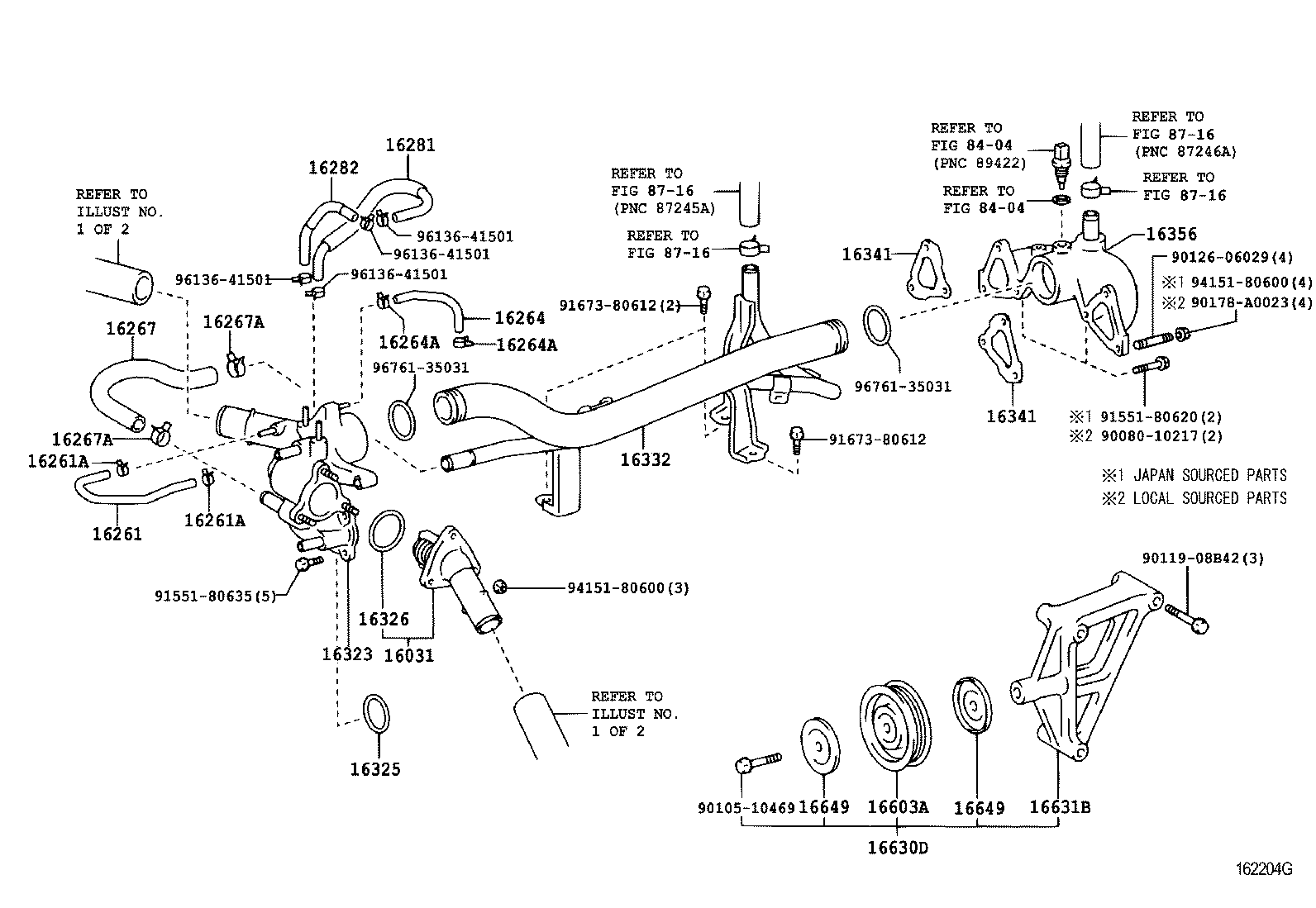

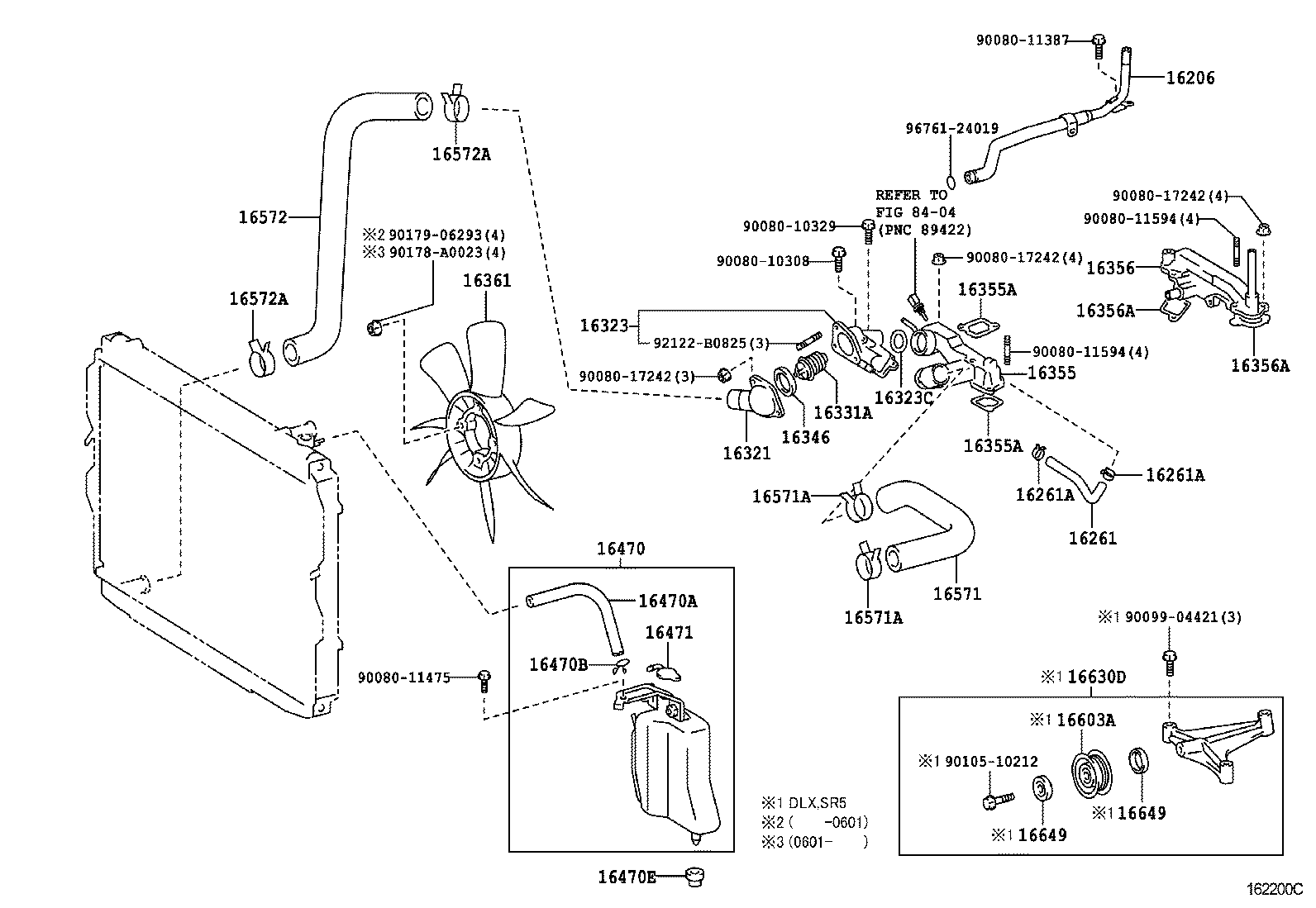

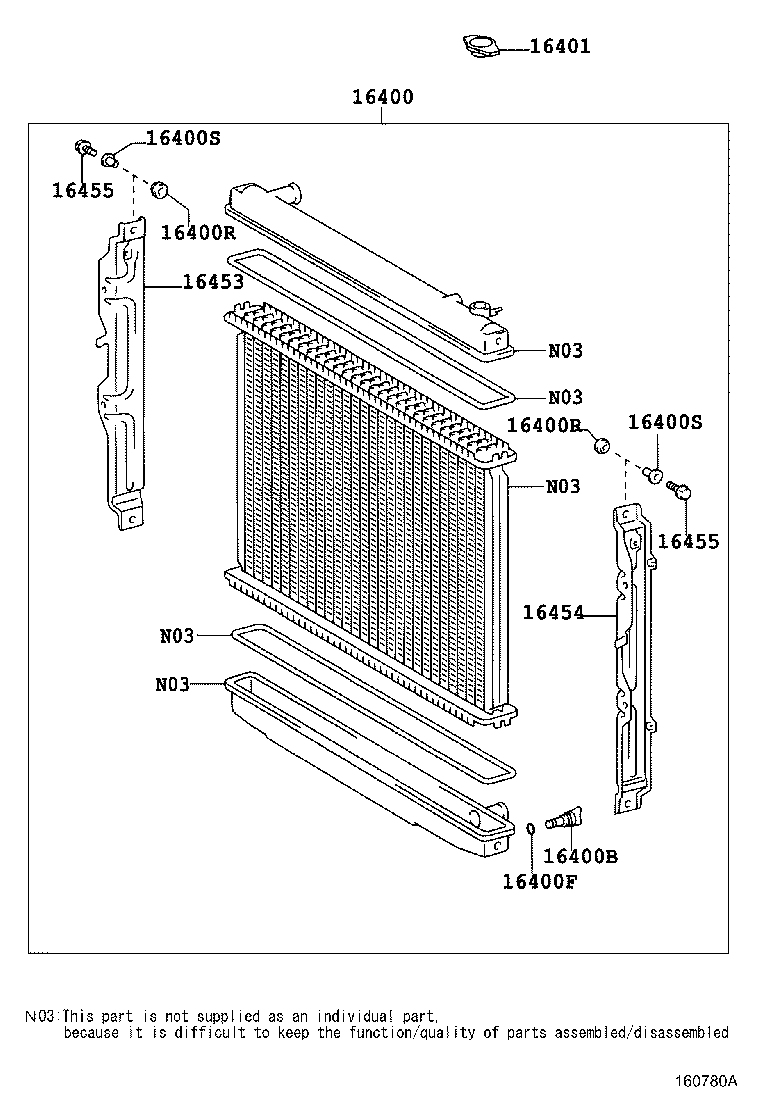

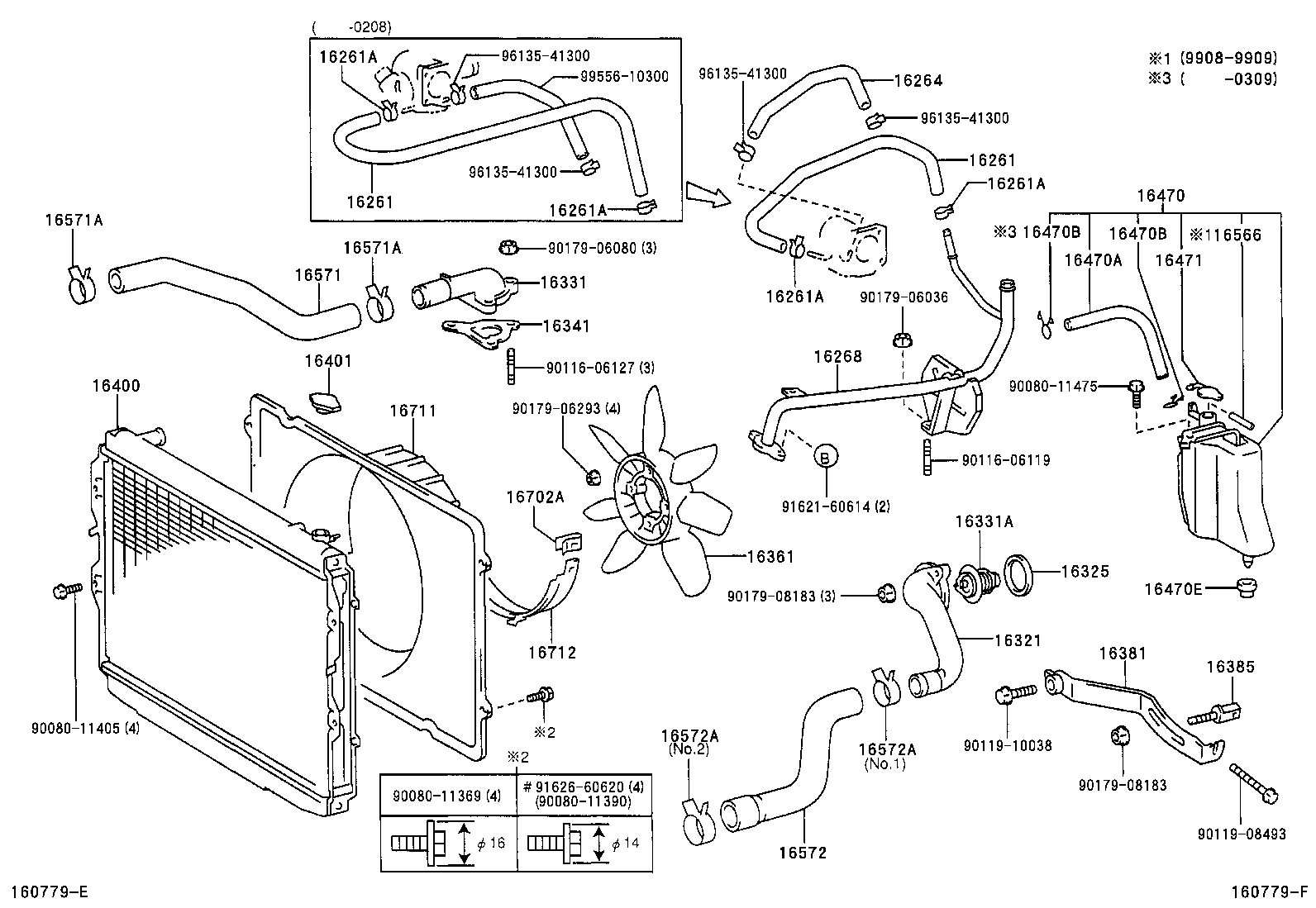

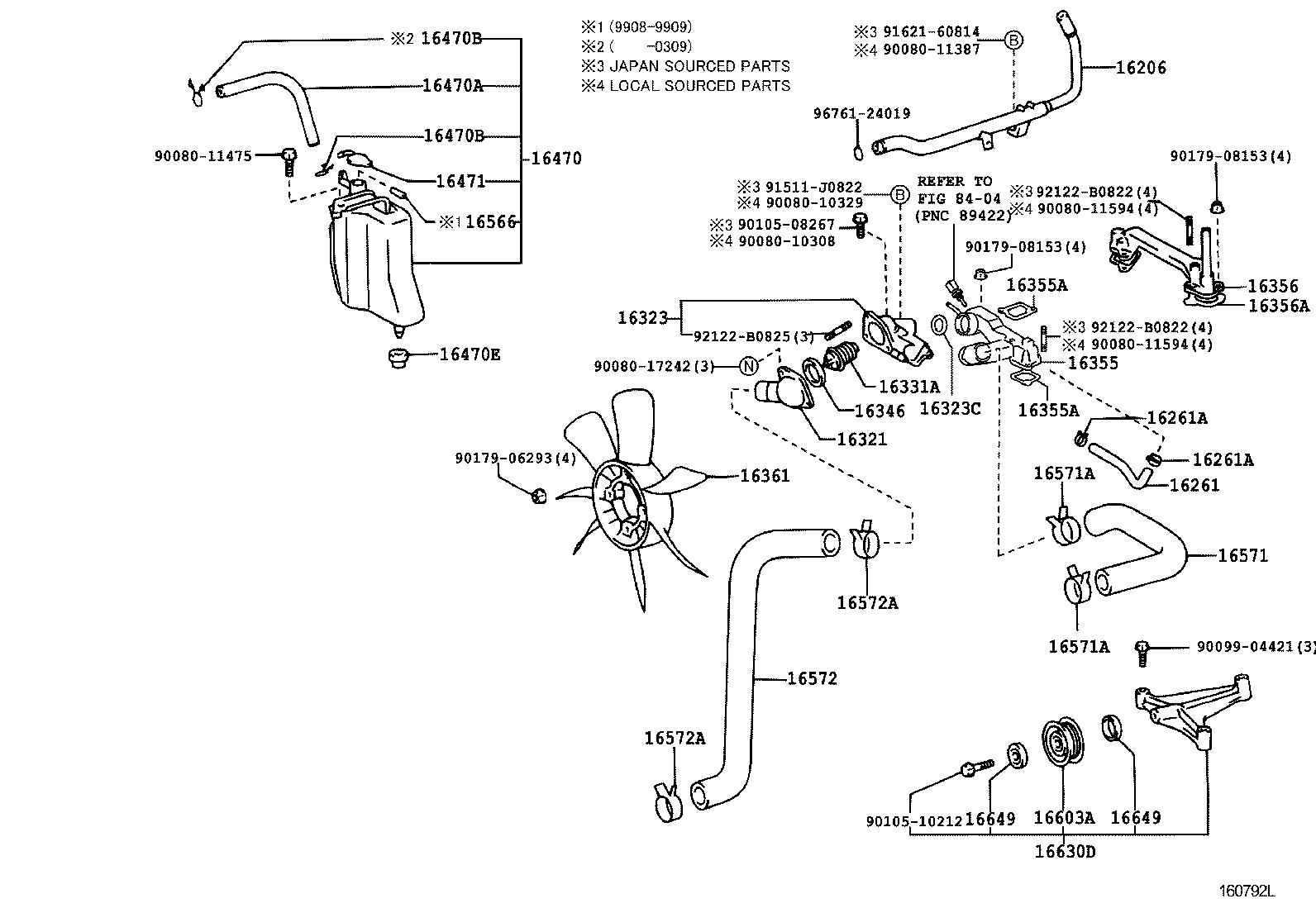

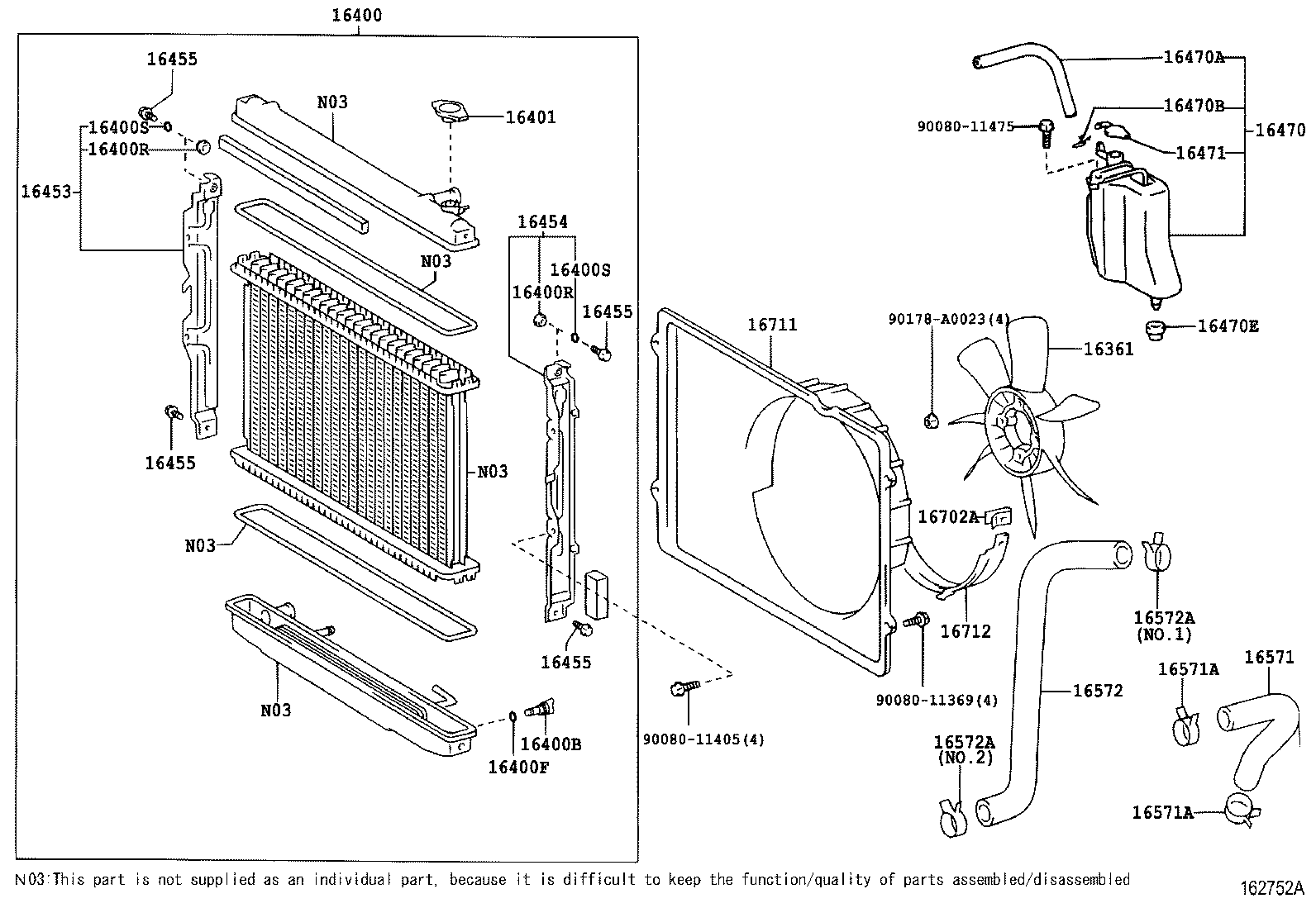

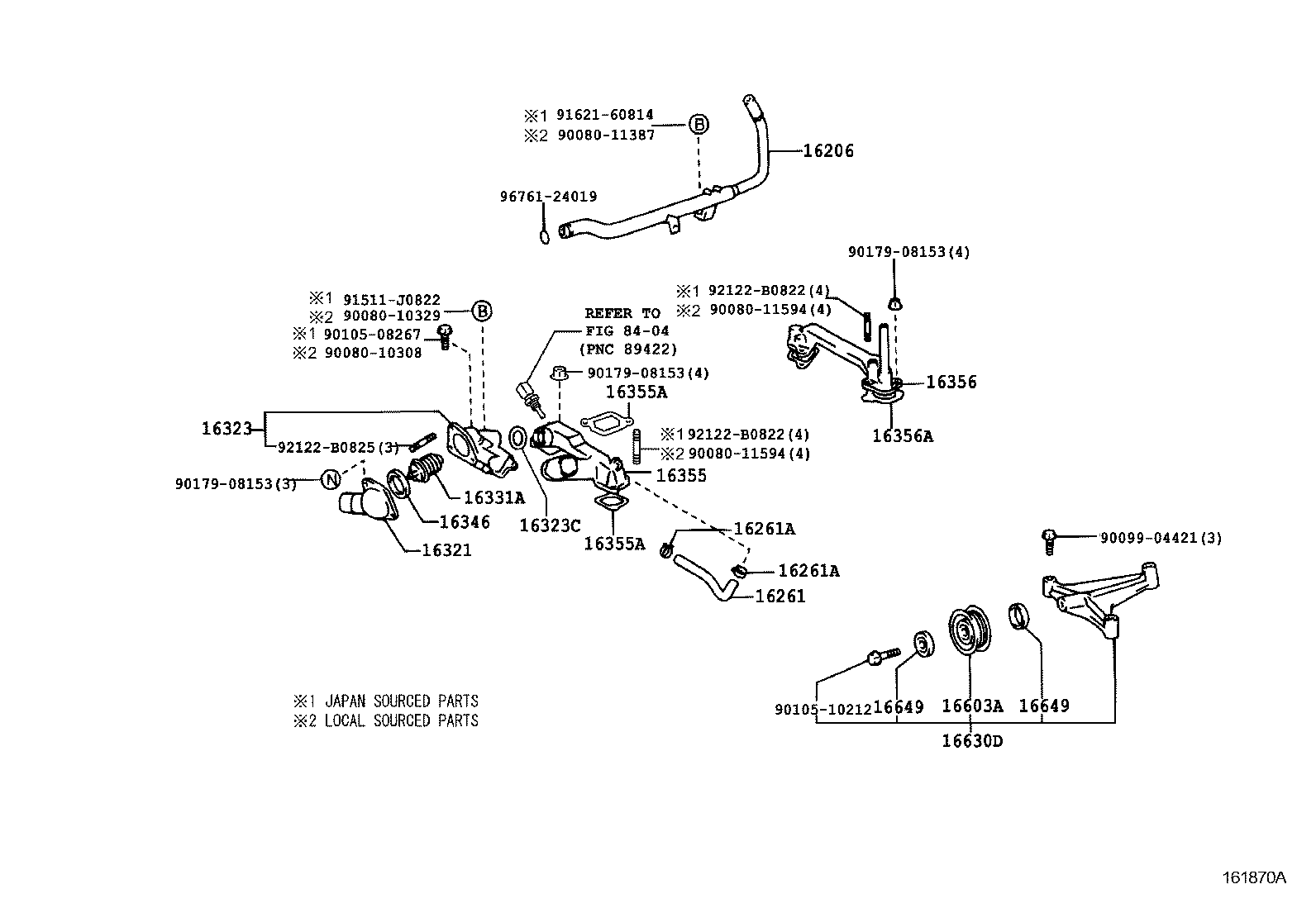

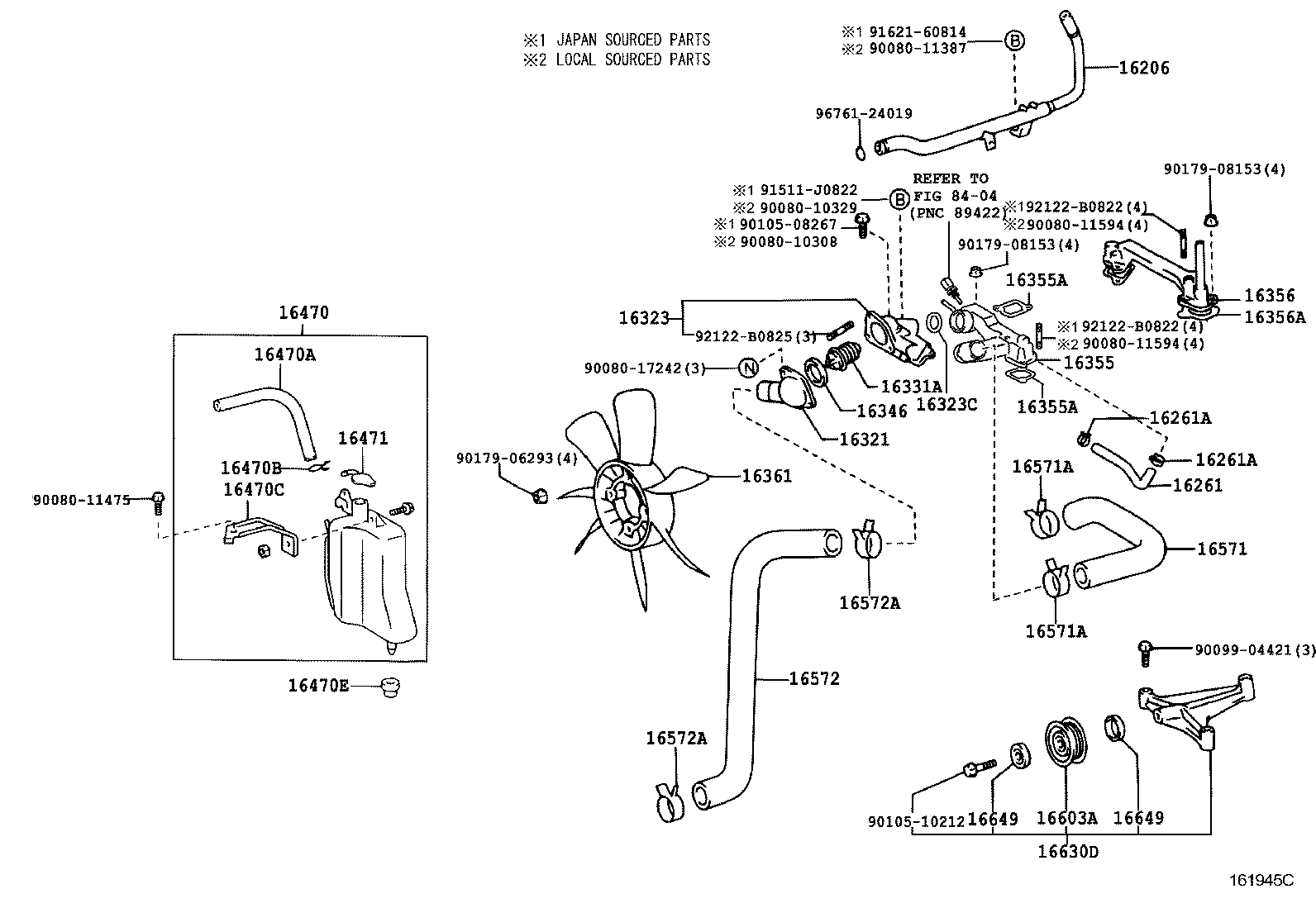

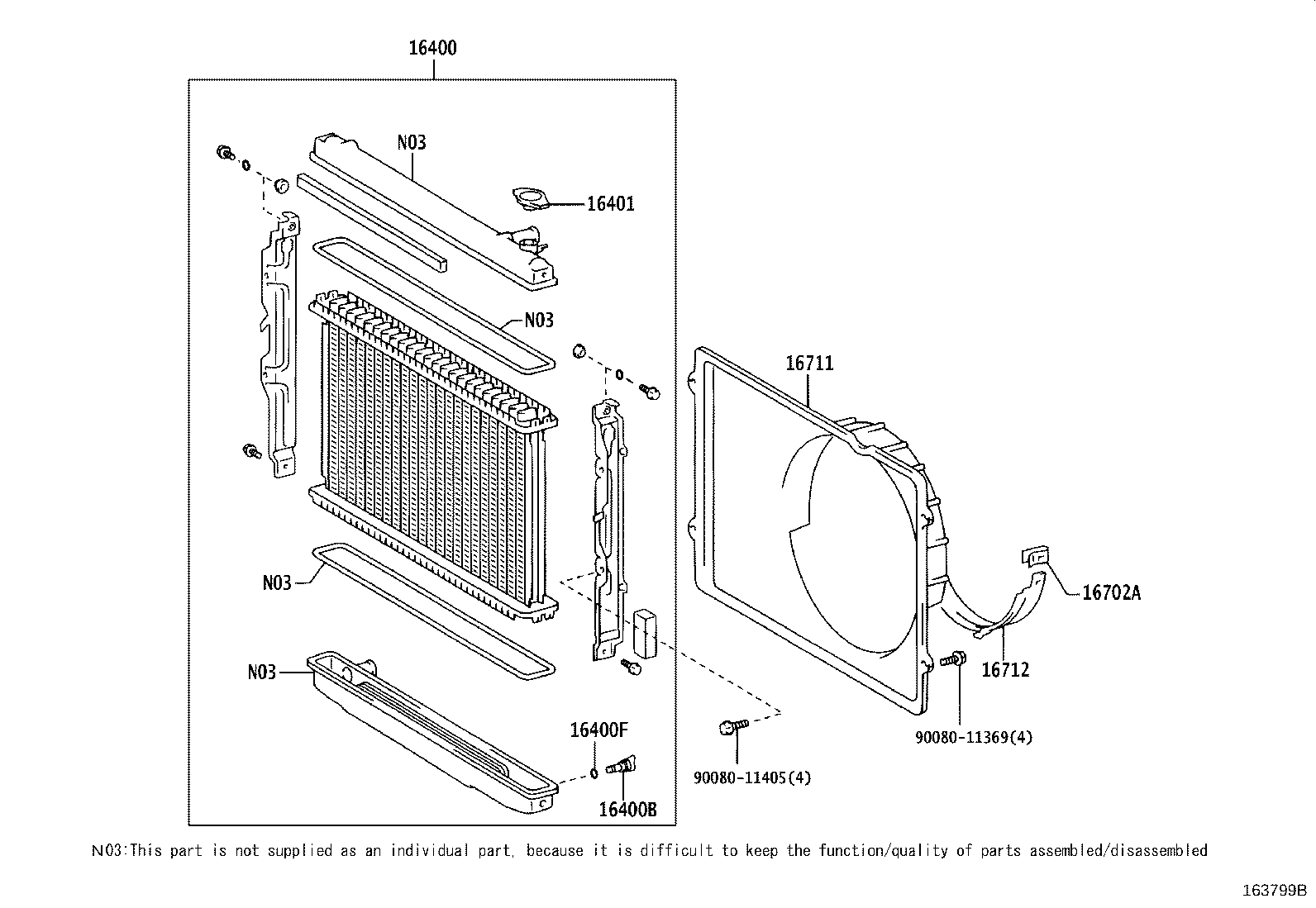

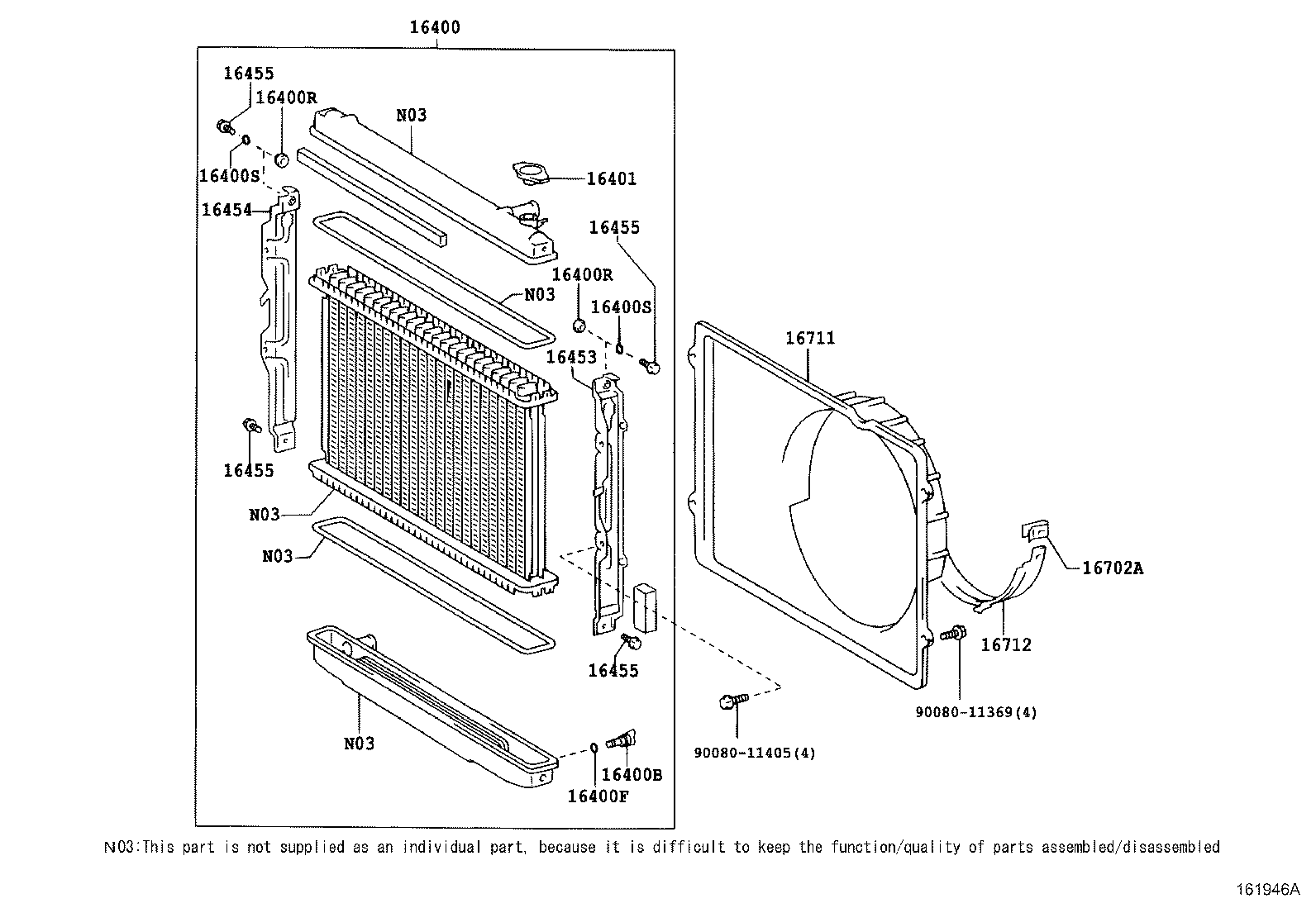

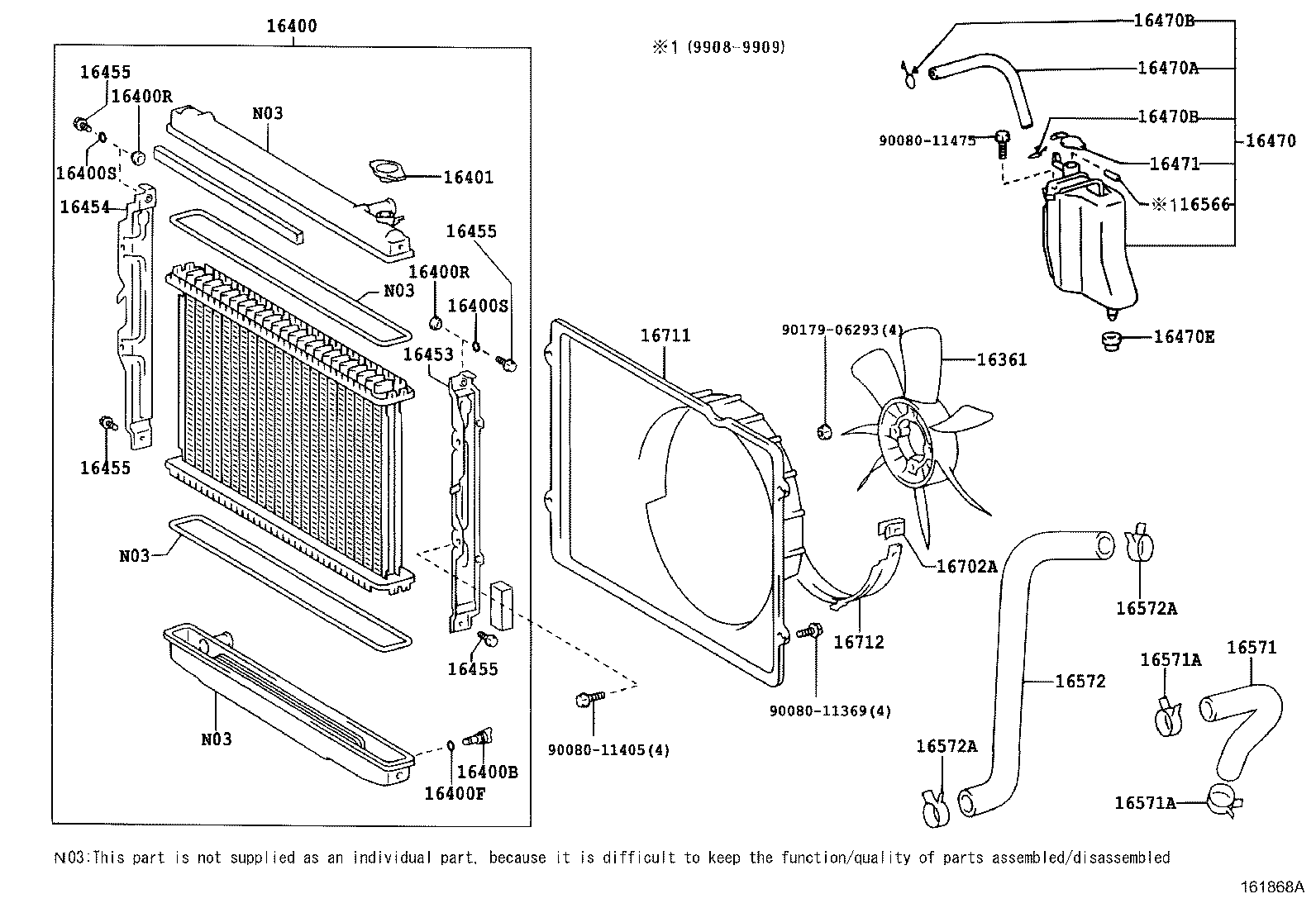

Figure 162205E 162205E 2004-08 → — Figure 162752A 162752A 2004-08 → — Figure 162204G 162204G 2004-08 → — Figure 161868A 161868A 1999-02 → 2002-08 Figure 161870A 161870A 1999-02 → 2002-08 Figure 160792L 160792L 2002-08 → 2004-08 Figure 163799B 163799B 2002-08 → 2004-08 Figure 161945C 161945C 2003-10 → 2004-08 Figure 161946A 161946A 2003-10 → 2004-08 Figure 162200C 162200C 2004-08 → — Figure 162201D 162201D 2004-08 → — Figure 160779F 160779F 1999-02 → — Figure 160780A 160780A 1999-02 → —

Part groups

PNCDescription
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16281 Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16321 Inlet, Water
16323 Housing, Water Inlet
16323C Ring, O(FOR WATER INLET HOUSING)
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16355 Joint, Water By-pass, Front
16355A Gasket(FOR WATER BY-PASS JOINT FRONT)
16356 Joint, Water By-pass, Rear
16356A Gasket(WATER BY-PASS JOINT, REAR)
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470E Grommet, Radiator Reserve Tank Hose
16471 Cap Sub-assy, Reserve Tank
16566 Hose, Reserve Tank Outlet
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16603A Pulley Sub-assy, Idler, NO.1
16630D Pulley Assy, Idler
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16702A Clip(FOR FAN SHROUD NO.2)
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
