Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

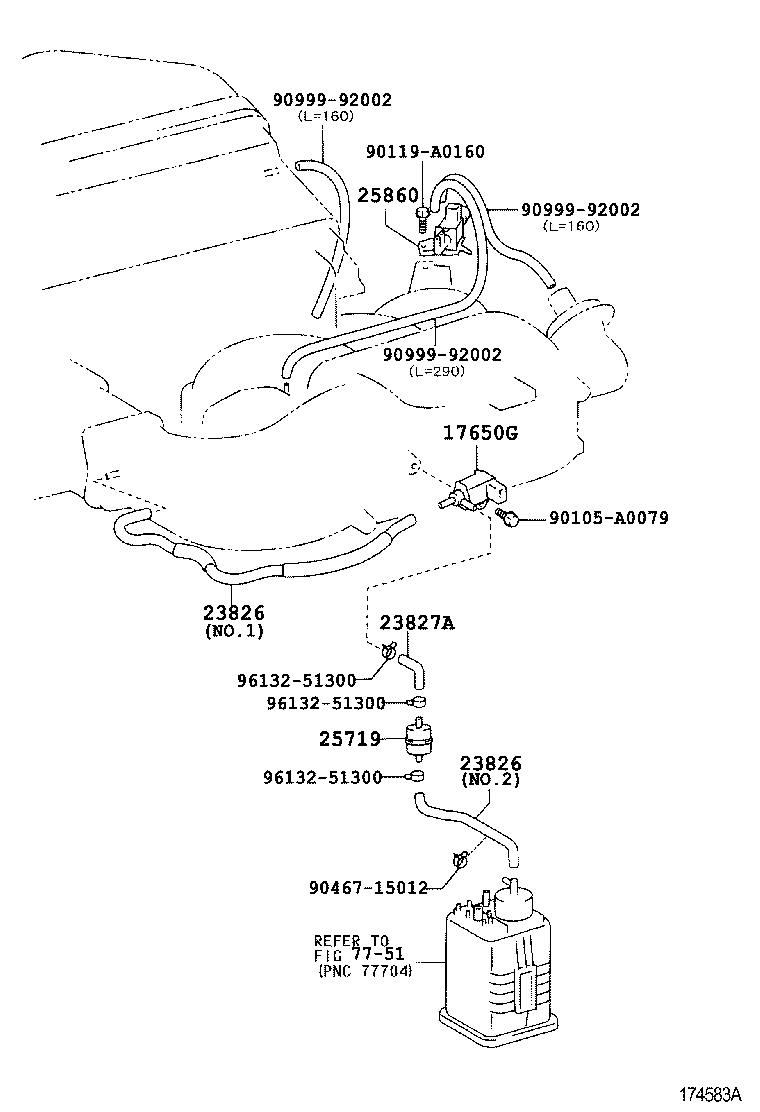

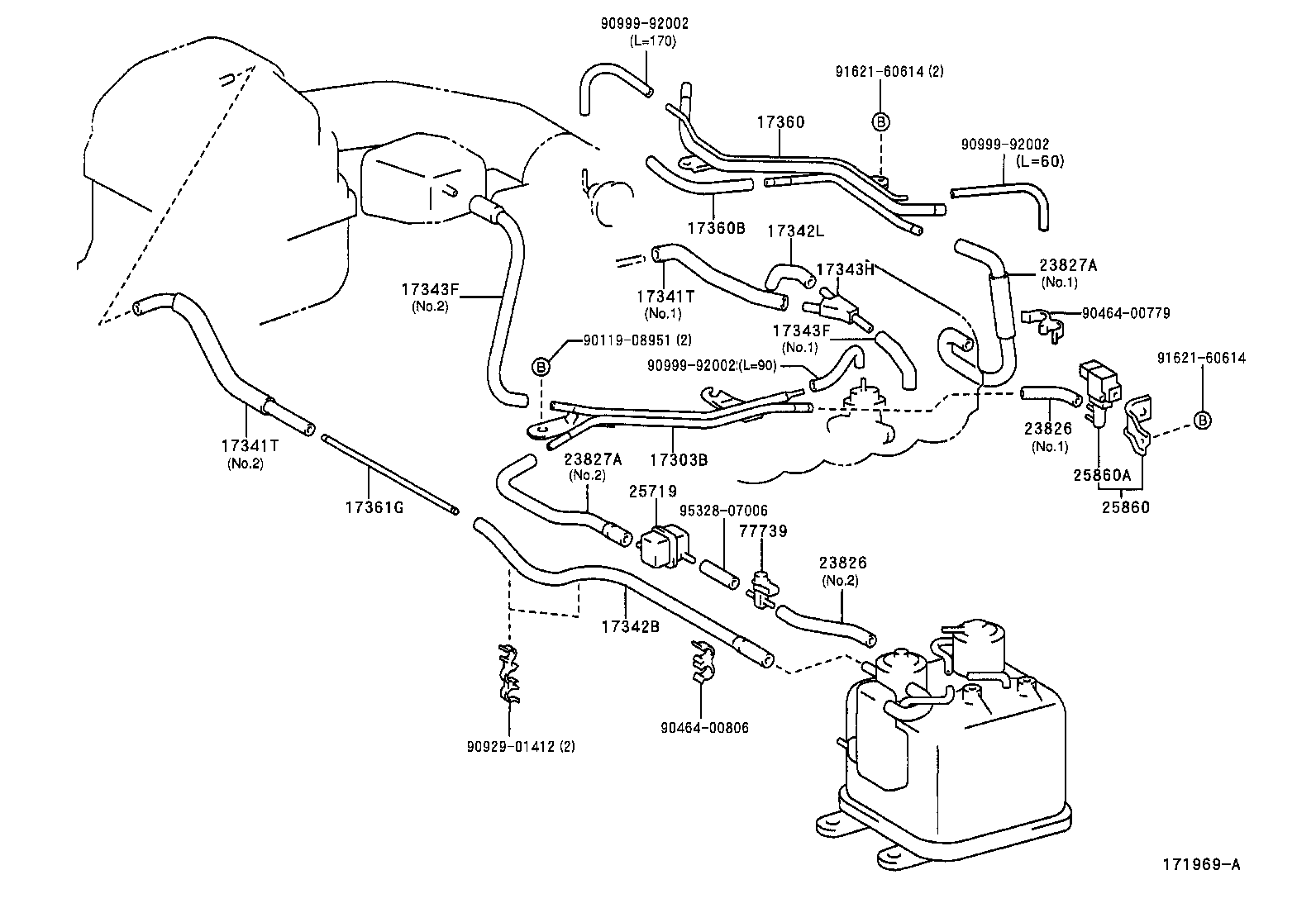

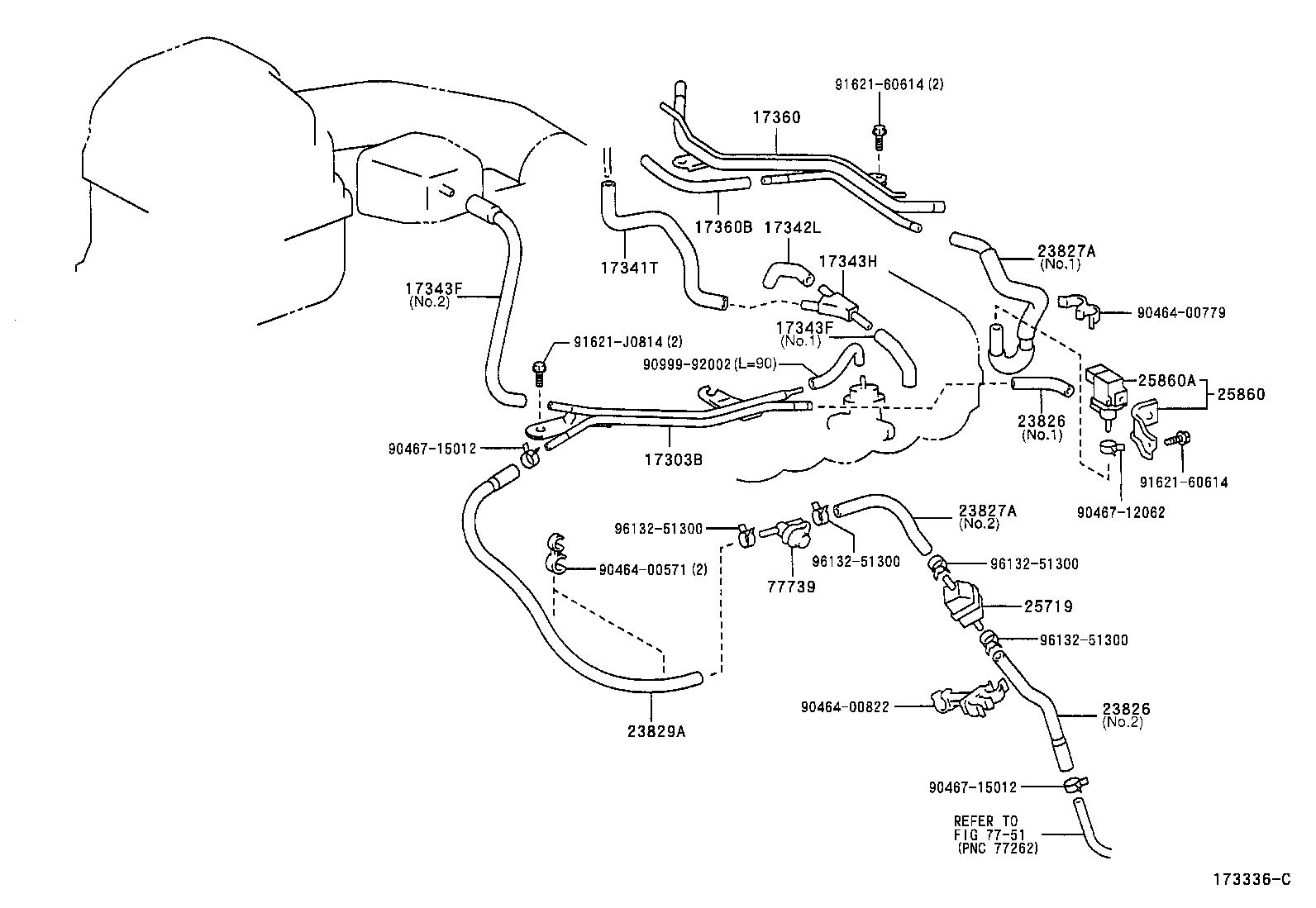

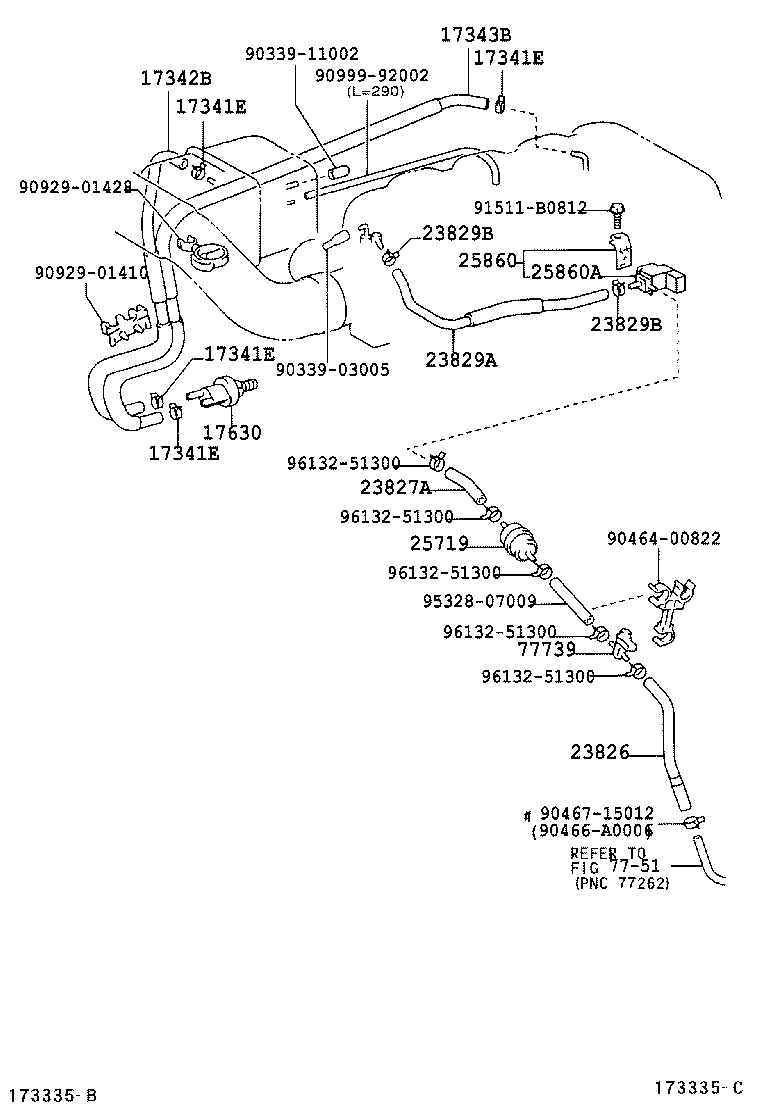

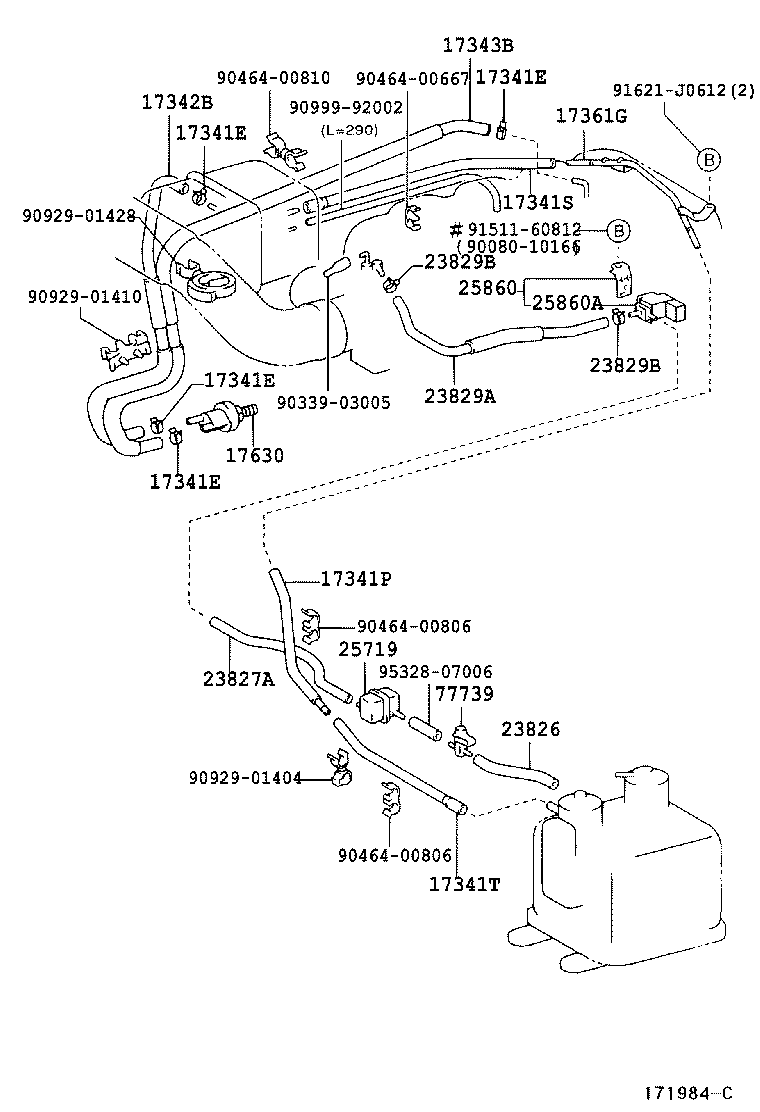

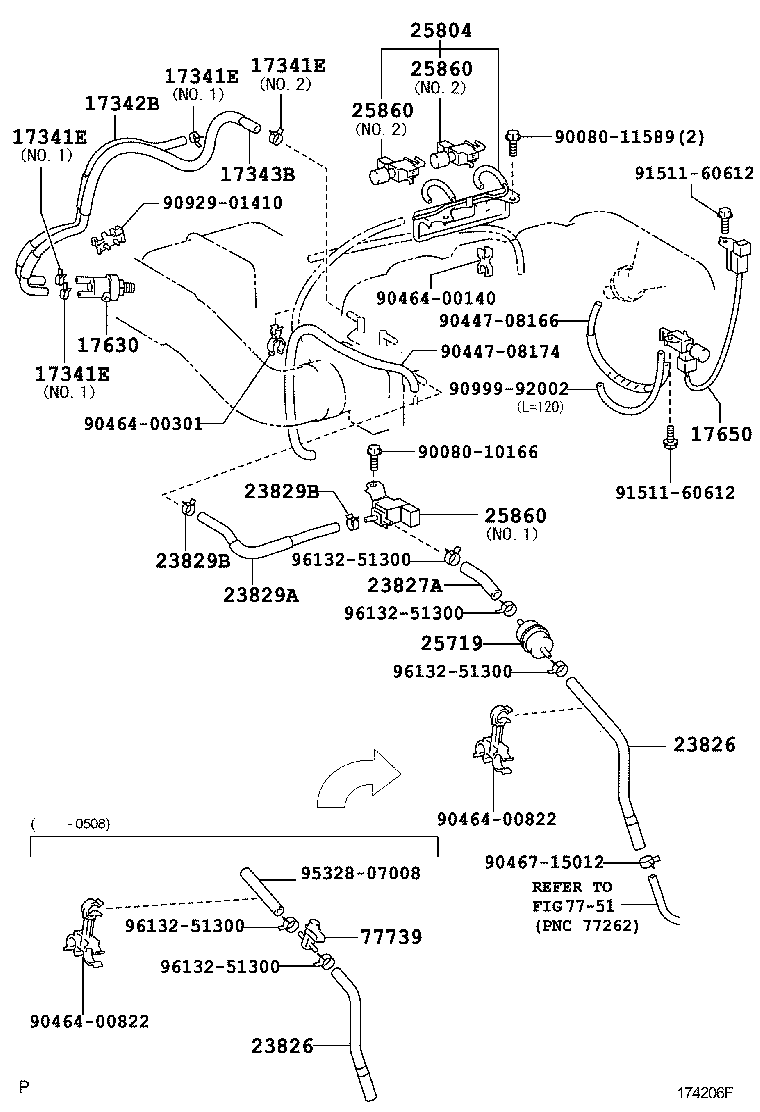

Vacuum Piping
25 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17341P | Hose, Air |
| 17341S | Hose, Air |
| 17341T | Hose, Air, NO.1 |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342L | Hose, Air, NO.2 |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343F | Hose, Air, NO.3 |
| 17343H | Way, 3(FOR AIR HOSE) |
| 17360 | Tube Assy, Air |
| 17360B | Hose(FOR AIR PIPE) |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25719 | Tank, Vacuum Surge |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
