Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

9 part groups · 3 illustrations

Illustrations

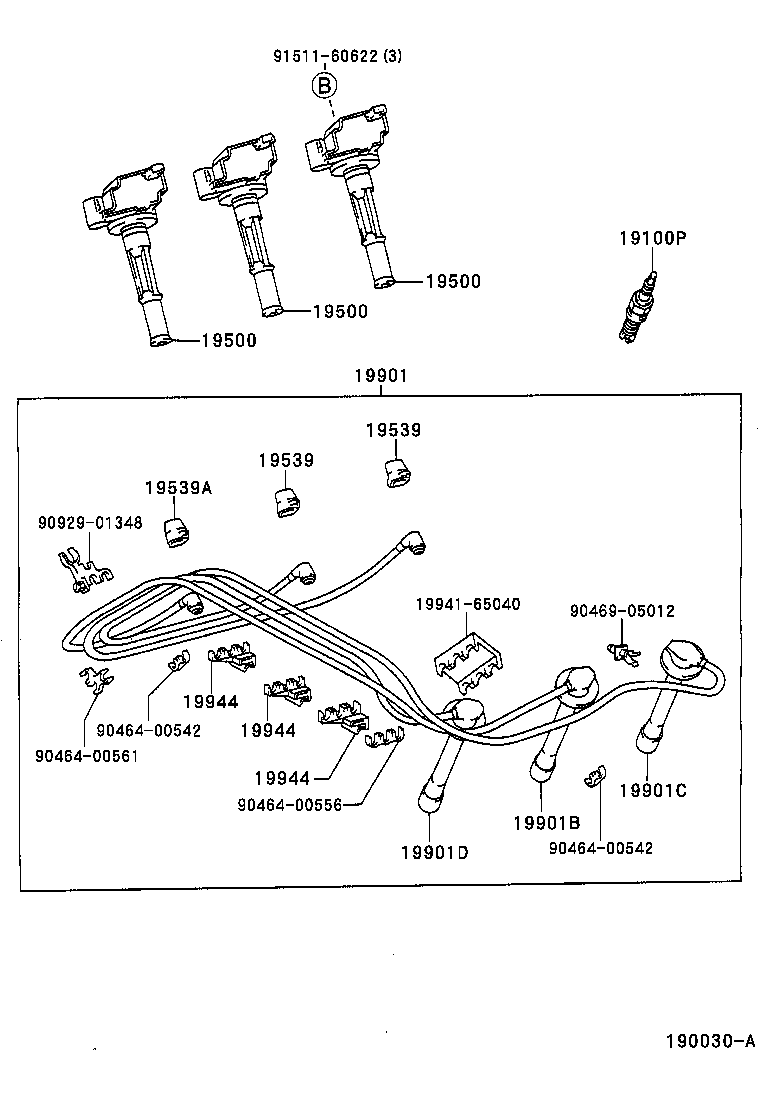

Figure 193270 193270 2004-08 → — Figure 190500D 190500D 1999-02 → — Figure 190030A 190030A 1999-02 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19944 Plate, Resistive Cord Clamp Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
