Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

29 part groups · 7 illustrations

Illustrations

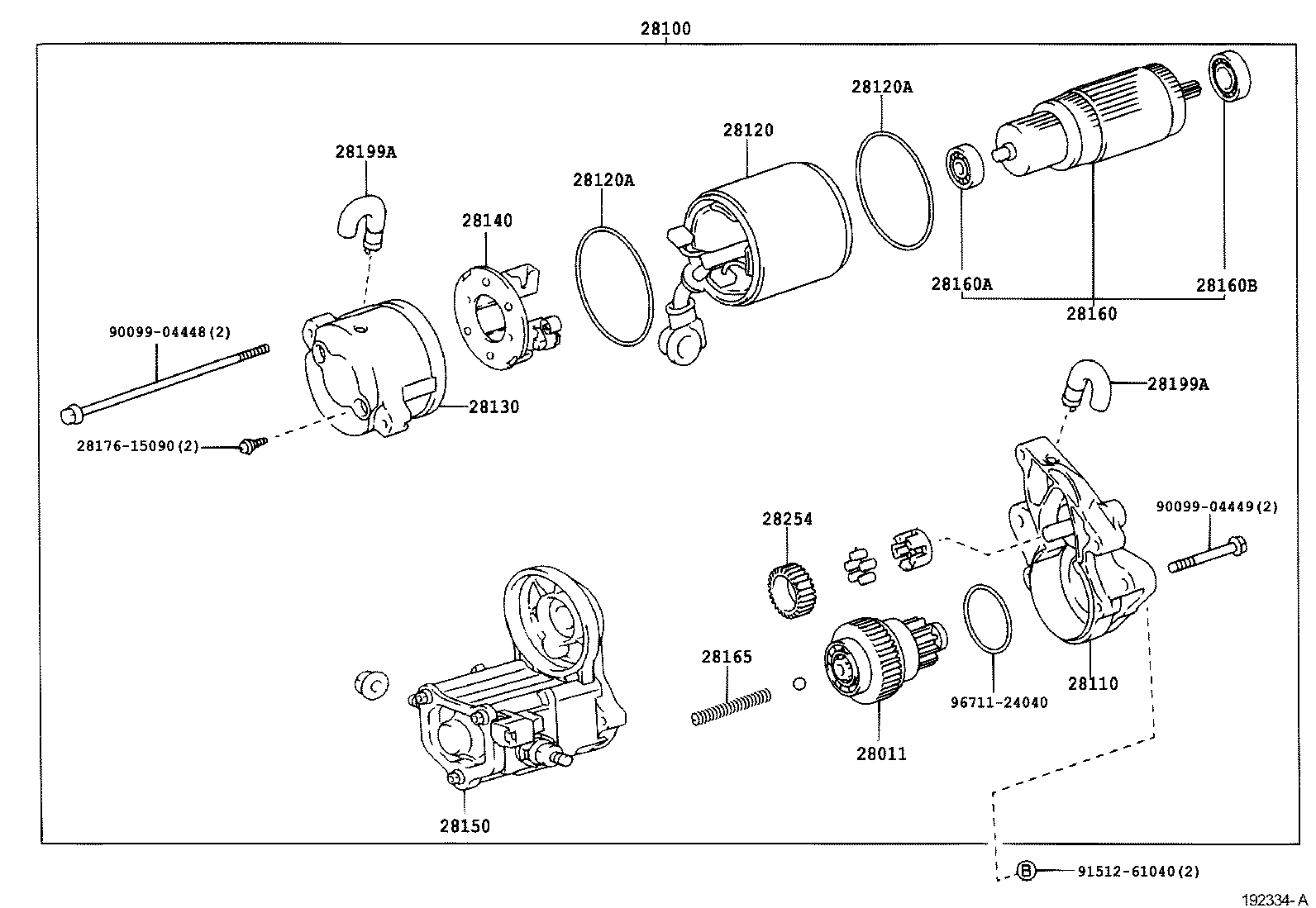

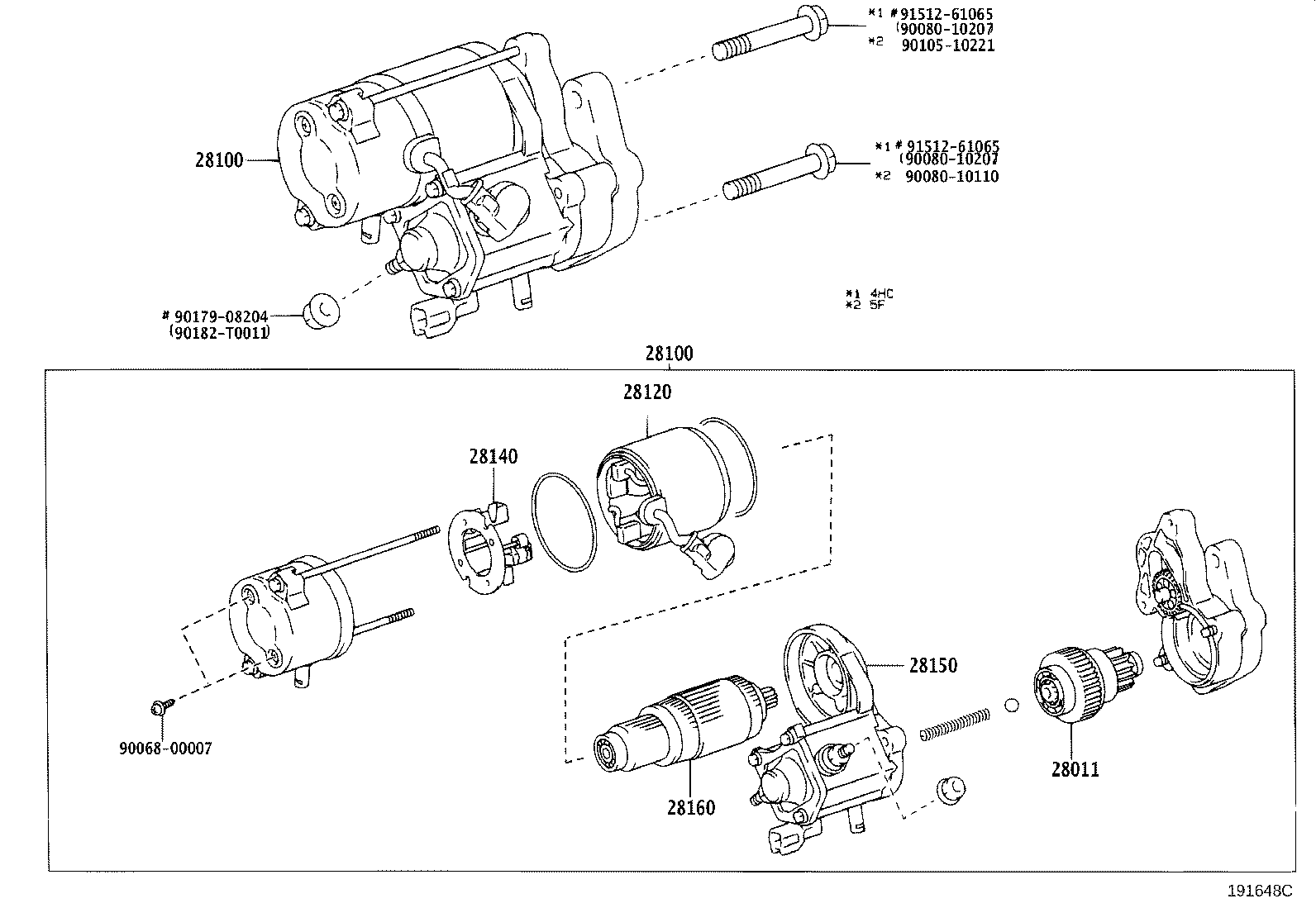

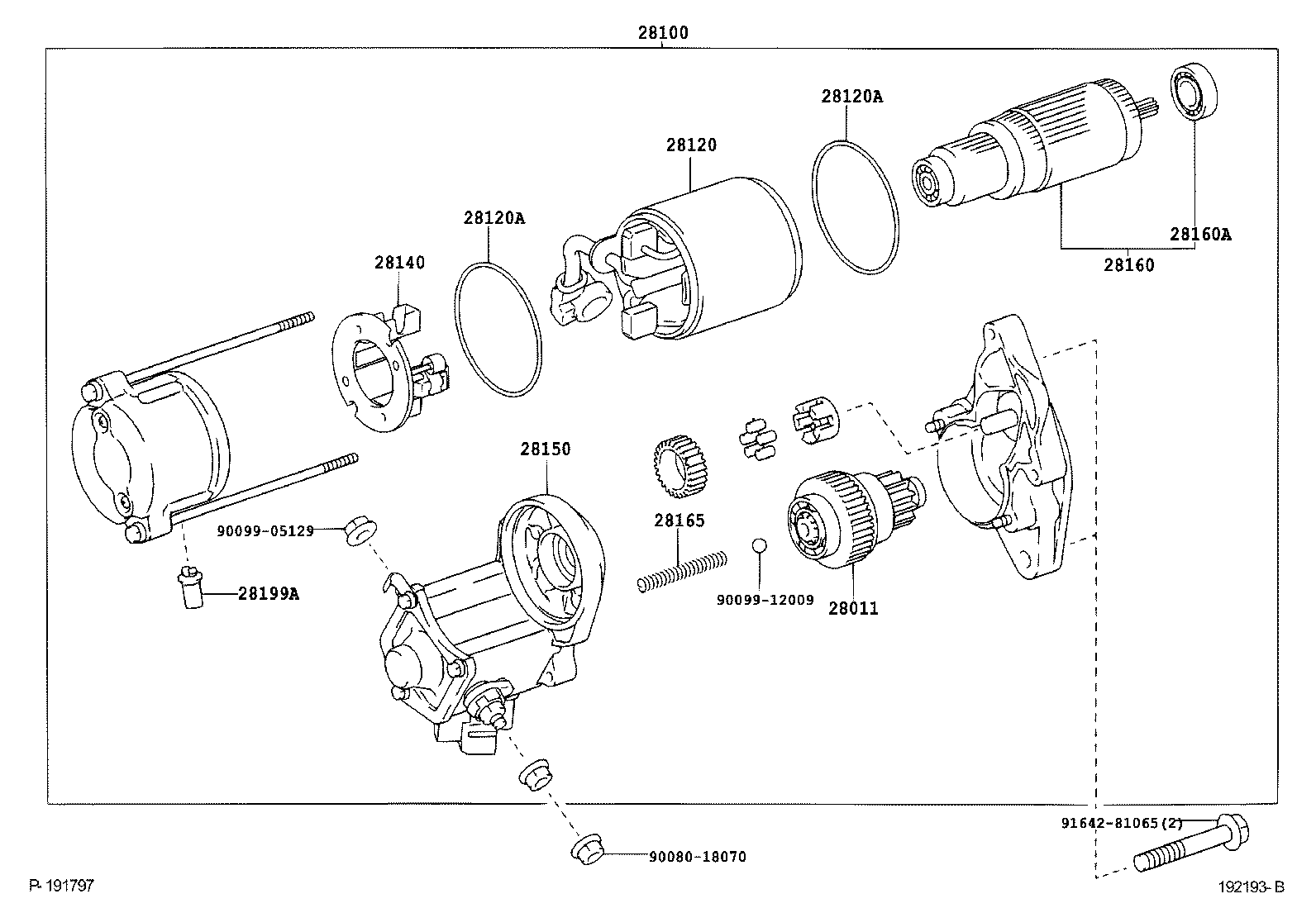

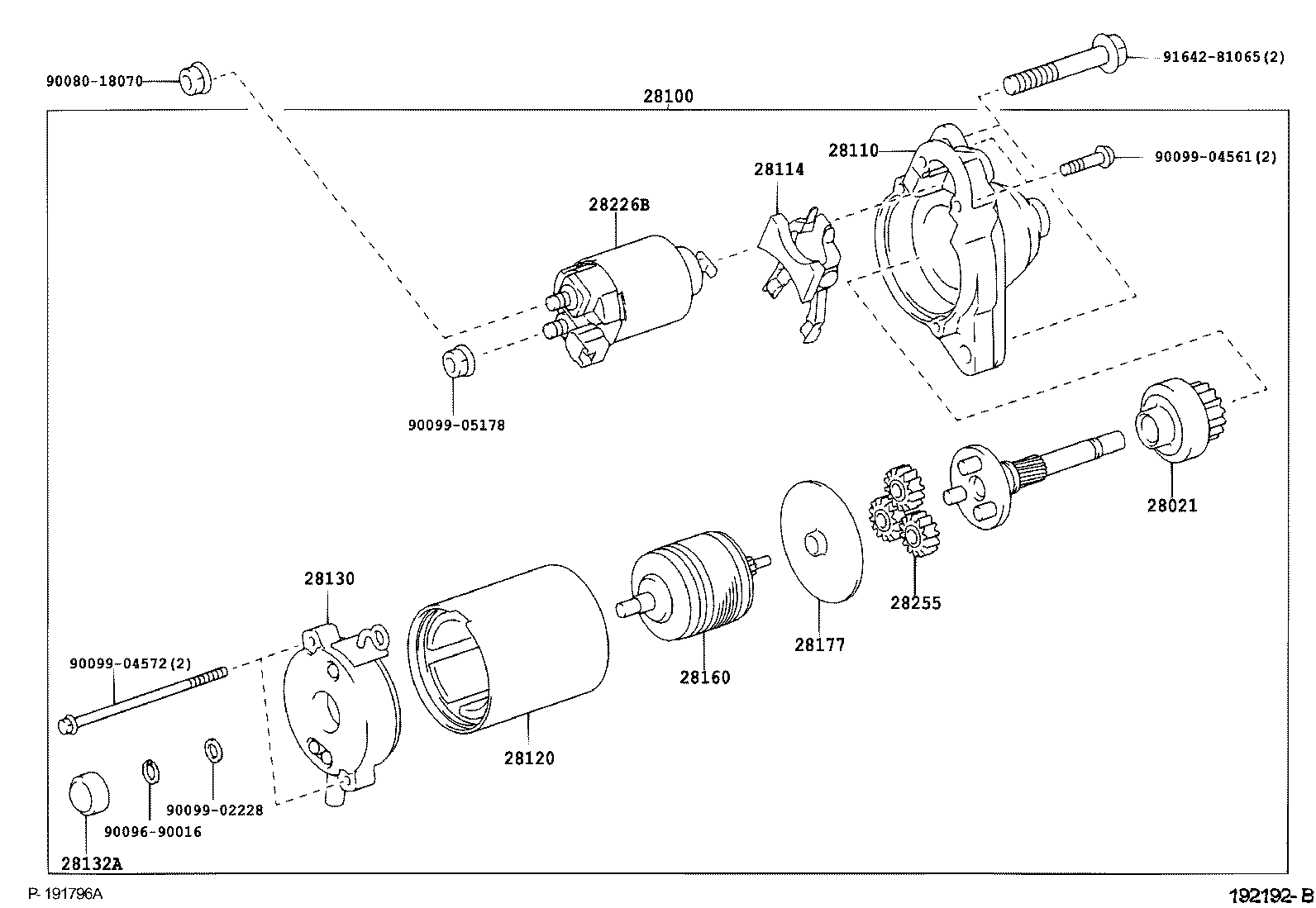

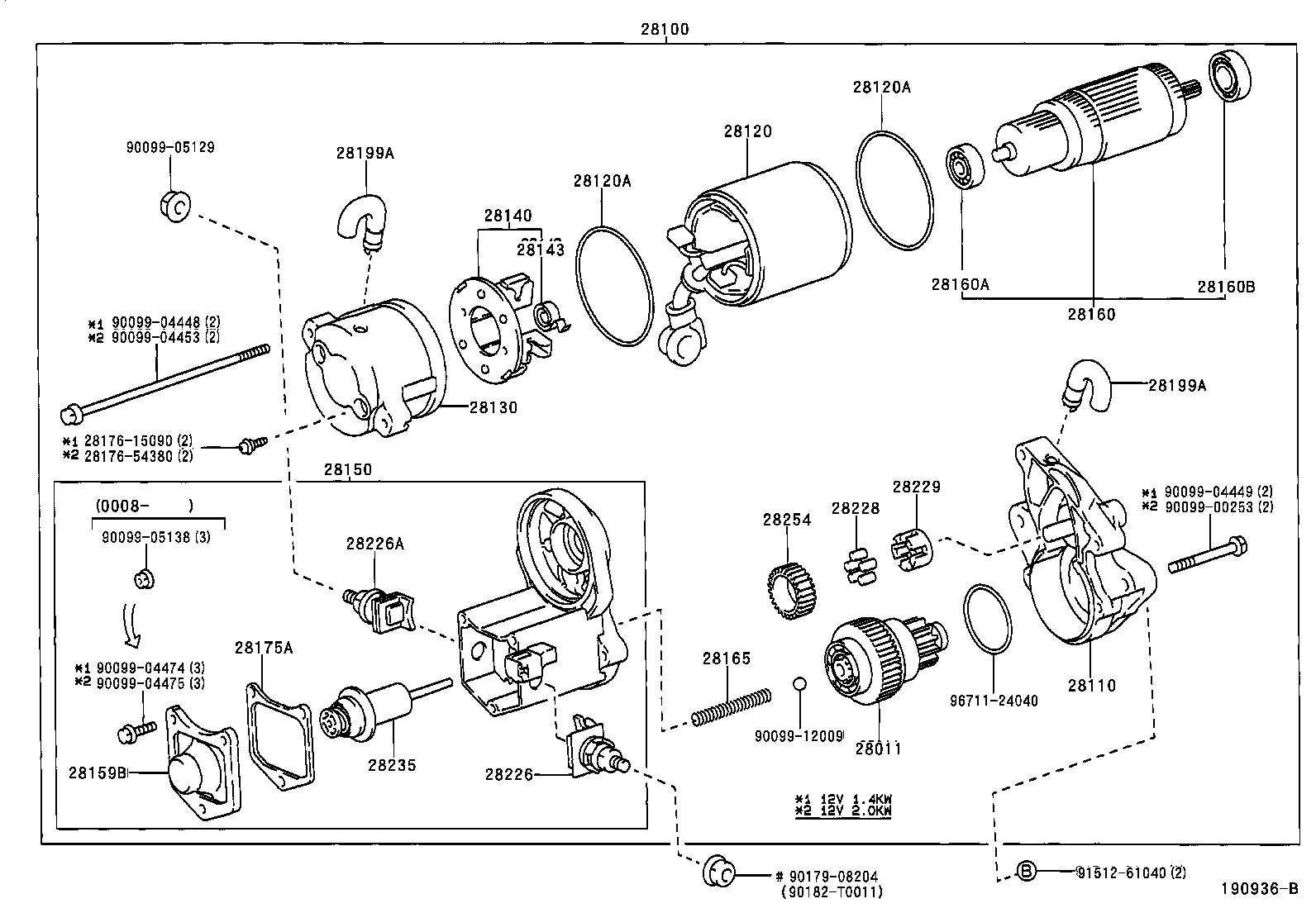

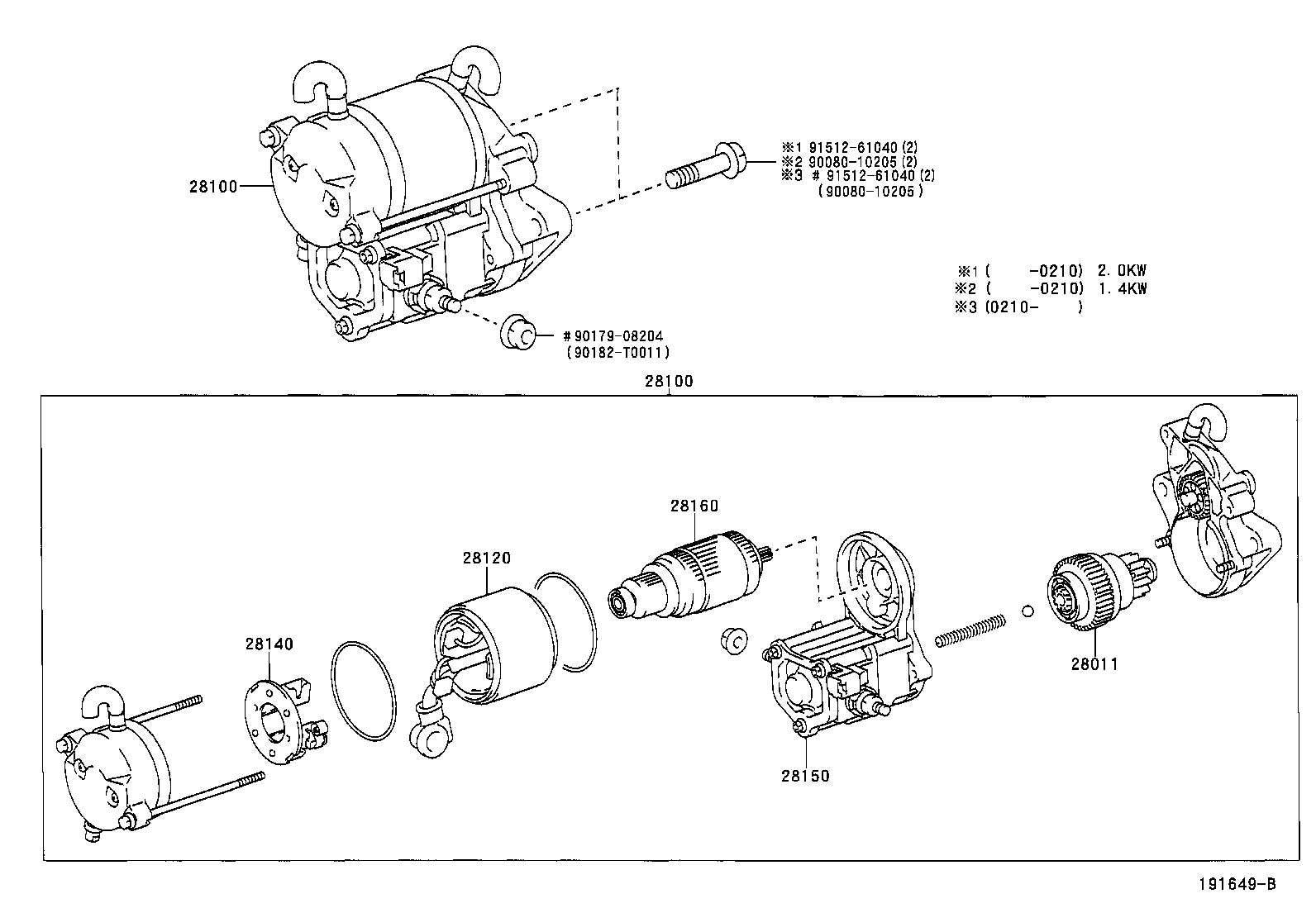

Figure 190935A 190935A 1999-02 → 2002-08 Figure 190936B 190936B 1999-02 → 2002-08 Figure 191648C 191648C 2002-08 → 2004-08 Figure 191649B 191649B 2002-08 → — Figure 192334A 192334A 2004-08 → — Figure 192192B 192192B 2004-08 → — Figure 192193B 192193B 2004-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28226B Starter Kit, Repair Service
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28254 Pinion, Starter Idle Gear
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
