Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

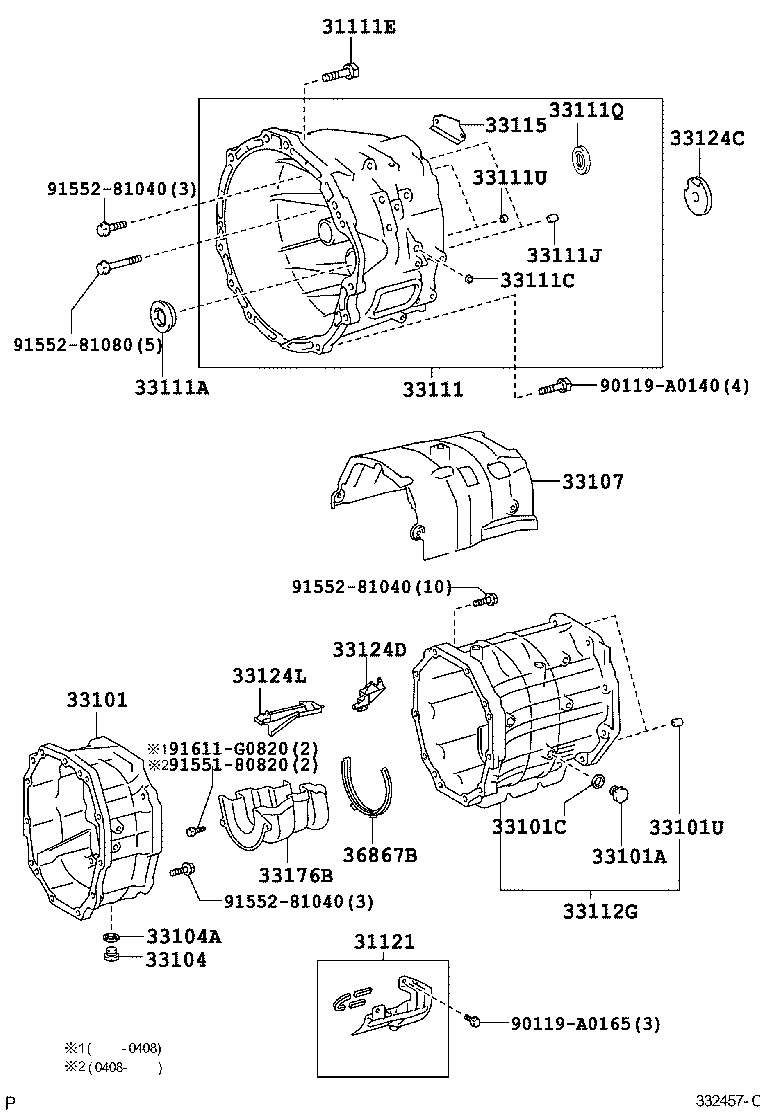

Clutch Housing & Transmission Case (MTM)
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31111E | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 31121 | Cover, Clutch Housing, NO.1 |
| 33101 | Case Sub-assy, Manual Transmission |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33107 | Cover Sub-assy, Transmission, Upper |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33112G | Case, Transmission, Rear |
| 33115 | Plate, Transmission Oil Filter |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124L | Pipe, Oil Receiver, N0.3(MTM) |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33176B | Separator, Transmission Oil(MTM) |
| 33449B | Magnet, Transmission |
| 36867B | Seal, Packing (FOR OIL SEPARATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
