Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

31 part groups · 10 illustrations

Illustrations

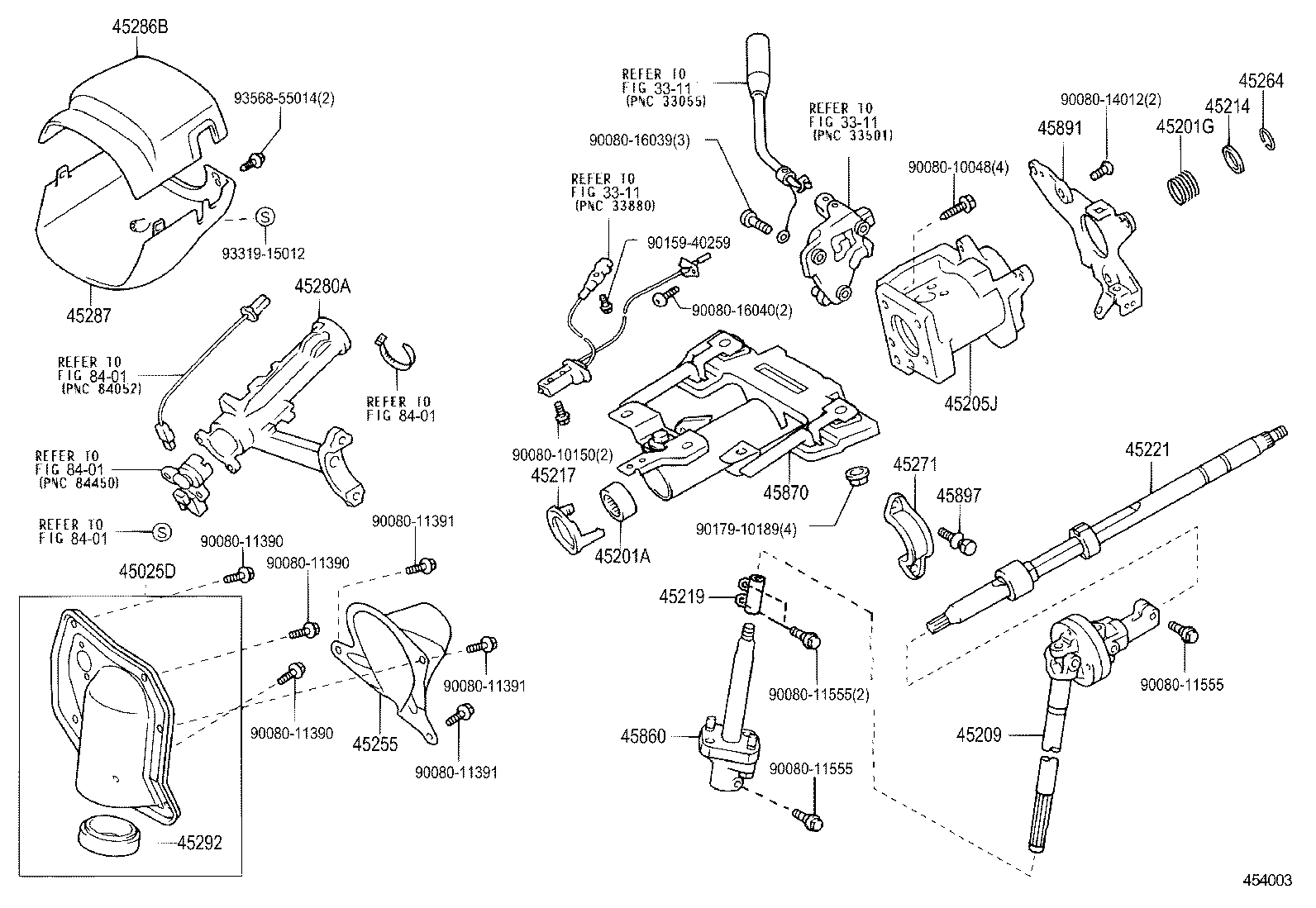

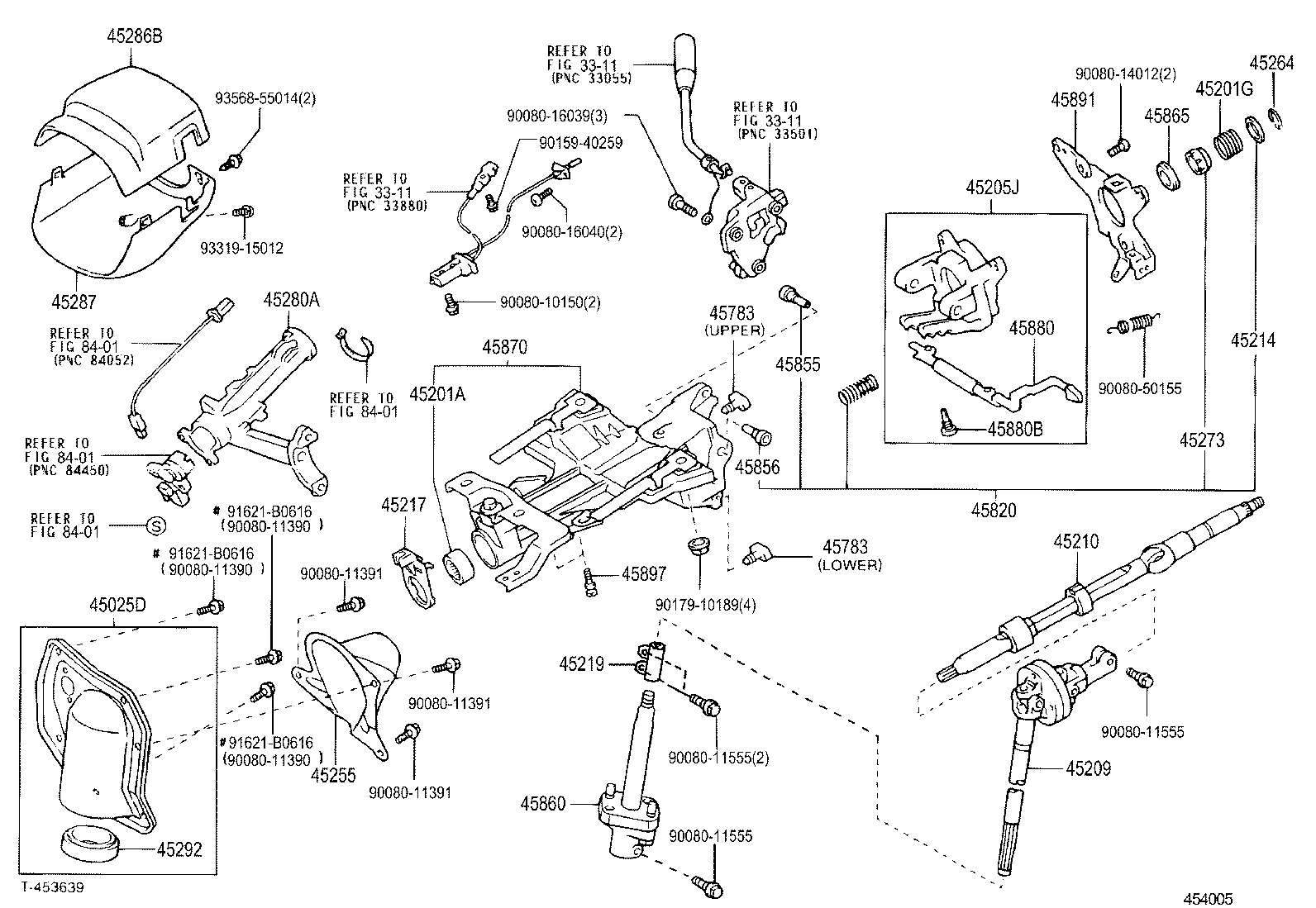

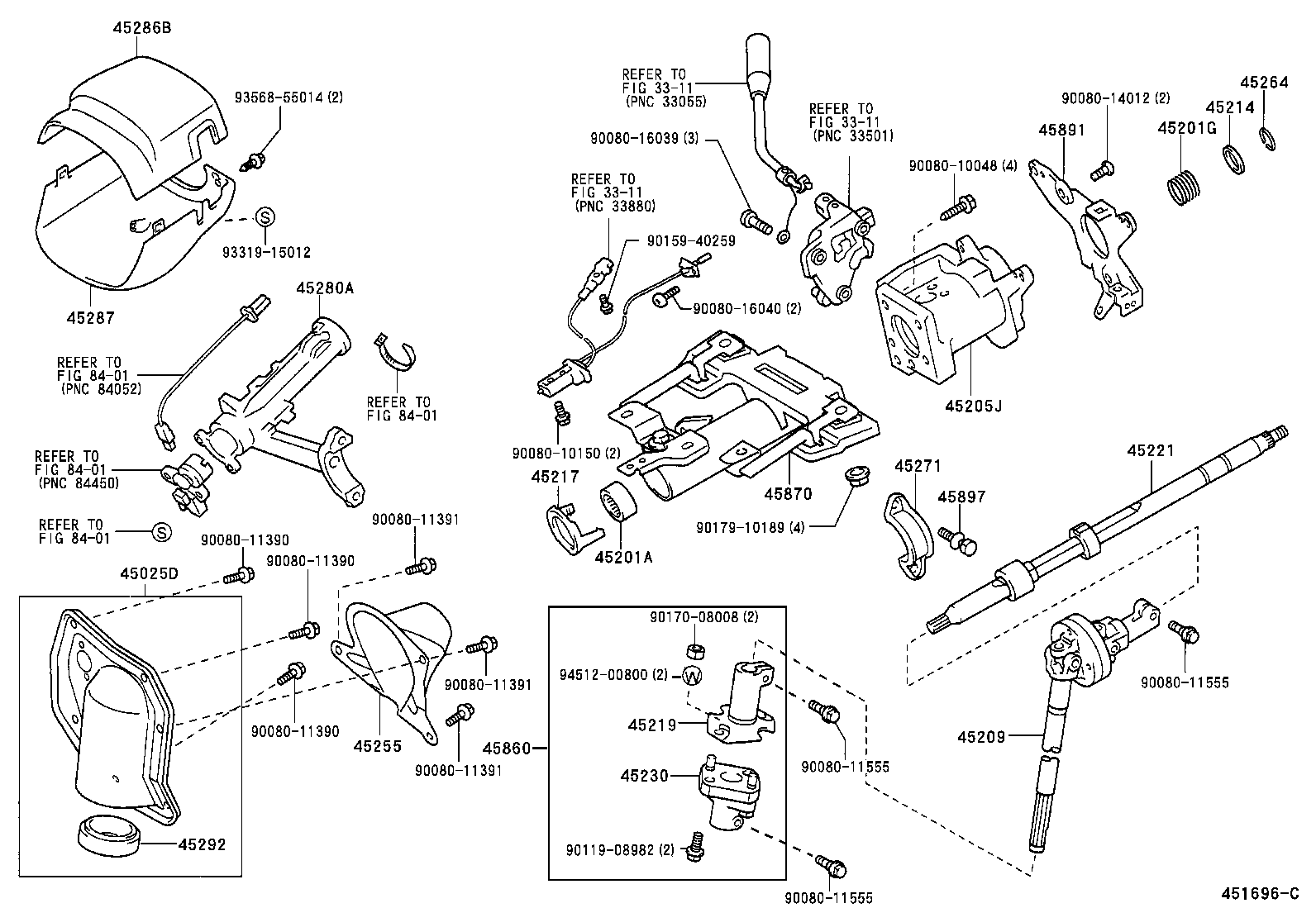

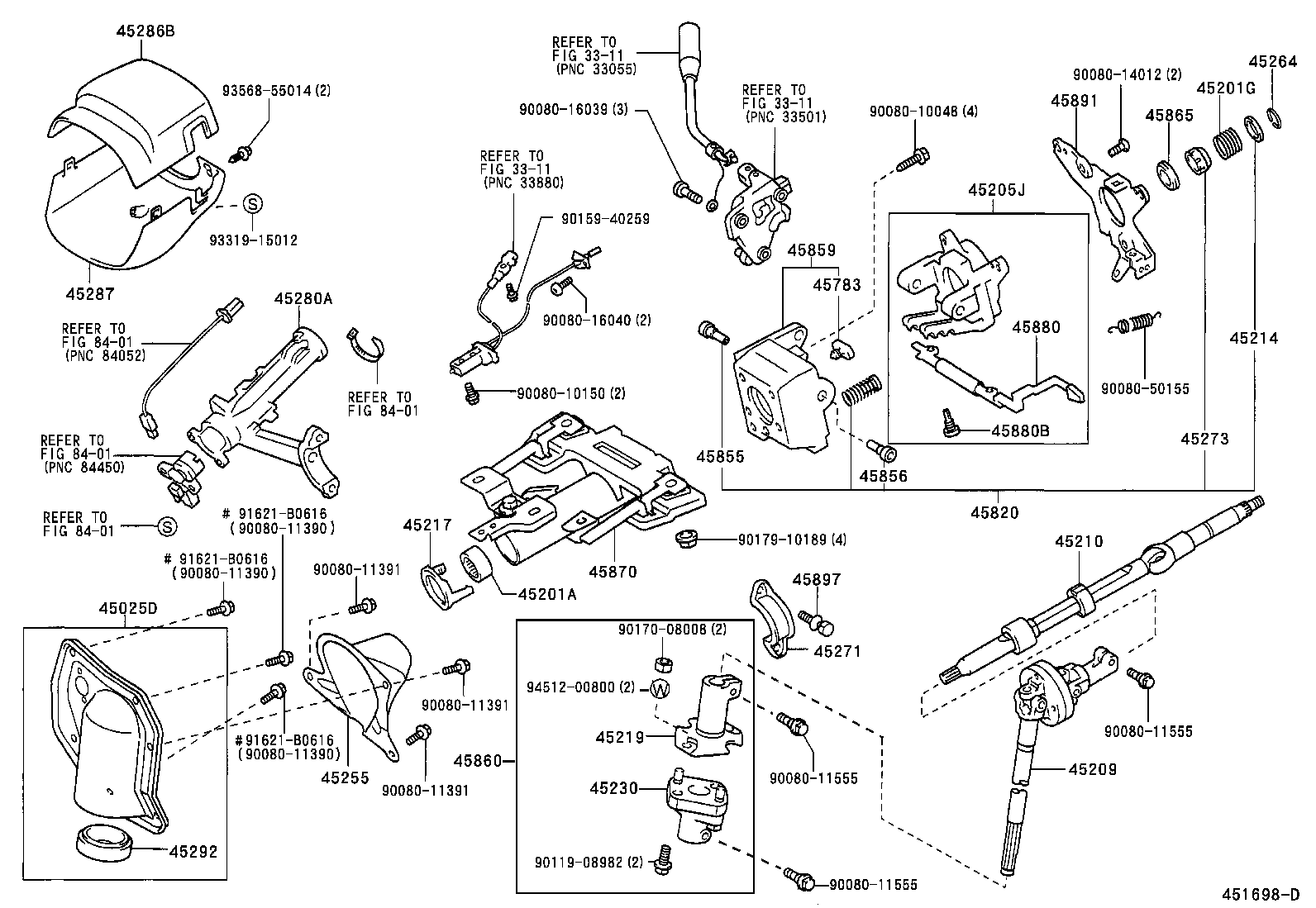

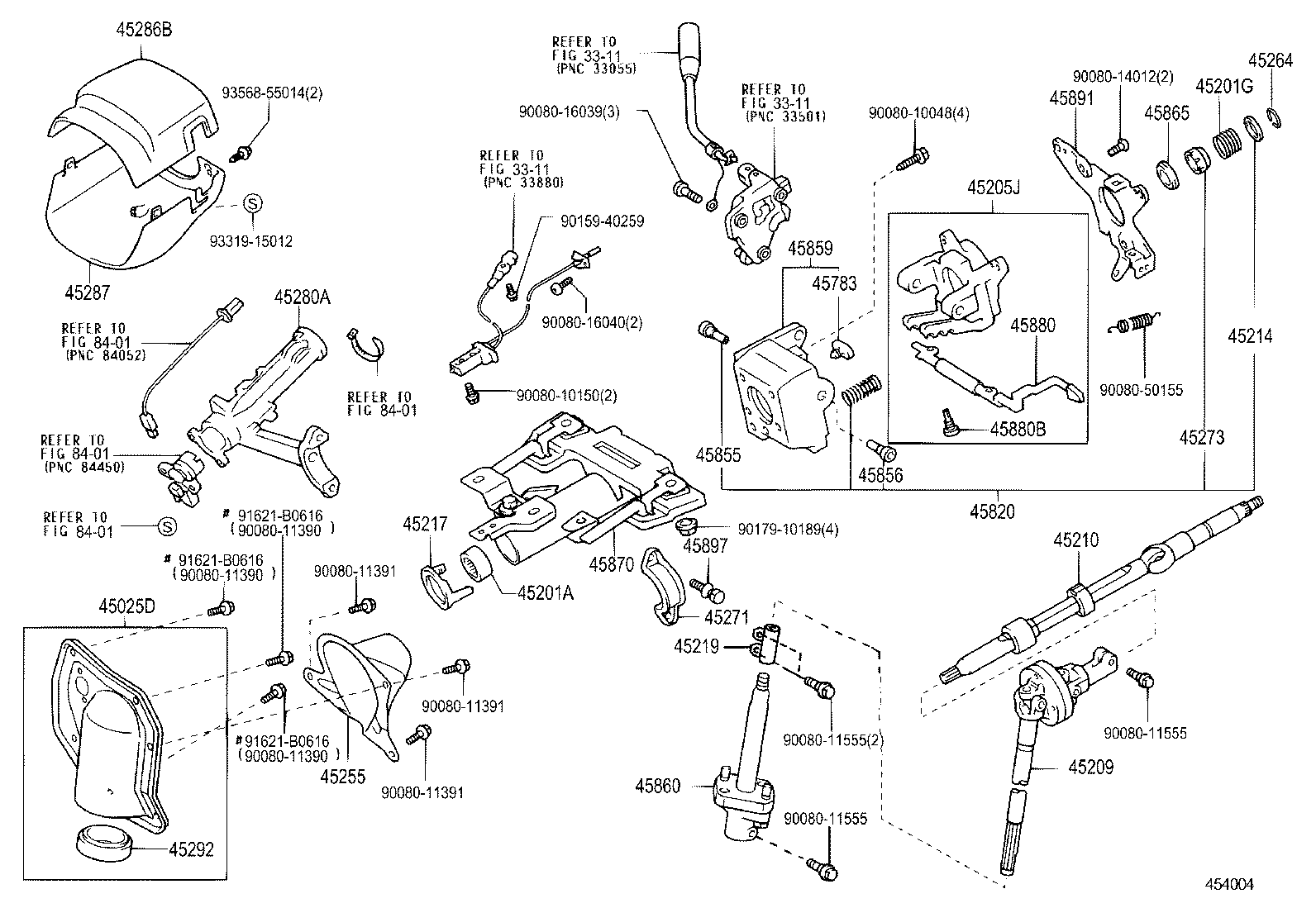

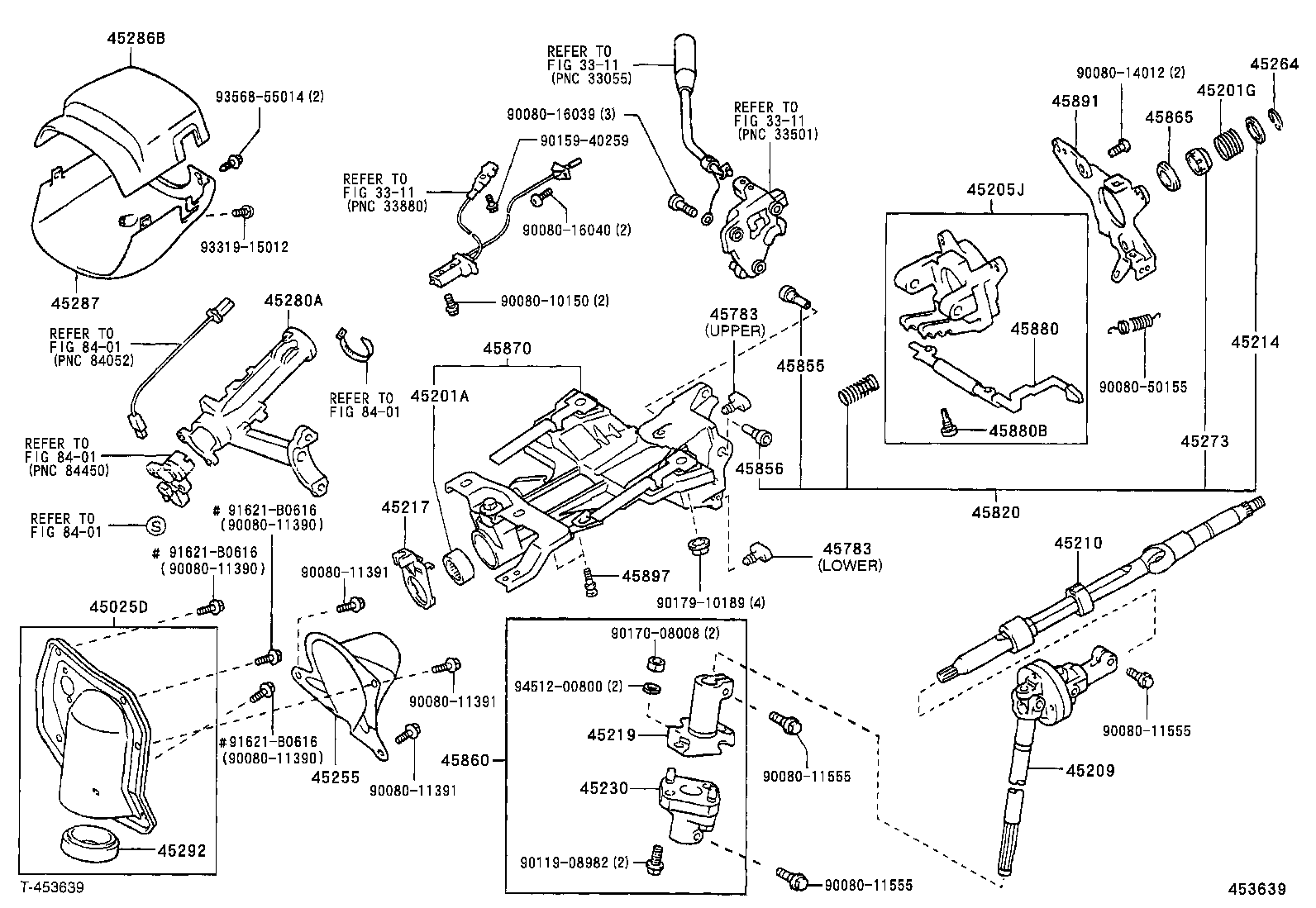

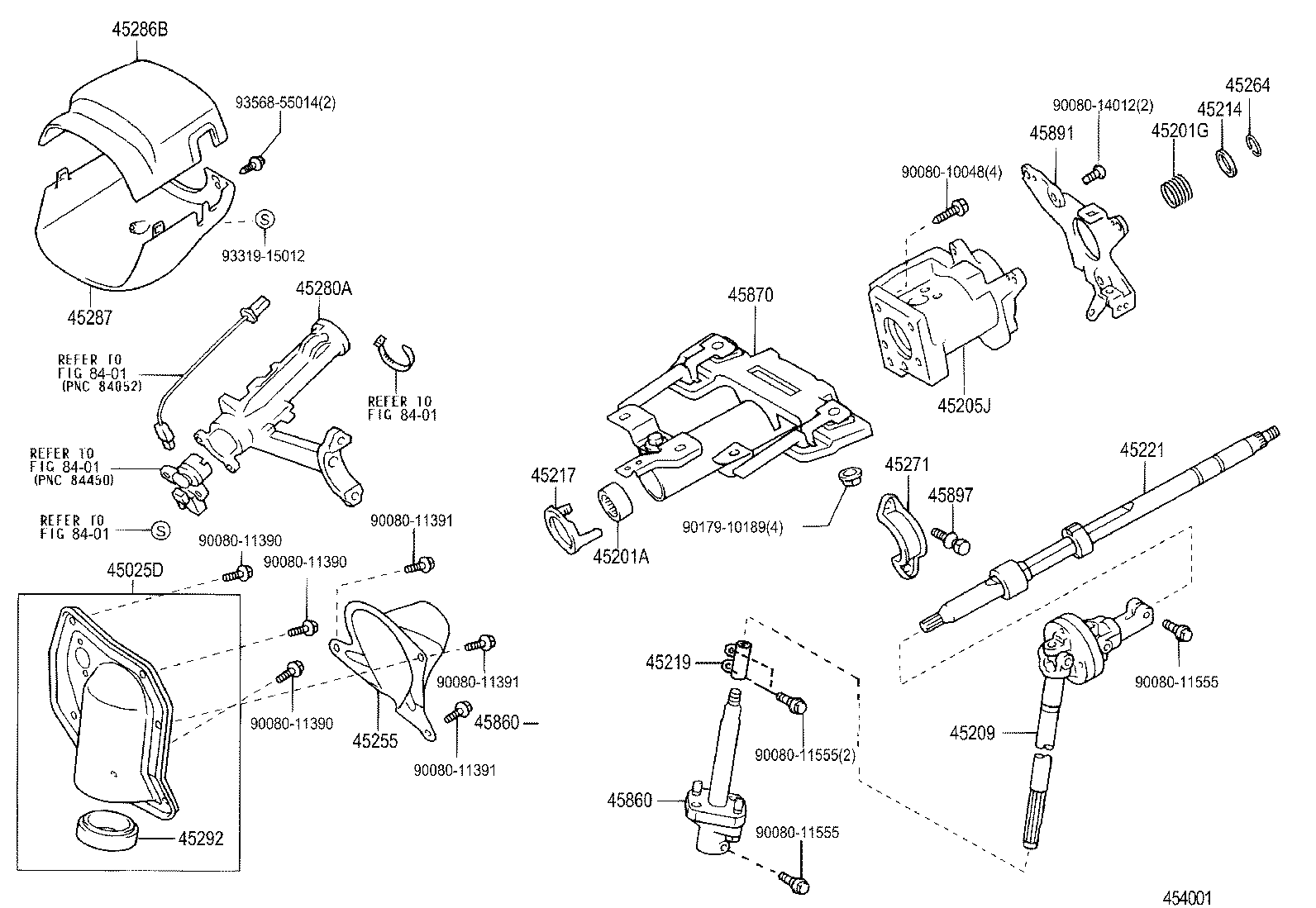

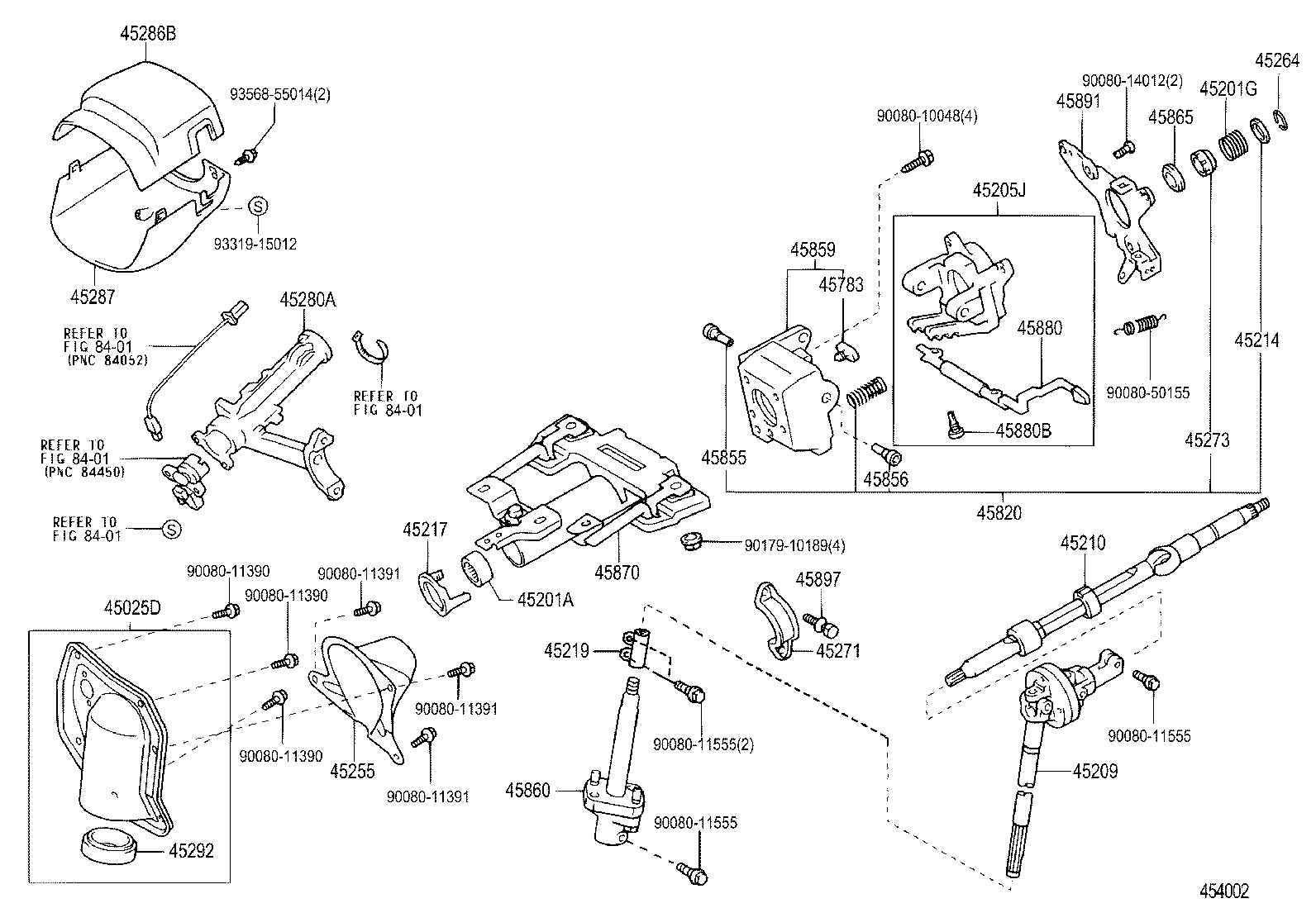

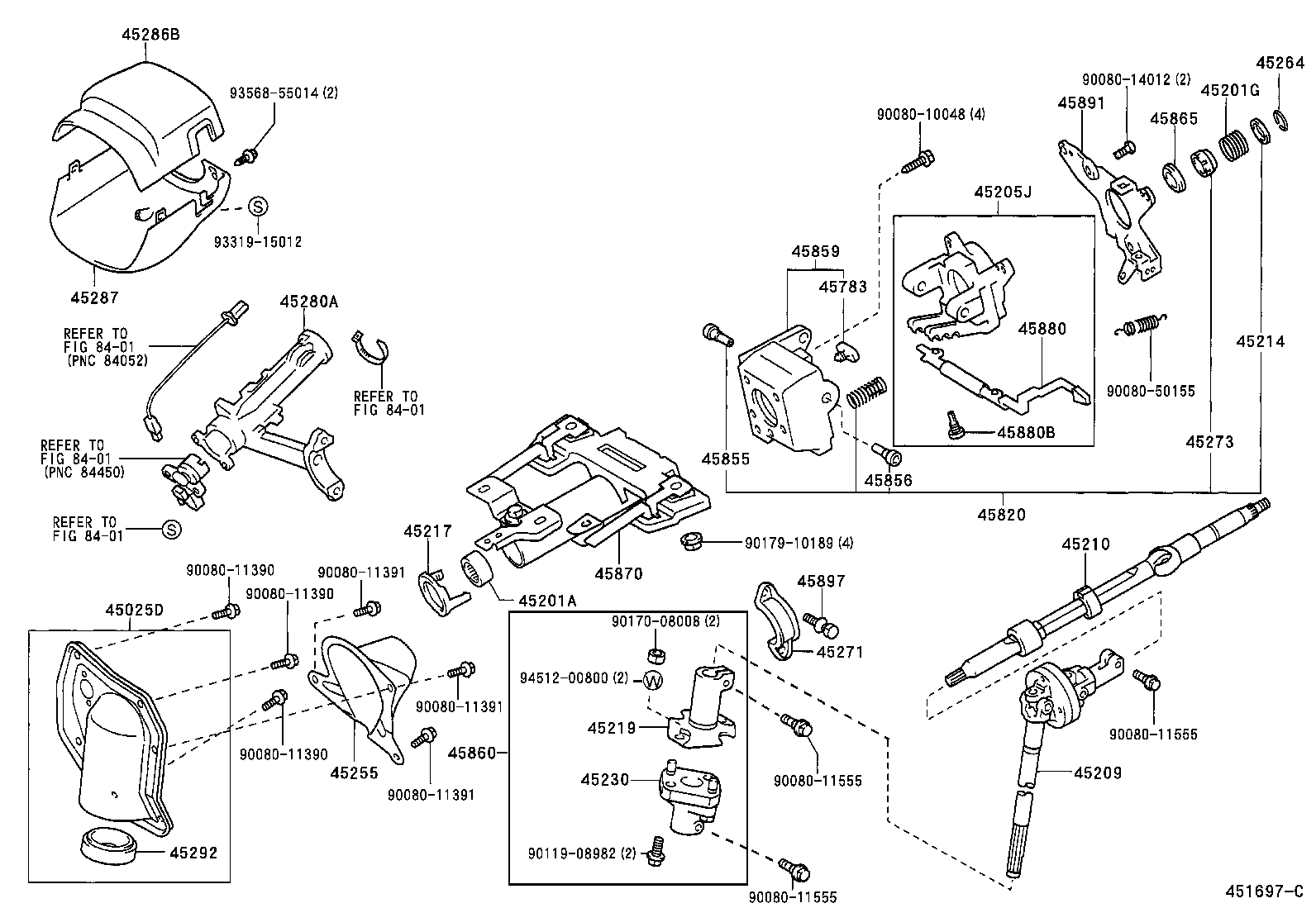

Figure 451695C 451695C 1999-02 → 2004-08 Figure 451696C 451696C 1999-02 → 2004-08 Figure 451697C 451697C 1999-02 → 2004-08 Figure 451698D 451698D 1999-02 → 2004-08 Figure 453639 453639 2003-10 → 2004-08 Figure 454003 454003 2004-08 → — Figure 454001 454001 2004-08 → — Figure 454004 454004 2004-08 → — Figure 454002 454002 2004-08 → — Figure 454005 454005 2004-08 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45205J Tube Sub-assy, Steering Column, Upper
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45214 Retainer, Main Shaft Spring
45217 Stopper, Steering Main Shaft
45219 Yoke, Steering Sliding
45221 Shaft, Steering Intermediate
45230 Coupling Assy, Flexible
45255 Plate, Steering Column Hole Cover
45264 Ring, Steering Column, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45292 Seal, Main Shaft Lower Dust
45783 Stopper, Tilt Steering, NO.1
45820 Spring Assy, Tilt Steering Support
45855 Bolt, Tilt Steering, NO.1
45856 Bolt, Tilt Steering, NO.2
45859 Support, Tilt Steering Housing
45860 Shaft Assy, Steering Intermediate, NO.2
45865 Collar, Steering Main Shaft
45870 Tube Assy, Steering Column
45880 Lever Assy, Steering Tilt
45880B Screw(FOR STEERING TILT LEVER)
45891 Bracket, Turn Signal
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
