Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

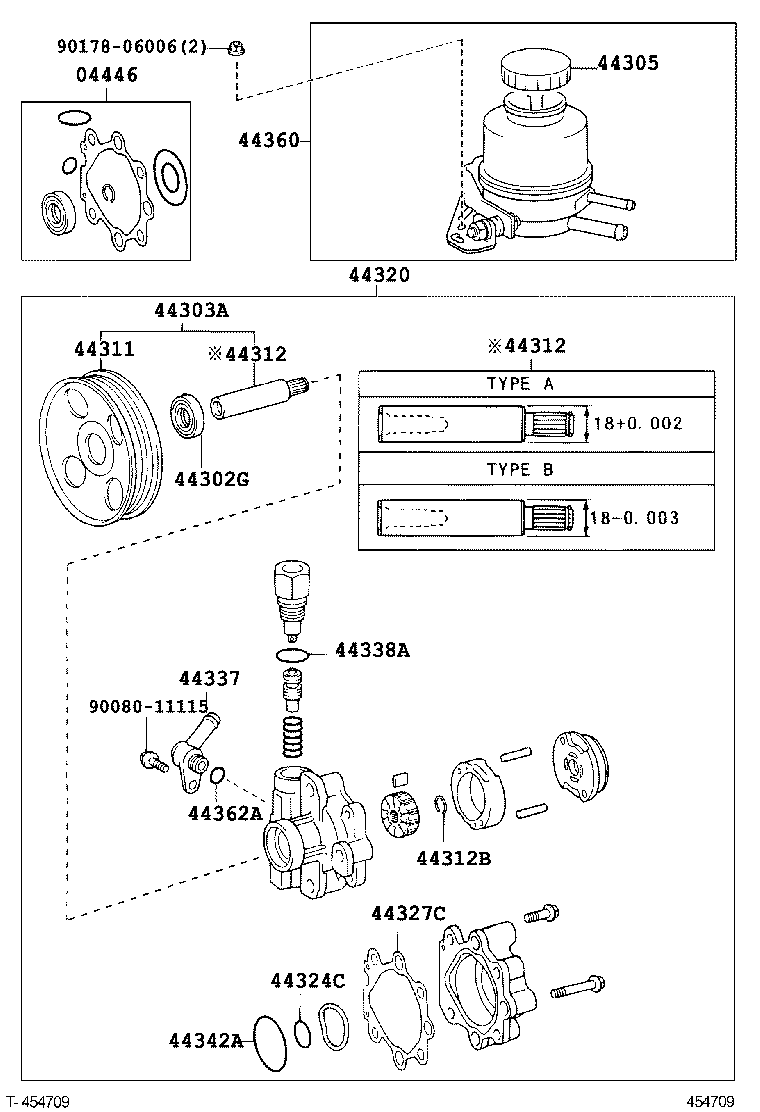

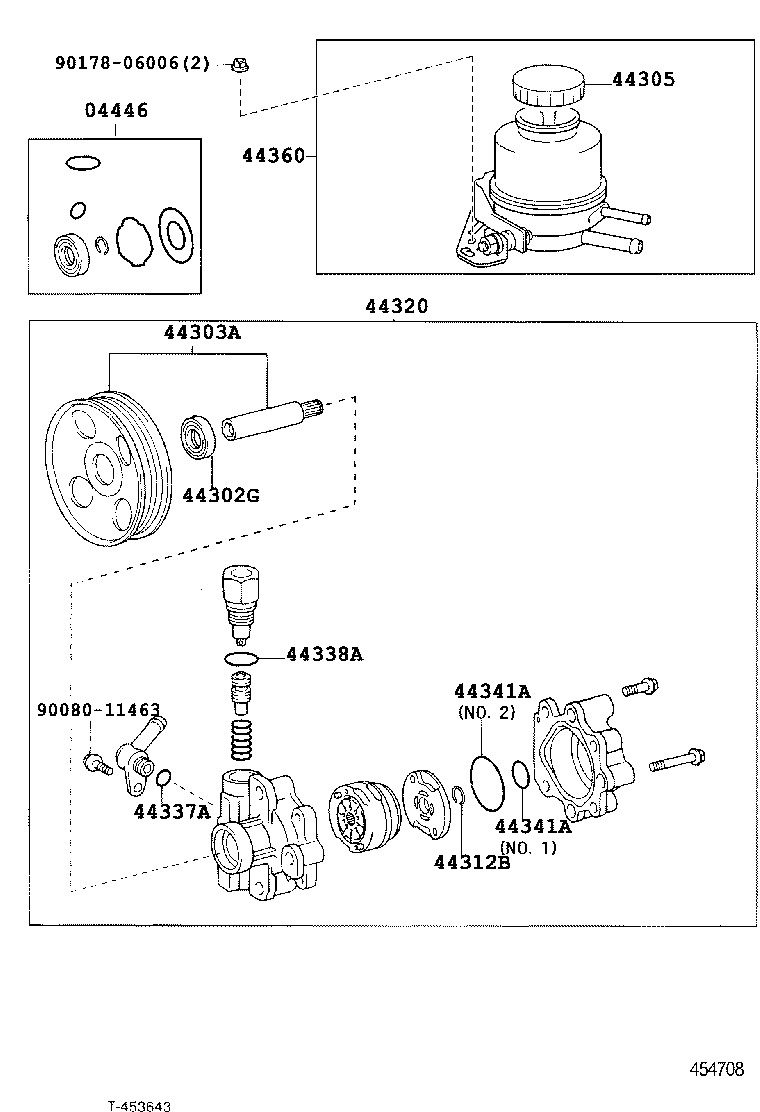

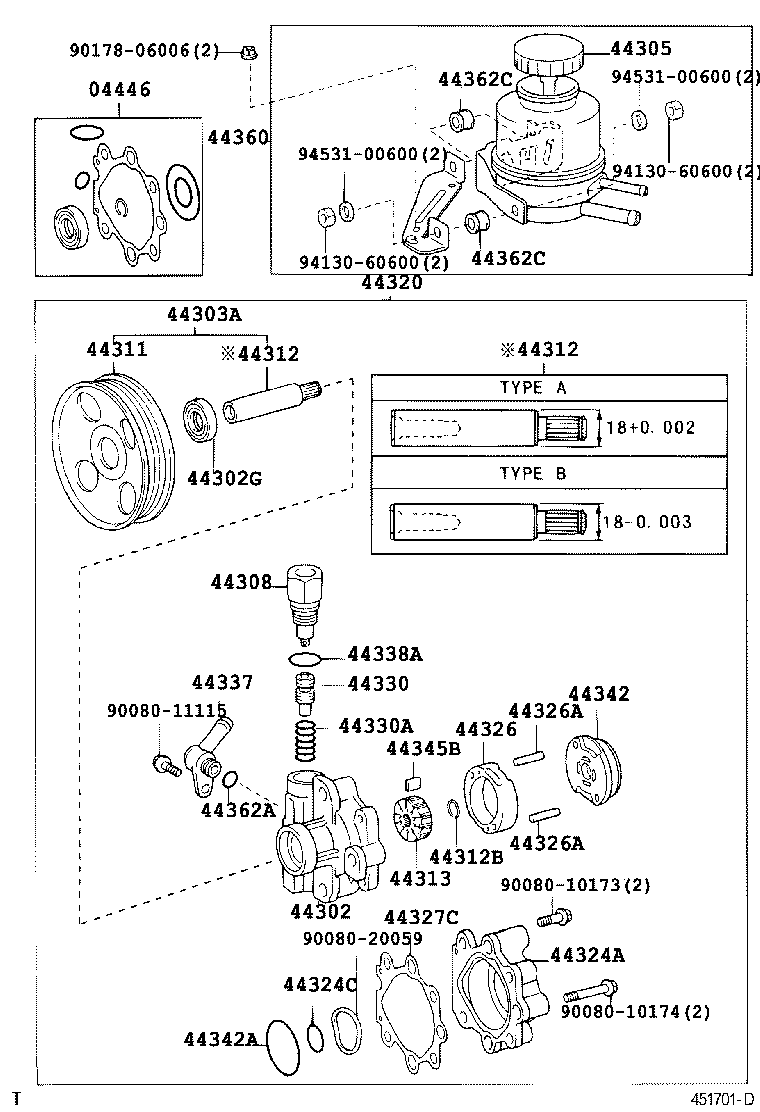

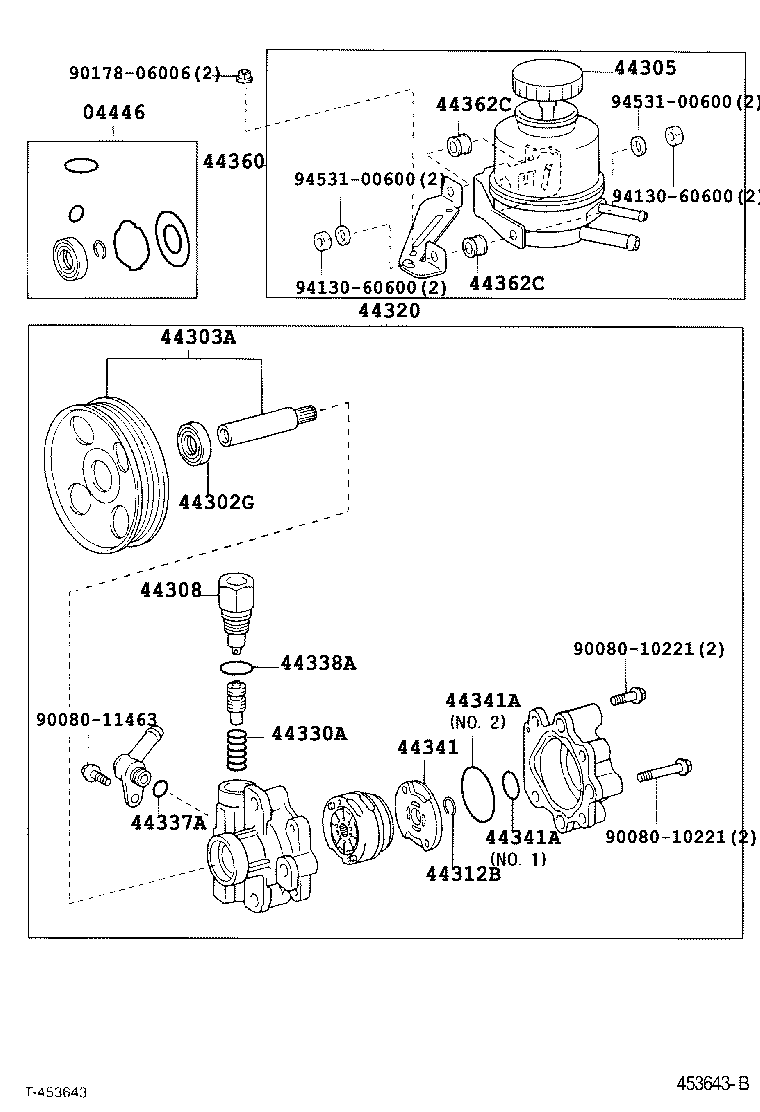

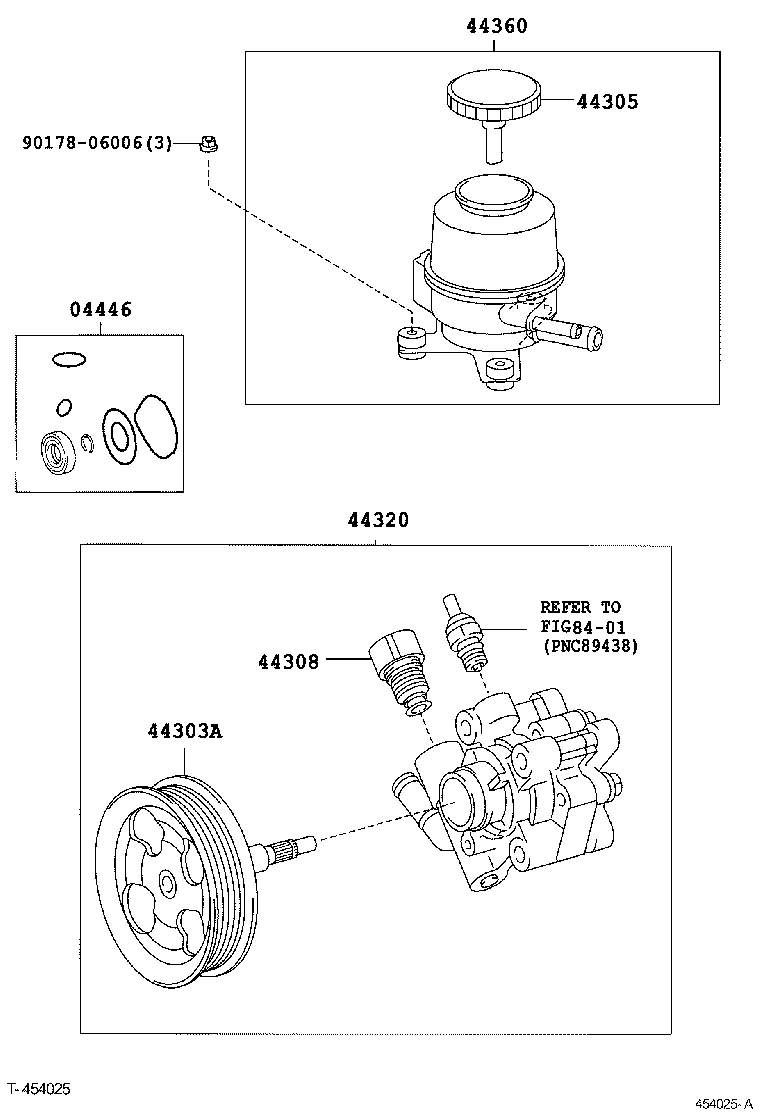

Vane Pump & Reservoir (POWER STEERING)
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44302 | Housing Sub-assy, Vane Pump, Front |
| 44302G | Seal, Oil, NO.2(FOR VANE PUMP HOUSING) |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44306 | Reservoir Sub-assy, Vane Pump Oil |
| 44308 | Union Sub-assy, Pressure Port |
| 44311 | Pulley, Vane Pump |
| 44312 | Shaft, Vane Pump |
| 44312B | Ring, Snap, NO.1(FOR VANE PUMP SHAFT) |
| 44313 | Rotor, Vane Pump |
| 44320 | Pump Assy, Vane |
| 44324A | Housing, Pump, Rear |
| 44324C | Ring, O(FOR PUMP HOUSING REAR) |
| 44326 | Ring, Cam(FOR VANE PUMP) |
| 44326A | Pin, Straight(FOR VANE PUMP CAM RING) |
| 44327C | Gasket, Vane Pump Housing |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44338A | Ring, O(FOR PRESSURE PORT UNION) |
| 44341 | Plate, Vane Pump Side, Front |
| 44341A | Ring, O(FOR VANE PUMP FRONT SIDE PLATE) |
| 44342 | Plate, Vane Pump Side, Rear |
| 44342A | Ring, O(FOR VANE PUMP SIDE PLATE REAR) |
| 44345B | Plate, Vane Pump |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44362A | Ring, O(FOR VANE PUMP OIL RESERVOIR) |
| 44362C | Cushion(FOR VANE PUMP OIL RESERVOIR) |
| 44441B | Bracket, Pump, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
