Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

15 part groups · 9 illustrations

Illustrations

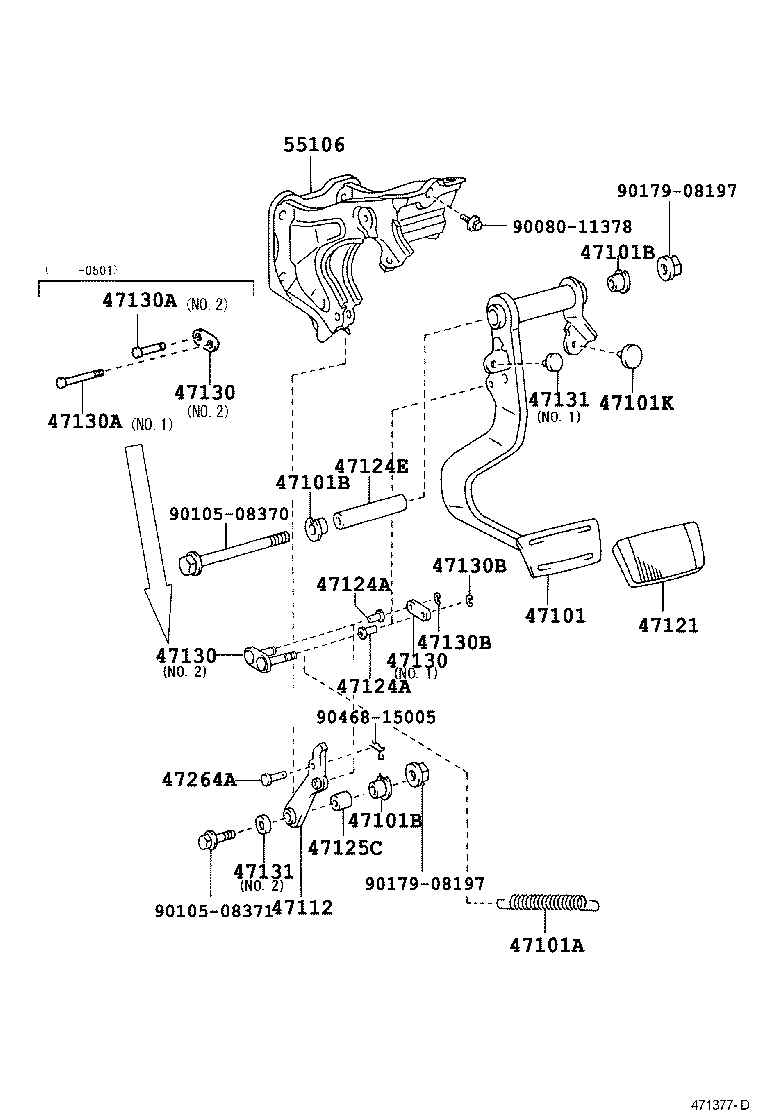

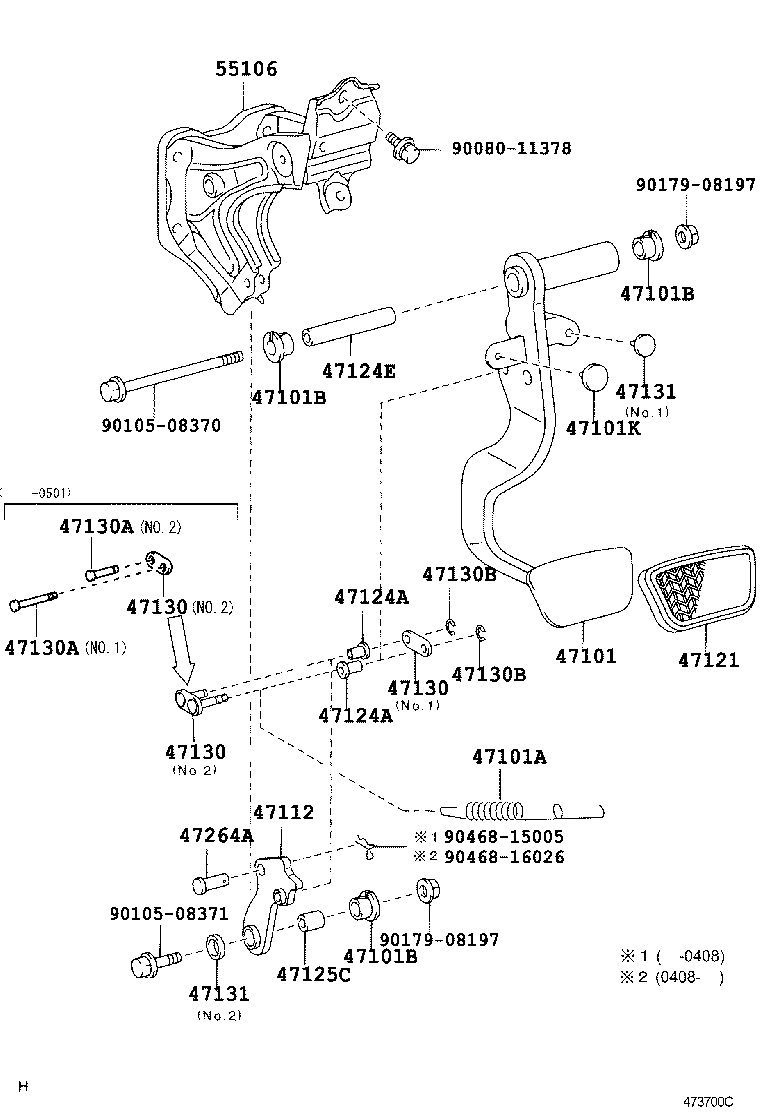

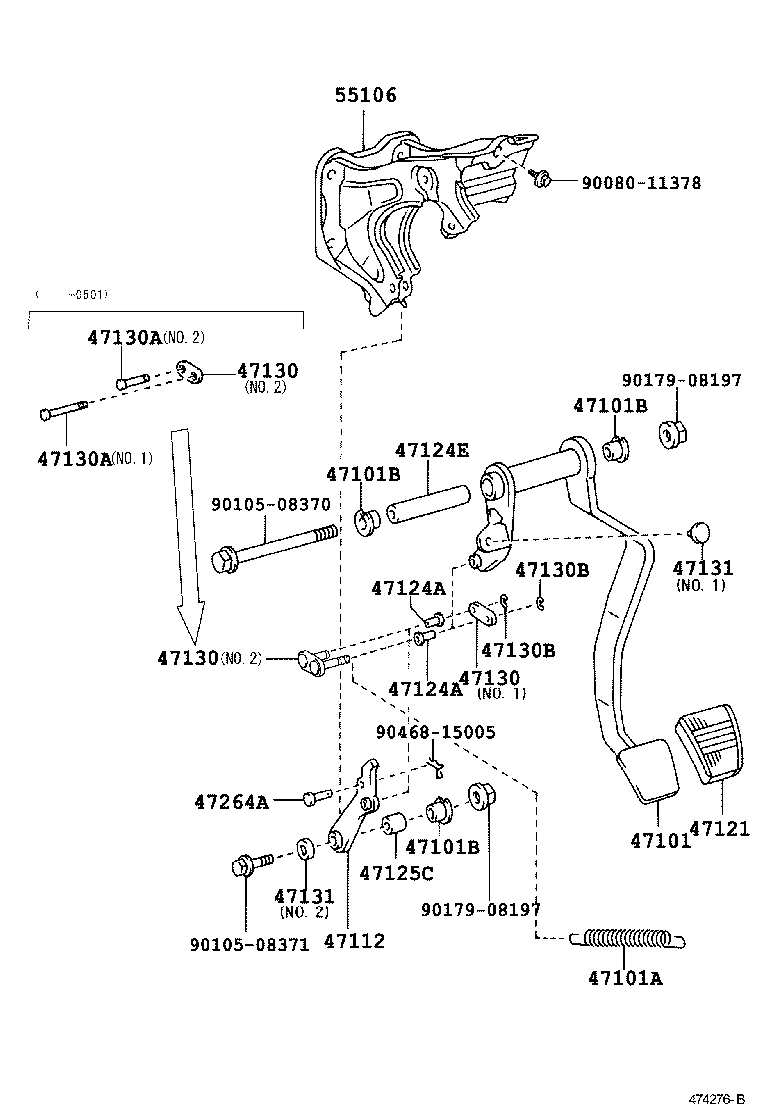

Figure 471376C 471376C 1999-02 → 2004-08 Figure 471377D 471377D 1999-02 → 2004-08 Figure 471377D 471377D 2004-08 → — Figure 473700C 473700C 2003-10 → 2004-08 Figure 473700C 473700C 2004-08 → — Figure 473699A 473699A 2003-10 → 2004-08 Figure 473699A 473699A 2004-08 → — Figure 474276B 474276B 2004-08 → — Figure 474277 474277 2004-08 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47101K Cushion(FOR PARKING LOCK CABLE)
47112 Lever, Brake Pedal
47121 Pad, Brake Pedal
47124A Collar(FOR BRAKE PEDAL SHAFT)
47124E Collar, Brake Pedal Shaft, NO.2
47125C Collar(FOR BRAKE PEDAL BRACKET)
47130 Link Assy, Brake Pedal
47130A Pin, Brake Pedal Link
47130B Ring E, Brake Pedal Link Pin
47131 Cushion(FOR STOP LAMP SWITCH)
47264A Pin(FOR PUSH ROD)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
