Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

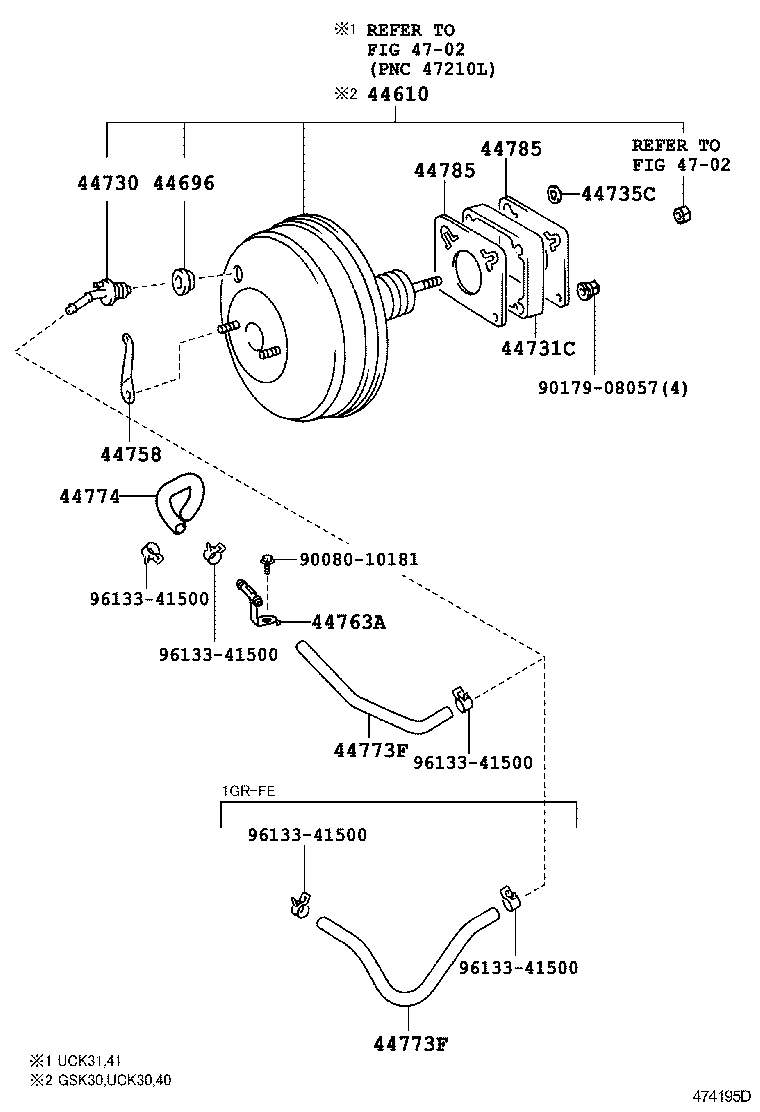

Brake Booster & Vacuum Tube
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730R | Bolt, Union(FOR VACUUM HOSE UNION) |
| 44730S | Gasket(FOR VACUUM HOSE UNION) |
| 44731C | Bracket, Brake Booster |
| 44735C | Ring, Booster Bracket Stopper |
| 44758 | Bracket, Vacuum Check Valve |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
