Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

18 part groups · 2 illustrations

Illustrations

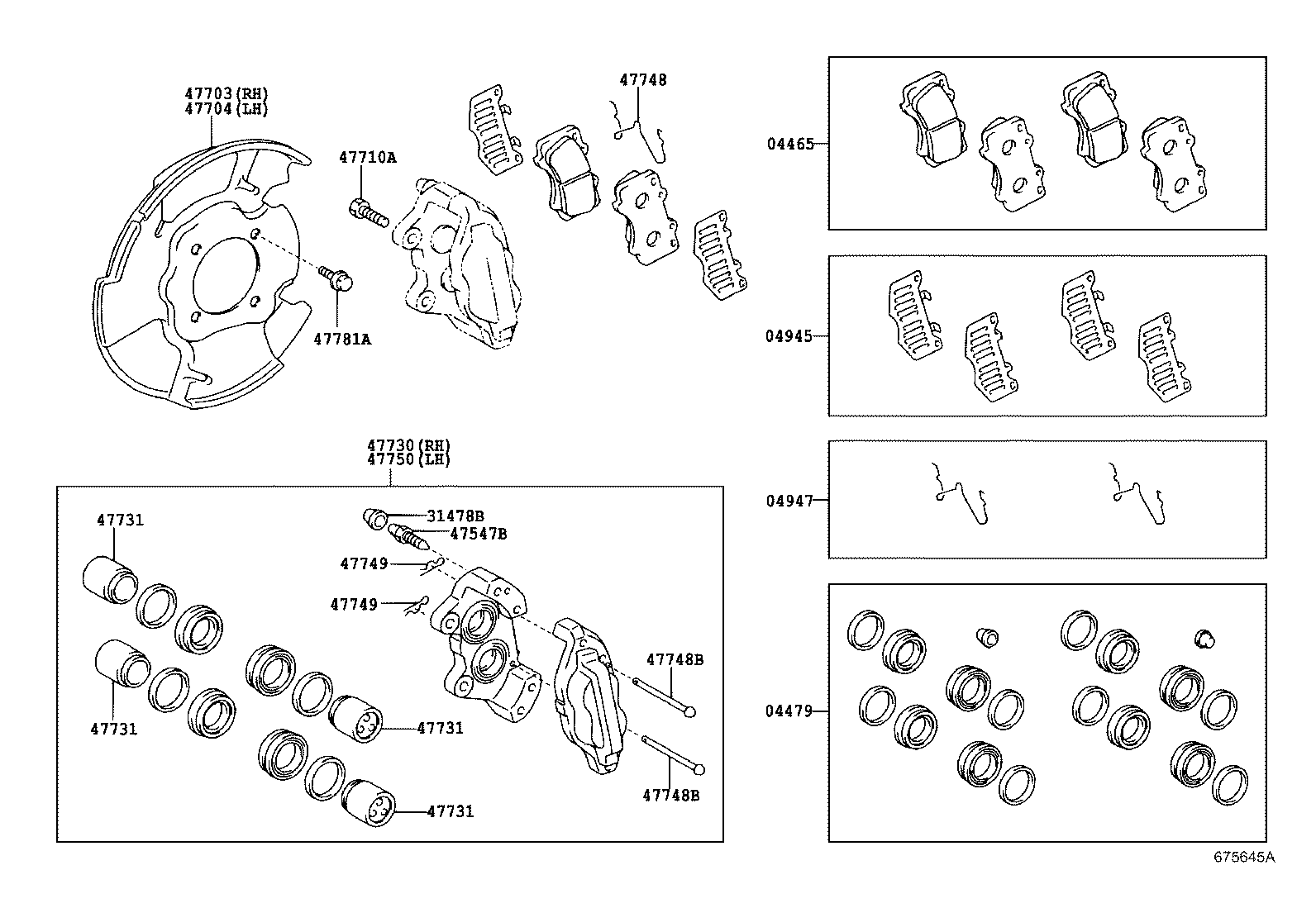

Figure 471381B 471381B 1999-02 → 2002-08 Figure 475645A 475645A 2002-08 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47703 Cover Sub-assy, Disc Brake Dust, Front RH
47704 Cover Sub-assy, Disc Brake Dust, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47749 Clip, Pin Hold
47750 Cylinder Assy, Disc Brake, LH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
