Brake Tube & Clamp

67 part groups · 14 illustrations

Illustrations

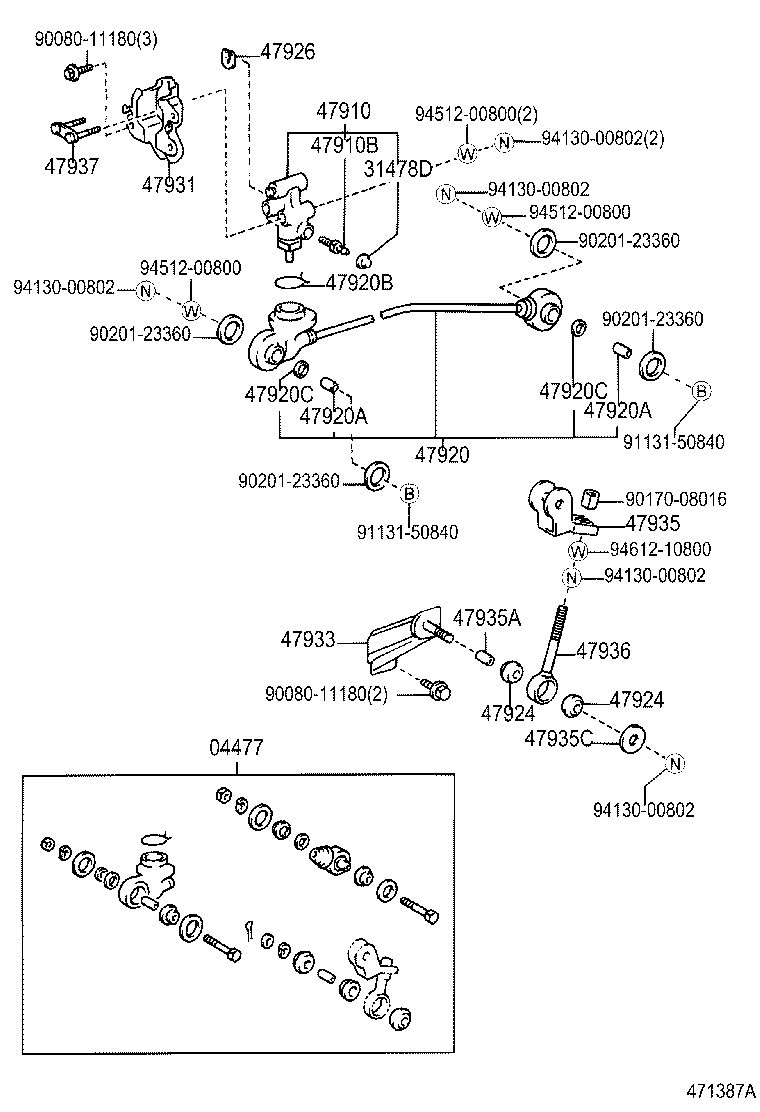

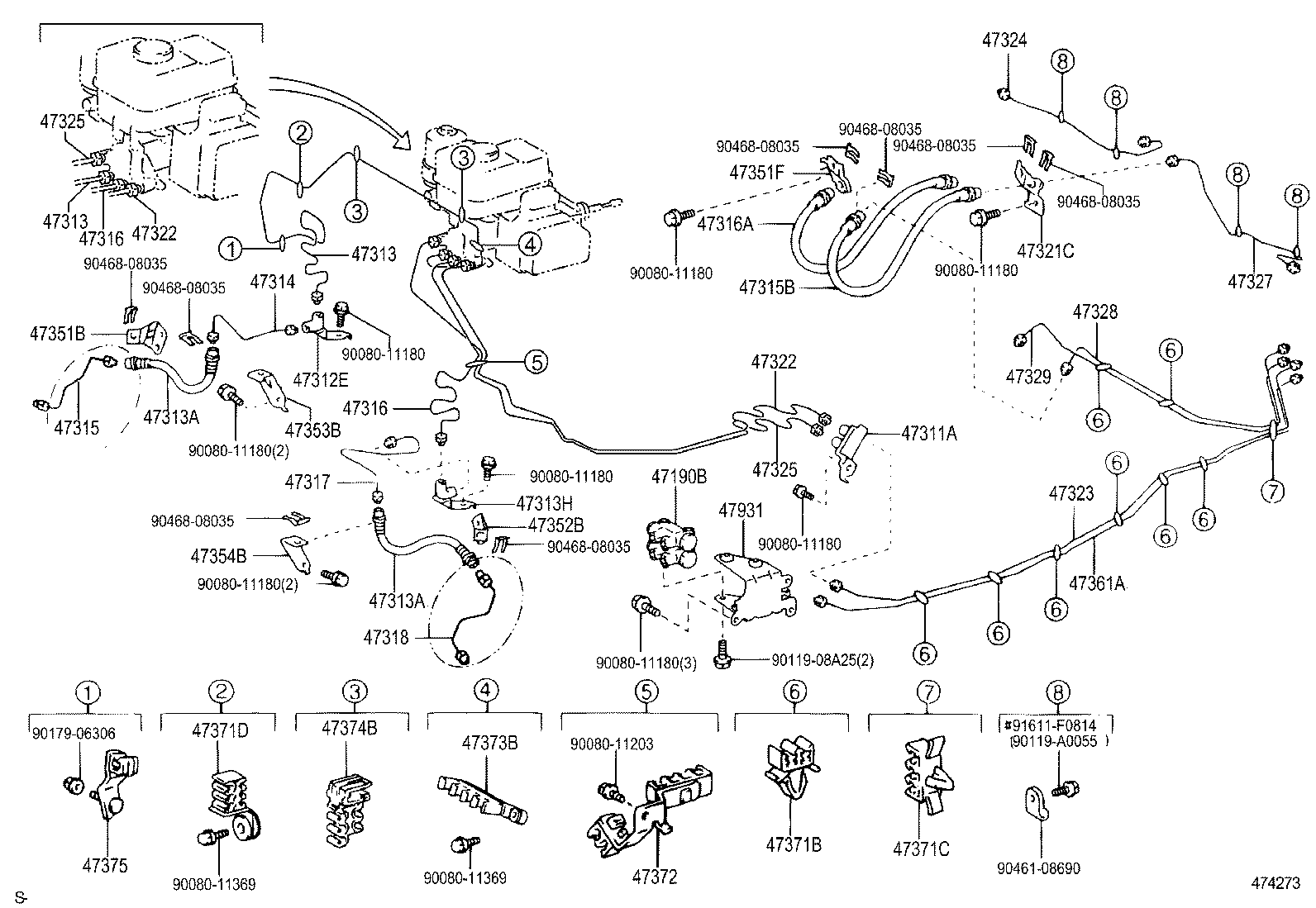

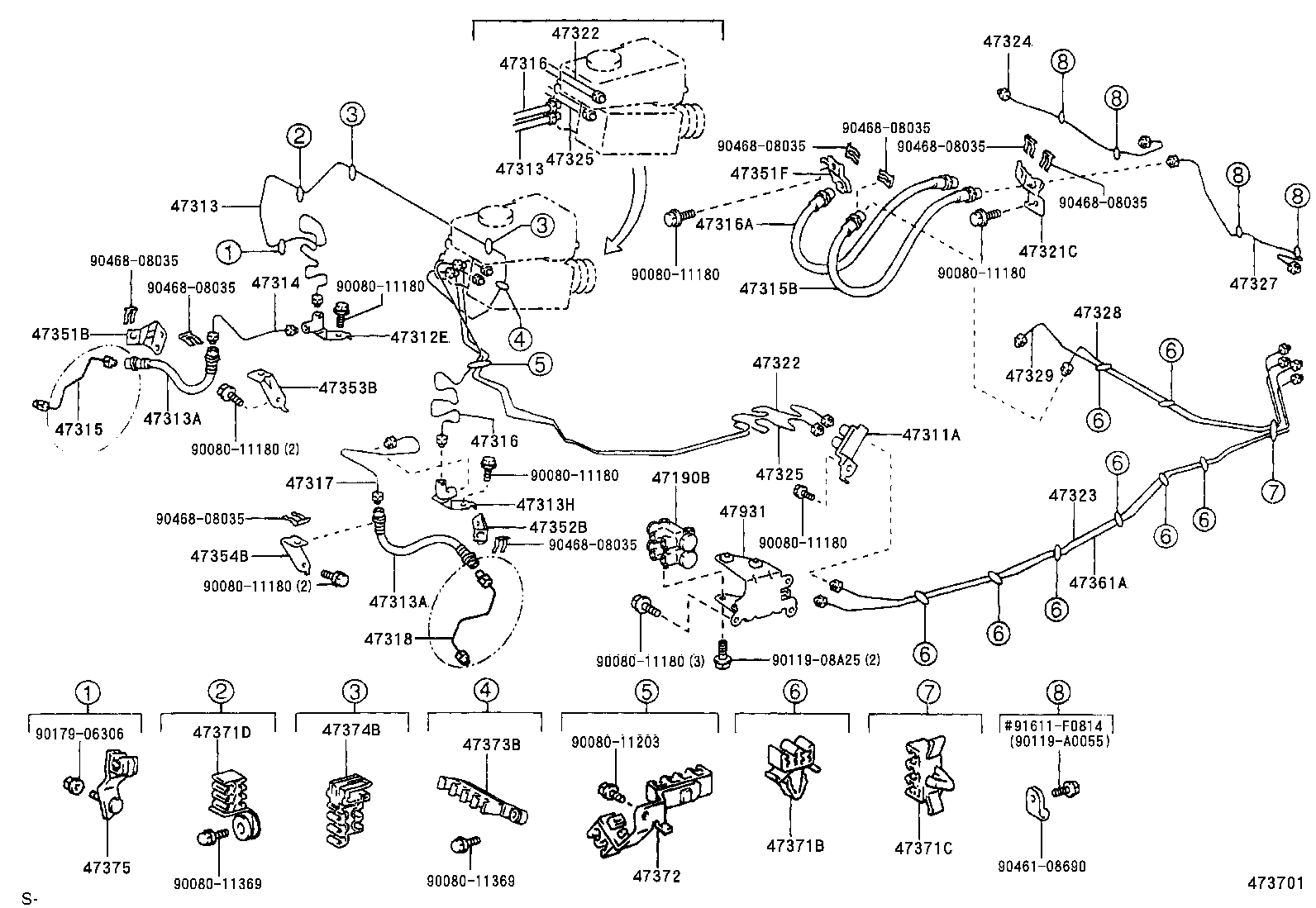

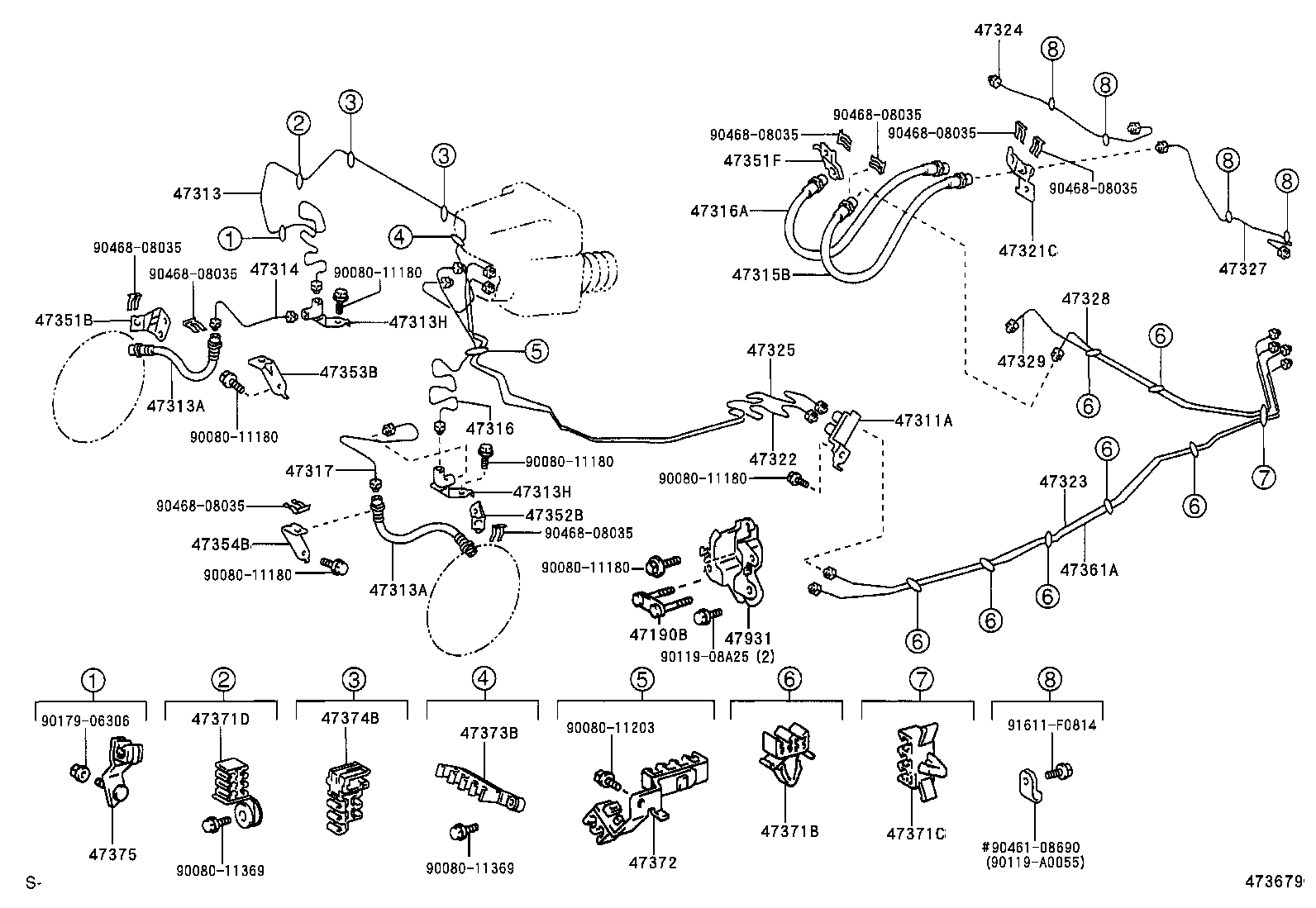

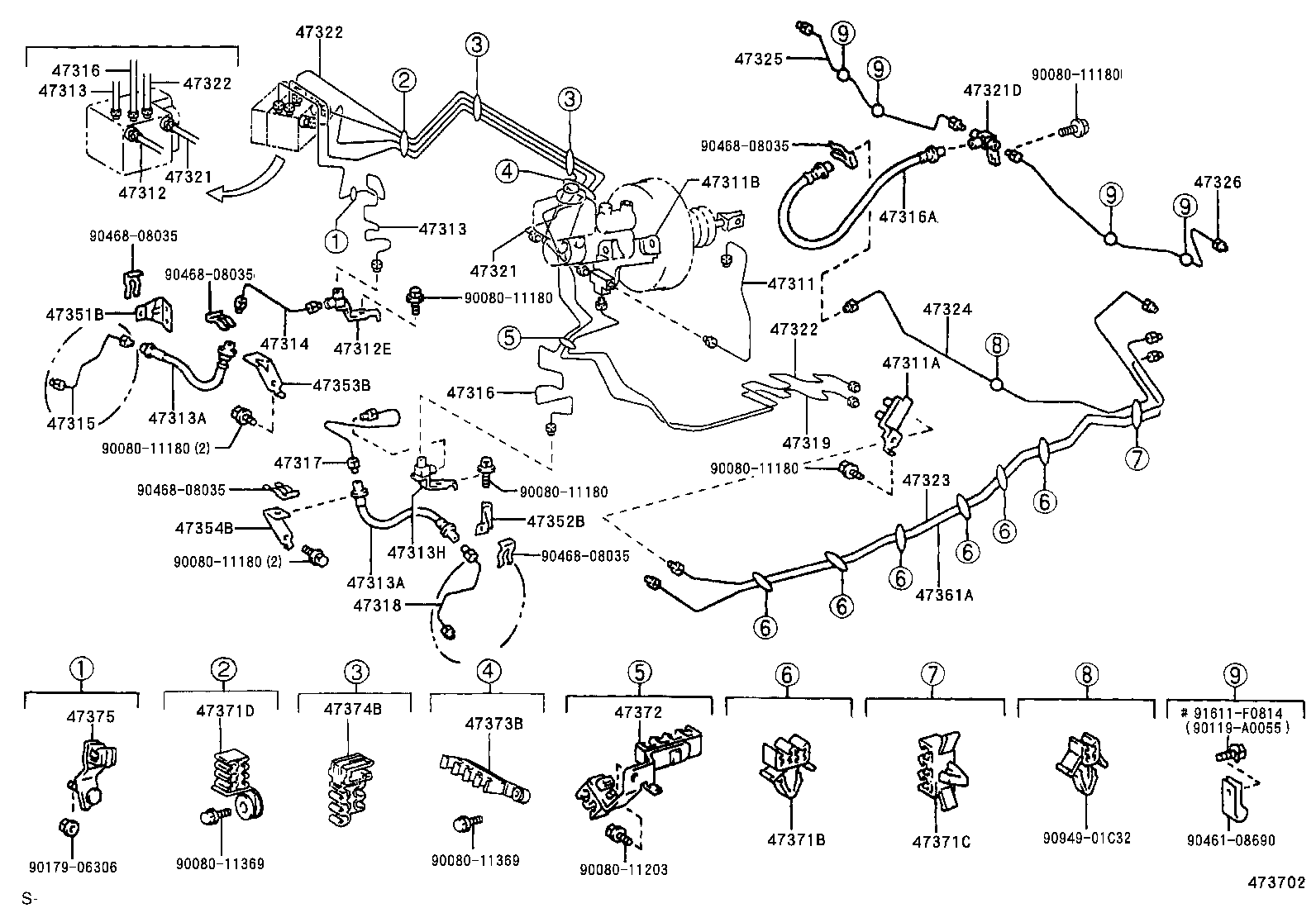

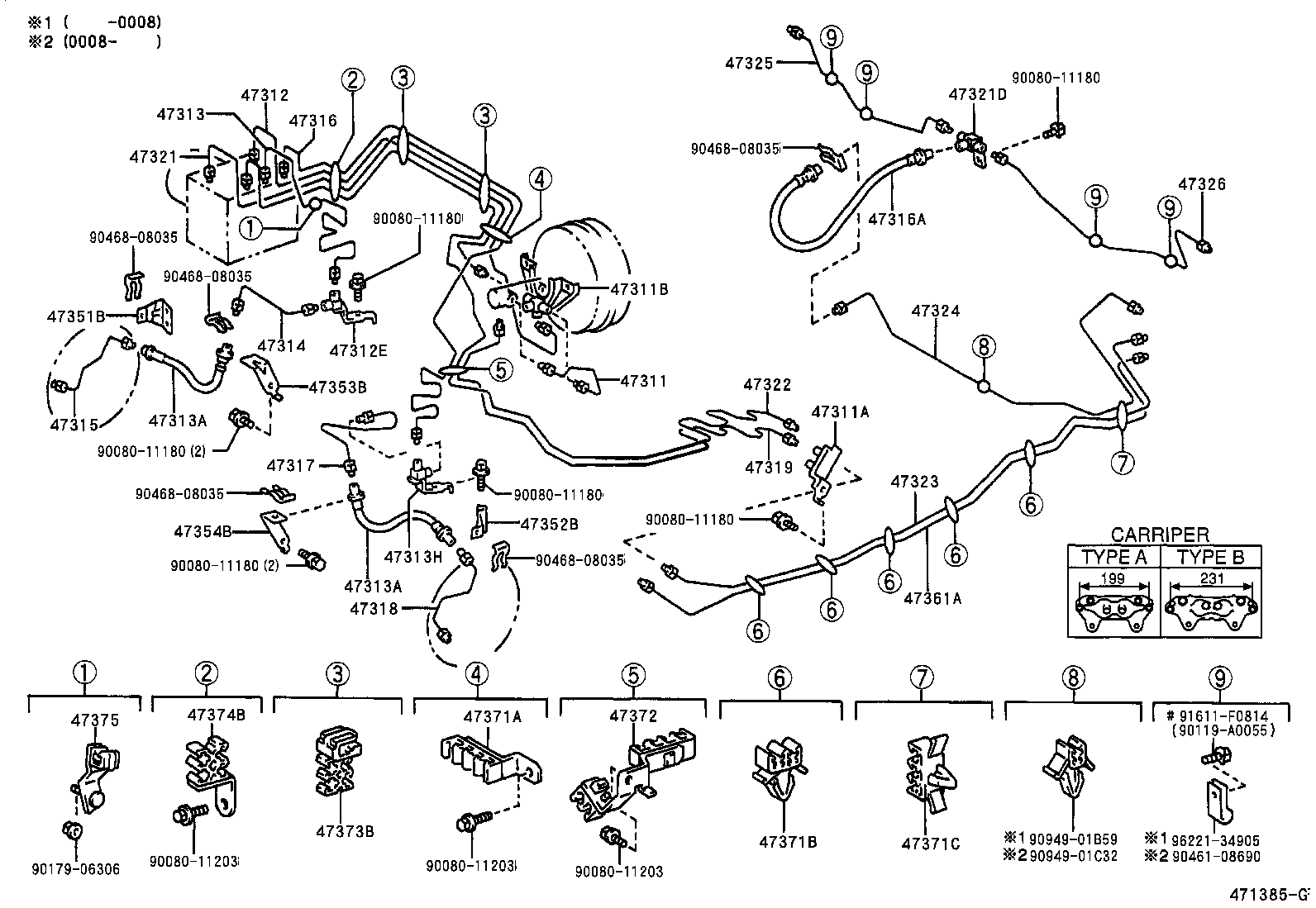

Figure 471384D 471384D 1999-02 → 2002-08 Figure 471385G 471385G 1999-02 → 2004-08 Figure 471385G 471385G 2004-08 → — Figure 473702 473702 2003-10 → 2004-08 Figure 473702 473702 2004-08 → — Figure 473679 473679 2003-09 → 2004-08 Figure 473701 473701 2003-10 → 2004-08 Figure 474273 474273 2004-08 → — Figure 471386A 471386A 1999-02 → 2000-08 Figure 472138A 472138A 2000-08 → 2003-10 Figure 473703B 473703B 2003-10 → 2004-08 Figure 473703B 473703B 2004-08 → — Figure 471387A 471387A 1999-02 → 2004-08 Figure 471387A 471387A 2004-08 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)
44510 Actuator Assy, Brake
44519B Bolt, Brake Actuator
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44548A Bolt, Brake Actuator Protector
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47190B Valve Assy, Blend Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315B Hose, Flexible(FOR BRAKE TUBE)
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321C Bracket, Flexible Hose(FOR REAR BRAKE FLEXIBLE HOSE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47351B Bracket, Flexible Hose, NO.1
47351F Bracket, Flexible Hose, NO.2
47352B Bracket, Flexible Hose, NO.2
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47361A Tube, Front Brake, NO.10
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47926 Spacer, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
89541A Computer, Skid Control
