Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

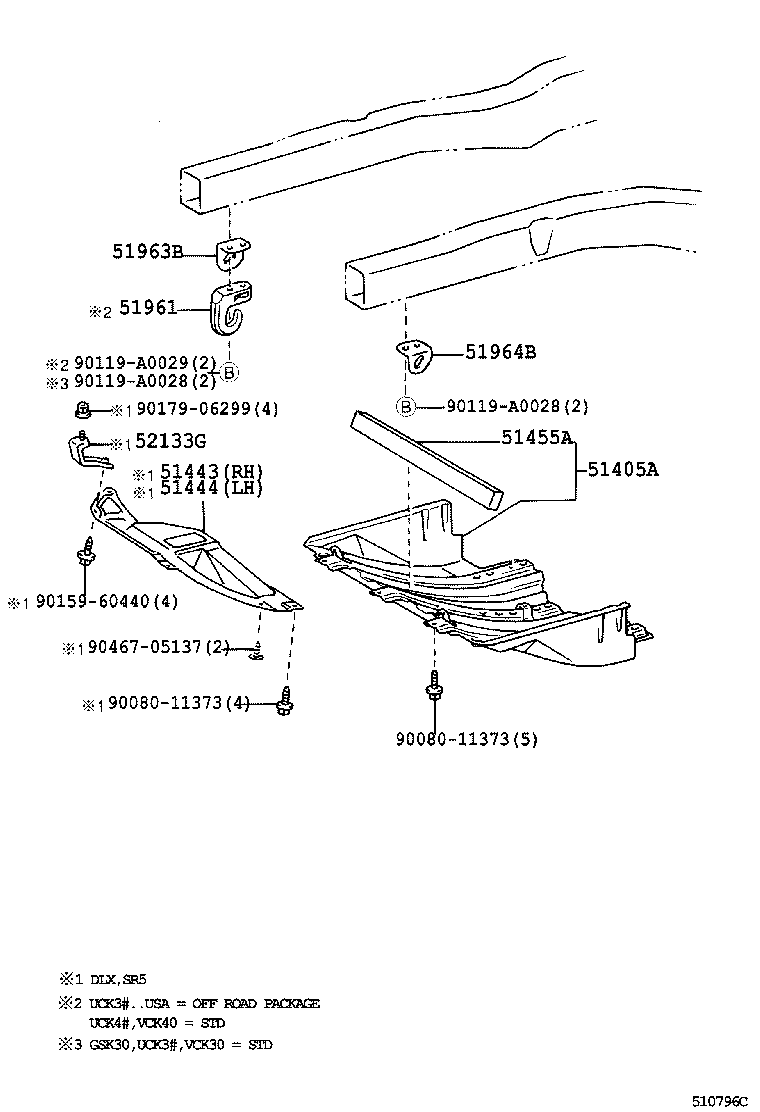

Figure 510431 510431 1999-02 → 2002-08 Figure 510796C 510796C 2002-08 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51455A Seal, Engine Under Cover, NO.1
51961 Hook, NO.1
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
52133G Bracket, Front Bumper, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
