Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 3 illustrations

Illustrations

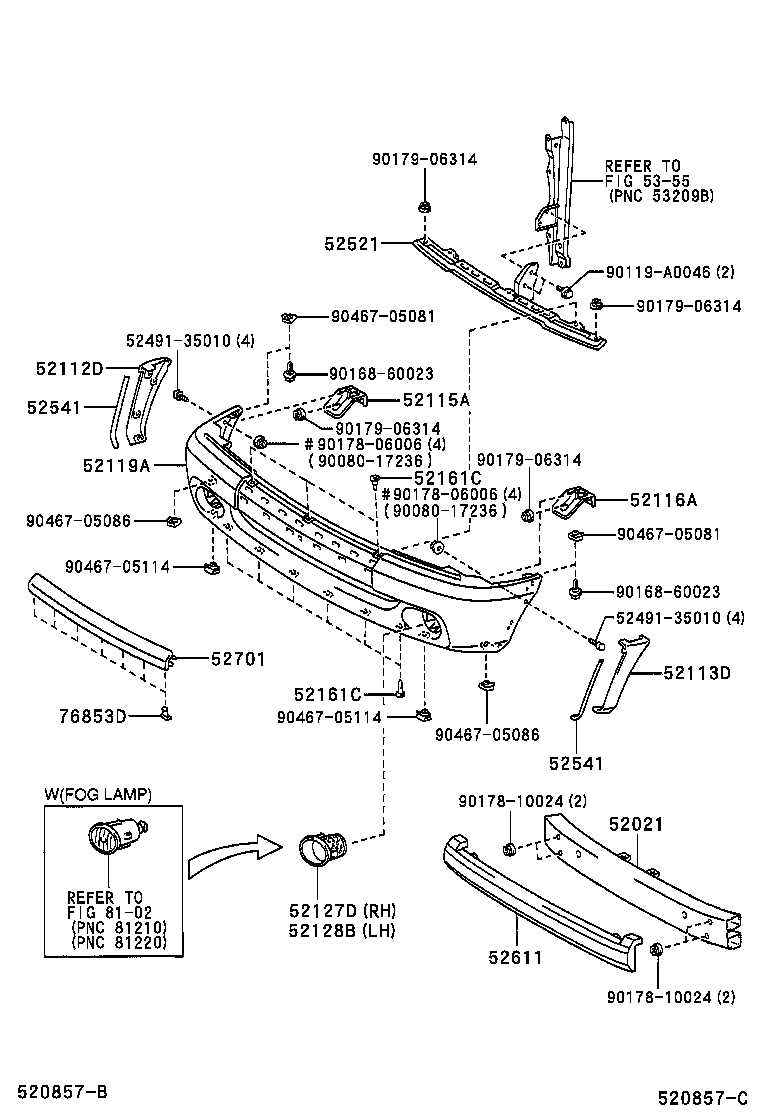

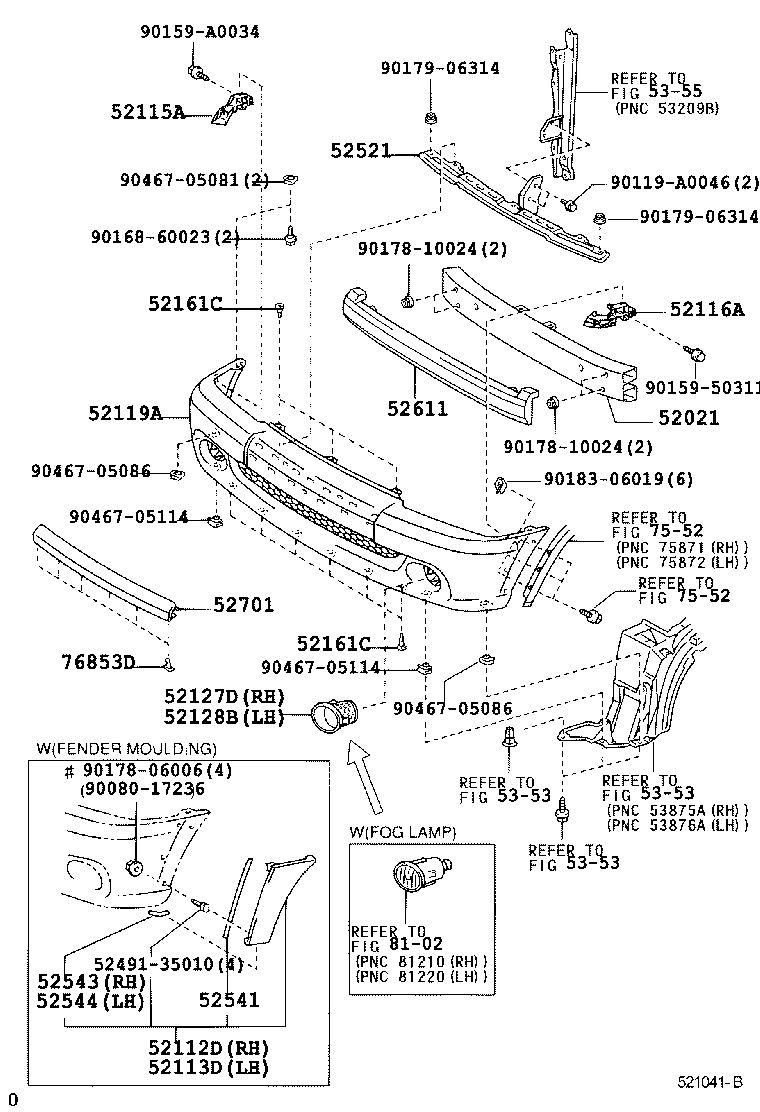

Figure 520462F 520462F 1999-02 → — Figure 520857C 520857C 2002-08 → — Figure 521041B 521041B 2003-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52541 Protector, Front Bumper
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
76853D Retainer, Front Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
