Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

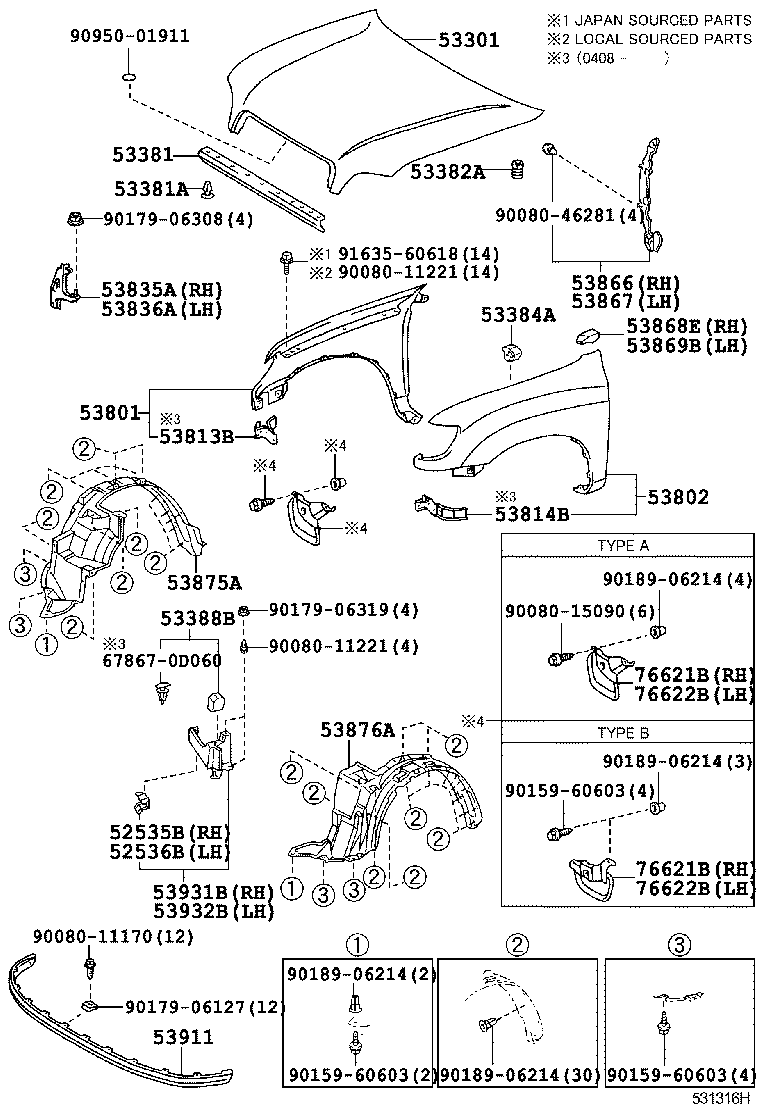

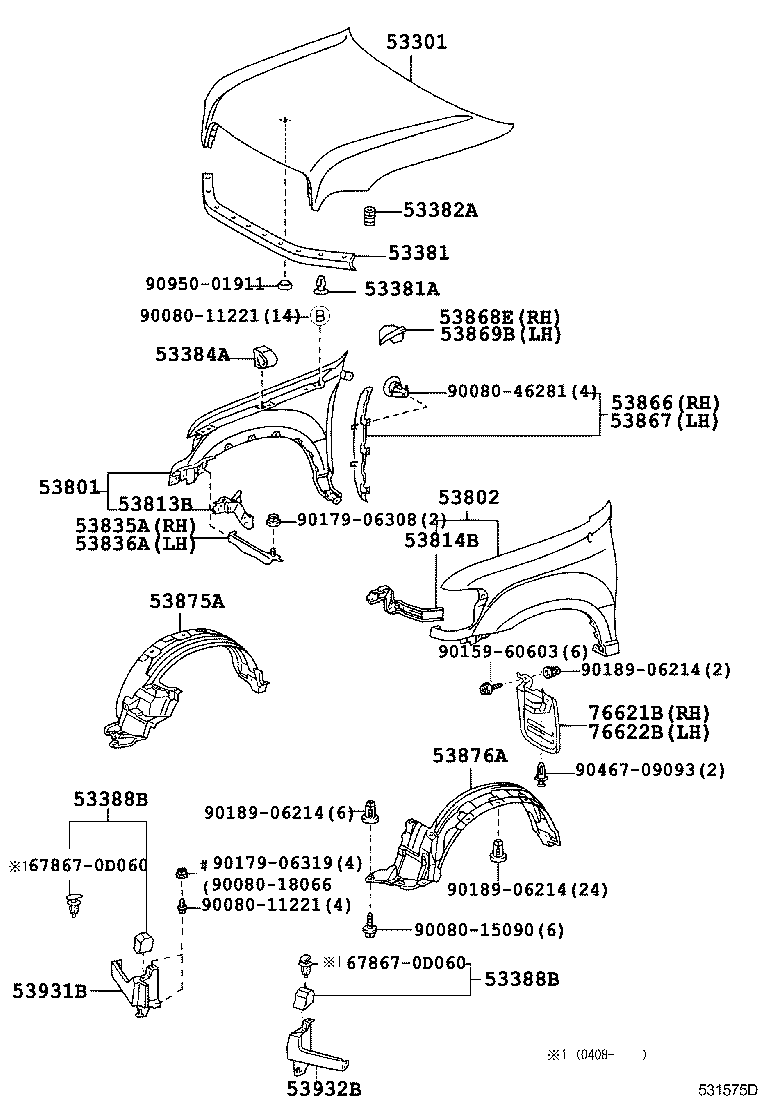

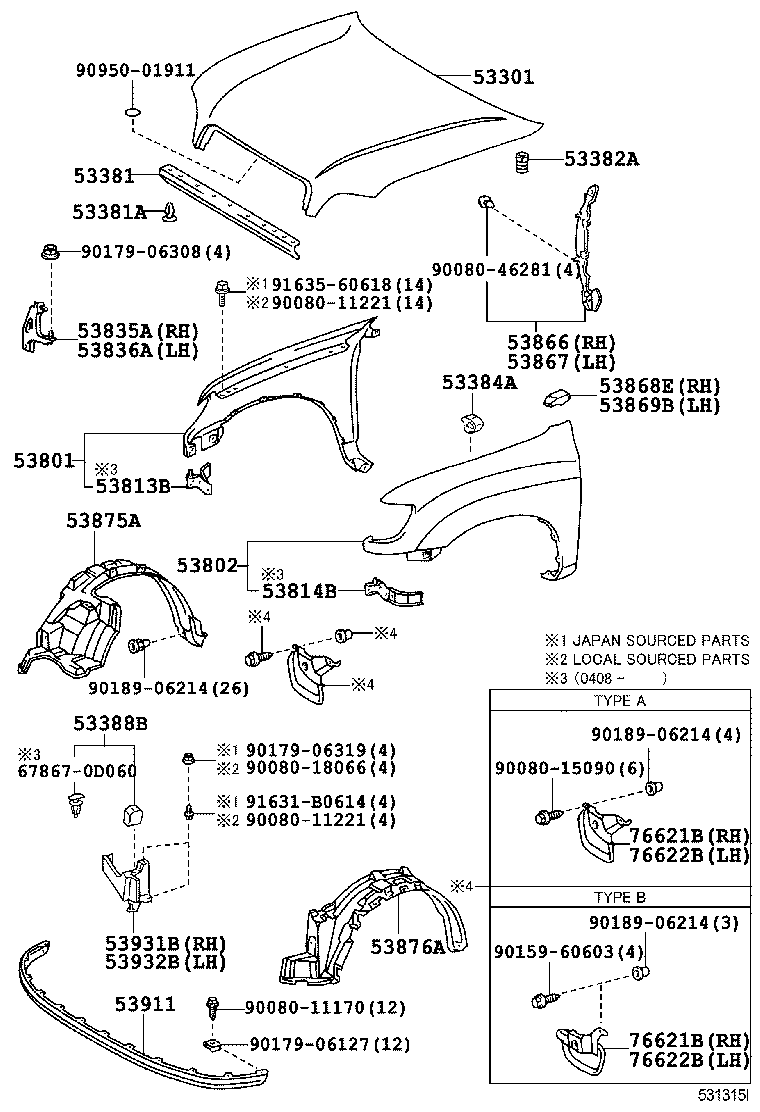

Hood & Front Fender
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52535B | Retainer, Front Bumper Side, RH |
| 52536B | Retainer, Front Bumper Side, LH |
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382A | Bumper, Hood, Rear |
| 53384A | Bumper, Fender TO Hood |
| 53388B | Cushion, Hood, Rear |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53835A | Brace, Front Fender TO Apron, RH |
| 53836A | Brace, Front Fender TO Apron, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53868E | Seal, Front Fender TO Cowl Side, NO.2 RH |
| 53869B | Seal, Front Fender TO Cowl Side, NO.2 LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53903B | Panel Sub-assy, Front End |
| 53911 | Panel, Front Valance |
| 53931B | Panel, Front End, RH |
| 53932B | Panel, Front End, LH |
| 76621B | Mudguard, Front Body, RH |
| 76622B | Mudguard, Front Body, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
