Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

16 part groups · 2 illustrations

Illustrations

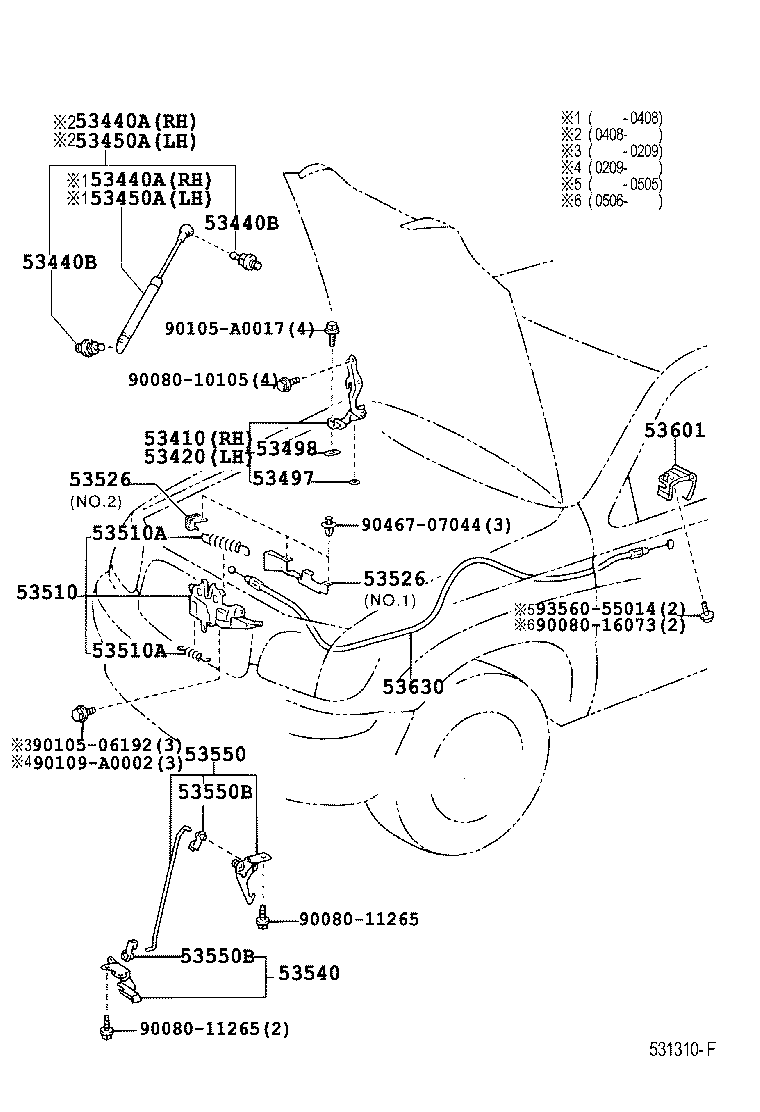

Figure 530745A 530745A 1999-02 → 2002-08 Figure 531310F 531310F 2002-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53440B Bolt, Hood Support, NO.1
53450A Support Assy, Hood, LH
53497 Pad, Hood Hinge, NO.1
53498 Pad, Hood Hinge, NO.2
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53526 Protector, Hood Lock Release Lever, NO.2
53540 Lever Assy, Auxiliary Catch Release
53540A Snap, Auxiliary Catch Release Lever Control Link
53550 Hook Assy, Hood Auxiliary Catch
53550B Snap, Hood Auxiliary Catch Hook Control Link
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
