Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

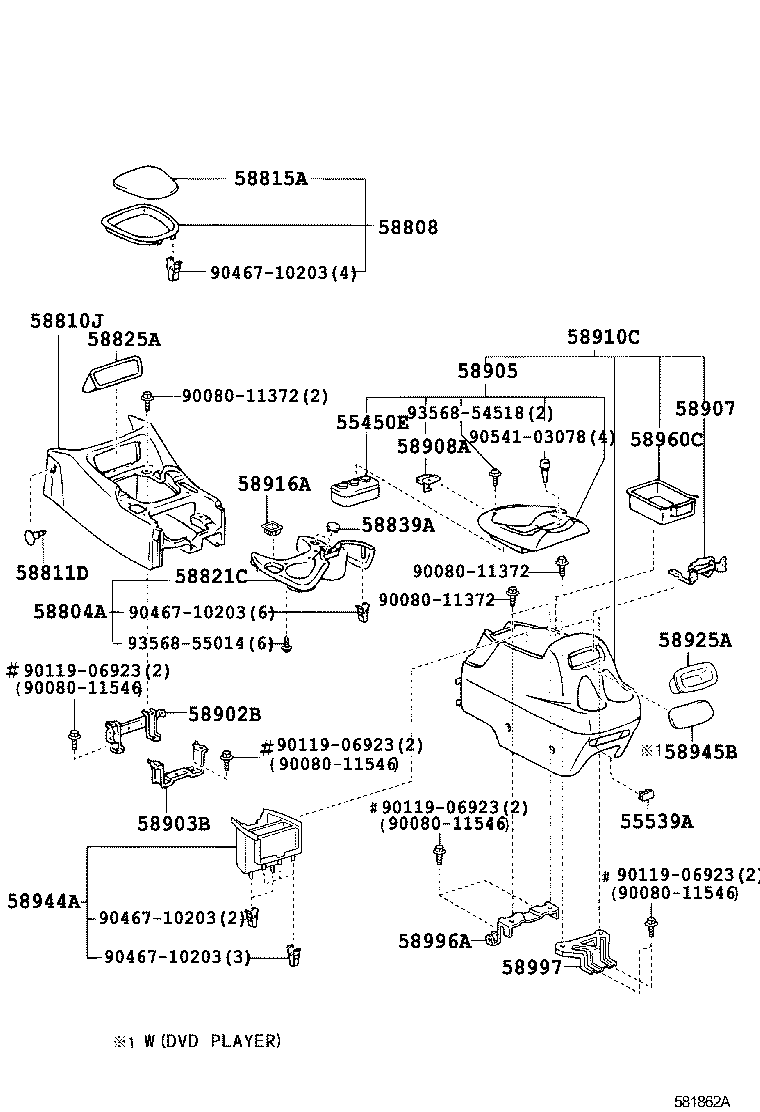

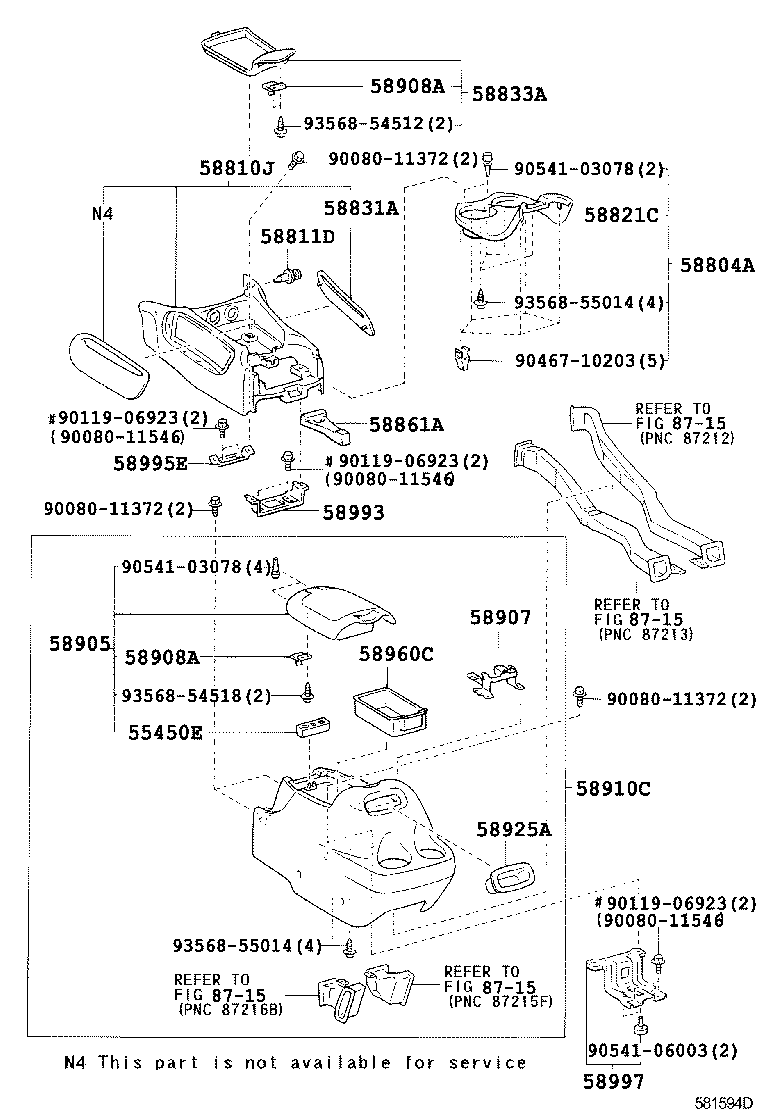

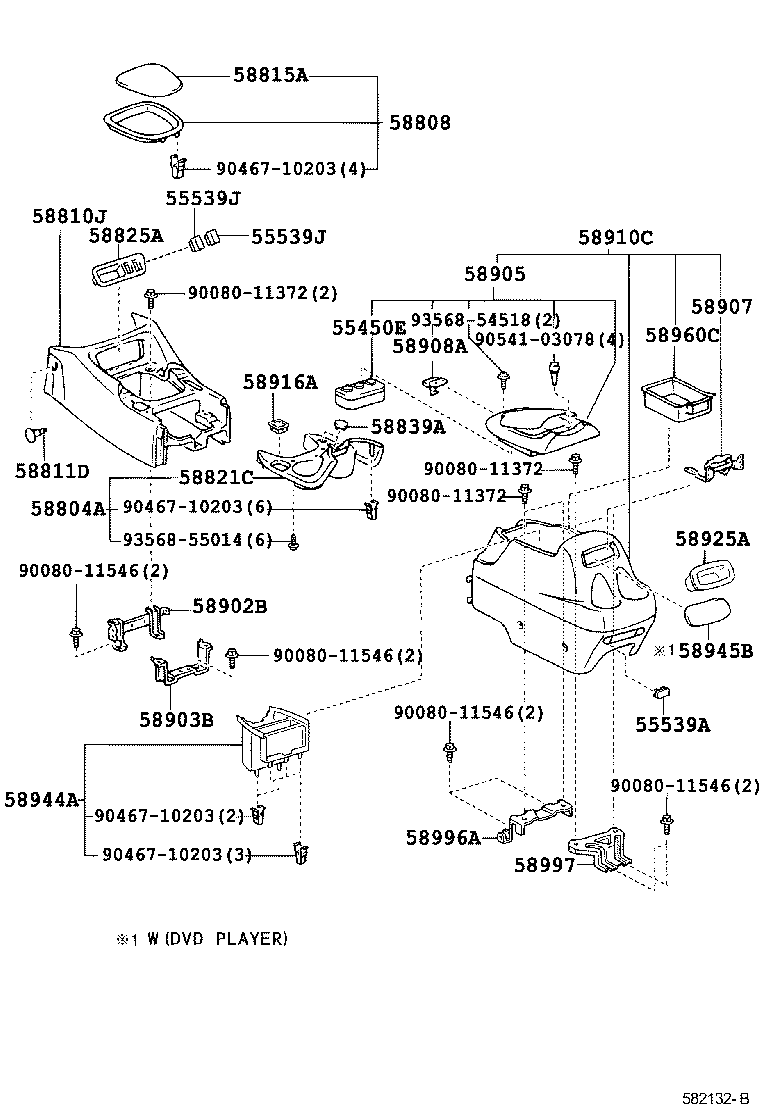

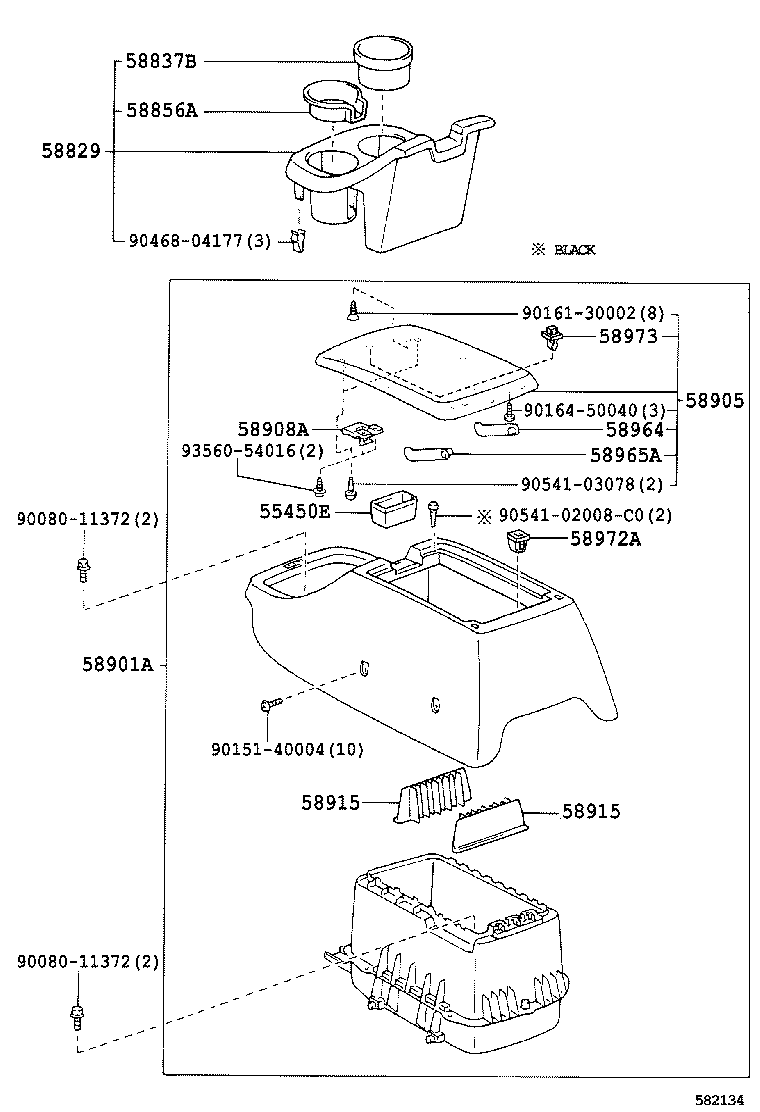

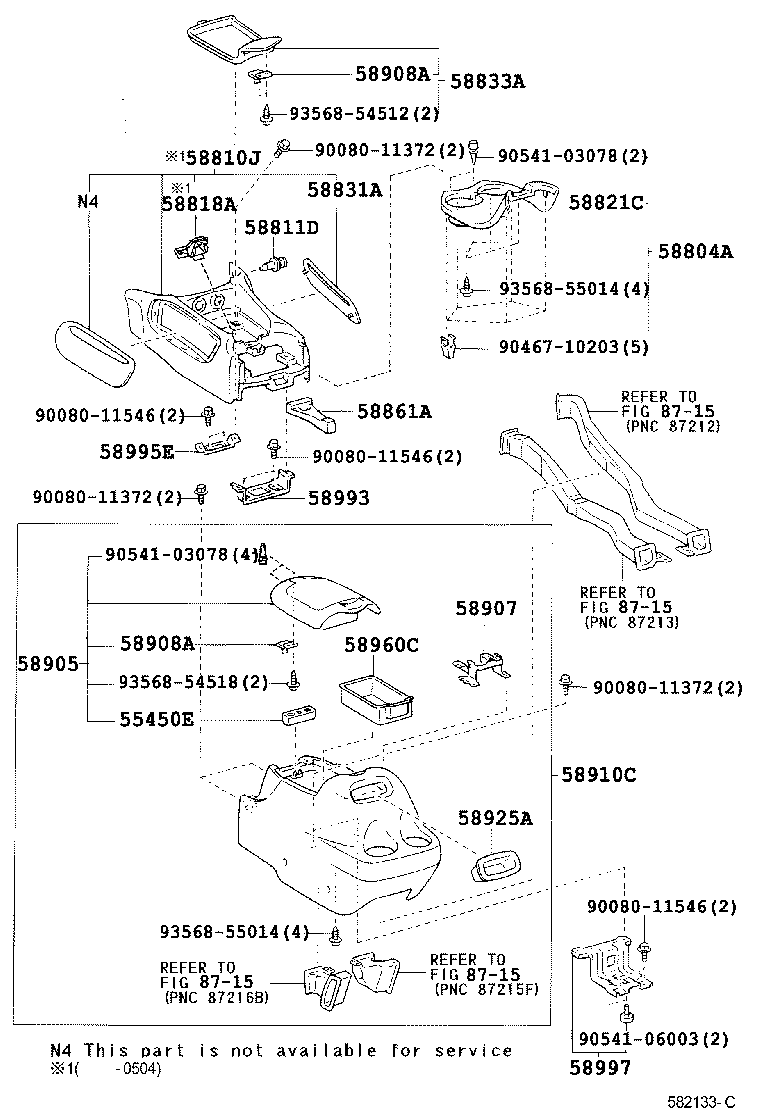

Console Box & Bracket

41 part groups · 7 illustrations

PNC	Description
55450E	Box Assy, Coin
55539A	Cover, Spare Switch Hole
55539J	Cover, Spare Switch Hole
58804A	Panel Sub-assy, Console, Upper
58808	Cover Sub-assy, Shifting Hole
58810J	Box Assy, Console
58811D	Clip(FOR CONSOLE BOX)
58815A	Carpet, Console Box
58818A	Cover, Console Box, FR
58821C	Panel, Console, Upper
58825A	Pocket, Console Box
58829	Pocket, Console Box
58831A	Garnish, Console Upper Panel, Front
58833A	Cover, Console, Upper
58837B	Box, Console Cup Holder
58839A	Cover, Console Box Hole
58856A	Holder, Console Box
58861A	Support, Console Box, NO.1
58871	Cushion, Console Box
58901A	Box Sub-assy, Console, Rear
58902B	Bracket Sub-assy, Console Box Hinge, NO.1
58903B	Bracket Sub-assy, Console Box Hinge, NO.2
58905	Door Sub-assy, Console Compartment
58907	Hinge Sub-assy, Console Compartment Door
58908A	Lock Sub-assy, Console Compartment Door
58910C	Box Assy, Console, Rear
58915	Panel, Box Bottom
58916A	Insert, Console Box, Rear
58925A	Pocket, Console Box, Rear
58926	Insulator, Console Box, Lower
58944A	Cover, Console, Rear
58945B	Garnish, Console, Rear
58960C	Holder Assy, Cassette Case
58964	Stopper, Console Compartment Door, NO.1
58965A	Stopper, Console Compartment Door, NO.2
58972A	Base, Console Compartment Door Lock
58973	Pin, Console Compartment Door Lock
58993	Bracket, Console Box Mounting, Rear
58995E	Bracket, Console Box Mounting, NO.1
58996A	Bracket, Console Box Mounting, NO.2
58997	Bracket, Console Box Mounting, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
