Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

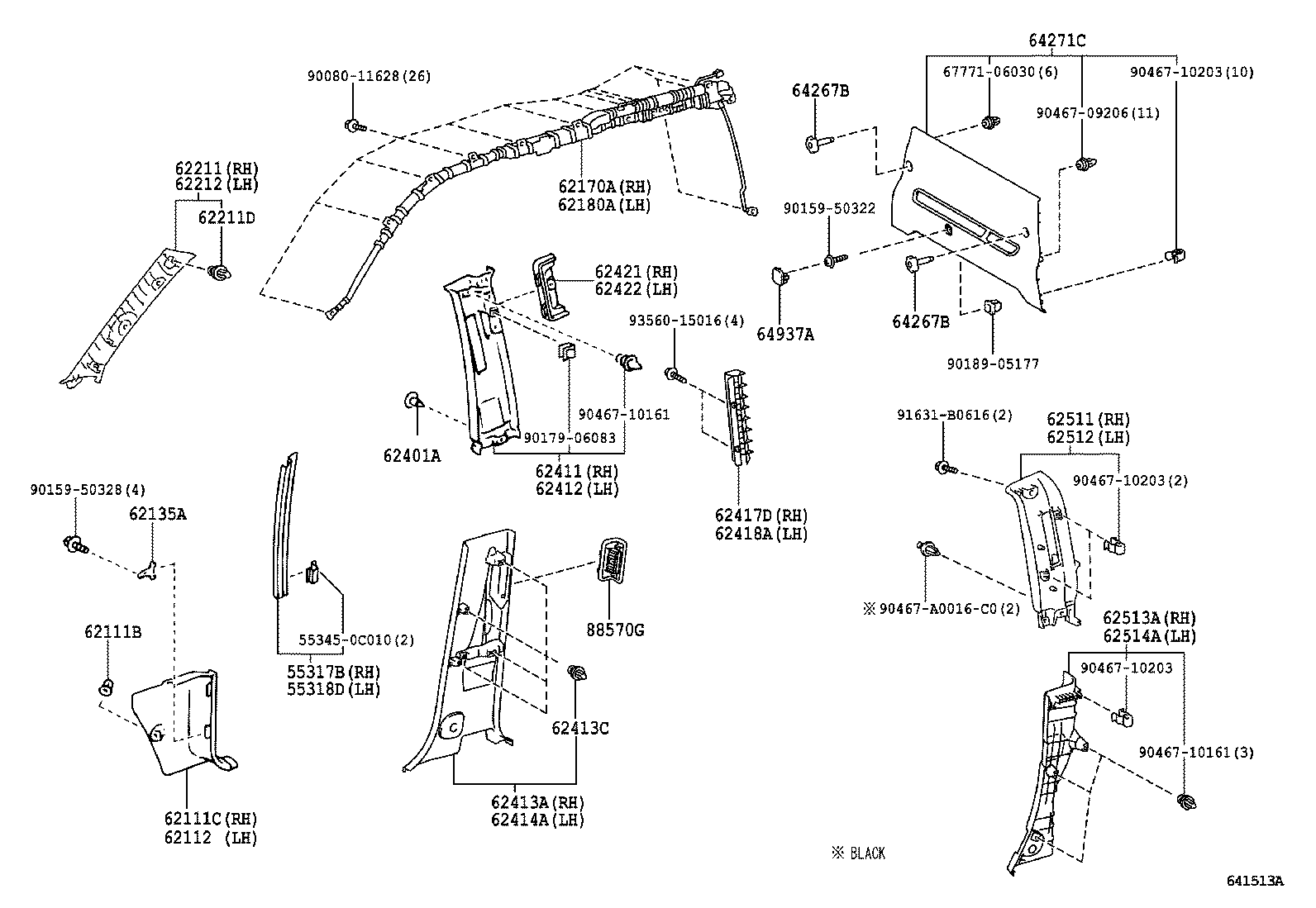

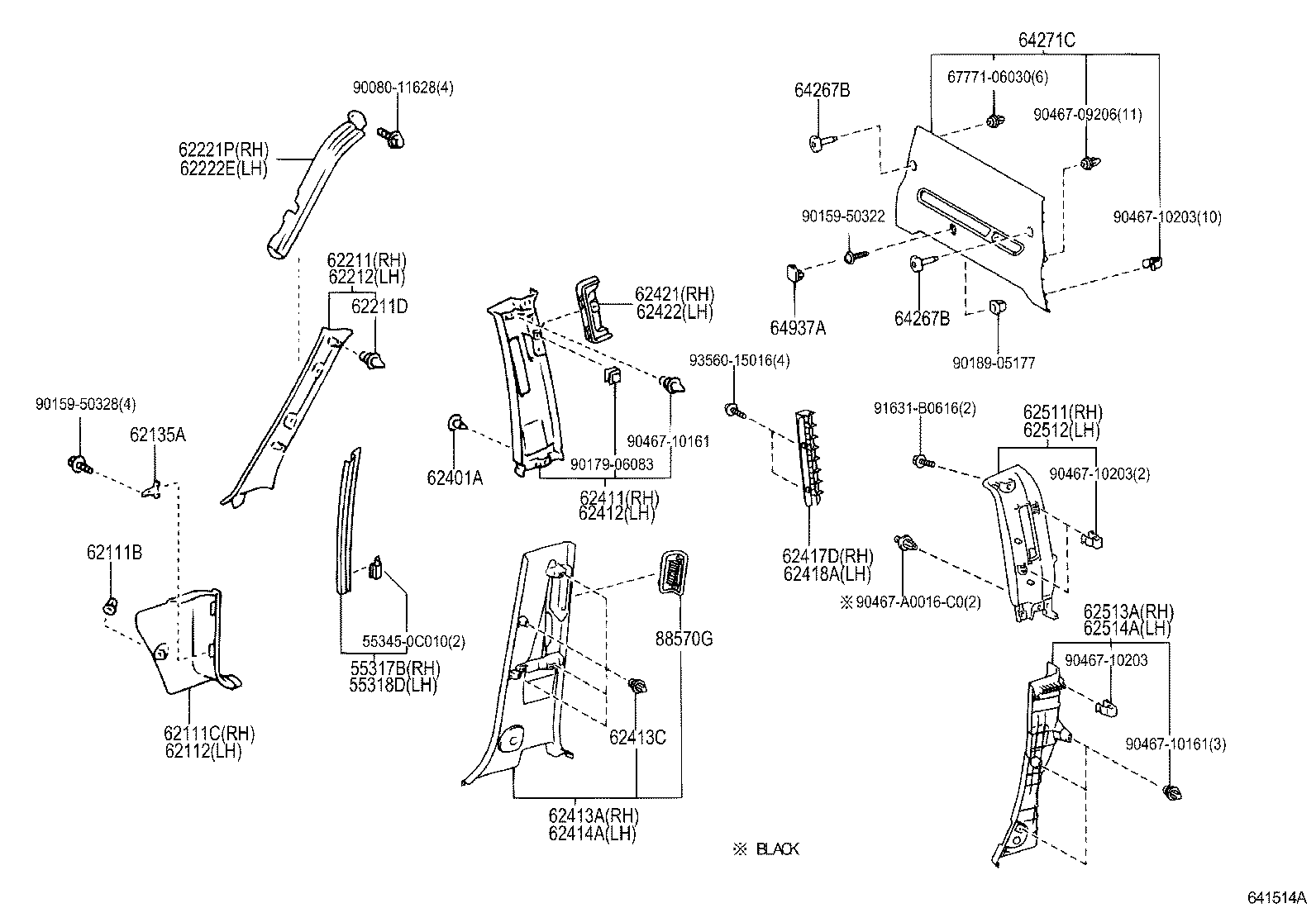

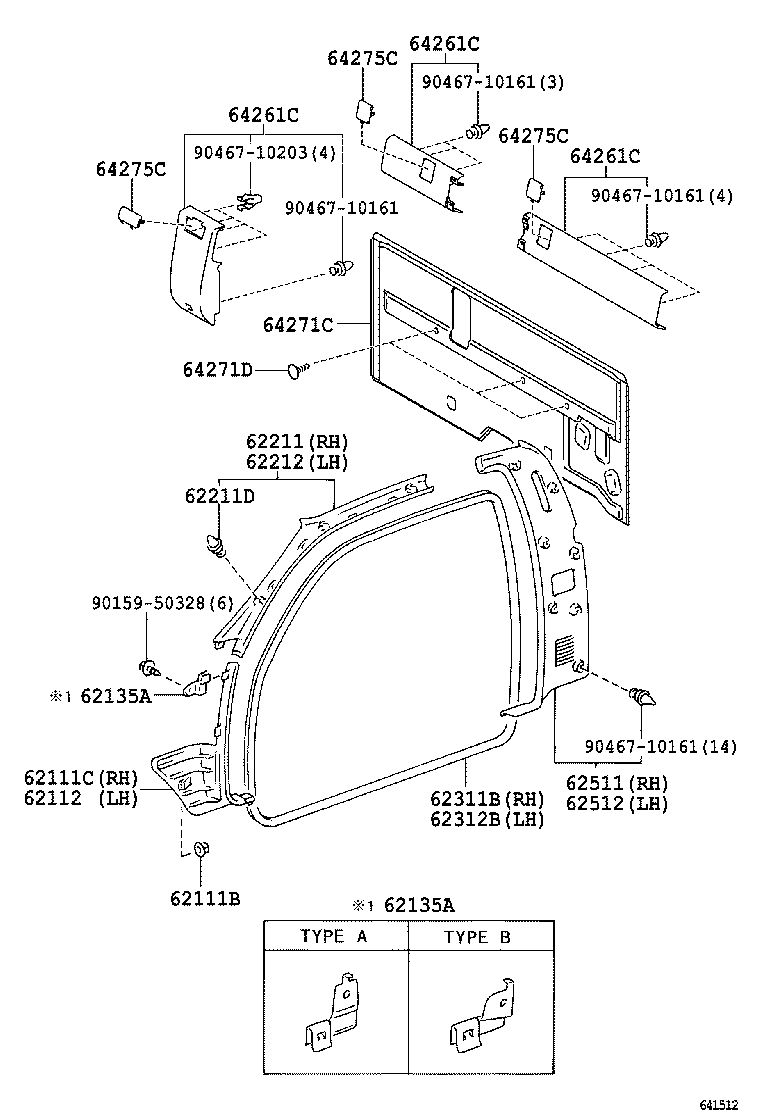

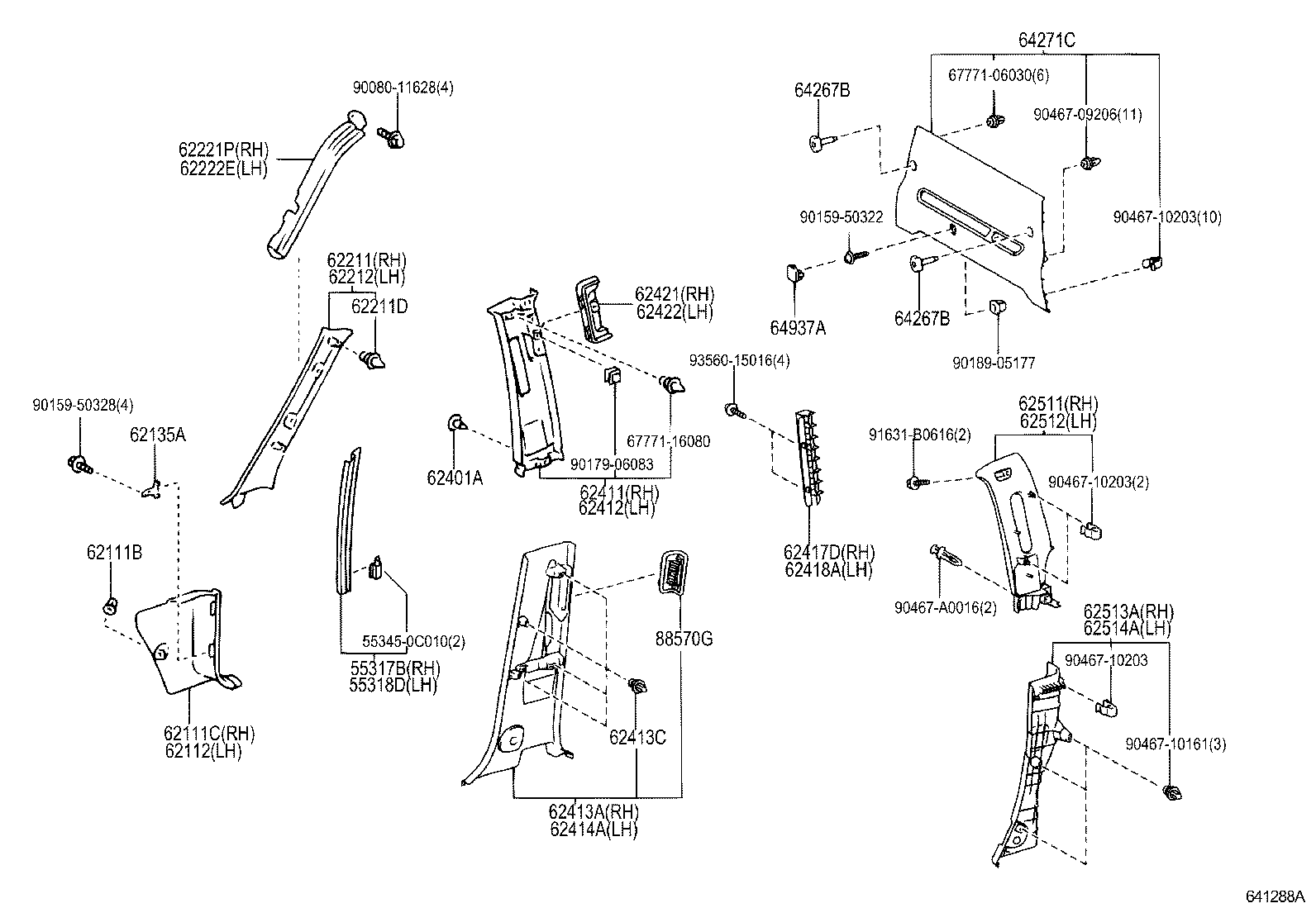

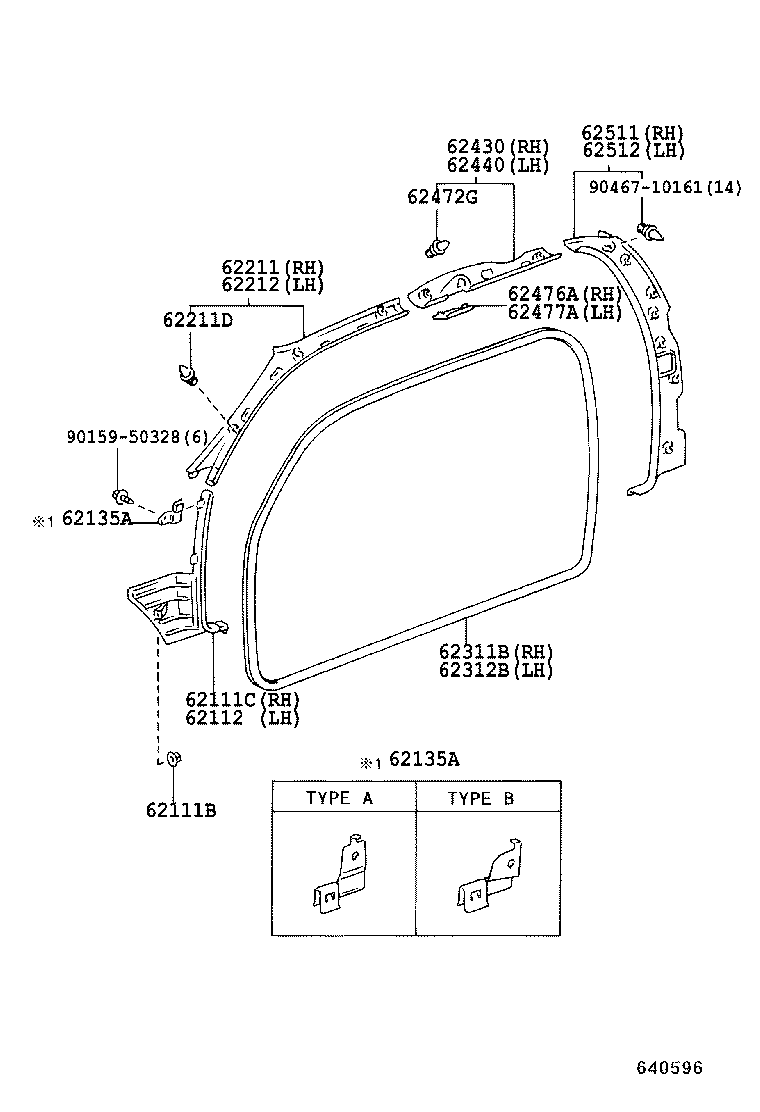

Inside Trim Board

41 part groups · 6 illustrations

PNC	Description
55317B	Panel, Instrument Side, RH
55318D	Panel, Instrument Side, LH
62111B	Clip(FOR COWL SIDE TRIM)
62111C	Board, Cowl Side Trim, RH
62112	Board, Cowl Side Trim, LH
62135A	Retainer, Cowl Side Cover
62170A	Airbag Assy, Curtain Shield, RH
62180A	Airbag Assy, Curtain Shield, LH
62211	Garnish, Front Pillar, RH
62211D	Clip(FOR FRONT BODY PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62221P	Spacer, Front Pillar, NO.1 RH
62222E	Spacer, Front Pillar, NO.1 LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62401A	Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411	Garnish, Center Pillar, RH
62412	Garnish, Center Pillar, LH
62413A	Garnish, Center Pillar, Lower RH
62413C	Clip (FOR CENTER LOWER GARNISH)
62414A	Garnish, Center Pillar, Lower LH
62417D	Pad, Center Pillar Garnish
62418A	Pad, Center Pillar Garnish, LH
62421	Cover, Center Pillar Garnish, RH
62422	Cover, Center Pillar Garnish, LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62472G	Clip (FOR ROOF SIDE GARNISH)
62476A	Cap, Roof Side Inner Garnish, RH
62477A	Cap, Roof Side Inner Garnish, LH
62511	Board, Quarter Inside Trim, RH
62512	Board, Quarter Inside Trim, LH
62513A	Panel, Quarter Trim, Lower RH
62514A	Panel, Quarter Trim, Lower LH
64261C	Garnish, Back Panel, Upper
64267B	Hook, Package Holder Net
64271C	Trim, Back Panel
64271D	Clip(FOR BACK PANEL TRIM)
64275C	Cover, Back Panel Trim
64937A	Cap, Tonneau Cover Holder, NO.1
88570G	Grille Assy, Air Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
