Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

9 part groups · 4 illustrations

Illustrations

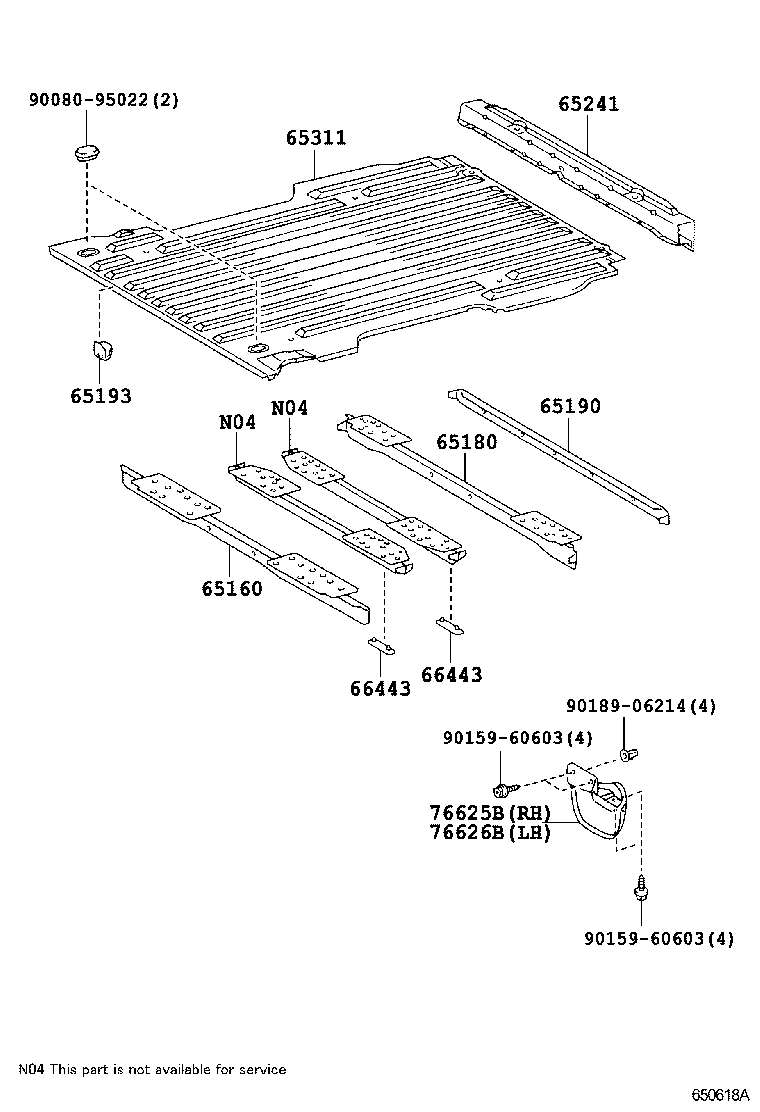

Figure 650209D 650209D 1999-02 → 2004-08 Figure 650209D 650209D 2004-08 → — Figure 650617 650617 2004-08 → — Figure 650618A 650618A 2002-08 → —

Part groups

PNCDescription
65160 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65193 Bracket, Mounting, NO.5 RH
65241 Sill, Rear Cross
65311 Panel, Floor, Center
66443 Shim, Mounting, NO.3
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
