Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

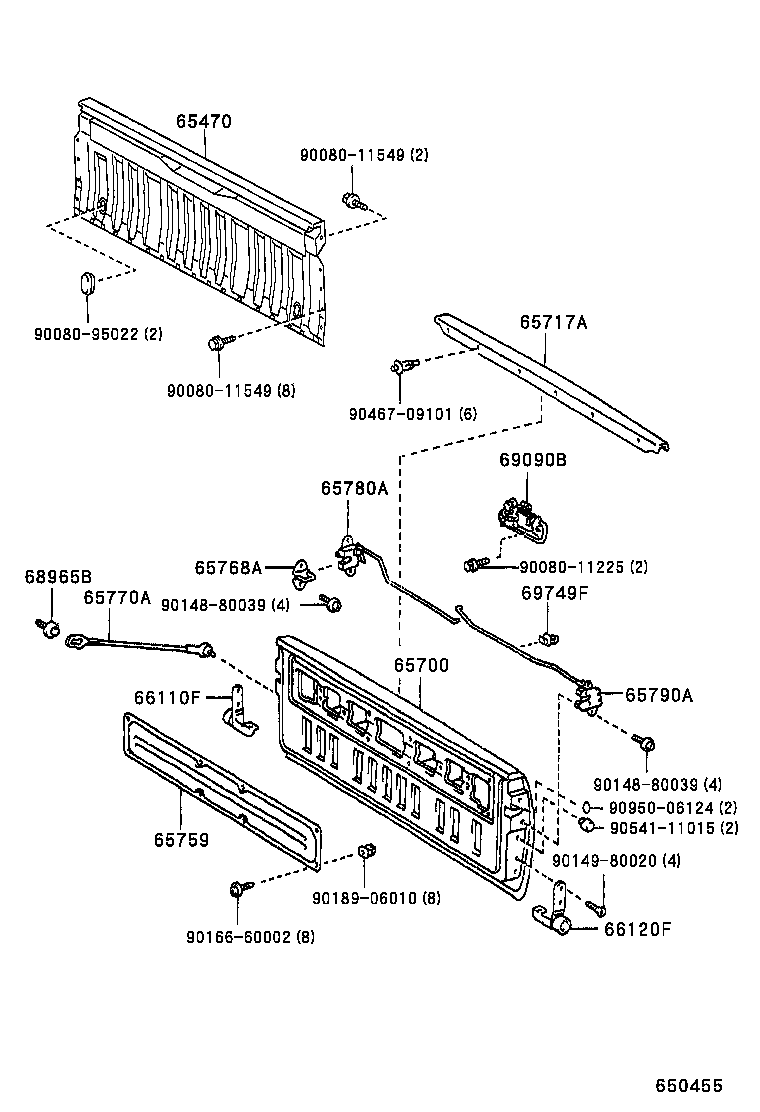

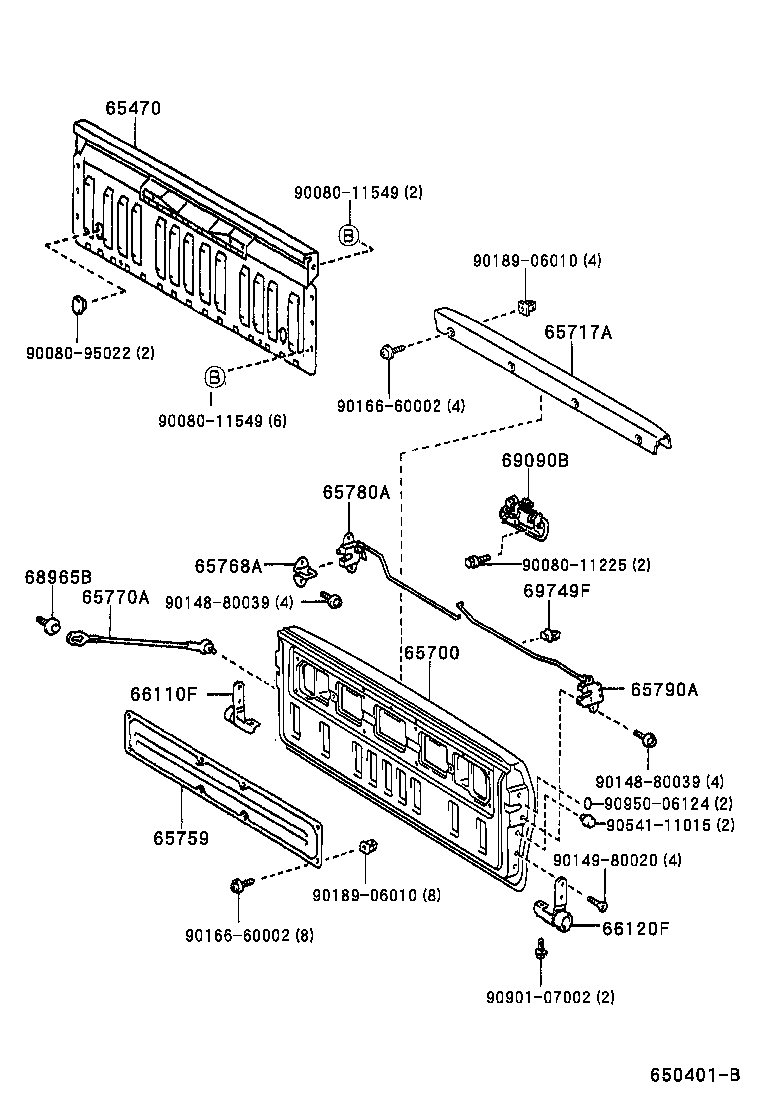

Rear Body Guard Frame & Tail Gate
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 65470 | Board Assy, Header |
| 65495B | Weight, Header Board |
| 65700 | Gate Assy, Rear Body Tail |
| 65717A | Protector, Tail Gate, RH |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 66110F | Hinge Assy, Tail Gate, RH |
| 66120F | Hinge Assy, Tail Gate, LH |
| 68965B | Shaft, Tail Gate Stay |
| 69090B | Handle Assy, Tail Gate |
| 69749F | Clamp, Rail Gate Lock Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
