Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

56 part groups · 7 illustrations

Illustrations

671530H 1999-02 → —

671550A 1999-02 → —

671552 1999-02 → 2002-08

672775A 2002-08 → 2004-08

673689 2004-08 → —

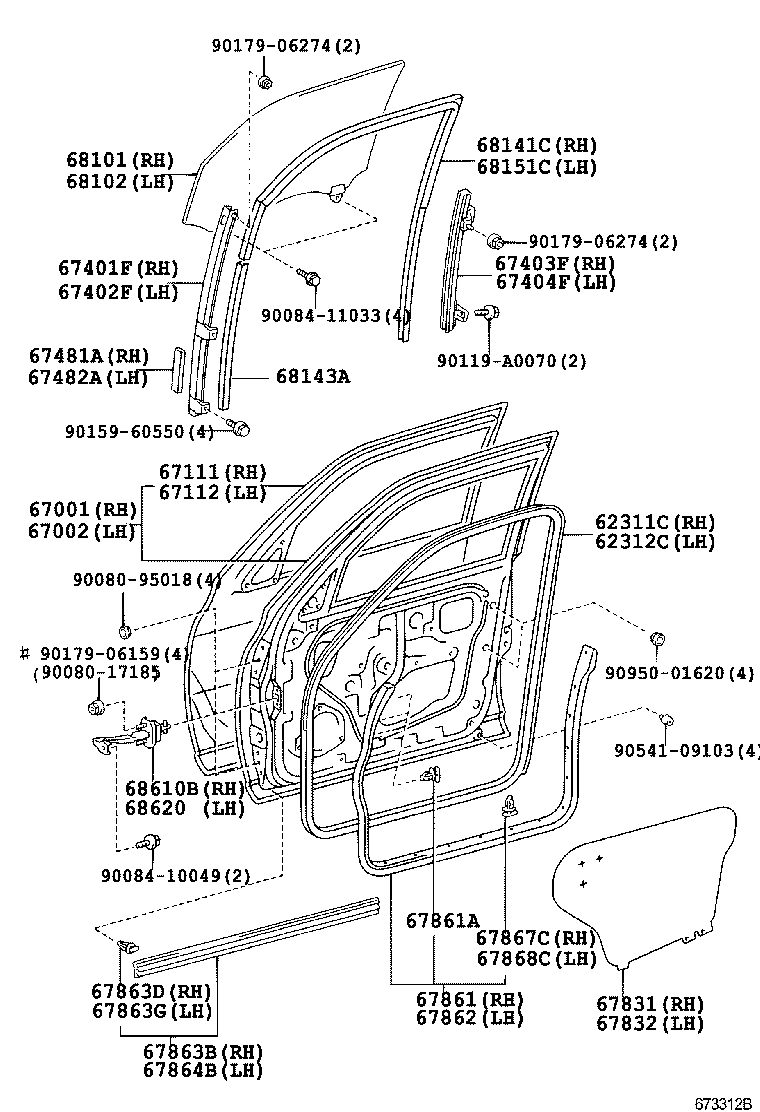

673312B 2003-10 → —

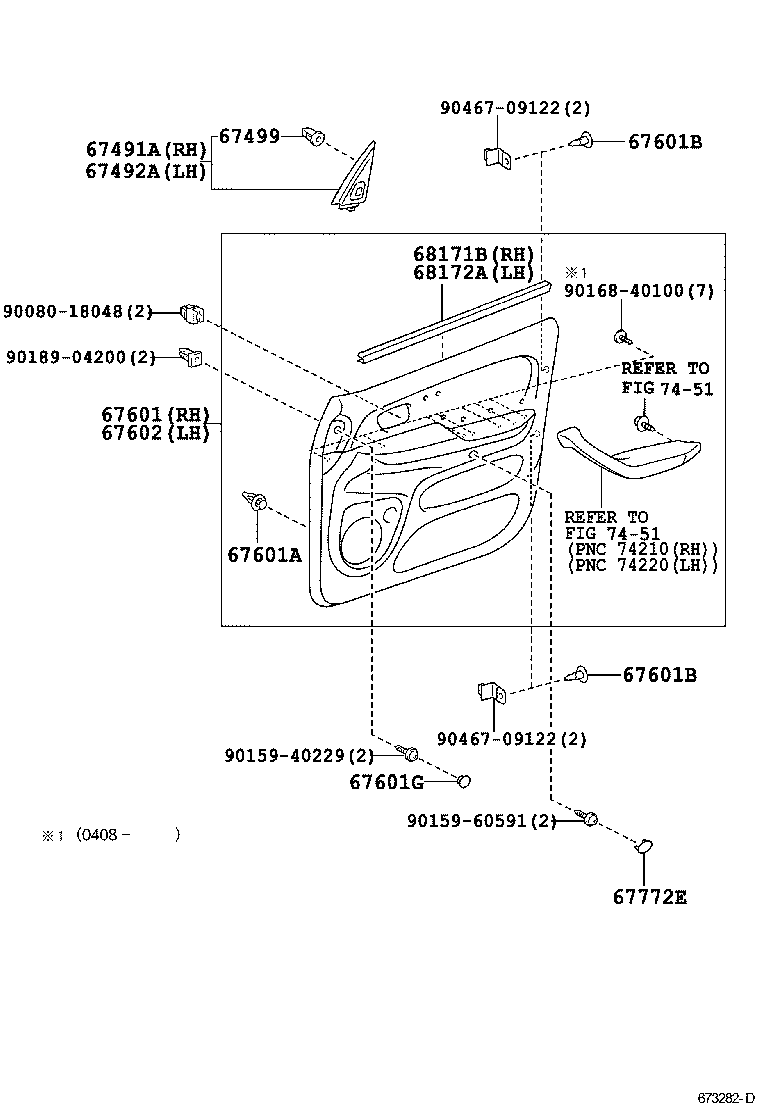

673282D 2003-10 → —

Part groups

PNC	Description
59198D	Seal, Noise Shutter
62311C	Weatherstrip, Front Door Opening Trim, RH
62312C	Weatherstrip, Front Door Opening Trim, LH
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67183	Retainer, Front Door Lower Hinge, RH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67433	Frame, Front Door Window, Rear Lower RH
67434	Frame, Front Door Window, Rear Lower LH
67469	Protector, Front Door Guide
67481A	Seal, Front Door Front Lower Frame, RH
67482A	Seal, Front Door Front Lower Frame, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601G	Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67651B	Grille, Speaker Door, RH
67652B	Grille, Speaker Door, LH
67772A	Cap, Front Door Trim Retainer
67772E	Cap, Front Door Trim Retainer
67772L	Cap, Door Trim Retainer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67861A	Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67863D	Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863G	Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864B	Weatherstrip, Front Door, NO.2 LH
67867C	Retainer, Front Door Weatherstrip, RH
67867G	Retainer, Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67868L	Retainer, Door Weatherstrip, LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68143A	Run, Front Door Glass, NO.2
68151C	Run, Front Door Glass, LH
68160C	Weatherstrip Assy, Front Door Glass, Outer RH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68210C	Weatherstrip Assy, Front Door Glass, Outer LH
68211H	Clip, Door Glass Weatherstrip, RH
68212F	Clip, Door Glass Weatherstrip, LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
