Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 8 illustrations

Illustrations

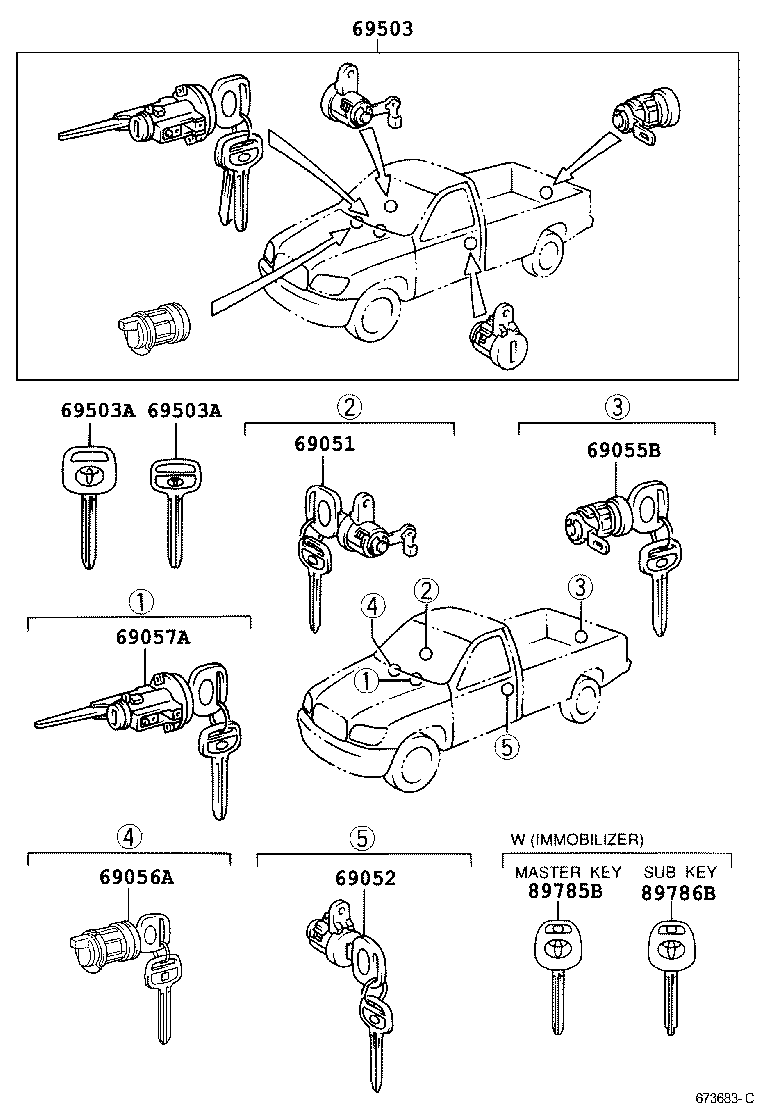

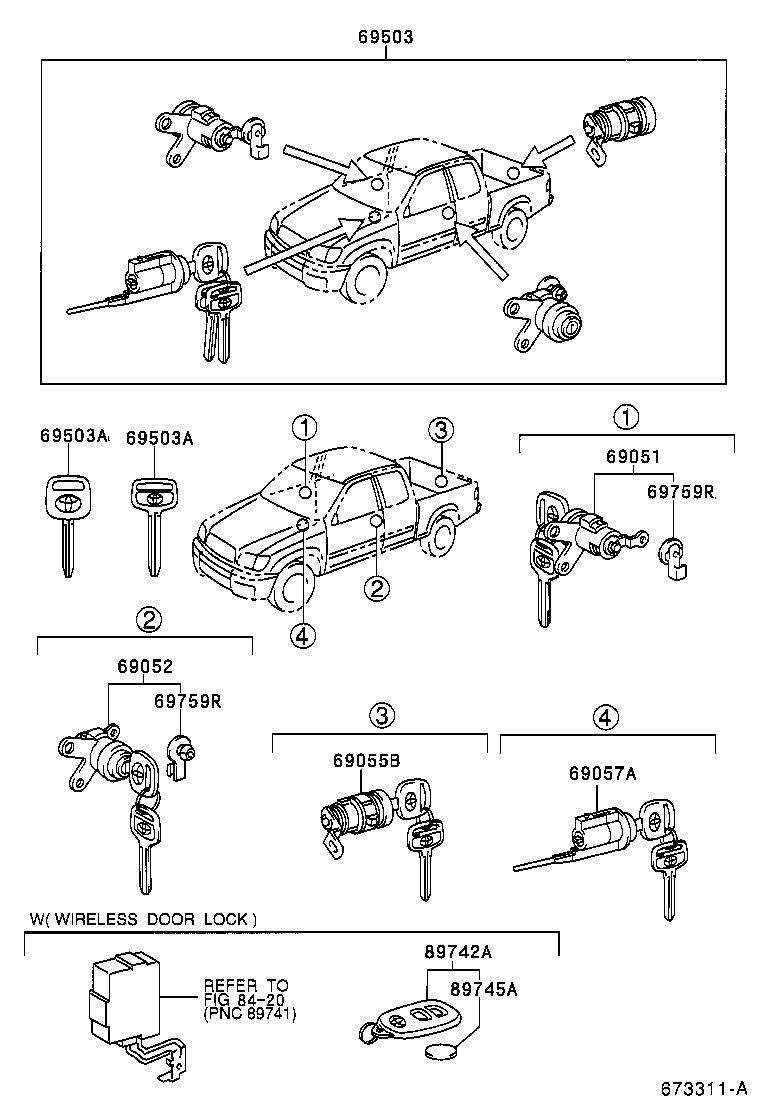

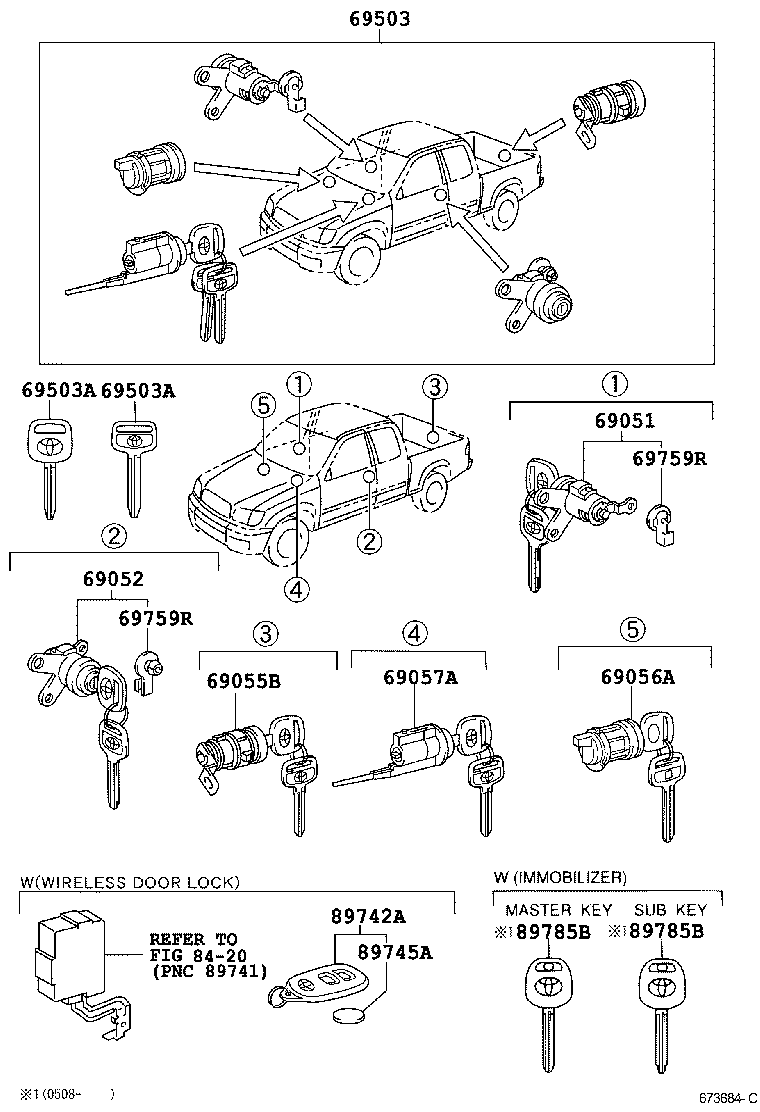

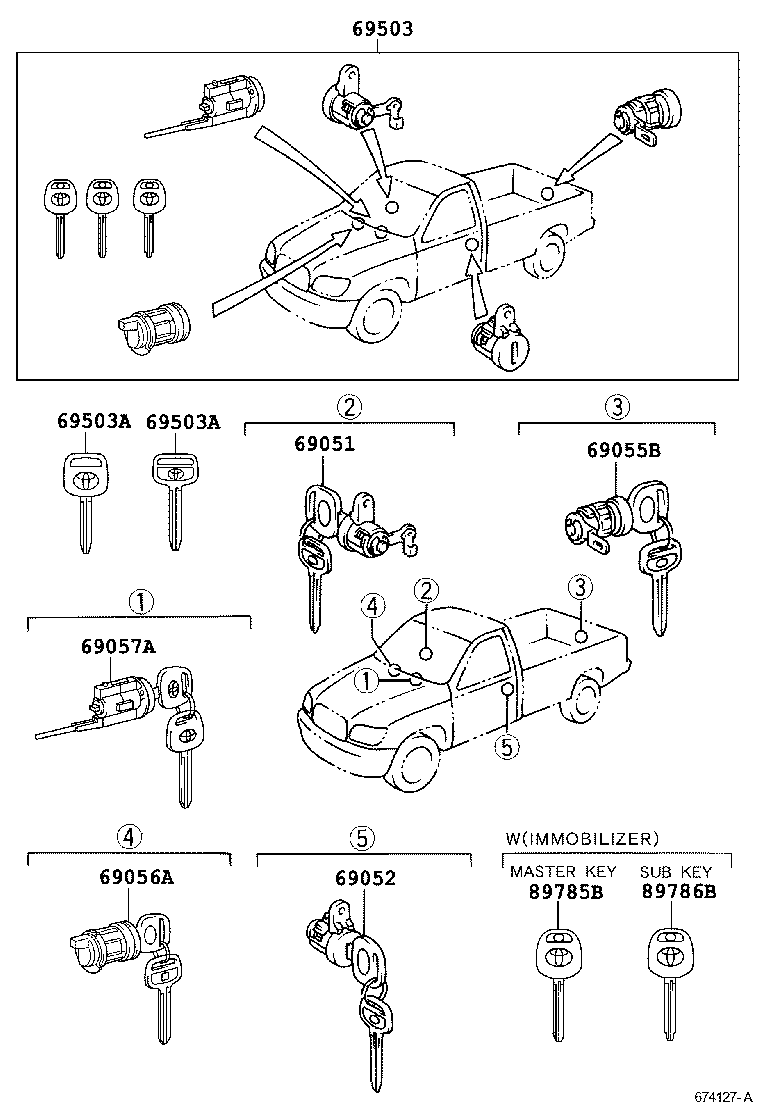

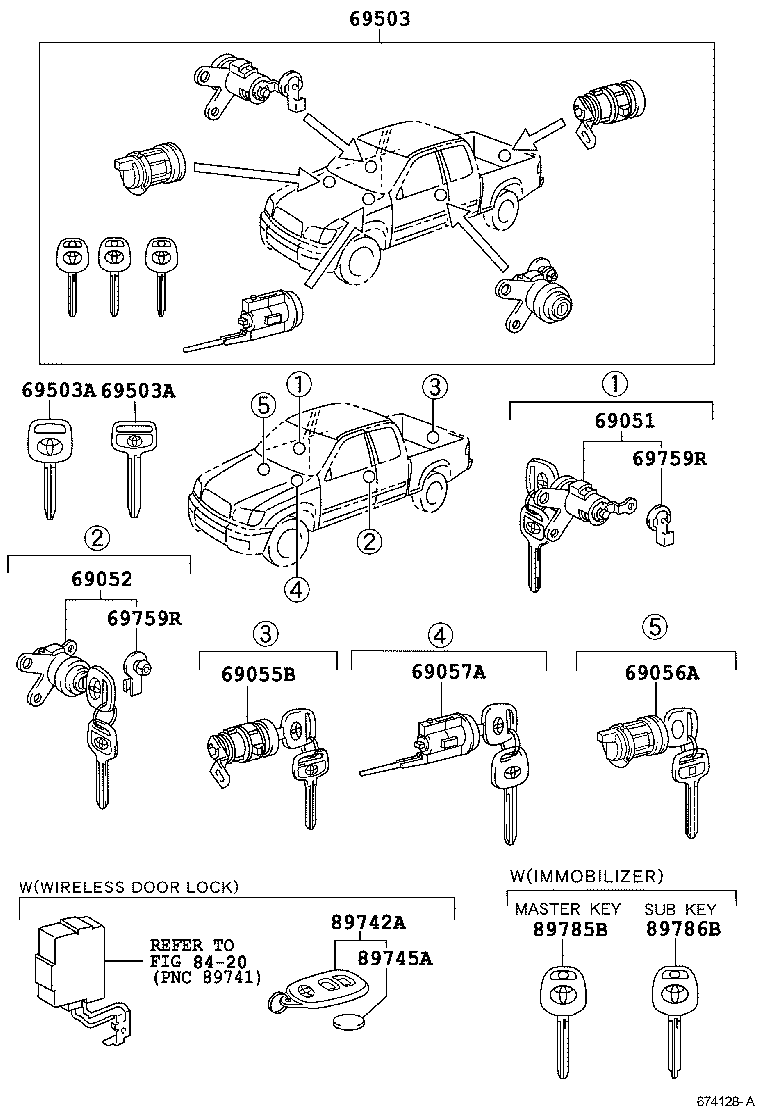

Figure 671517C 671517C 1999-02 → 2004-08 Figure 673311A 673311A 2003-10 → 2004-08 Figure 673683C 673683C 2004-08 → 2005-08 Figure 673683C 673683C 2004-08 → — Figure 673684C 673684C 2004-08 → 2005-08 Figure 673684C 673684C 2004-08 → — Figure 674127A 674127A 2005-08 → — Figure 674128A 674128A 2005-08 → —

Part groups

PNCDescription
69006A Cylinder & Key Set, Airbag Cut Off Switch
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69513 Pad, Fuel Filler Lid Lock Cylinder
69581 Retainer, Fuel Filler Lid Cylinder
69759R Snap, Front Door Lock Cylinder
89742A Transmitter, Door Control
89745A Battery, Transmitter
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
