Seat & Seat Track

229 part groups · 28 illustrations

Illustrations

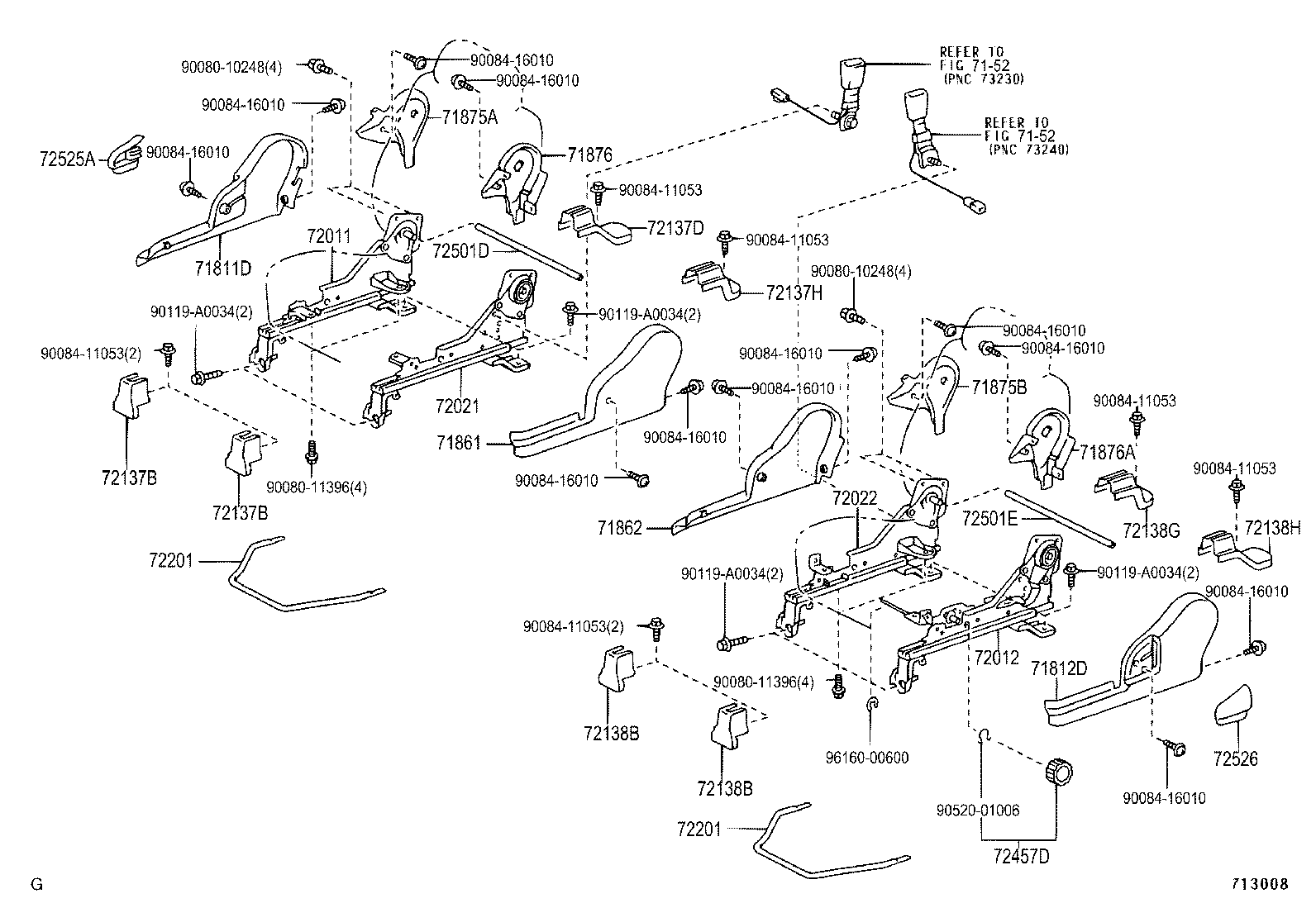

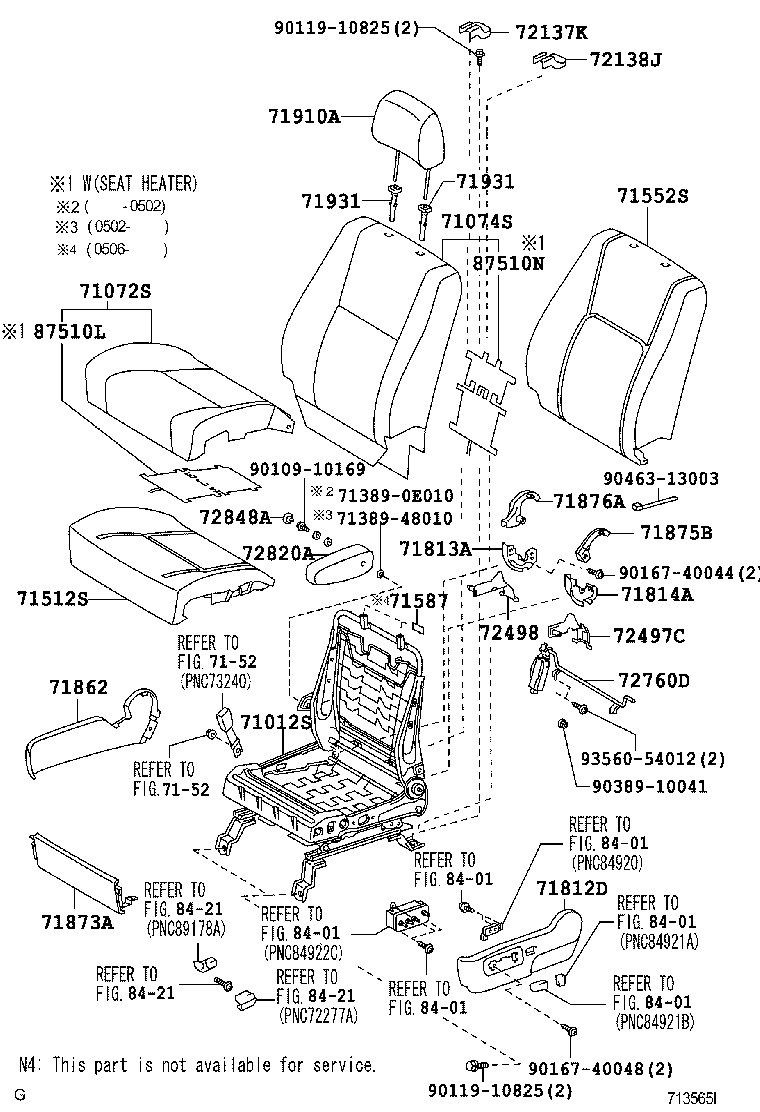

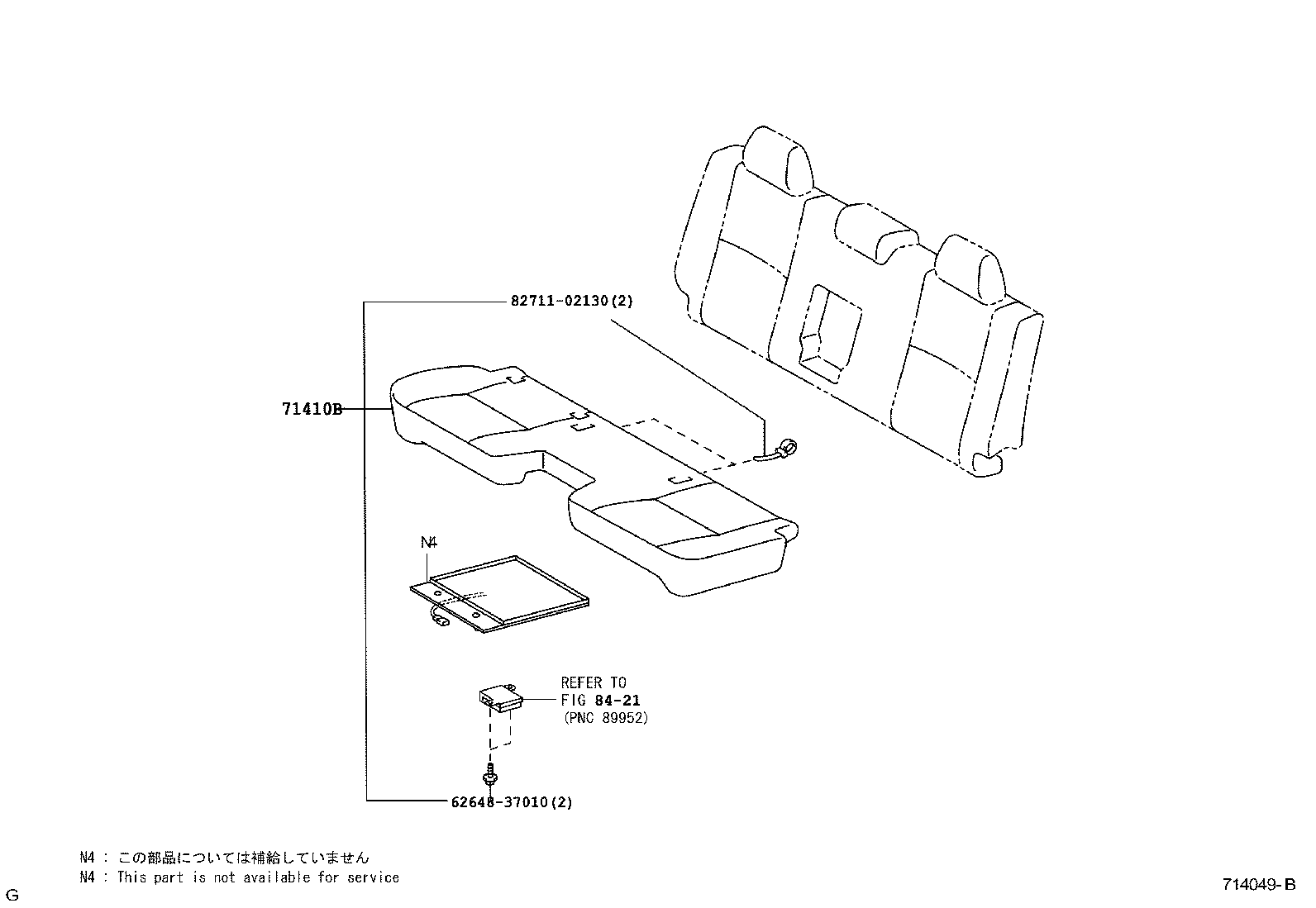

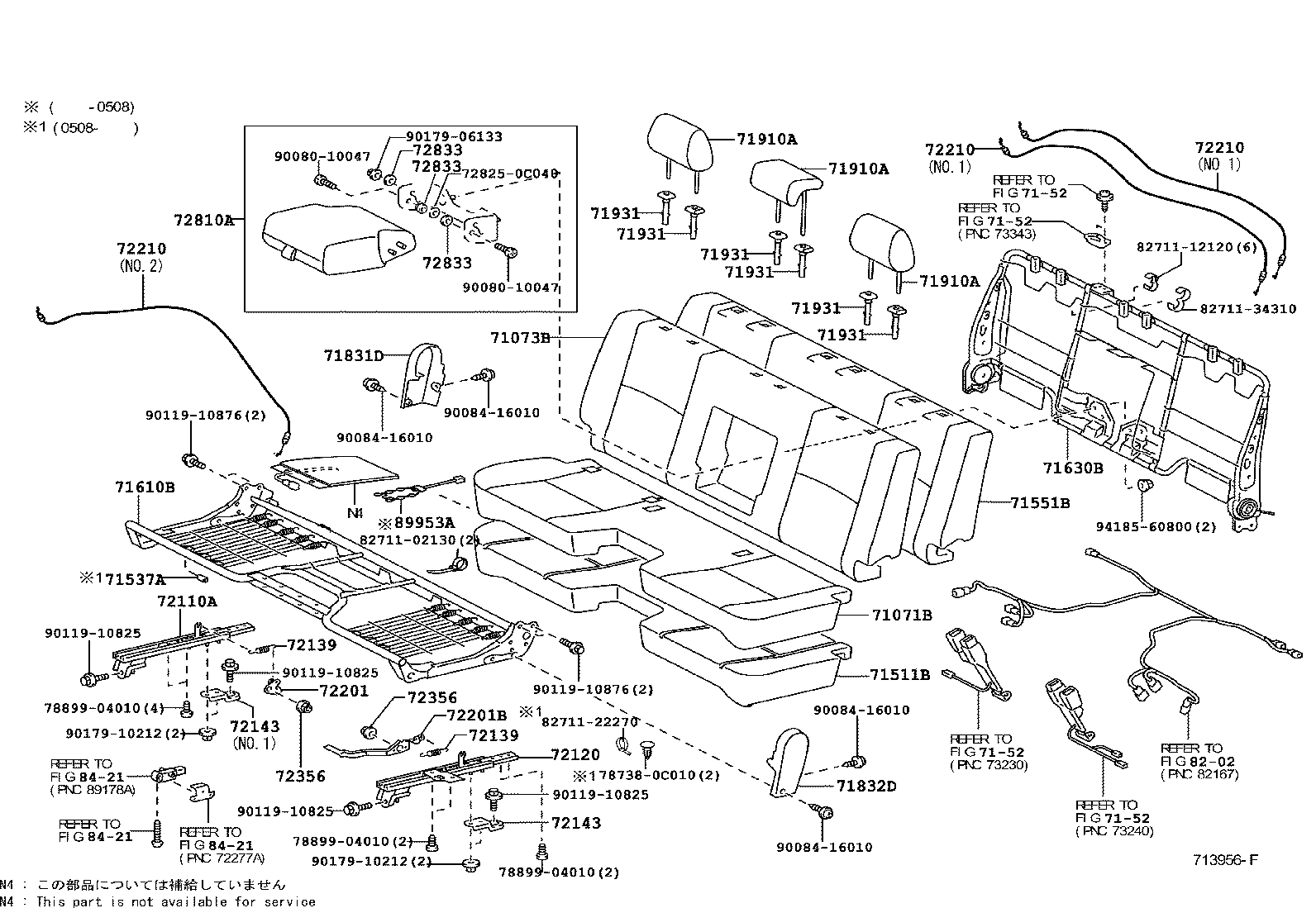

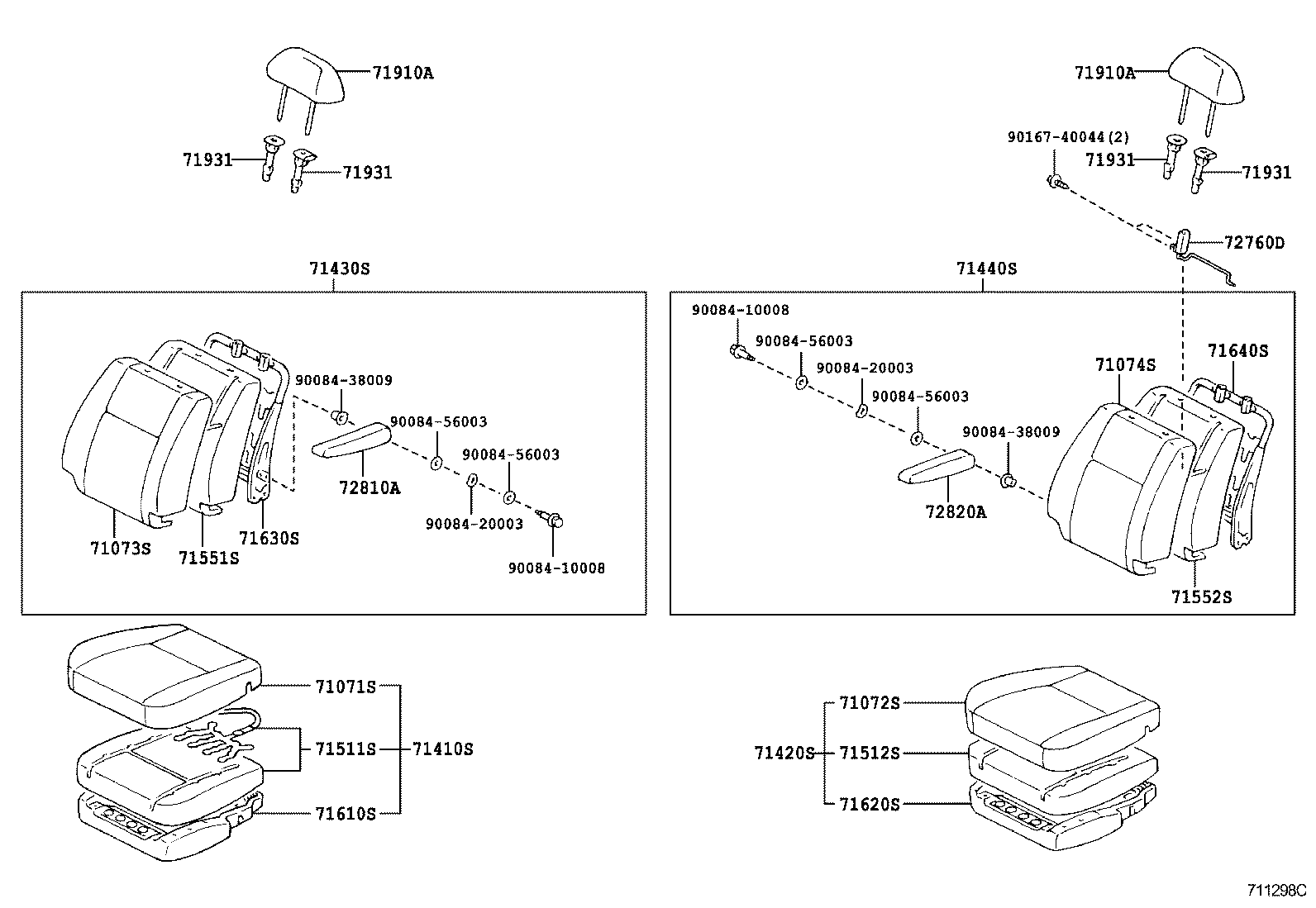

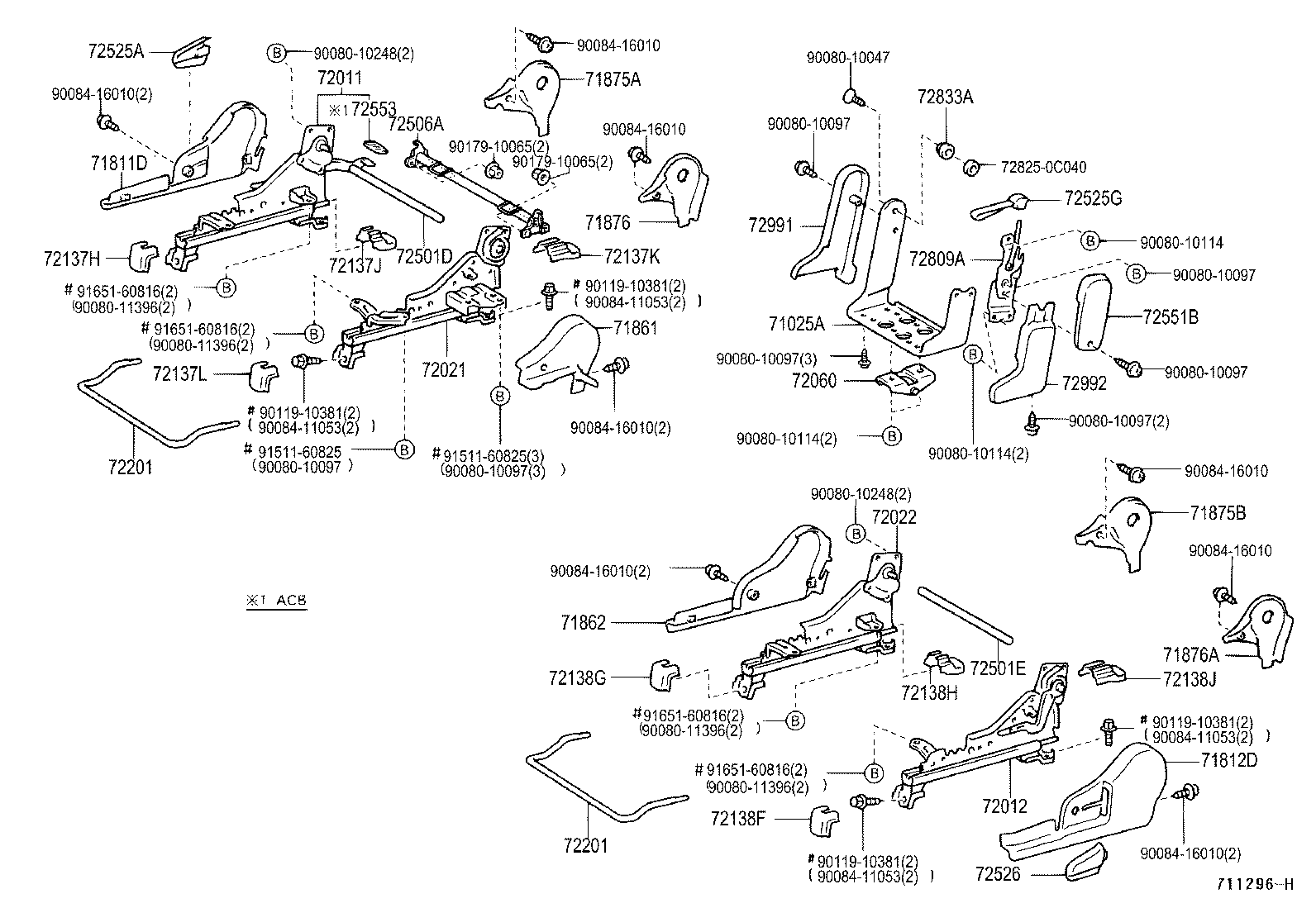

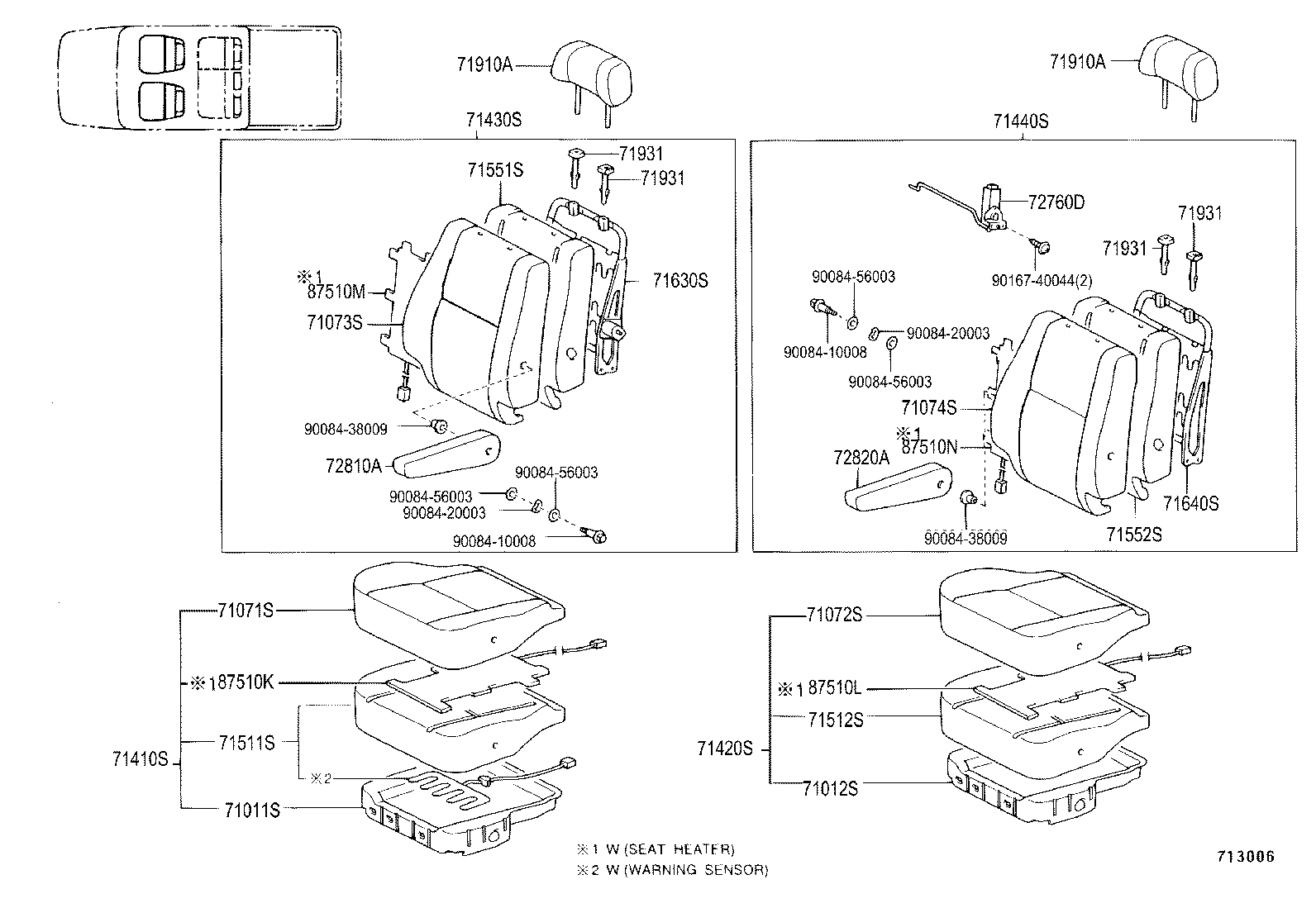

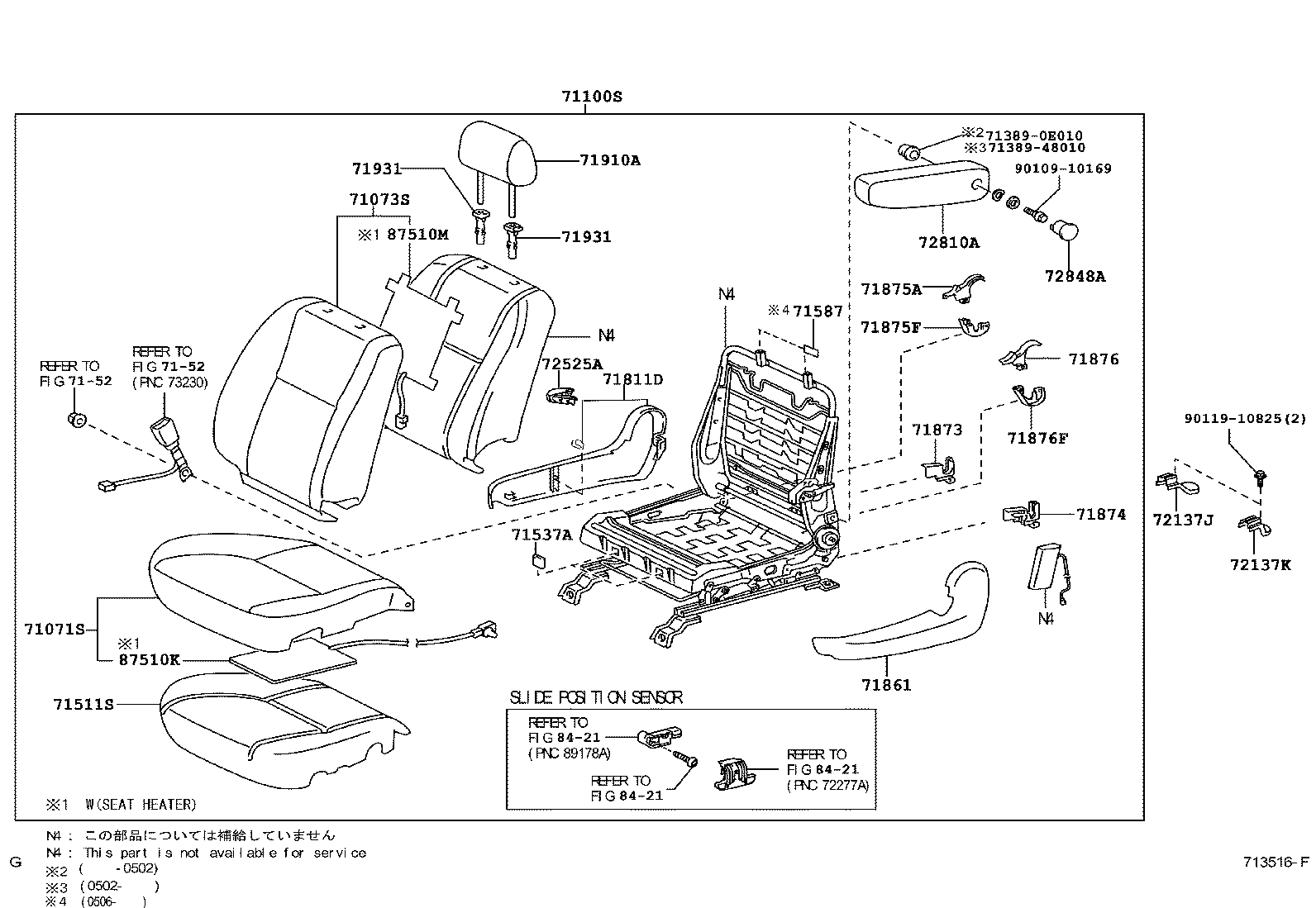

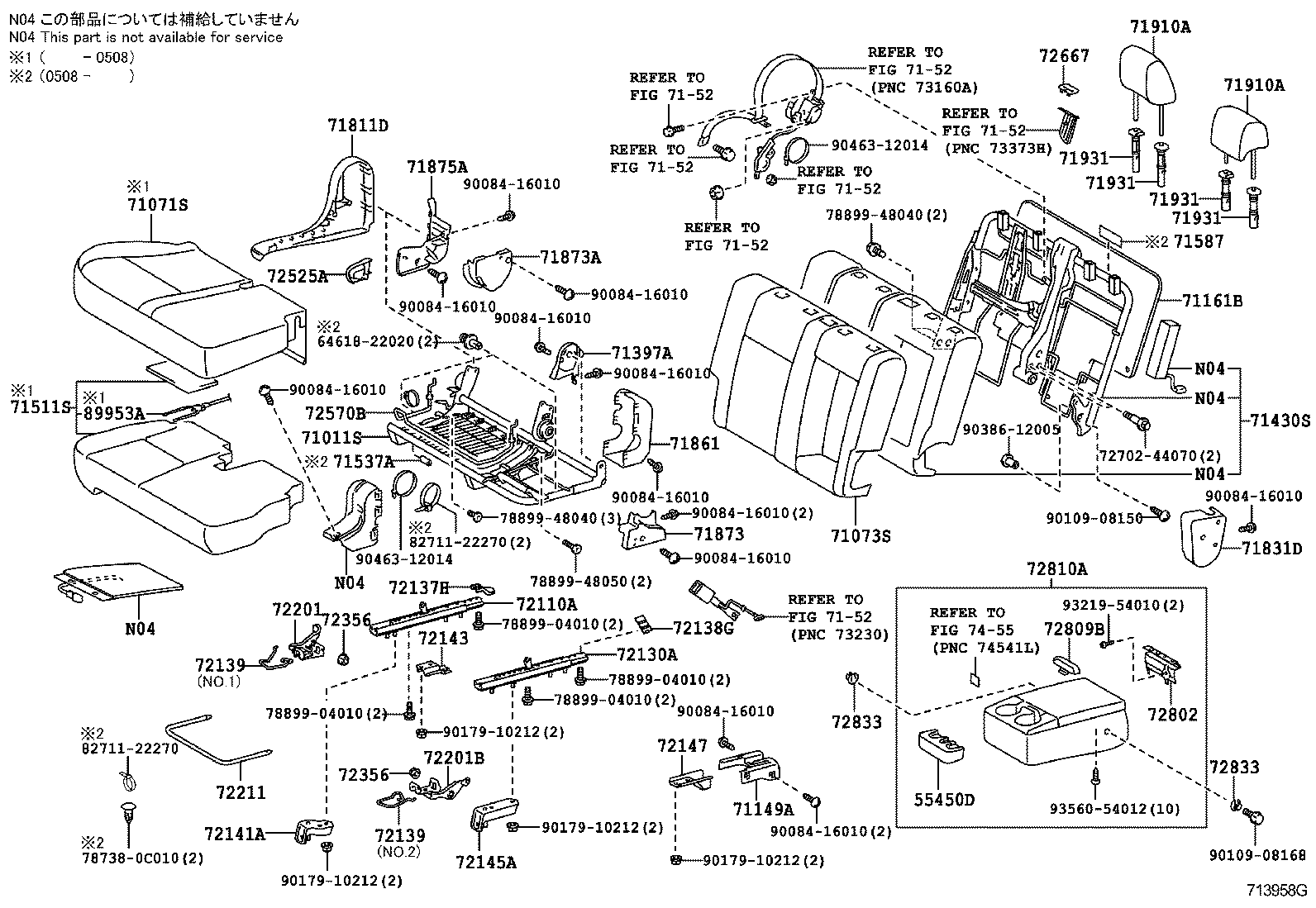

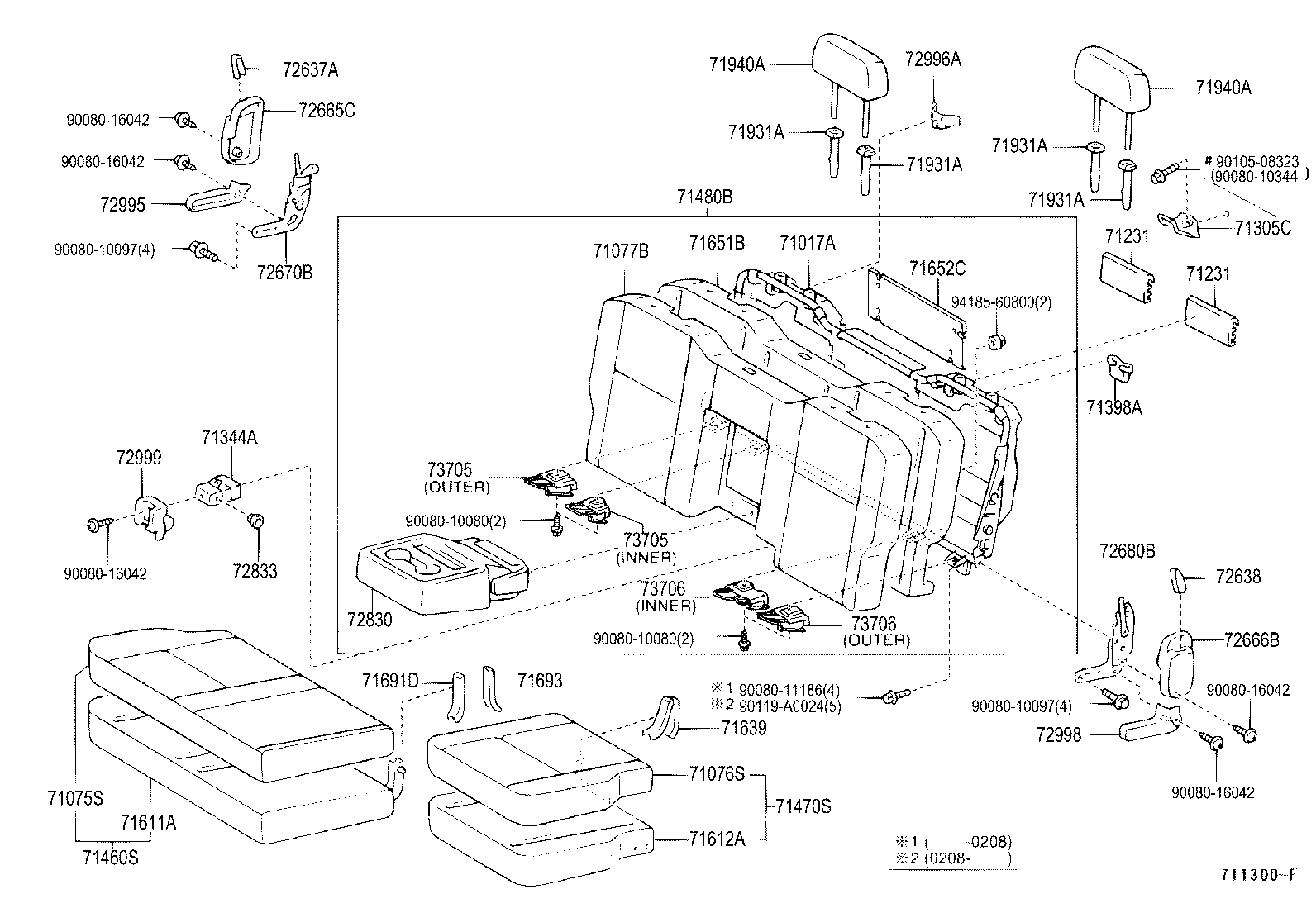

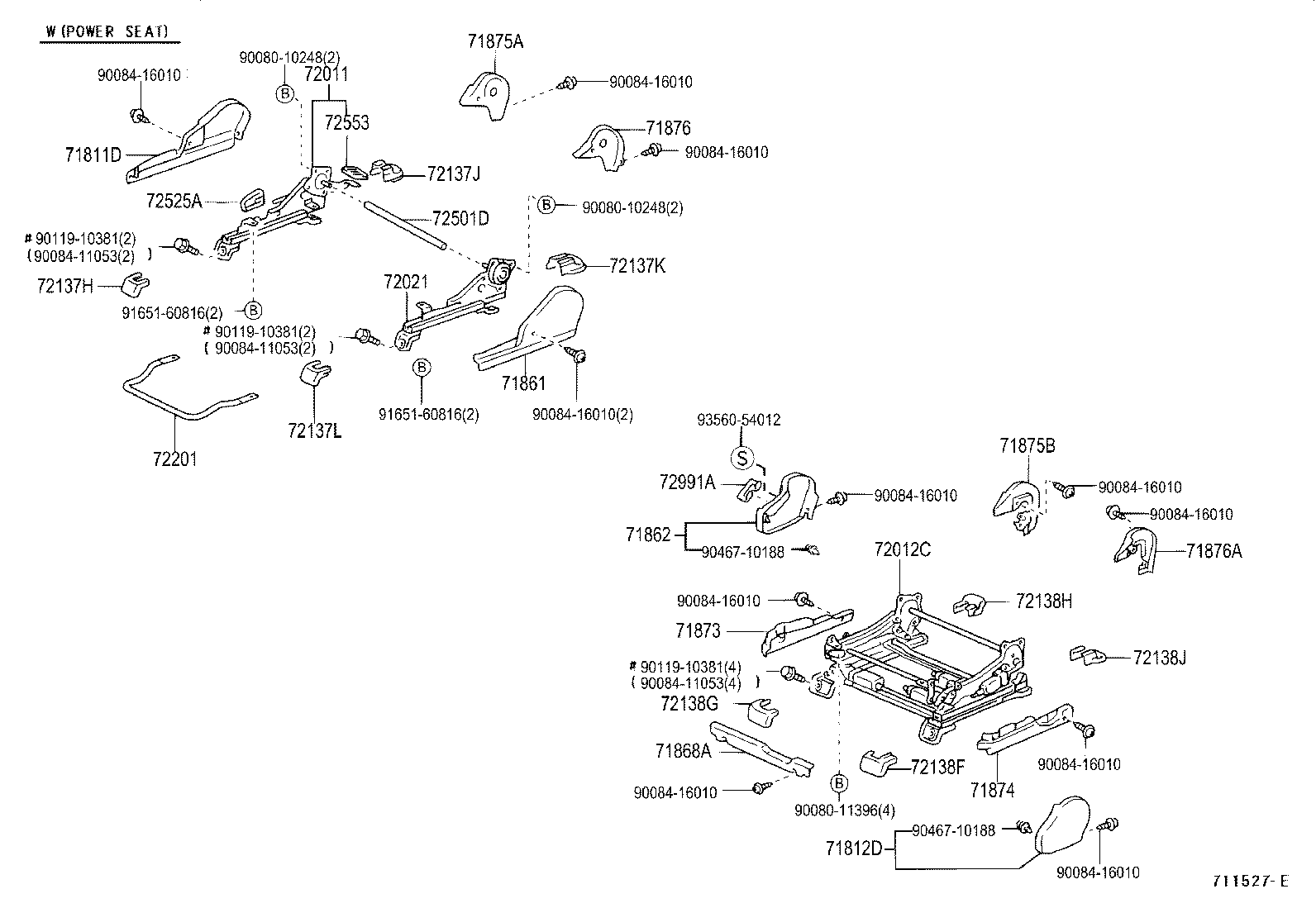

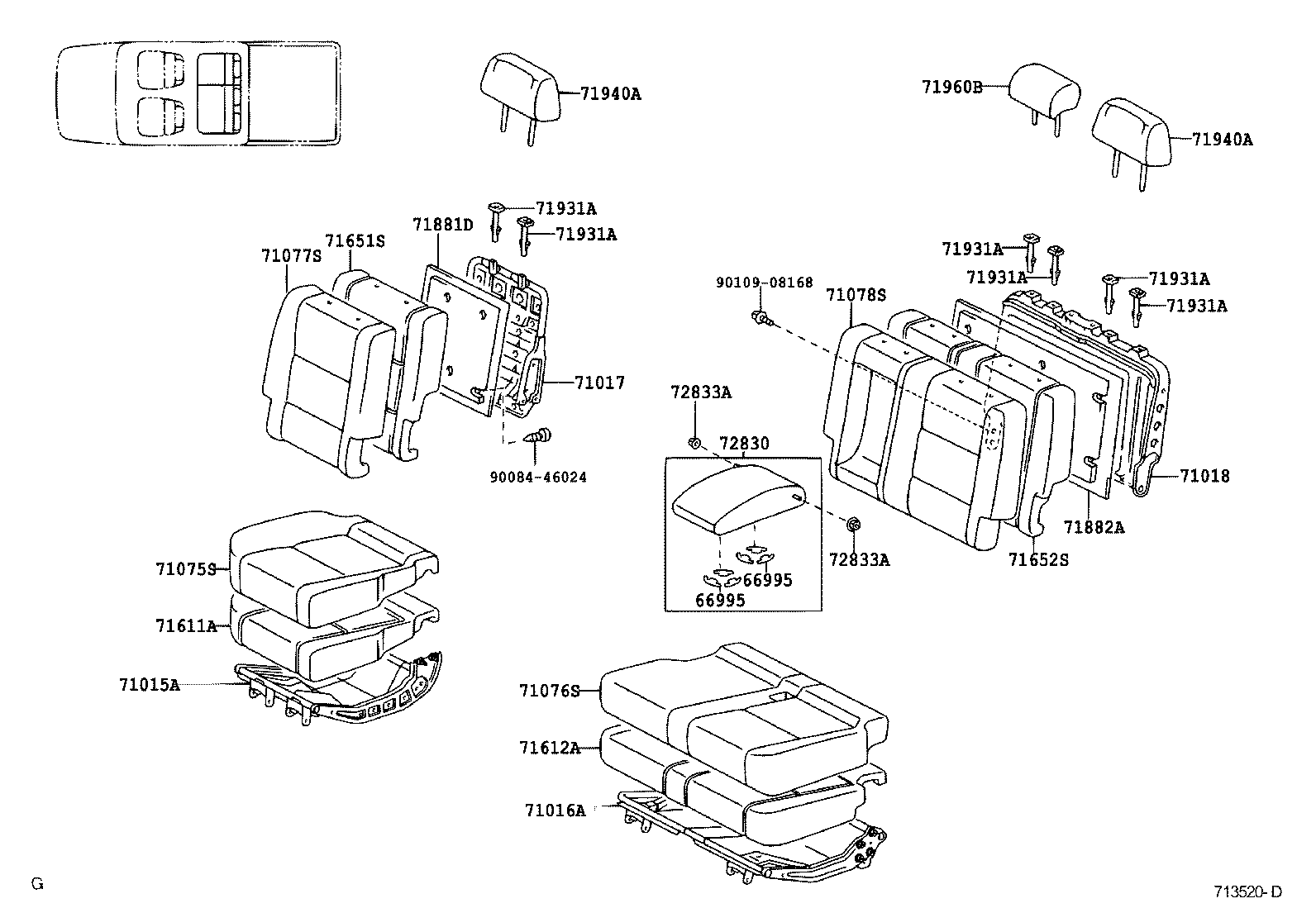

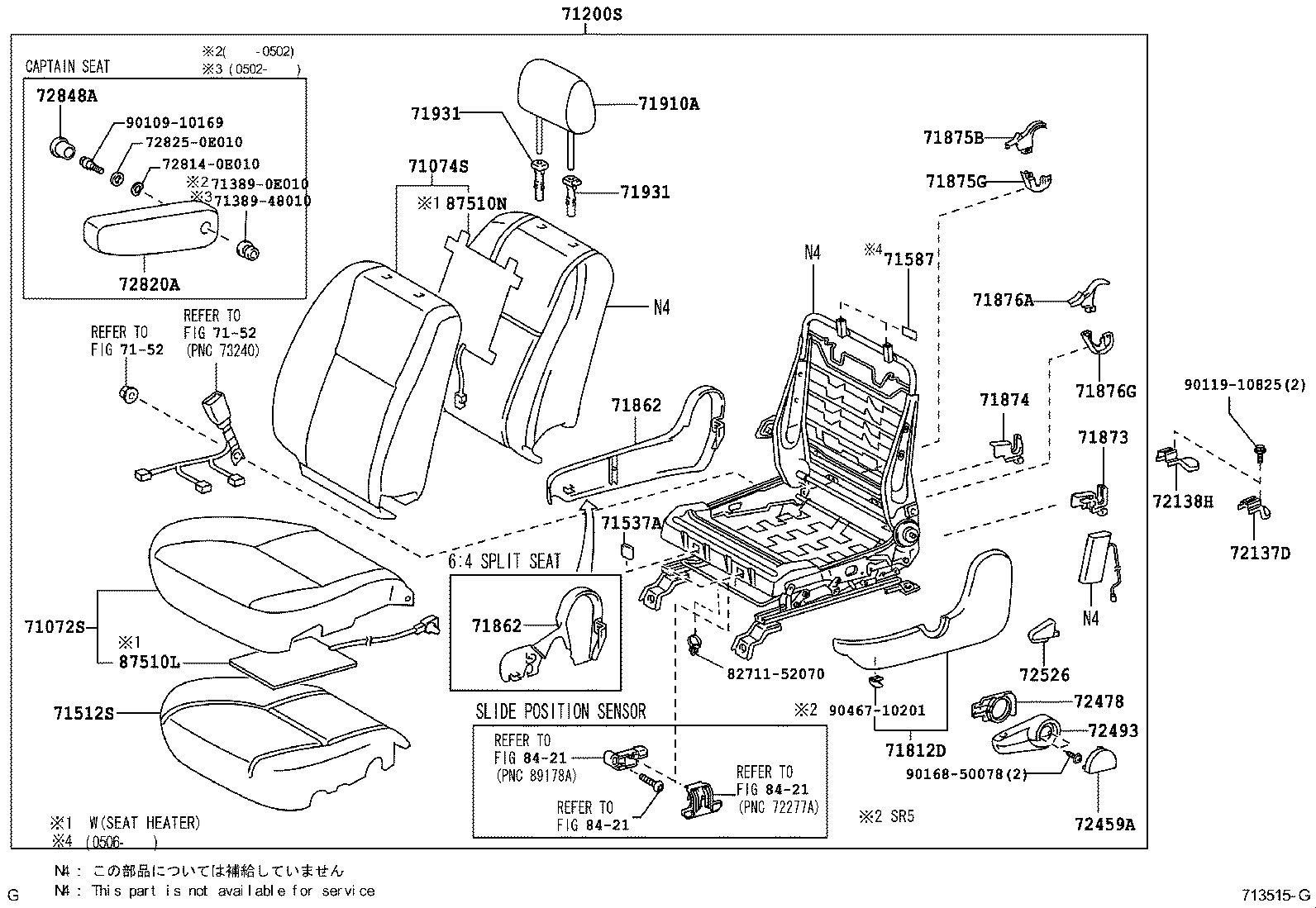

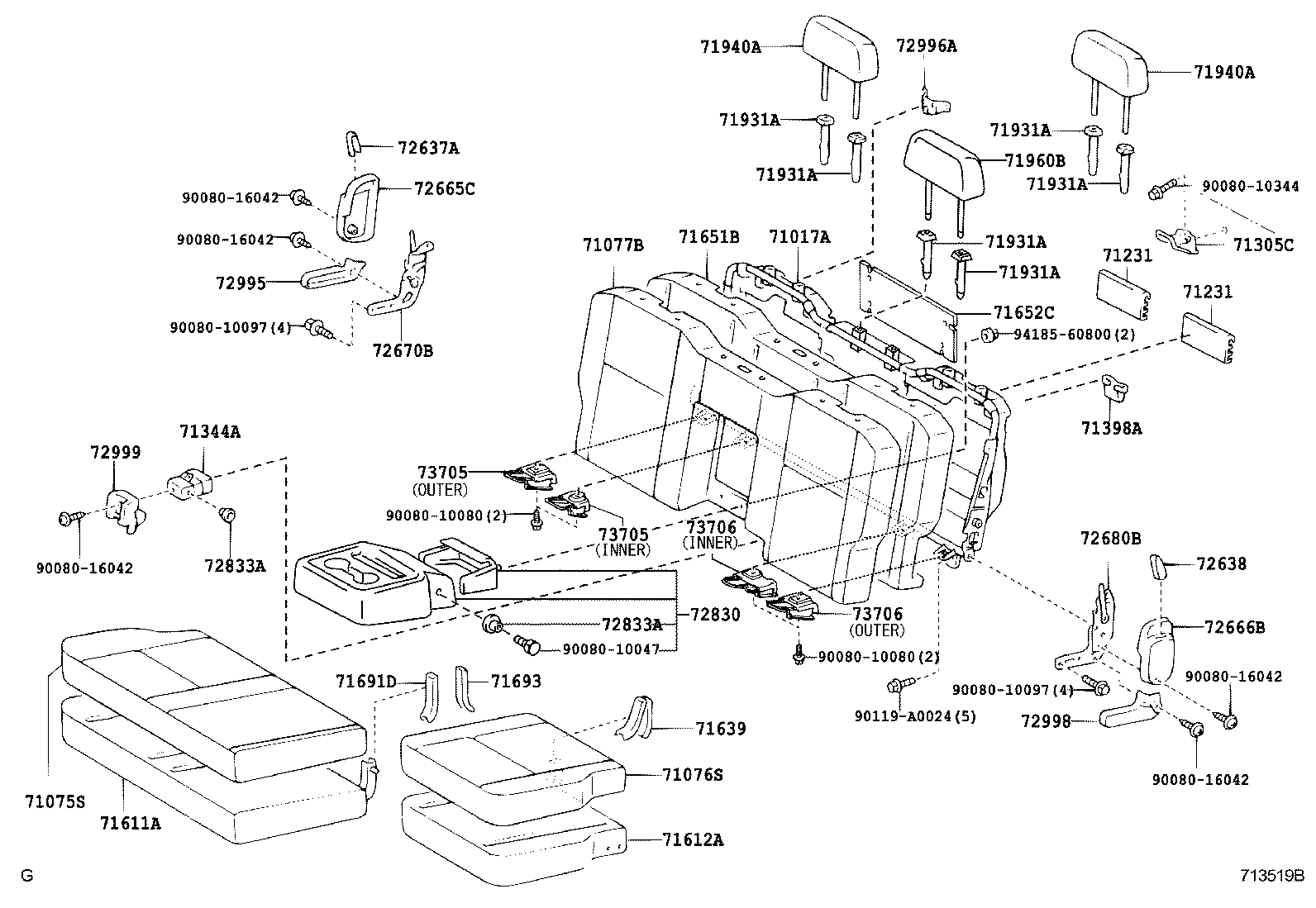

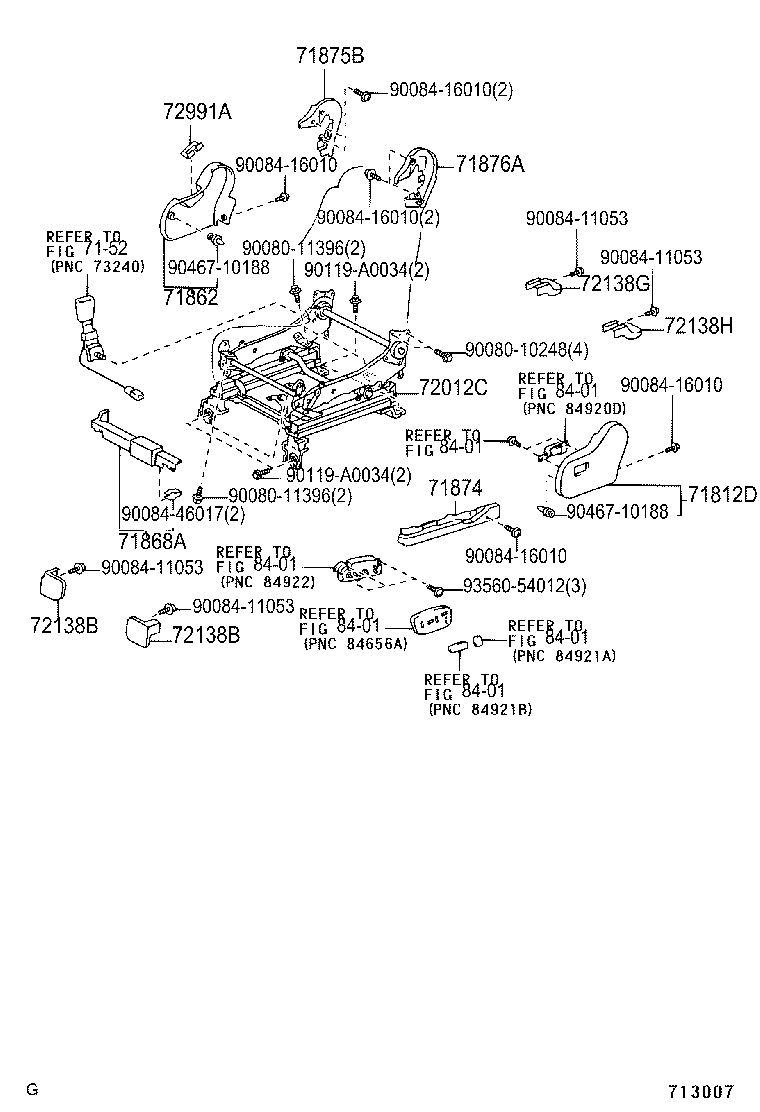

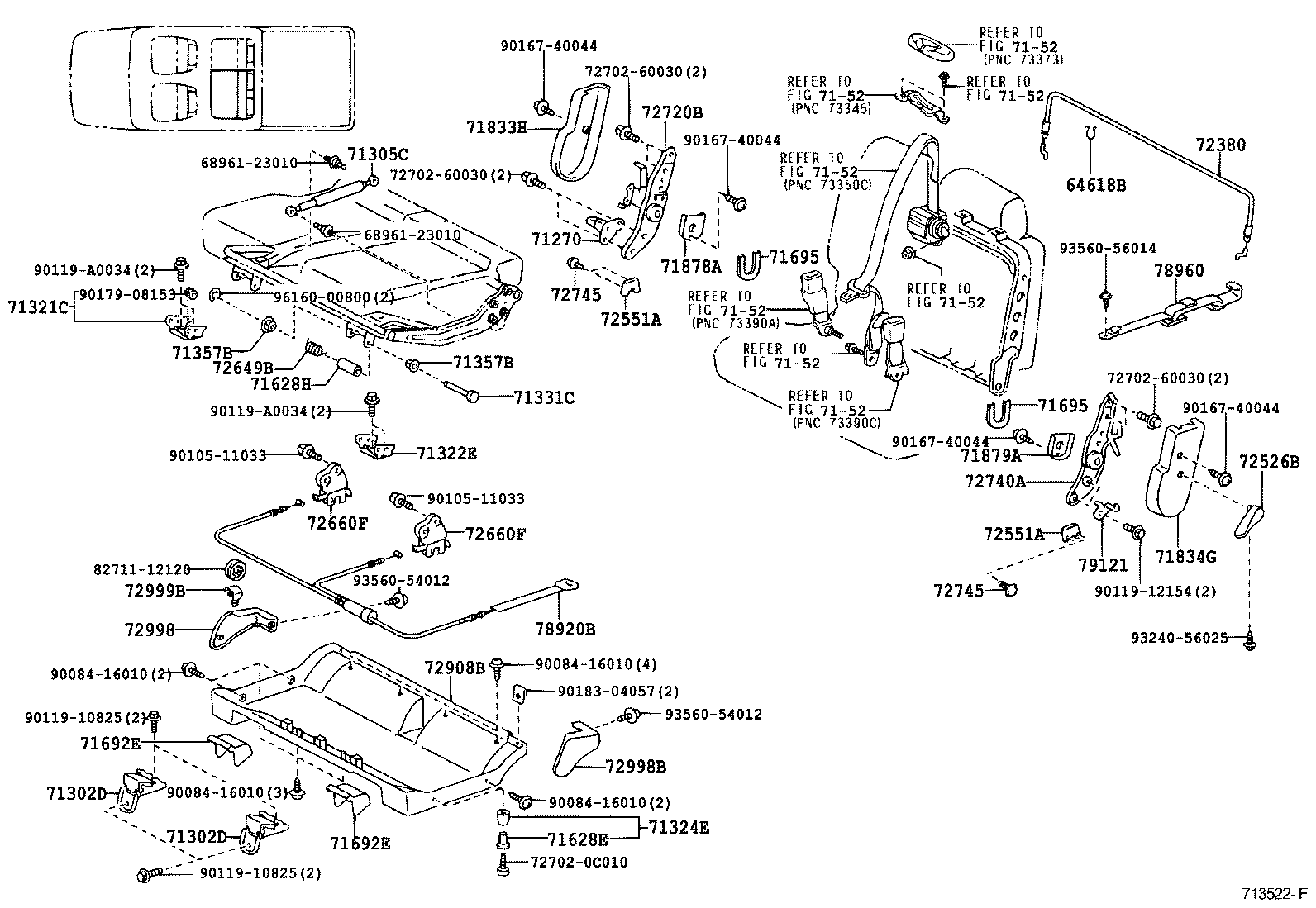

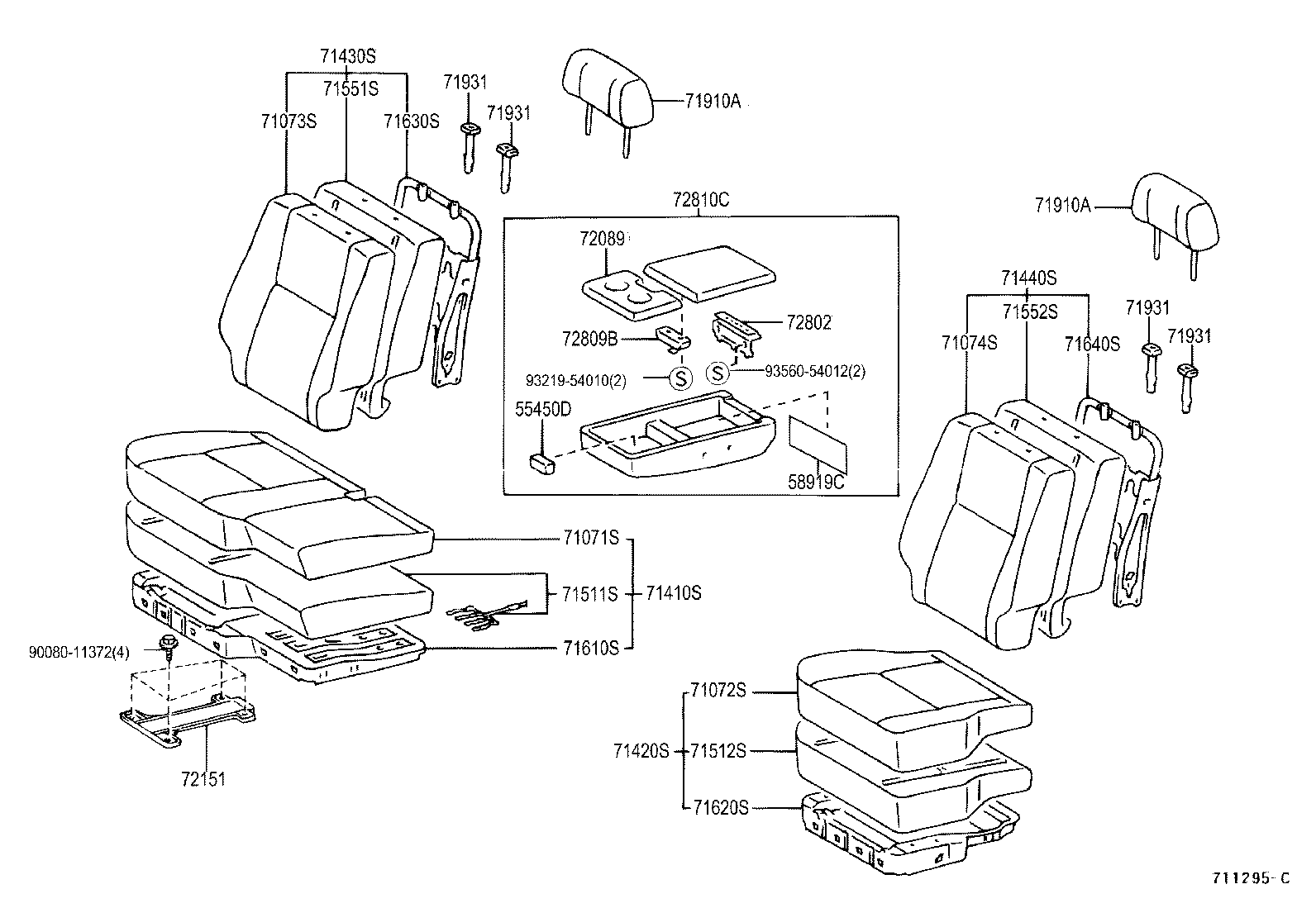

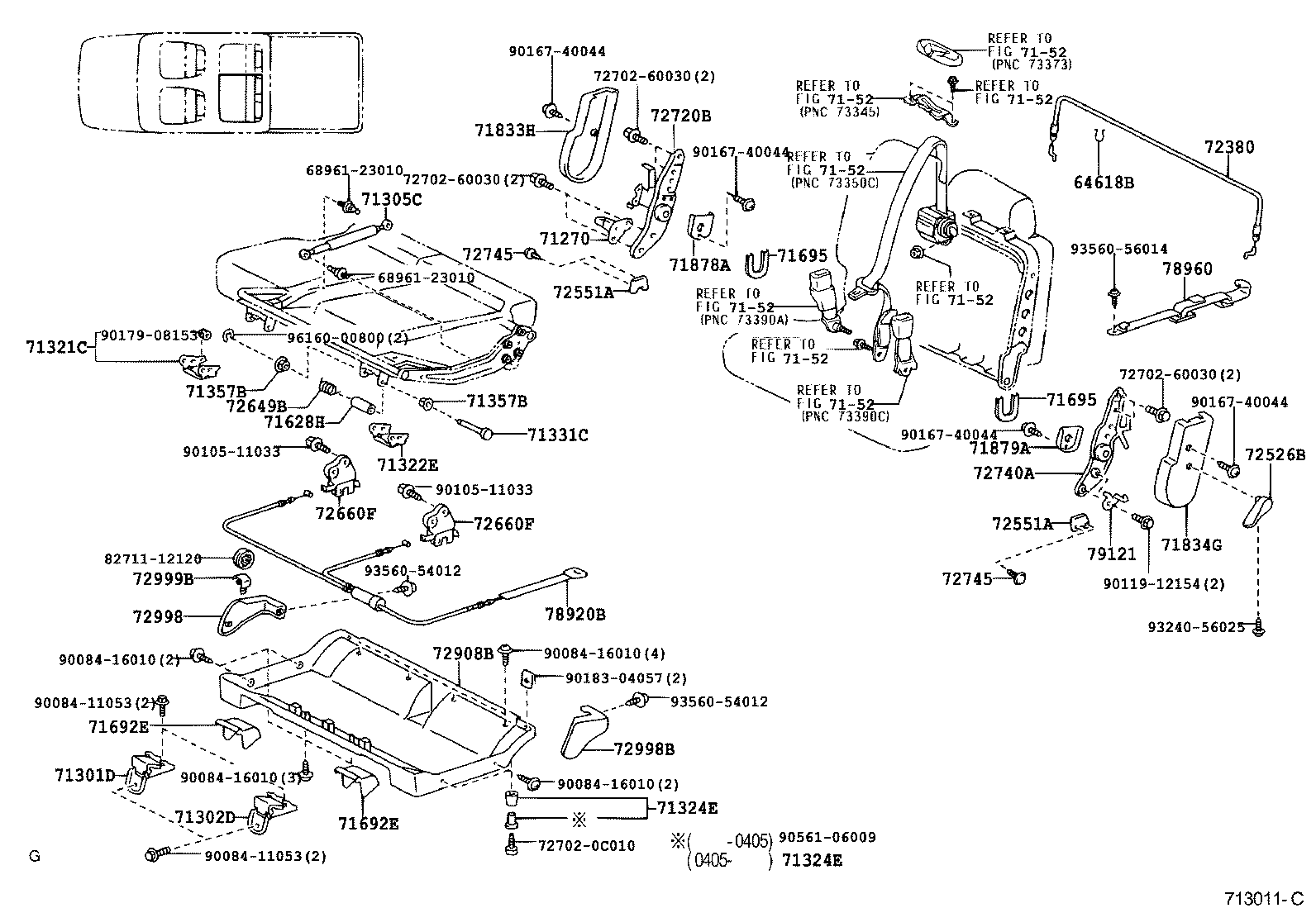

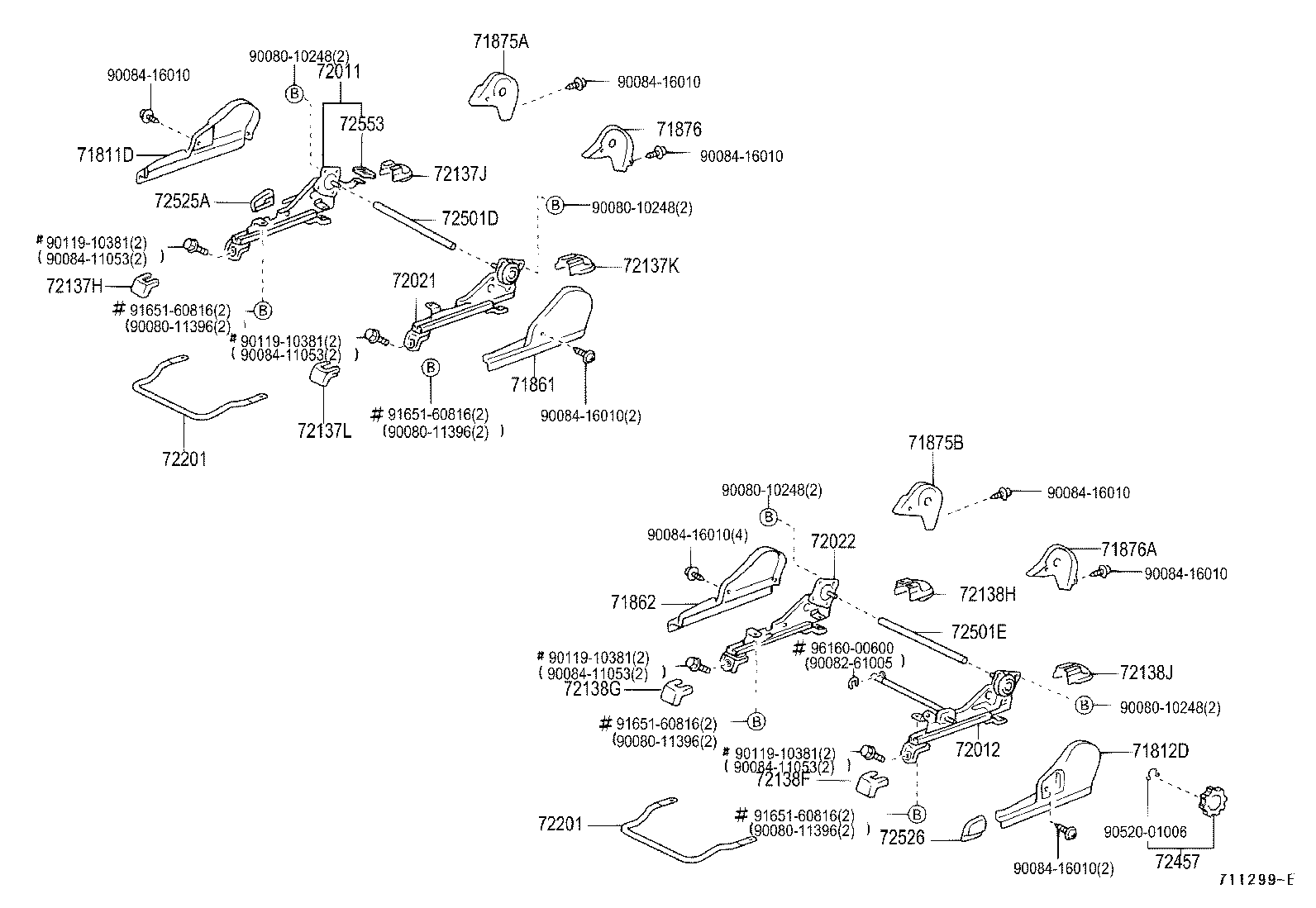

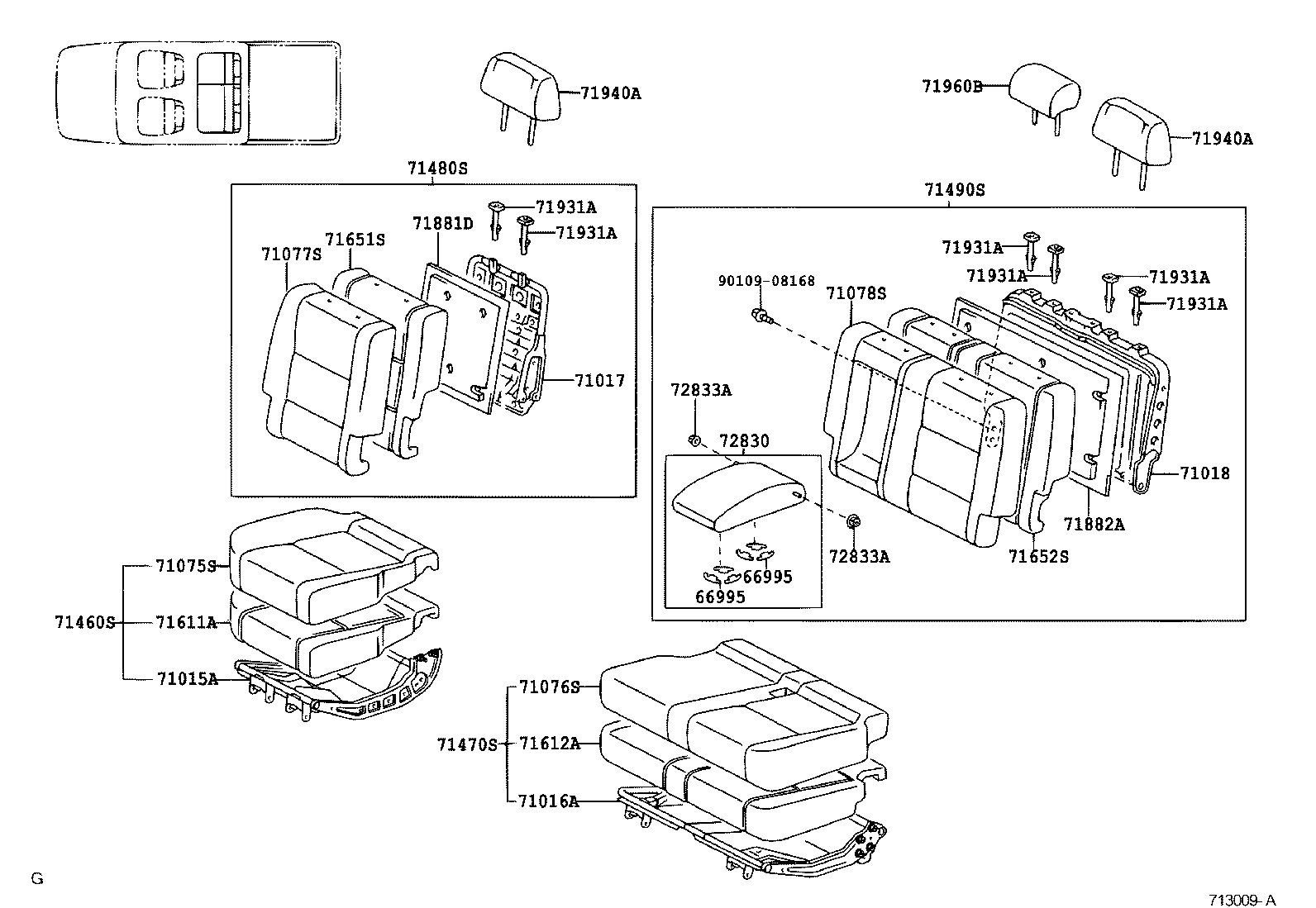

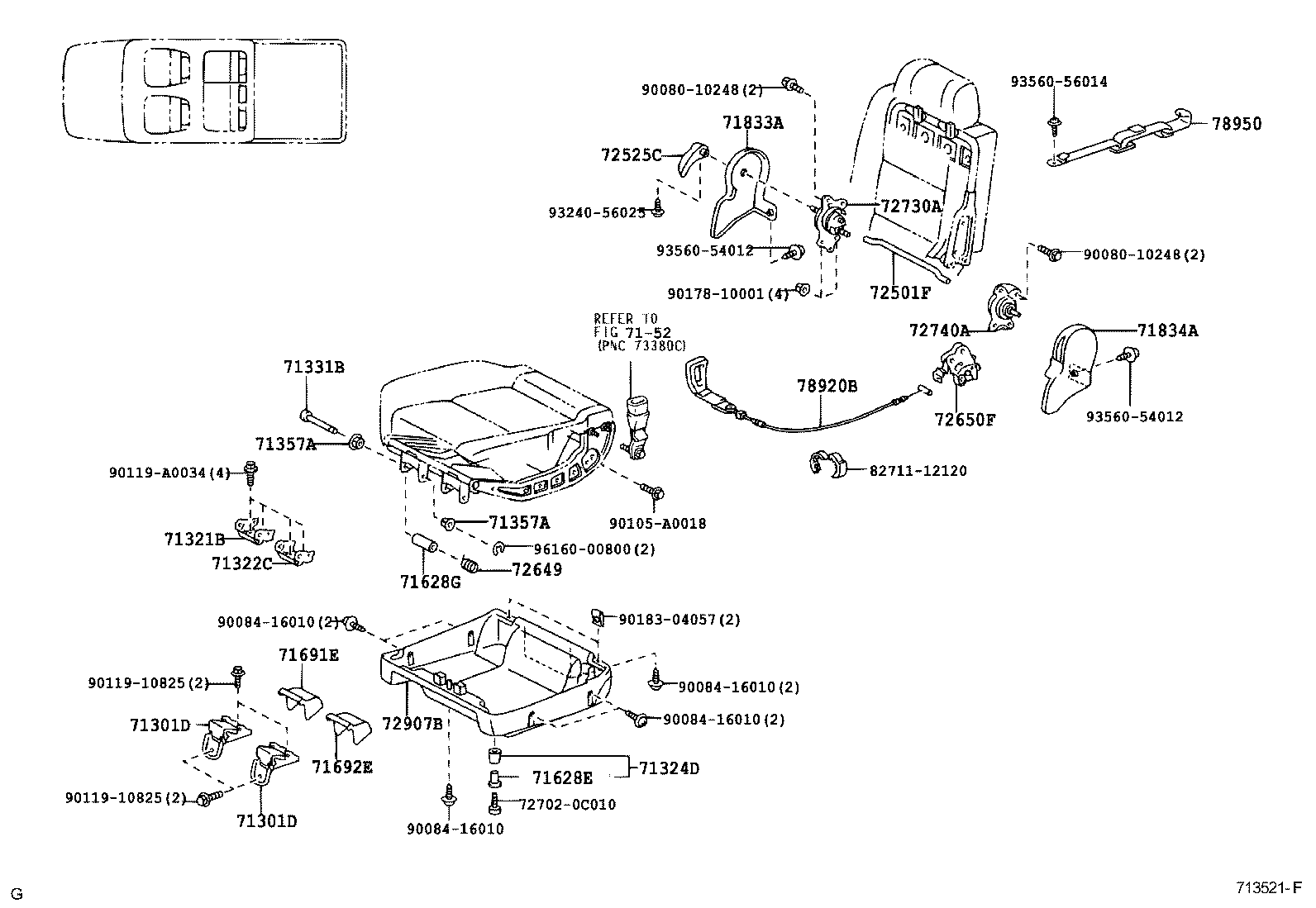

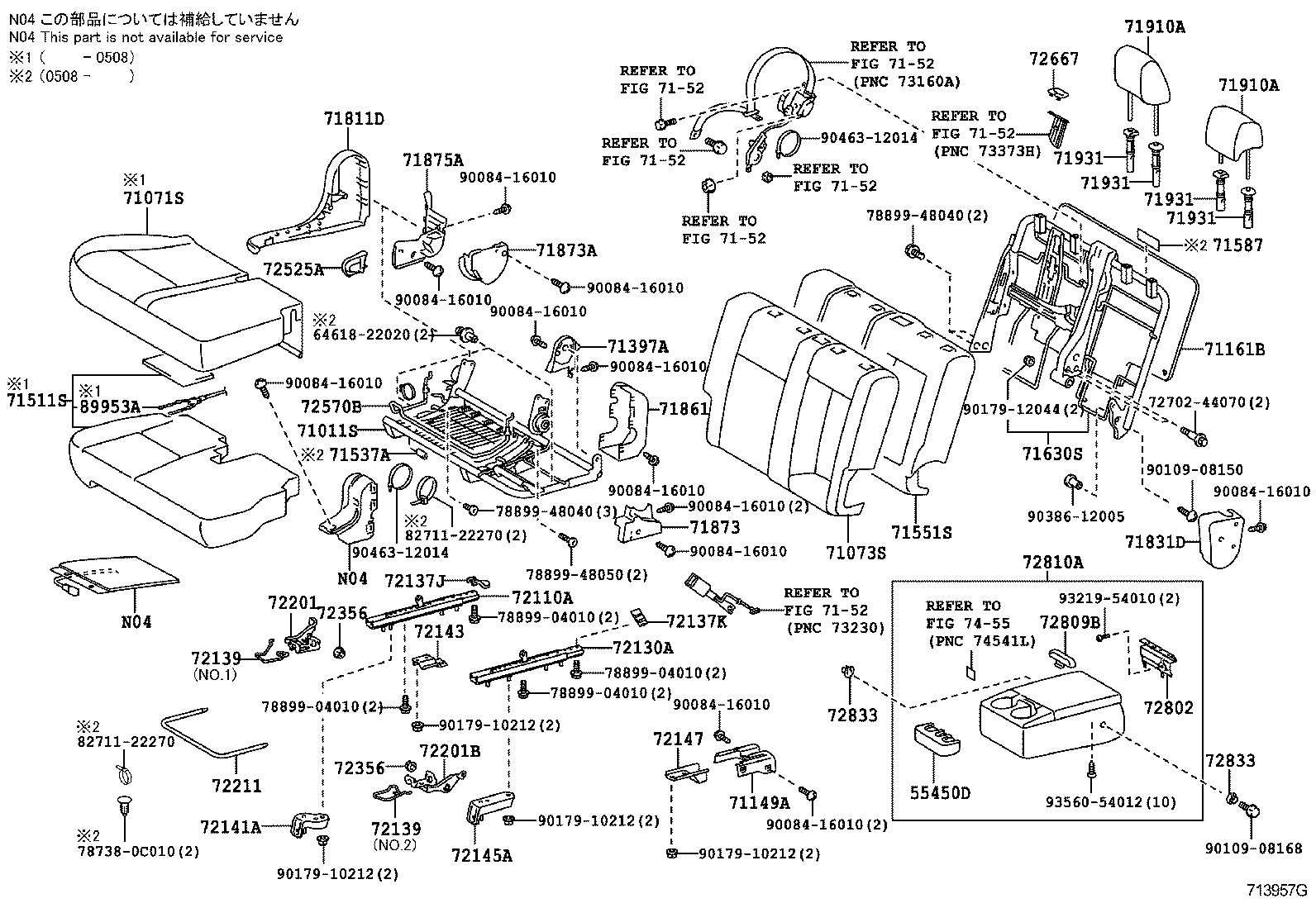

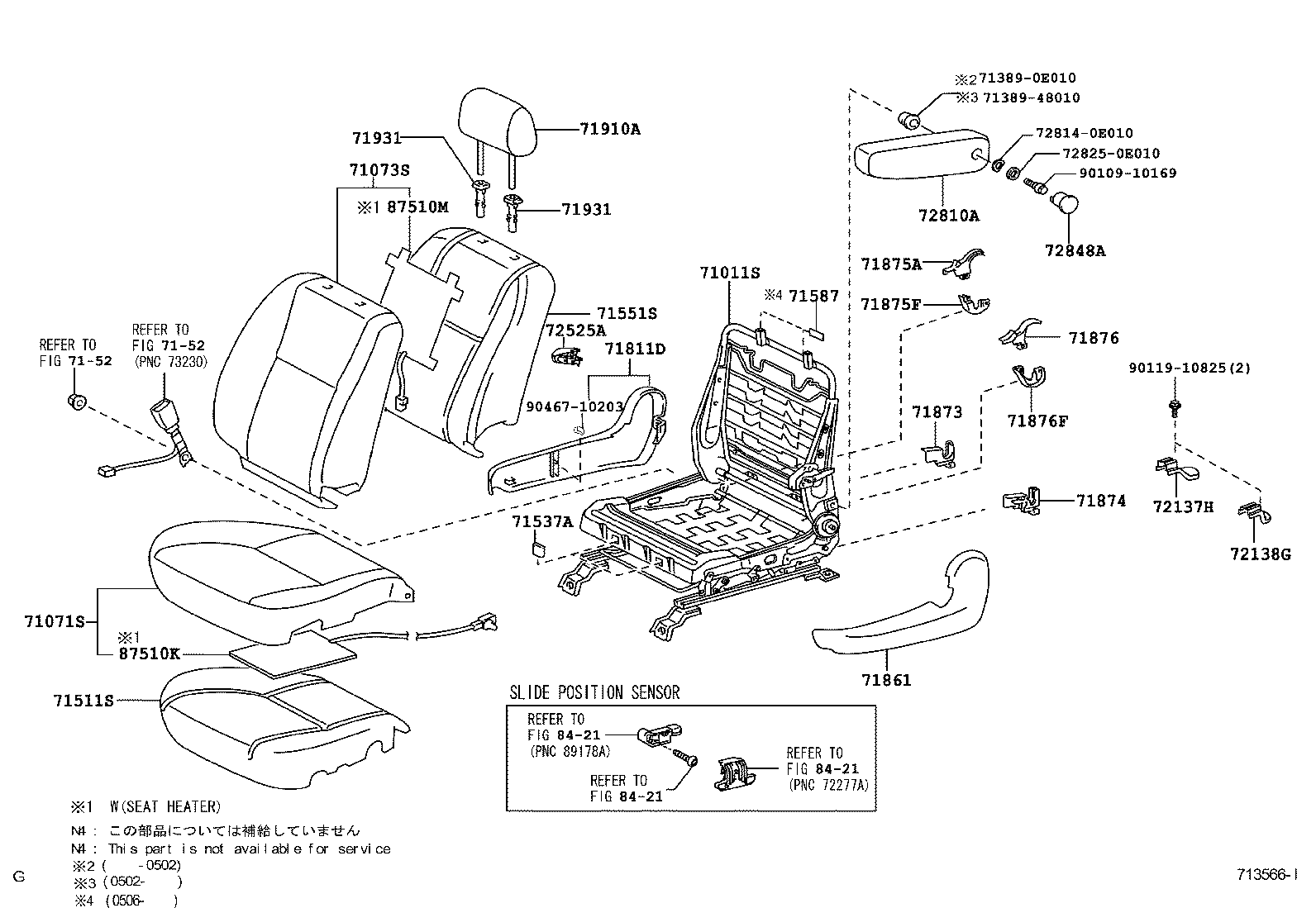

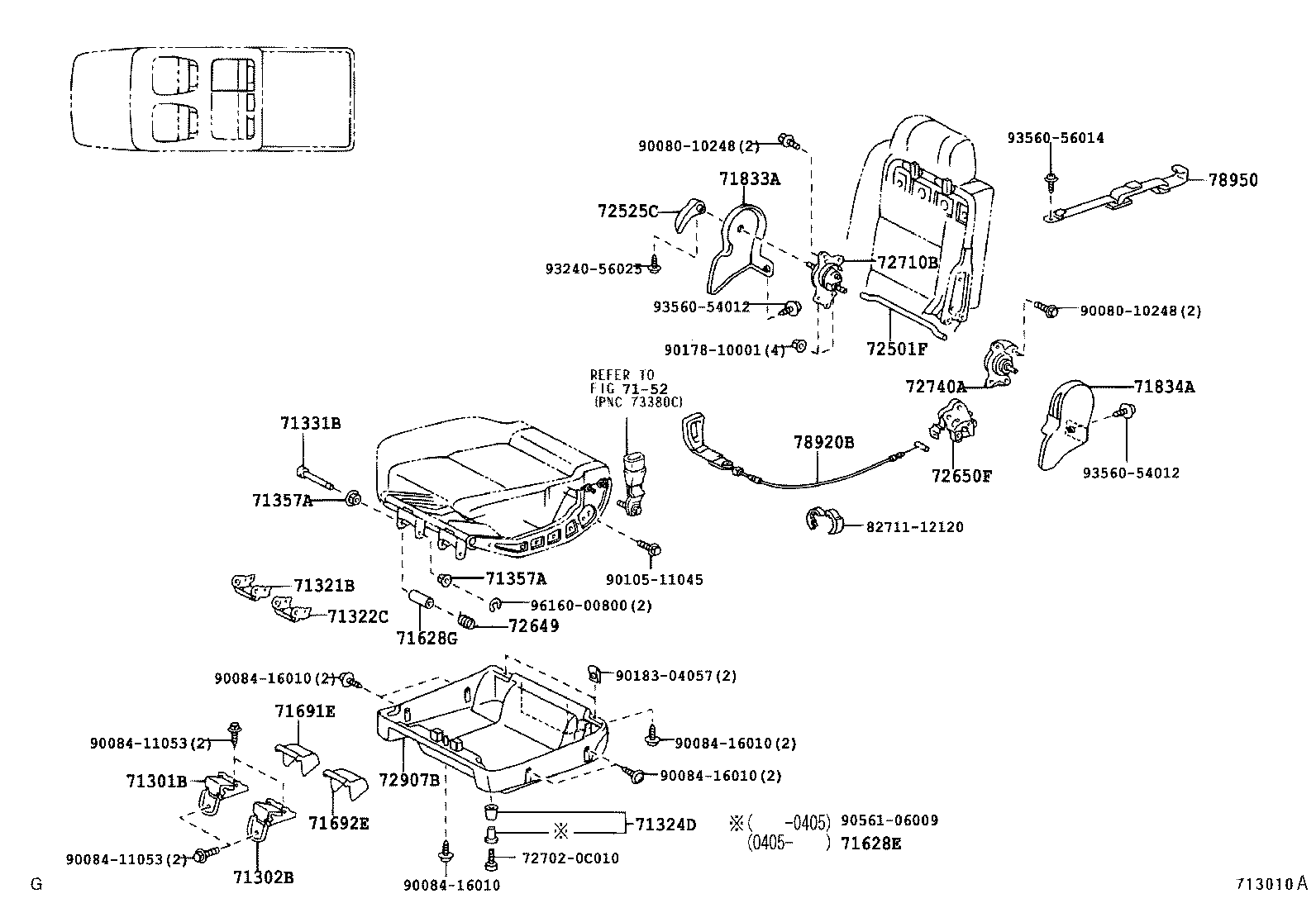

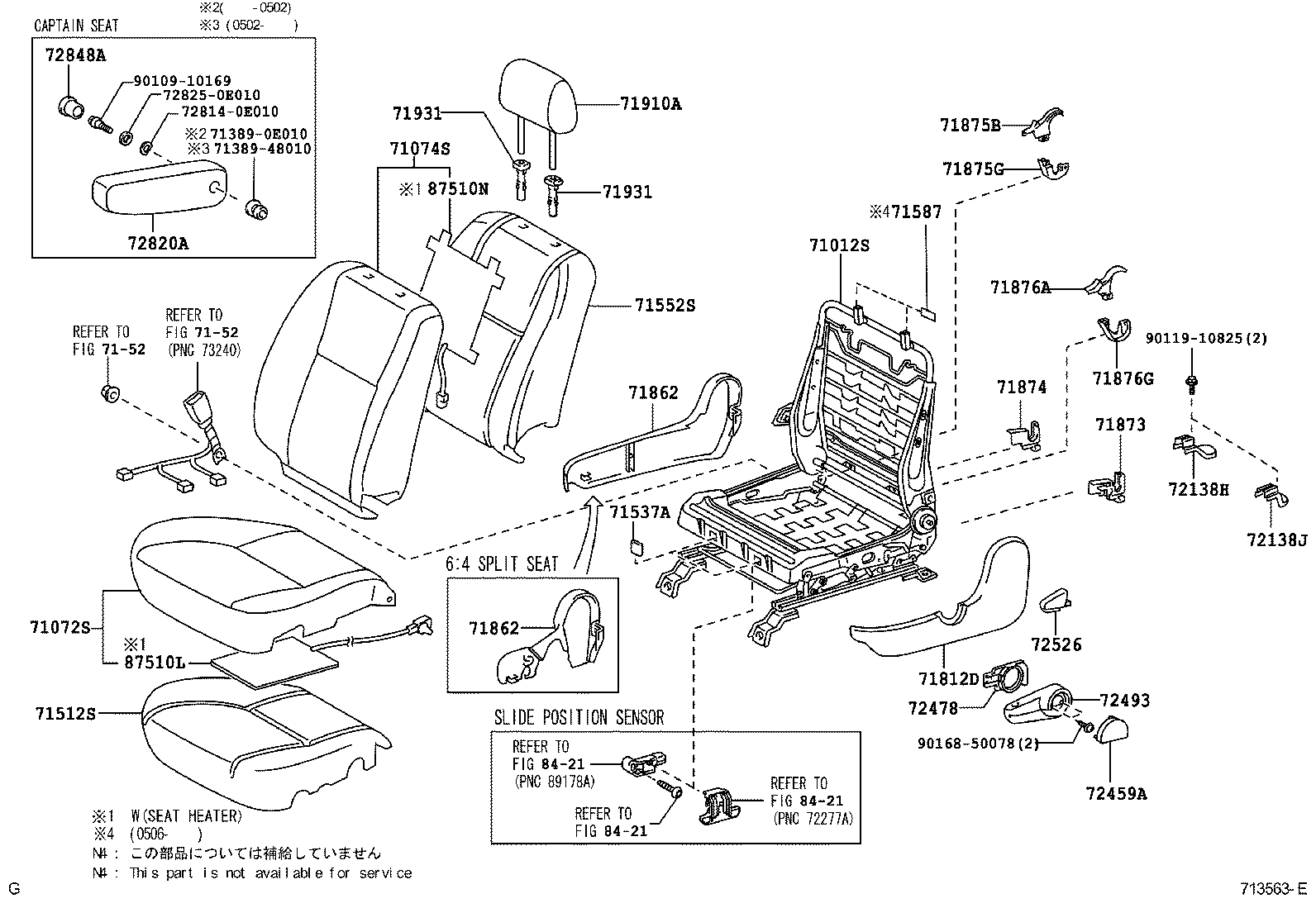

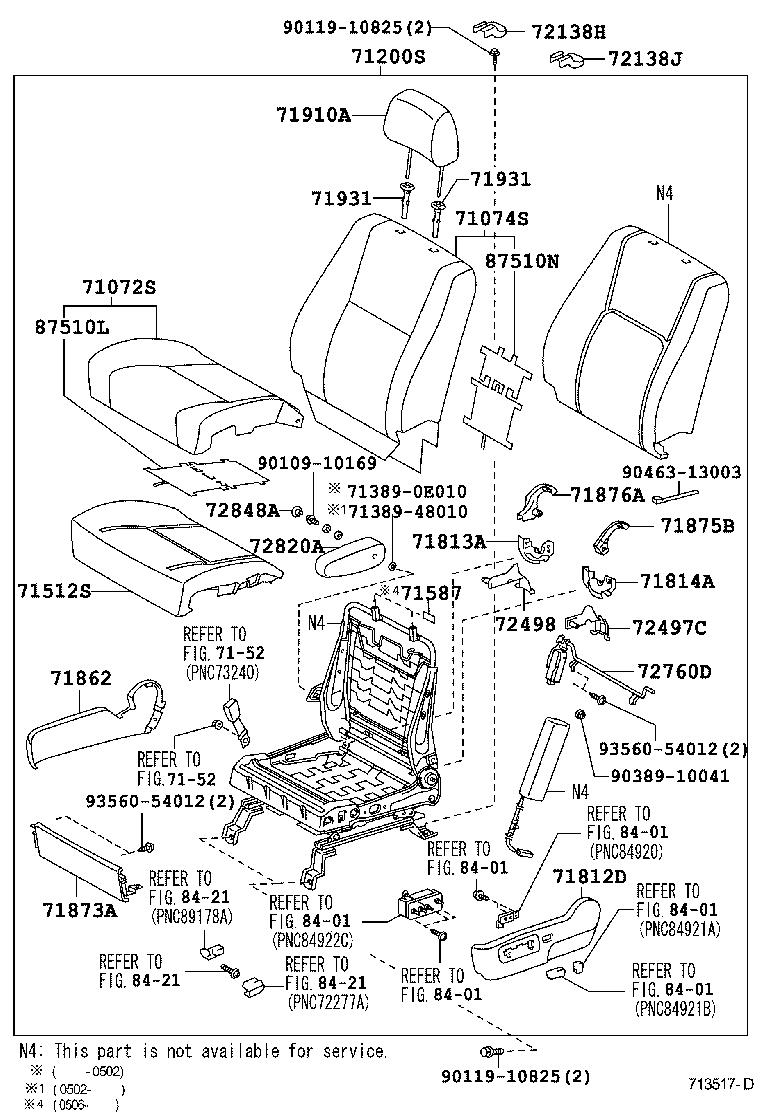

Figure 711297B 711297B 1999-02 → 2004-08 Figure 711295C 711295C 1999-02 → 2004-08 Figure 711298C 711298C 1999-02 → 2004-08 Figure 711296H 711296H 1999-02 → 2004-08 Figure 711299E 711299E 1999-02 → 2004-08 Figure 711527E 711527E 1999-02 → 2004-08 Figure 713006 713006 2003-10 → 2004-08 Figure 713008 713008 2003-10 → 2004-08 Figure 713007 713007 2003-10 → 2004-08 Figure 711300F 711300F 1999-02 → 2004-08 Figure 713009A 713009A 2003-10 → 2004-08 Figure 713010A 713010A 2003-10 → 2004-08 Figure 713011C 713011C 2003-10 → 2004-08 Figure 713956F 713956F 2004-08 → — Figure 714049B 714049B 2005-08 → — Figure 713563E 713563E 2004-08 → — Figure 713565I 713565I 2004-08 → — Figure 713957G 713957G 2004-08 → — Figure 714050D 714050D 2005-08 → — Figure 713566I 713566I 2004-08 → — Figure 713515G 713515G 2004-08 → — Figure 713517D 713517D 2004-08 → — Figure 713958G 713958G 2004-08 → — Figure 713516F 713516F 2004-08 → — Figure 713519B 713519B 2004-08 → — Figure 713520D 713520D 2004-08 → — Figure 713521F 713521F 2004-08 → — Figure 713522F 713522F 2004-08 → —

Part groups

PNCDescription
55450D Box Assy, Coin
58919C Plate, Console Box
64618B Clamp, Back Door Lock Control Cable
66995 Retainer, Cup Holder
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71025A Bracket Sub-assy, Front Seatback
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71149A Cover, Front Seat Leg, LH
71161B Plate, Front Center Seatback
71200S Seat Assy, Front LH
71231 Plate, Rear Seat Spring Set, NO.1
71270 Bracket Assy, Seat, Inner RH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301D Hinge Sub-assy, Rear Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302D Hinge Sub-assy, Rear Seat, LH
71305C Stay Sub-assy, Rear Seat
71311 Pin, Front Seat Hinge
71311B Bush (FOR FRONT SEAT HINGE PIN)
71318A Hook, Front Seatback Lock
71321B Hinge, Rear Seat Cushion, RH
71321C Hinge, Rear Seat Cushion
71322C Hinge, Rear Seat Cushion, LH
71322E Hinge, Rear Seat Cushion, LH
71324D Cushion, Rear Seat, RH
71324E Cushion, Rear Seat, LH
71331B Pin, Rear Seat Hinge, RH
71331C Pin, Rear Seat Hinge, LH
71344A Plate, Rear Seat Cushion Hinge
71357A Plate, Rear Seat Hinge Set, RH
71357B Plate, Rear Seat Hinge Set, LH
71389 Spacer, Center Seat Hinge
71389A Spacer, Center Seat Hinge
71397A Cover, Center Seat Hinge
71398A Holder, Rear Seatback
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511B Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551B Pad, Front Seatback(FOR BENCH TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71610B Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71628E Spacer, Rear Seat Cushion
71628G Spacer, Rear Seat Cushion, RH
71628H Spacer, Rear Seat Cushion, LH
71630B Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639 Cover, Rear Seat Cushion Hinge, LH
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652C Pad, Rear Seatback, B
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71695 Protector, Rear Seatback
71739 Cushion, Seat Support
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833H Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834G Cover, Rear Seat Reclining, NO.1 LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71881D Board, Rear Seatback, RH
71882A Board, Rear Seatback, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72012C Adjuster Sub-assy, Front Seat, LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72060 Roller Assy, Rear Seat Cushion, Lower
72089 Bracket Sub-assy, Rear Seat Armrest, RH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72137D Cover, Rear Seat Track, RH
72137H Cover, Front Seat Track, RH Front Outer
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72137L Cover, Front Seat Track, RH Front Inner
72138B Cover, Seat Track, LH
72138F Cover, Front Seat Track, LH Front Outer
72138G Cover, Front Seat Track, LH Front Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72139 Spring, Seat Track Cover
72140A Track Assy, Front Seat,Inner LH
72141A Bracket, Seat Track, Lower FR
72143 Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT)
72145A Bracket, Front Inner Seat Track, Lower Front RH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72151 Rail, Seat Track, Lower RH
72201 Handle Sub-assy, Seat Track
72201B Handle Sub-assy, Seat Track LH
72210 Cable Assy, Seat Track Control
72211 Handle, Seat Track Adjusting
72356 Nut, Side Support, RH
72380 Cable Assy, Seat Adjuster Control, NO.2
72457 Knob, Vertical Seat Adjuster
72457D Knob, Vertical Seat Adjuster, LH
72459A Cap, Vertical Seat Adjuster Knob
72478 Bush, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72497C Cover, Vertical Adjuster Bracket, Outer
72498 Cover, Vertical Adjuster Bracket
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72501F Pipe Sub-assy, Reclining Connecting
72506A Rod Sub-assy, Reclining Connecting, RH
72525A Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525G Handle, Front Seatback Lock
72526 Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72551A Cover, Reclining Hinge
72551B Cover, Reclining Hinge, RH
72553 Cover, Reclining Pedal
72570B Cable Assy, Reclining Adjusting, RH
72637A Handle, Rear Seat Lock
72638 Handle, Rear Seat Lock, LH
72649 Spring, Rear Seat Cushion Support
72649B Spring, Rear Seat Cushion Support
72650F Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72665C Cover, Rear Seat Lock, RH
72666B Cover, Rear Seat Lock, LH
72667 Bezel, Rear Seatback Lock, Upper
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72710B Adjuster Assy, Rear Seatback, Inner RH
72720B Adjuster Assy, Rear Seatback, Inner LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72745 Pin, Rear Seat Reclining Hinge
72760D Adjuster Assy, Lumbar Support, LH
72802 Hinge Sub-assy, Armrest Console
72809A Lock Sub-assy, Center Armrest
72809B Lock Sub-assy, Center Armrest
72810A Armrest Assy, Seat, RH
72810C Armrest Assy, Front Seat, Center
72820A Armrest Assy, Seat, LH
72830 Armrest Assy, Rear Seat, Center
72833 Plate, Seat Center Armrest, Inner RH
72833A Plate, Seat Center Armrest, Inner
72848A Cap, Seat Armrest, NO.1
72907B Cover Sub-assy, Rear Seat Cushion Under, RH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72991 Cover, Front Seat Cushion, RH
72991A Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72995 Cover, Rear Seat Cushion, RH
72996A Cover, Rear Seatback
72998 Cover, Rear Seat Cushion, LH
72998B Cover, Rear Seat Cushion, LH
72999 Cover, Rear Seat Cushion LH
72999B Cover, Rear Seat Cushion Side, LH
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
79121 Bracket, NO.1 Seat Cushion
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
89953A Sensor, Belt Warning Occupant Detection
