Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

5 part groups · 3 illustrations

Illustrations

750587 1999-02 → —

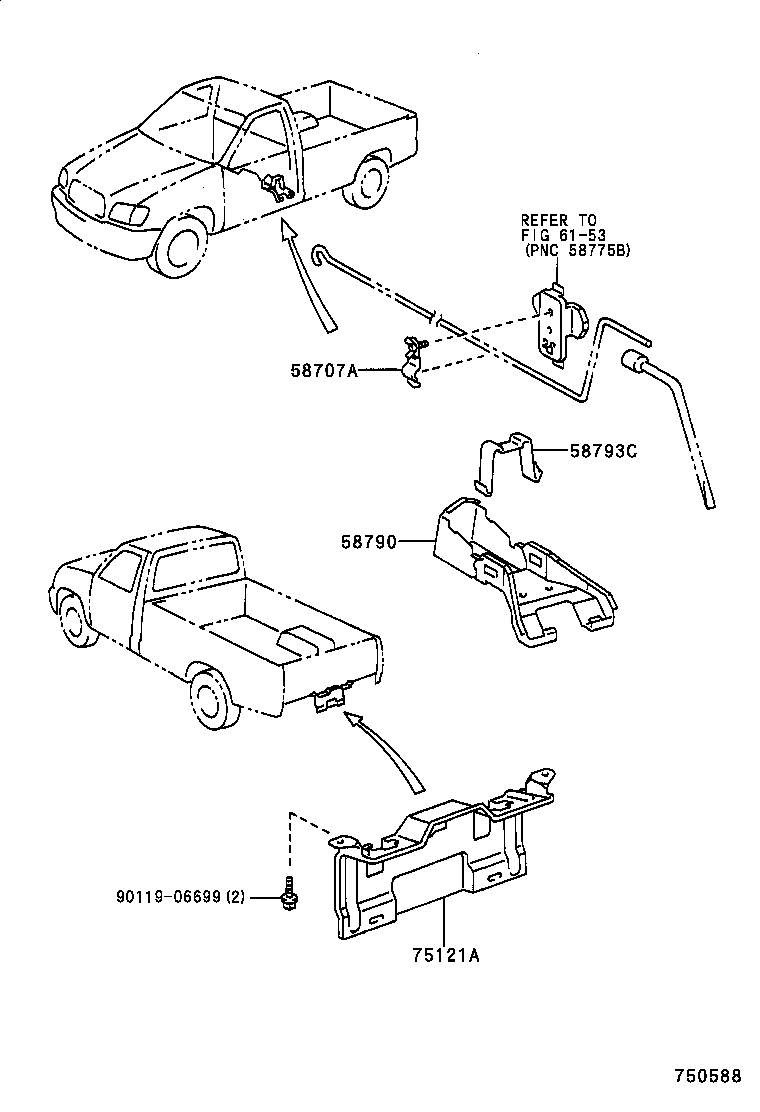

750588 1999-02 → —

751241 2003-10 → —

Part groups

PNC	Description
58707A	Holder Sub-assy, Jack
58780	Band Assy, Tool Box
58790	Carrier Assy, Jack
58793C	Bracket, Jack Carrier, NO.1
75121A	Bracket, Rear License Plate

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
