Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

9 part groups · 4 illustrations

Illustrations

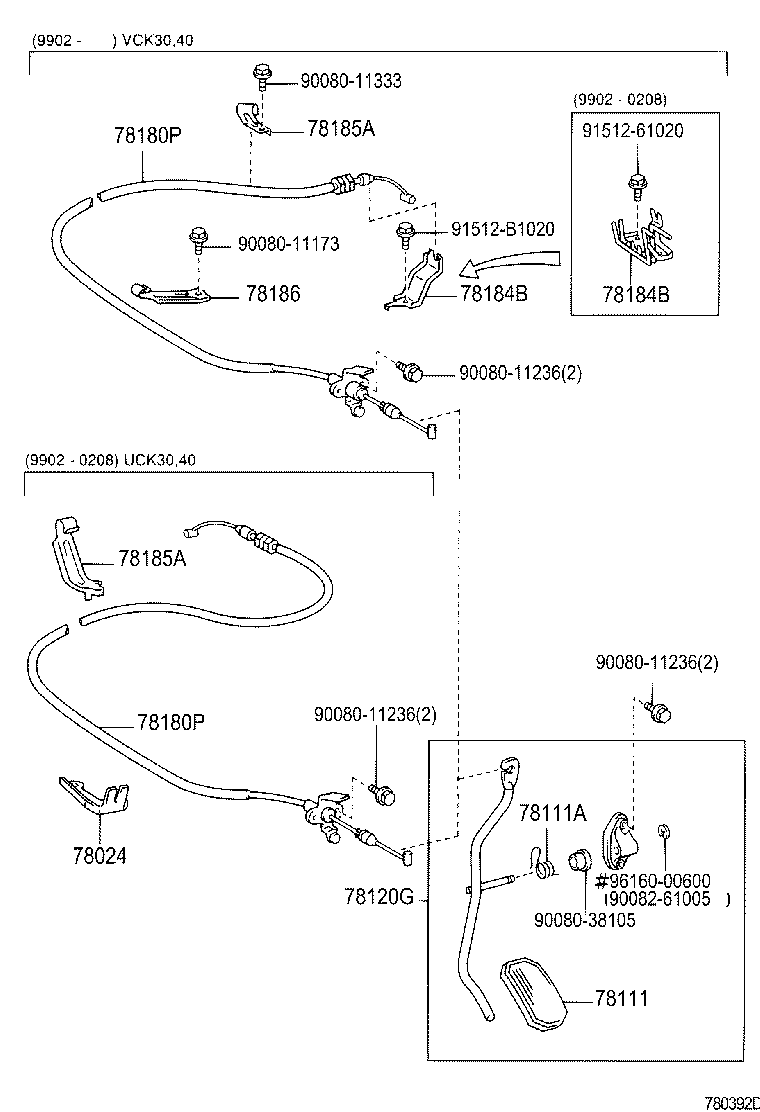

Figure 780682 780682 2002-08 → — Figure 780392D 780392D 1999-02 → 2002-08 Figure 780392D 780392D 1999-02 → — Figure 780953 780953 2004-08 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78024 Bracket Sub-assy, Accelerator Control Cable
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
