Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 4 illustrations

Illustrations

Figure 811072B

811072B 1999-02 → 2004-08

Figure 811585A

811585A 2003-10 → 2004-08

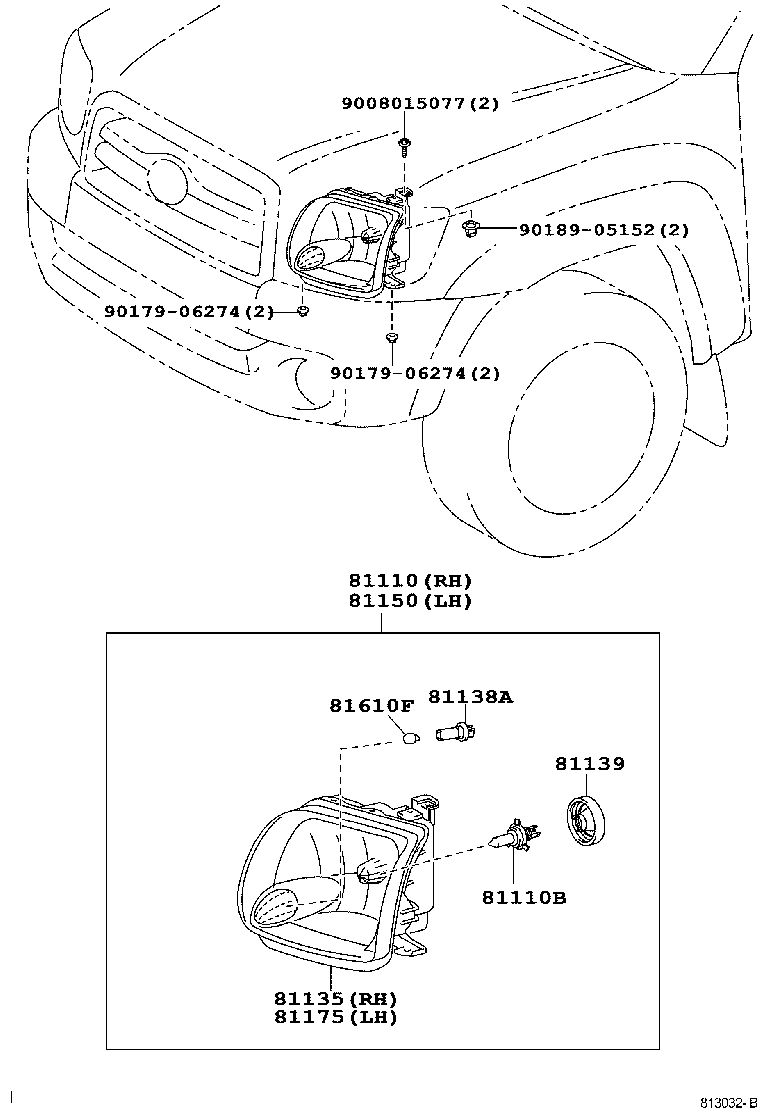

Figure 813032B

813032B 2004-08 → —

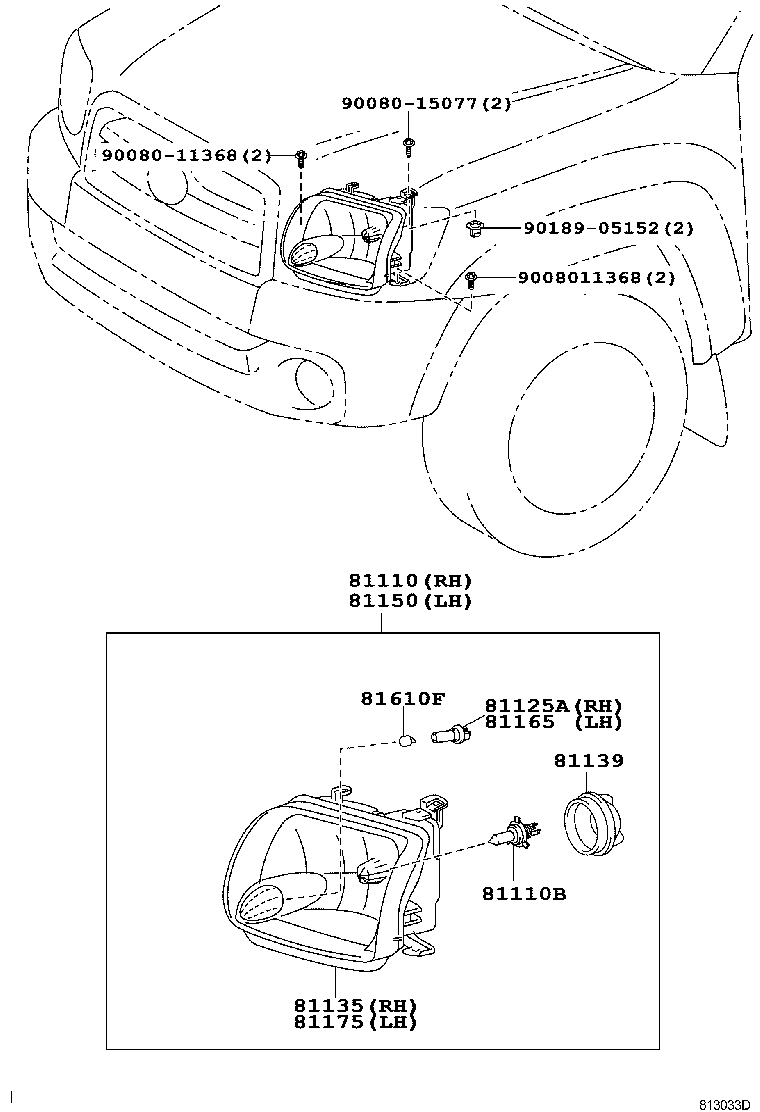

Figure 813033D

813033D 2004-08 → —

Part groups

PNC	Description
81110	Headlamp Assy, RH
81110B	Bulb(FOR HEADLAMP, NO.1)
81125A	Cord, Headlamp, RH
81135	Unit Assy, Headlamp, RH
81138A	Socket & Wire, Headlamp
81139	Cover, Headlamp Socket
81150	Headlamp Assy, LH
81165	Cord, Headlamp, LH
81175	Unit Assy, Headlamp, LH
81610F	Bulb(FOR CLEARANCE LAMP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
