Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

6 part groups · 4 illustrations

Illustrations

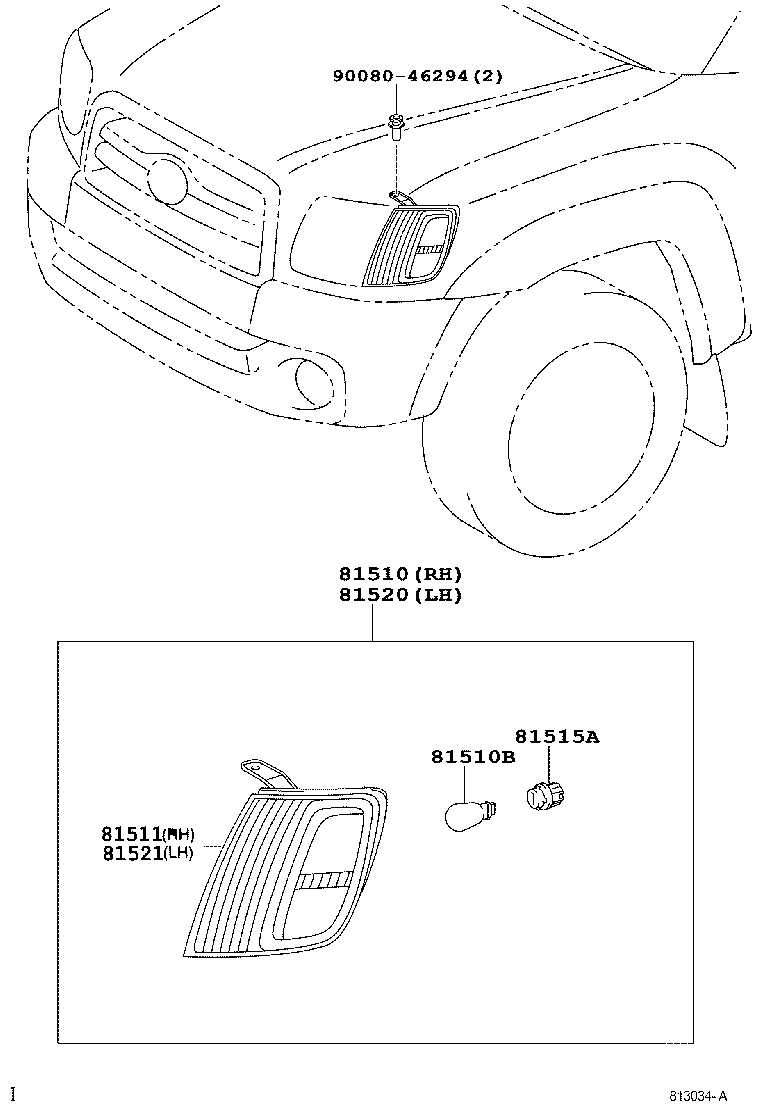

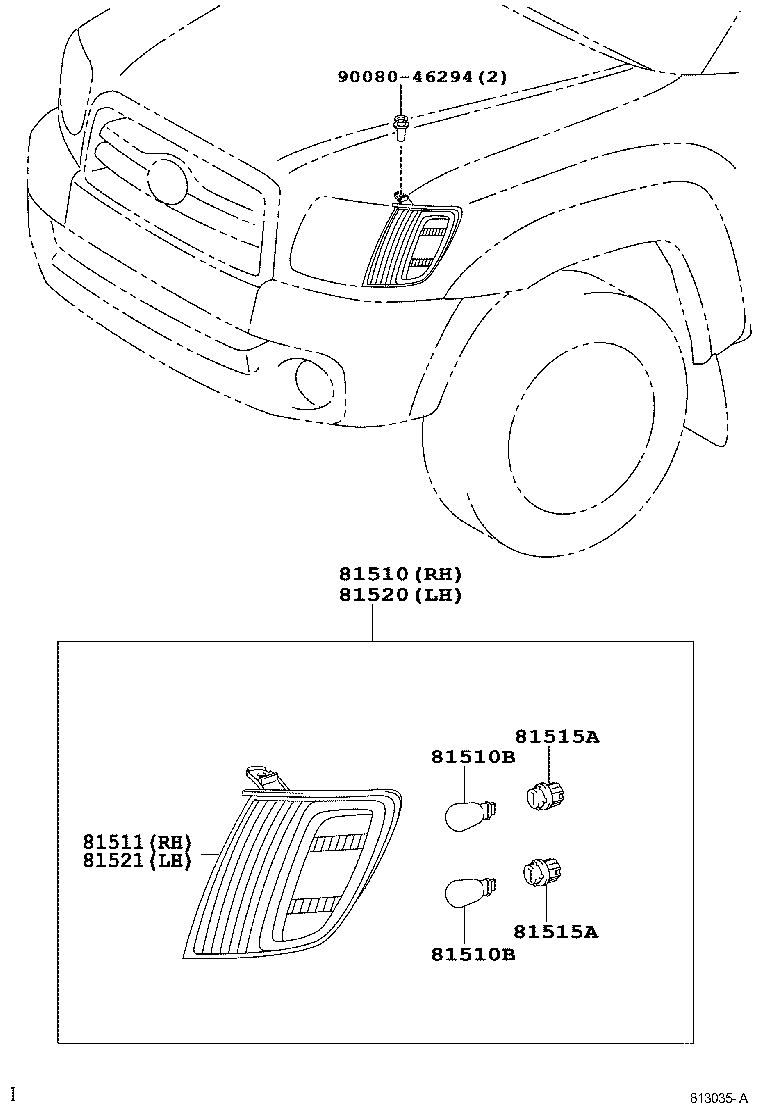

Figure 811075A 811075A 1999-02 → 2004-08 Figure 811586A 811586A 2003-10 → 2004-08 Figure 813034A 813034A 2004-08 → — Figure 813035A 813035A 2004-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
