Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

25 part groups · 6 illustrations

Illustrations

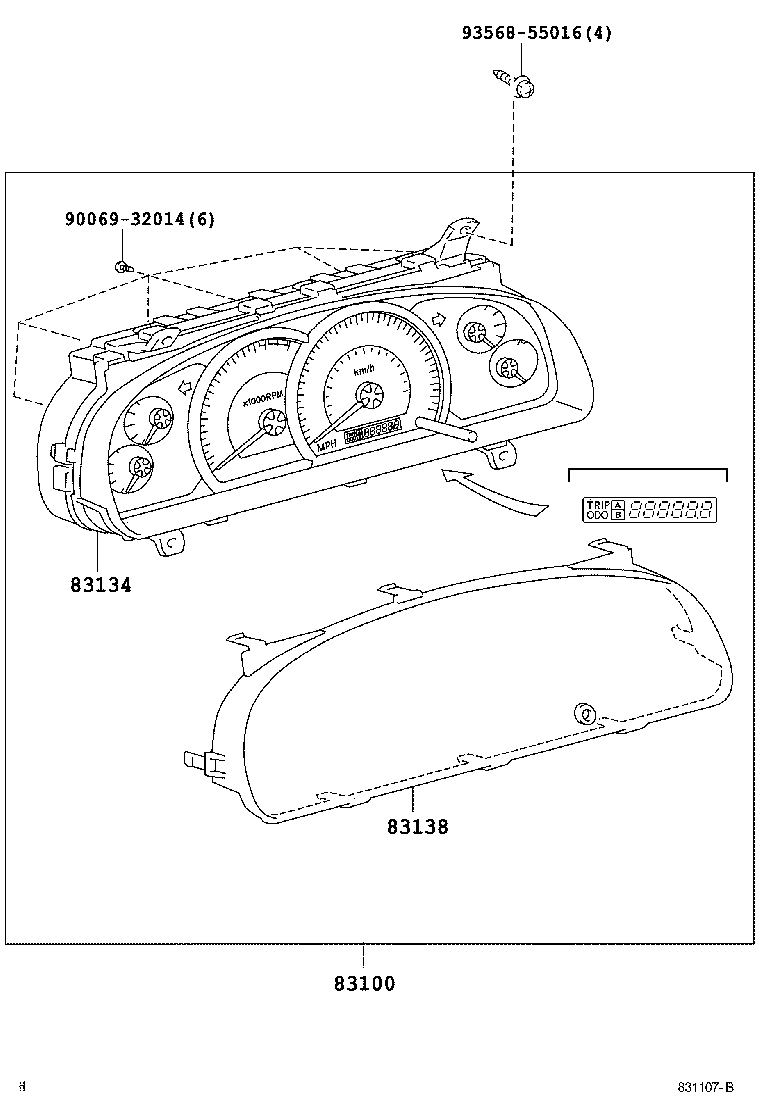

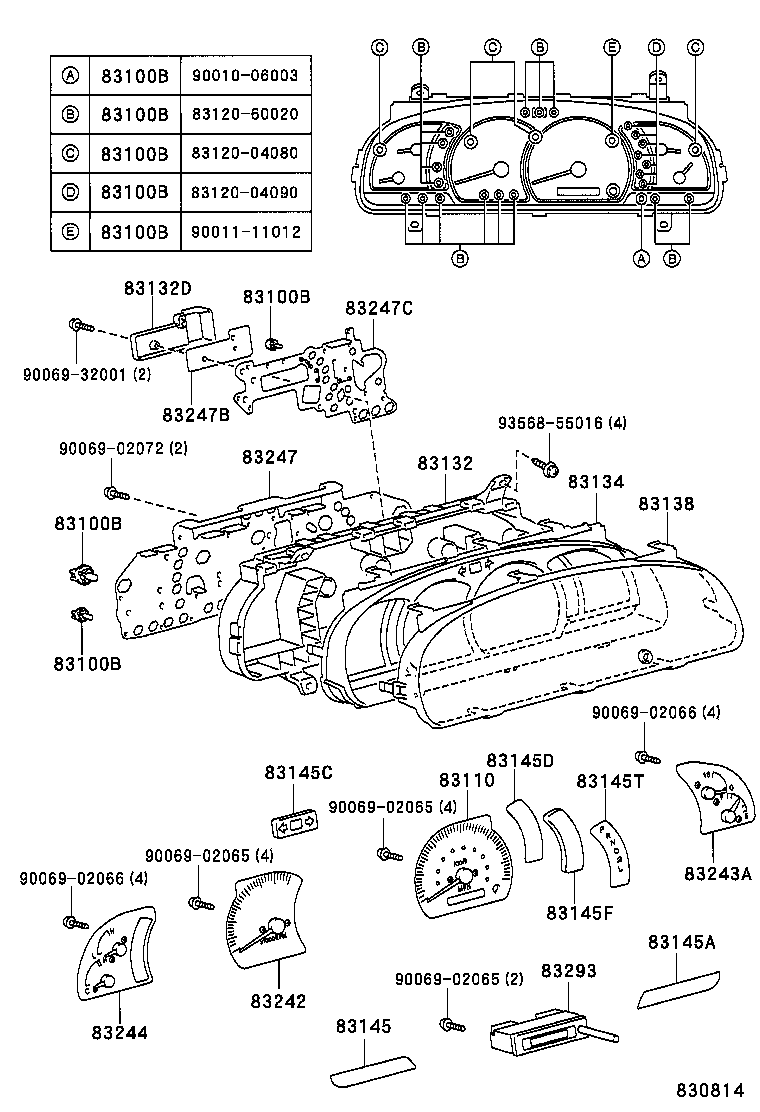

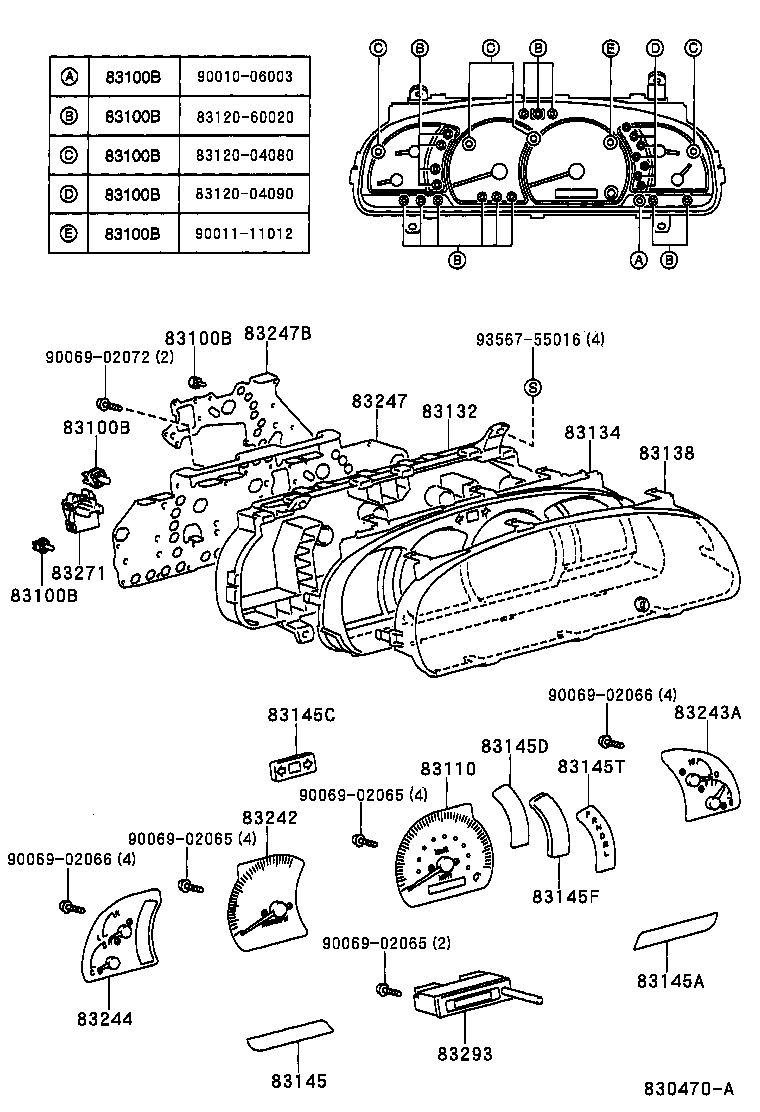

Figure 830469A 830469A 1999-02 → 2004-08 Figure 830470A 830470A 1999-02 → 2002-08 Figure 830814 830814 2002-08 → 2004-08 Figure 831107B 831107B 2004-08 → — Figure 830471B 830471B 1999-02 → — Figure 830928A 830928A 2003-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83110 Speedometer Assy
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145F Lens, Meter, NO.7
83145T Lens, Meter, NO.8
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83247C Plate, Mater Circuit, NO.3
83271 Relay, Meter Control
83290D Meter Assy, Accessory
83293 Computer, Total Counter Module
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
