Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

15 part groups · 4 illustrations

Illustrations

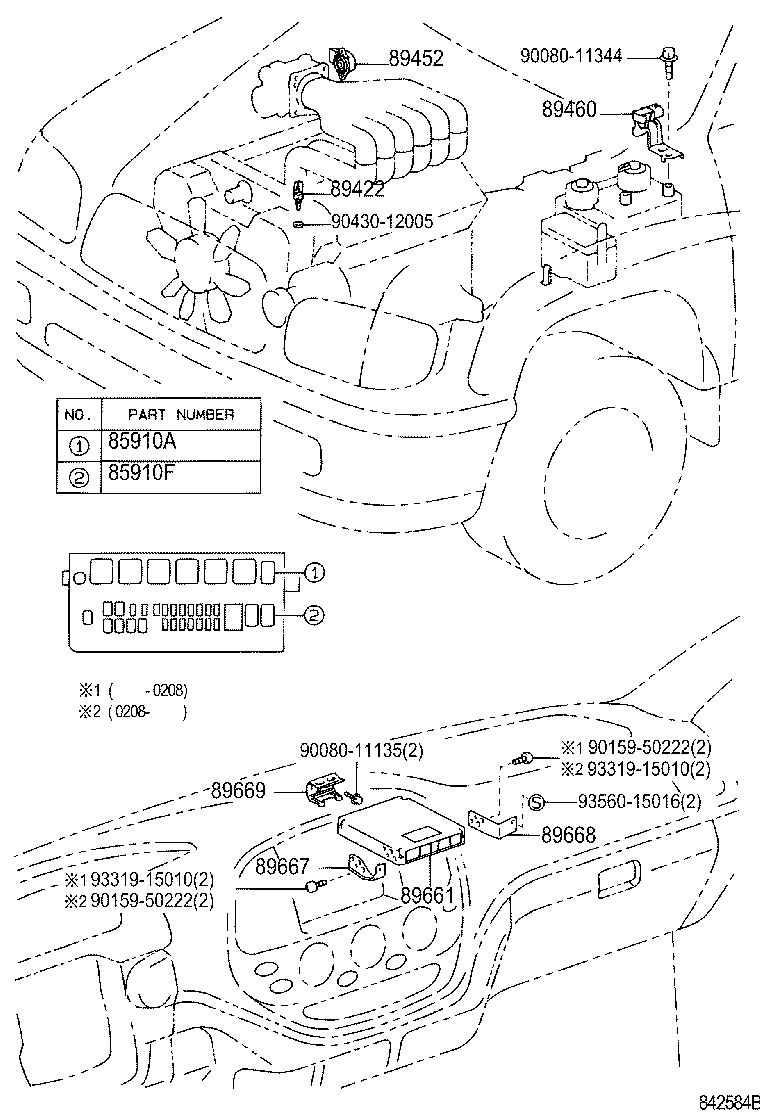

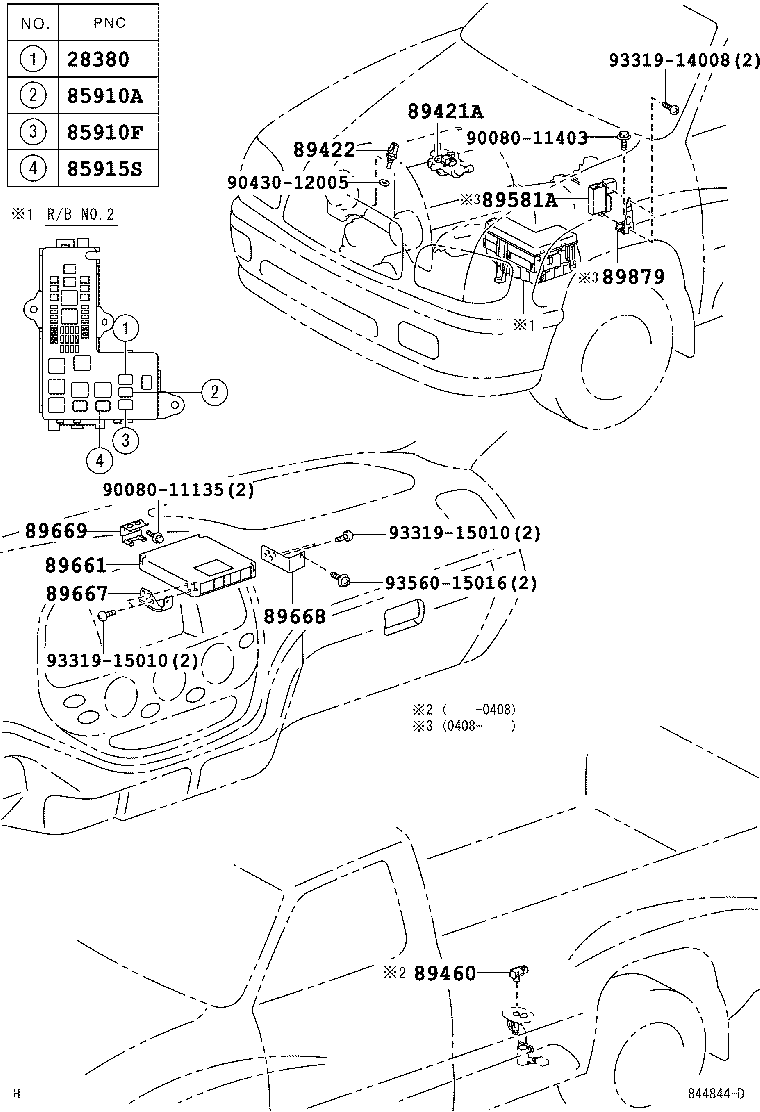

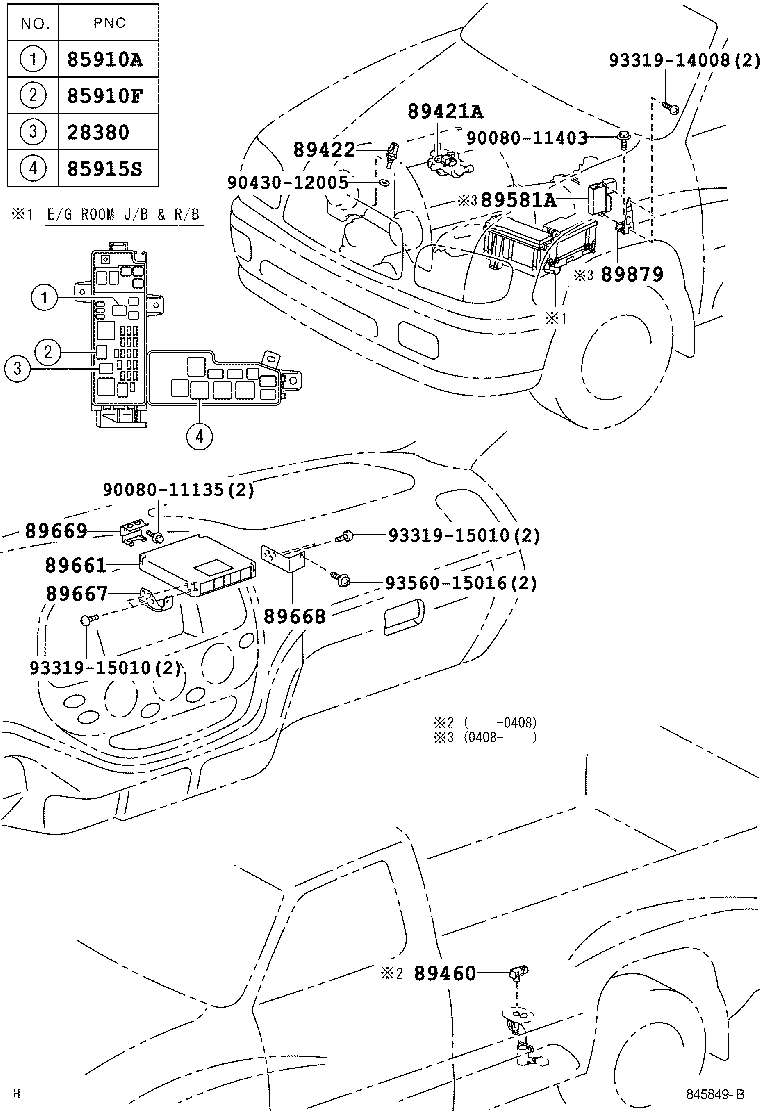

Figure 842583A 842583A 1999-02 → 2002-08 Figure 842584B 842584B 1999-02 → — Figure 844844E 844844E 2002-08 → — Figure 845849C 845849C 2003-10 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421A Sensor, Turbo Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89460 Sensor Assy, Vapor Pressure
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89672A Motor, Throttle Control
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
