Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04
Abs & Vsc

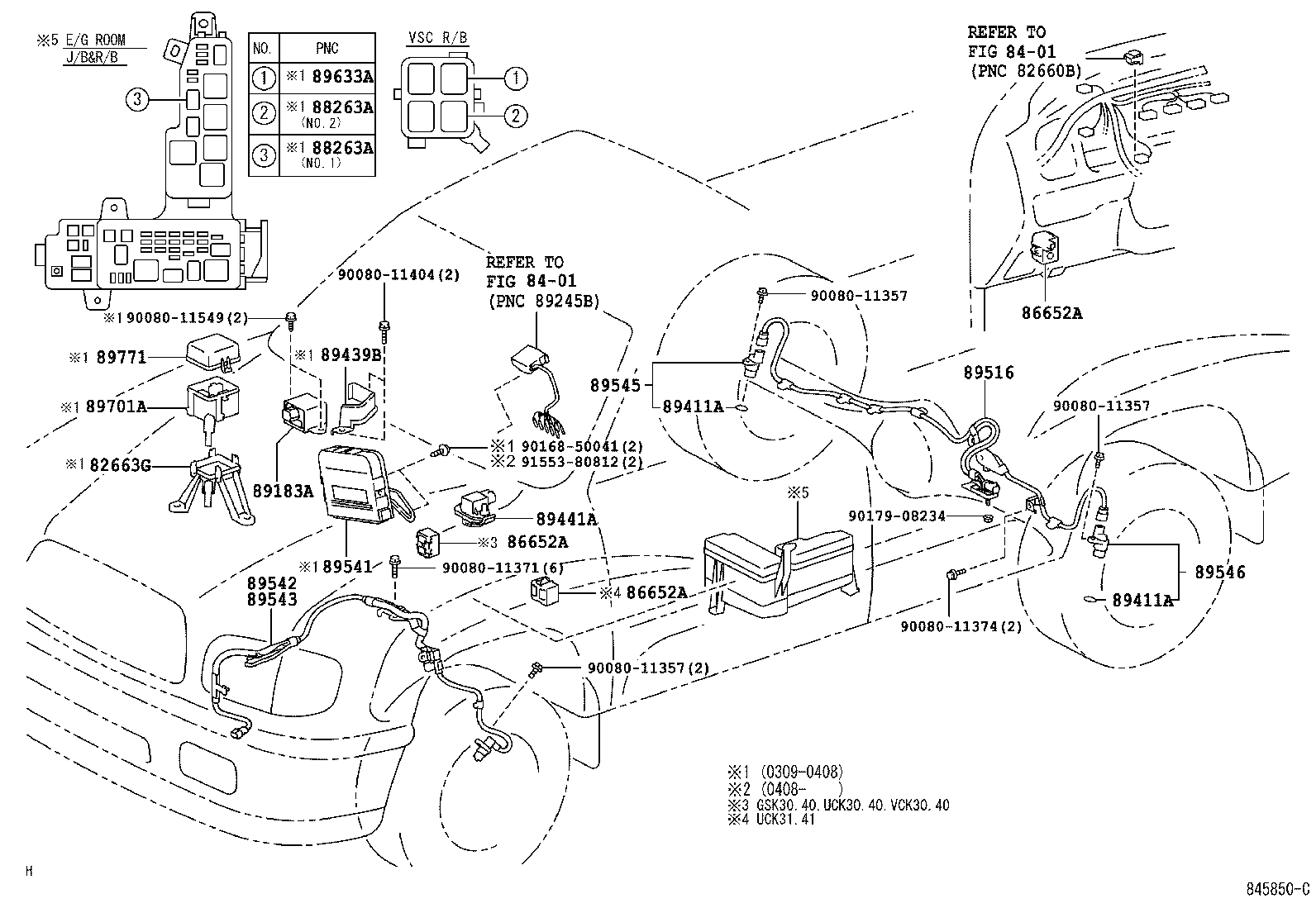

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82663G | Cover, Relay Block, Lower |
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 89183A | Sensor, Yawrate |
| 89411A | Ring, O (FOR SPEED SENSOR) |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89541 | Computer, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89633A | Relay, Traction Control OR Vsc |
| 89701A | Block Sub-assy, Abs Relay |
| 89771 | Cover, Abs Relay Block, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
