Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

11 part groups · 2 illustrations

Illustrations

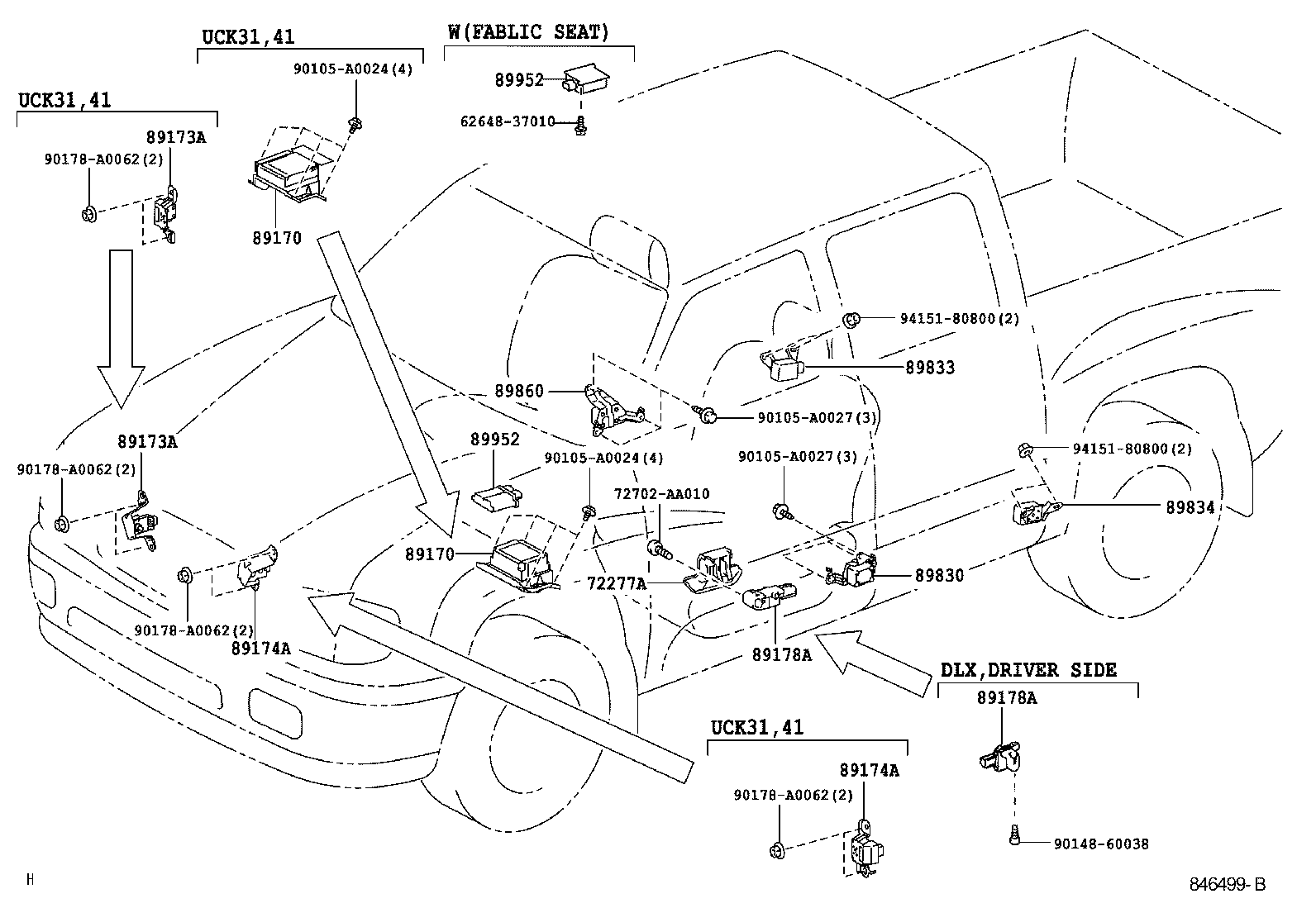

Figure 842591F 842591F 1999-02 → 2004-08 Figure 846499B 846499B 2004-08 → —

Part groups

PNCDescription
72277A Protector, Seat Slide Position Sensor
89170 Sensor Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89175 Bracket, Airbag Sensor
89178A Sensor, Seat Position Airbag
89830 Sensor Assy, Side Airbag
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89860 Sensor Assy, Side Airbag, RH
89952 Computer, Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
