Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 2 illustrations

Illustrations

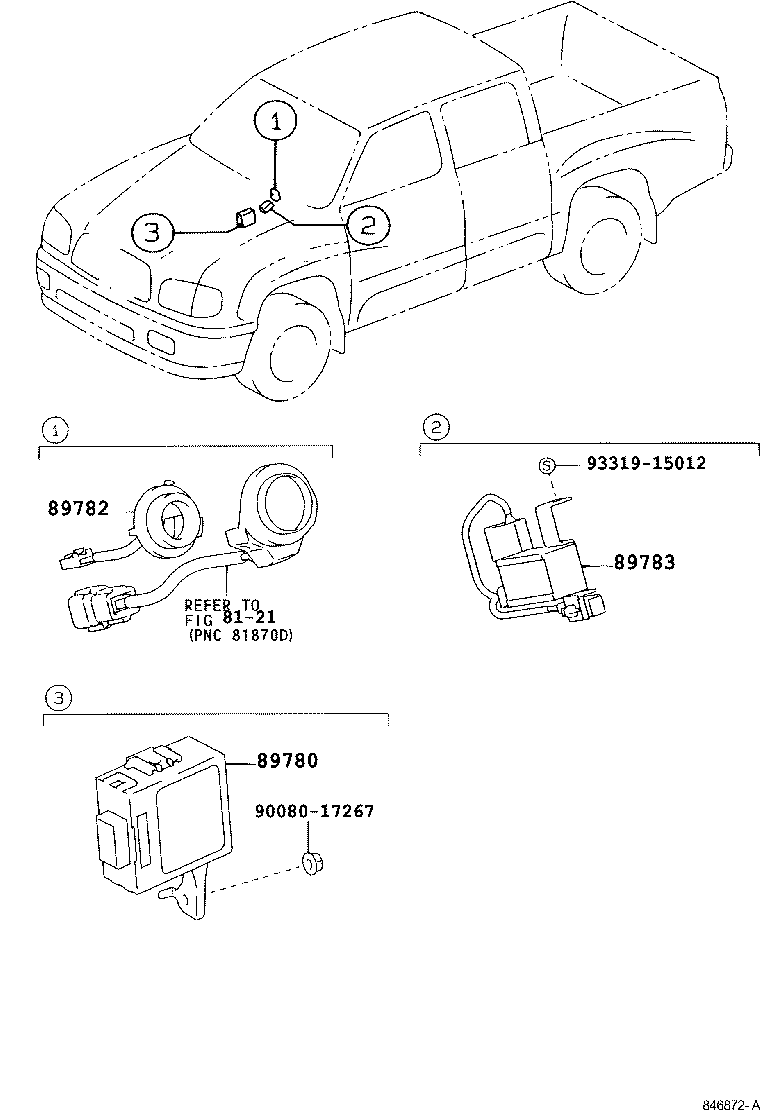

Figure 845848B 845848B 2003-10 → — Figure 846872A 846872A 2005-08 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
