Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04
Radio Receiver & Amplifier & Condenser
10 part groups · 4 illustrations

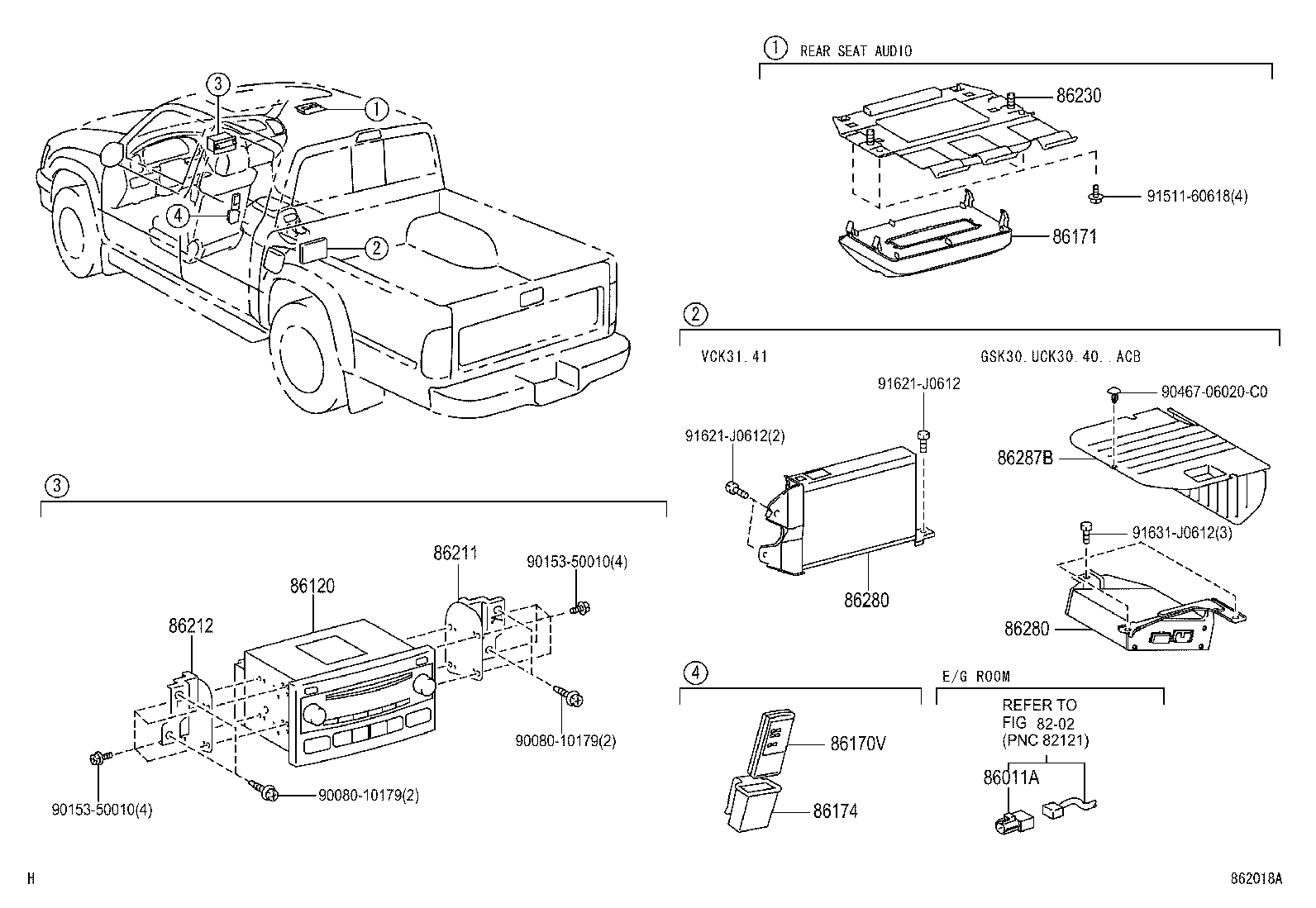

Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |

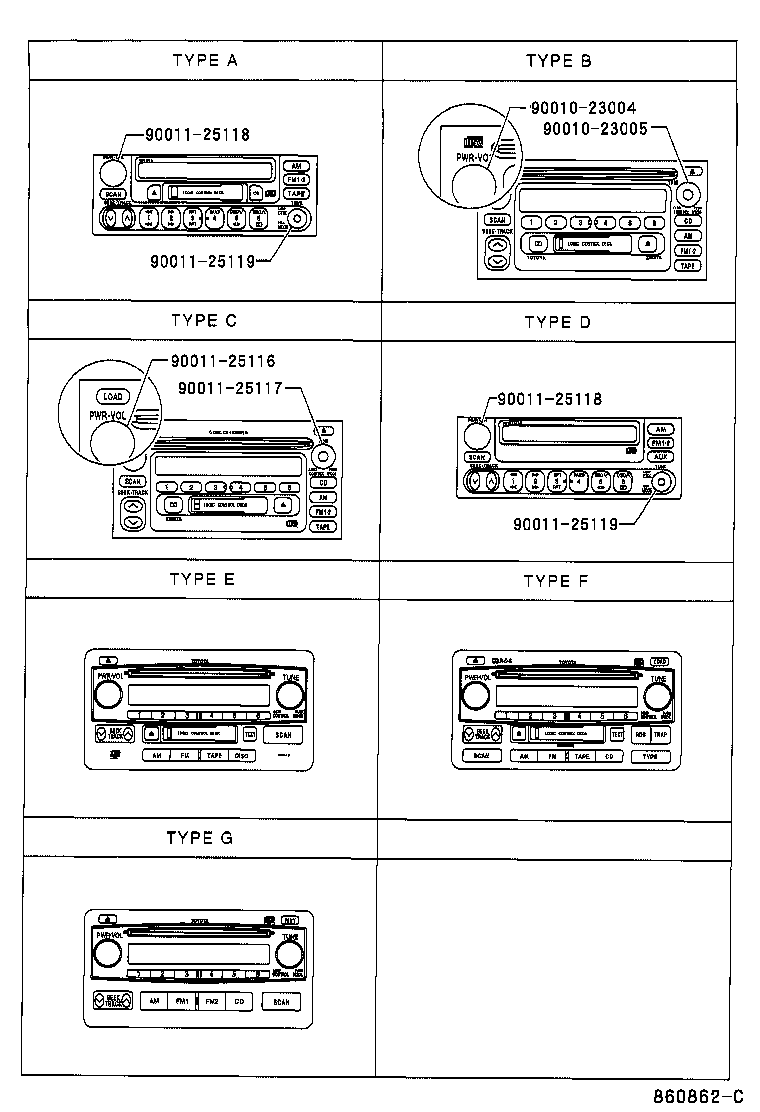

| 86120 | Receiver Assy, Radio |
| 86170V | Controller Assy, Remote |
| 86171 | Base, Radio Remote Control |
| 86174 | Case, Switch & Volume |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86230 | Controller Assy, Stereo Component |
| 86280 | Amplifier Assy, Stereo Component |
| 86287B | Cover, Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
