Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

3 part groups · 3 illustrations

Illustrations

Figure 860858A

860858A 1999-02 → 2004-08

Figure 860858A

860858A 2004-08 → —

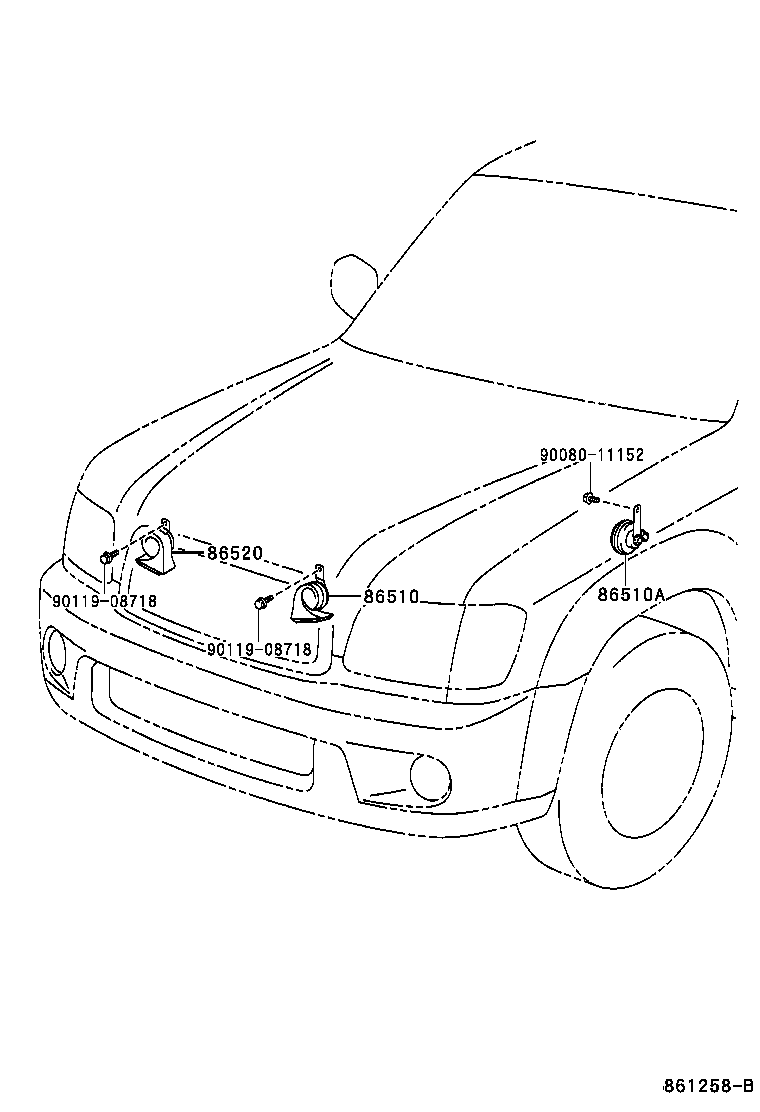

Figure 861258B

861258B 2003-10 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86510A	Horn Assy, Security
86520	Horn Assy, Low Pitched

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
