Toyota Tundra
1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States
Discontinued model
Data version 2007-04

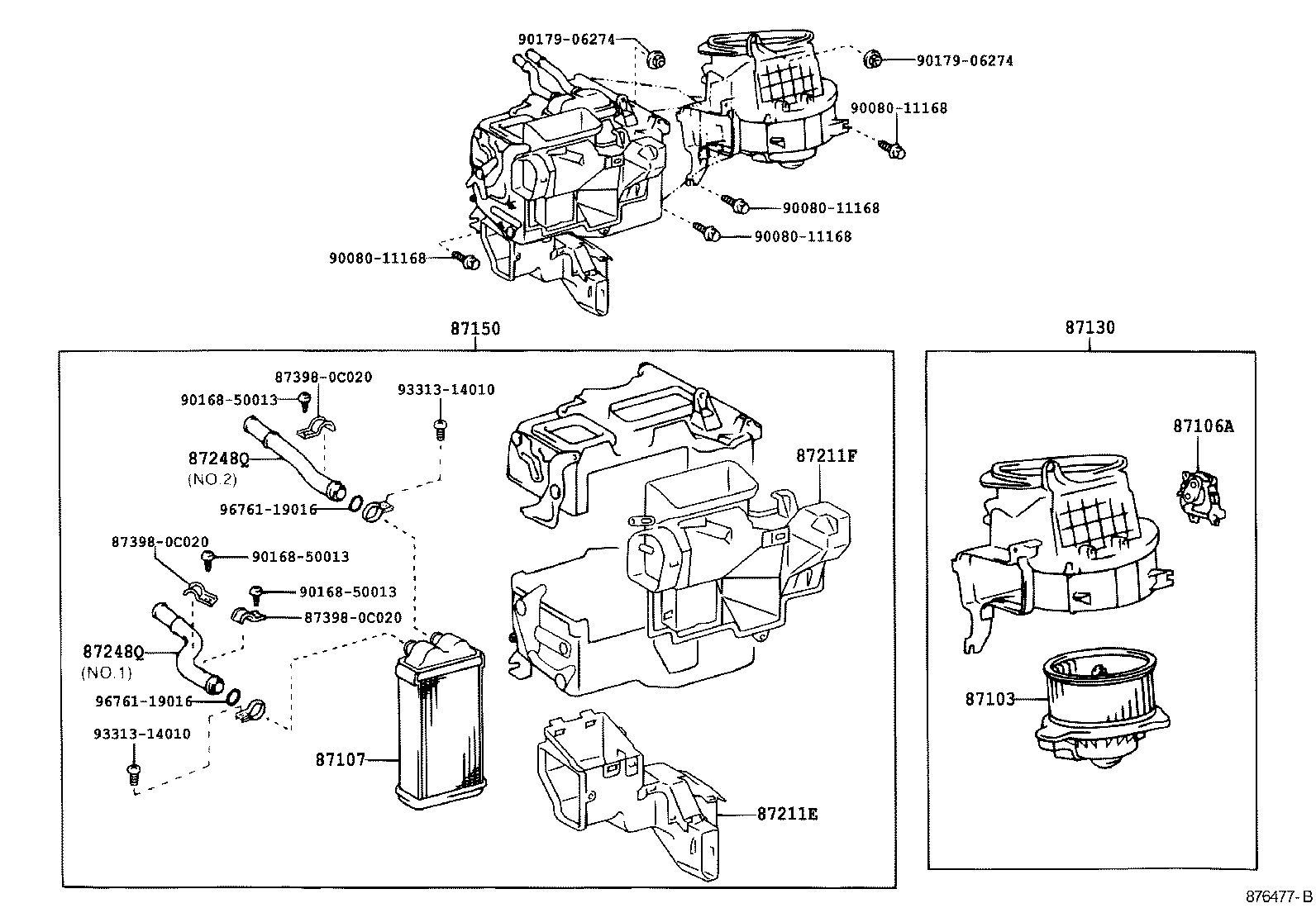

Heating & Air Conditioning - Heater Unit & Blower
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126 | Clamp, Heater Control |
| 87126A | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
