Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

26 part groups · 7 illustrations

Illustrations

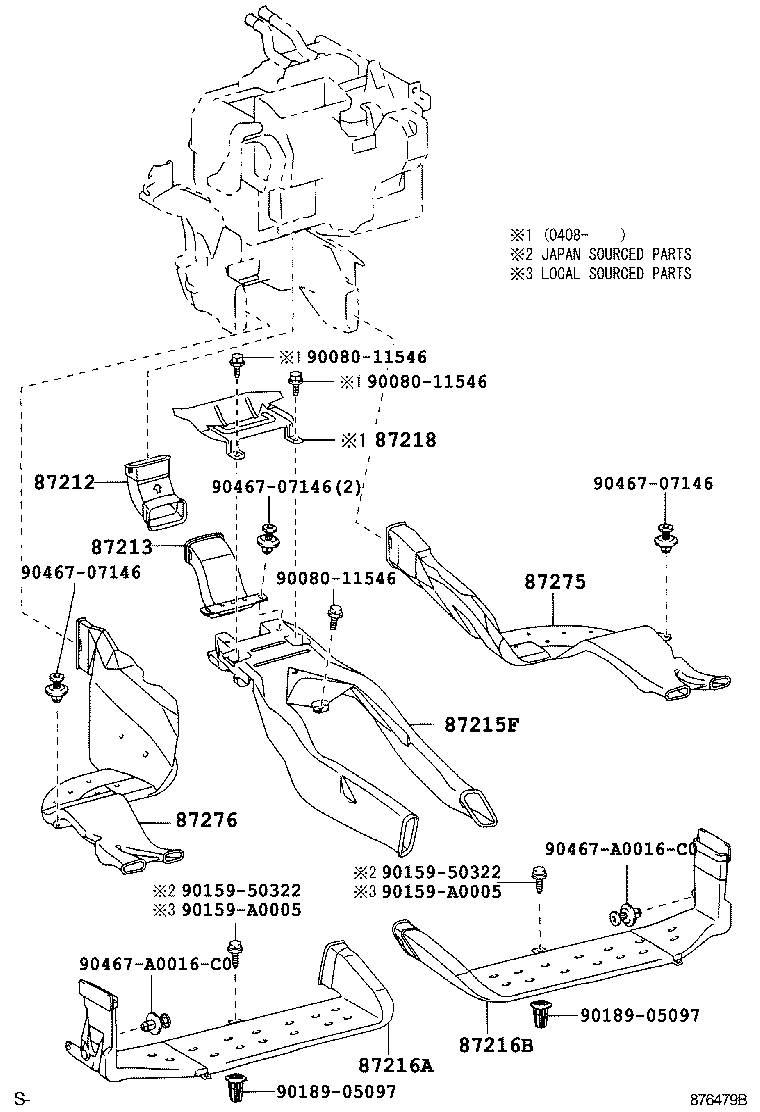

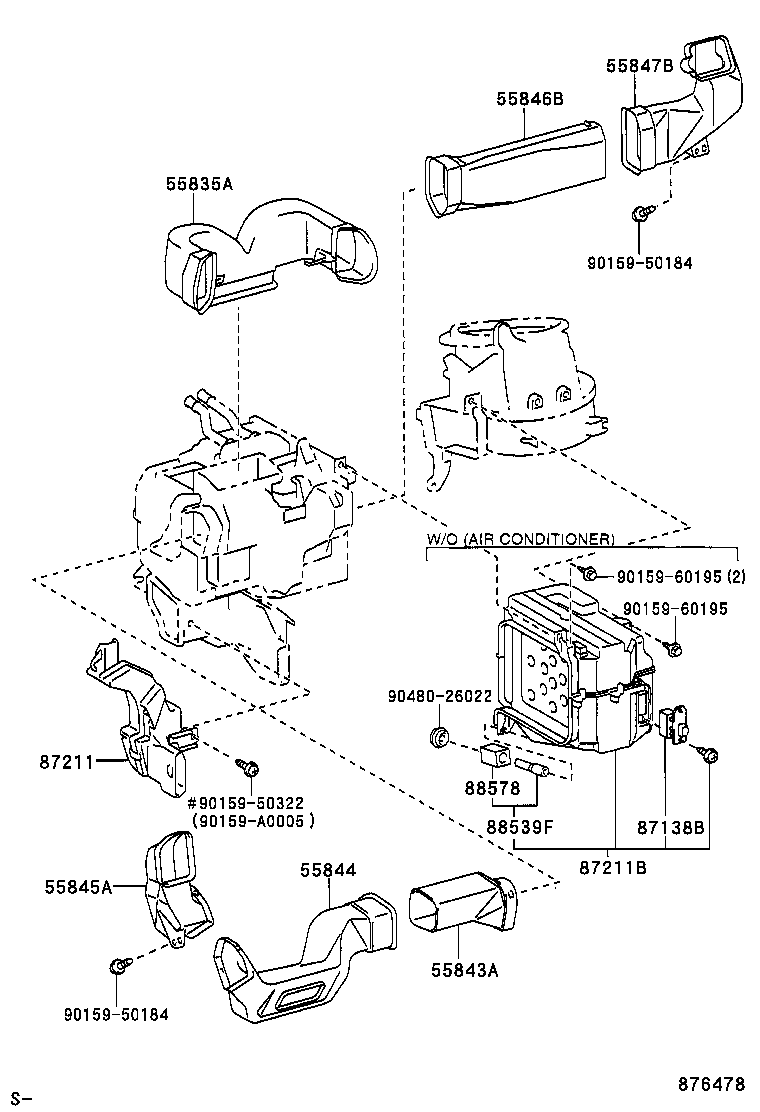

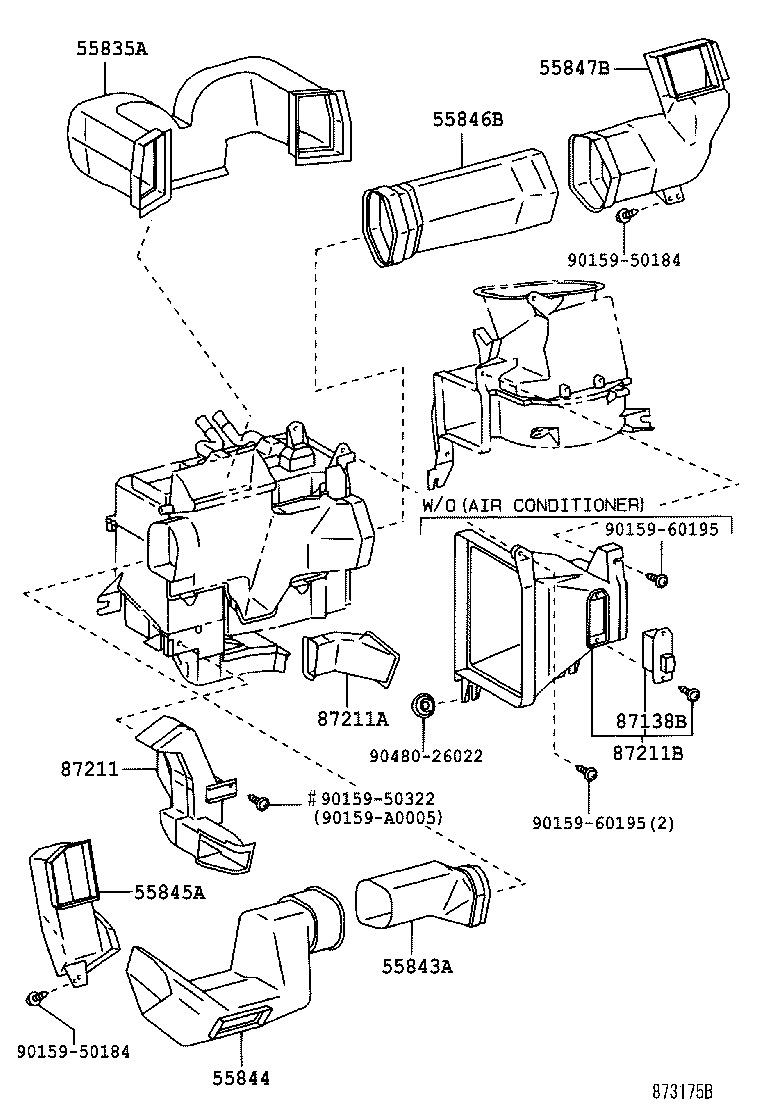

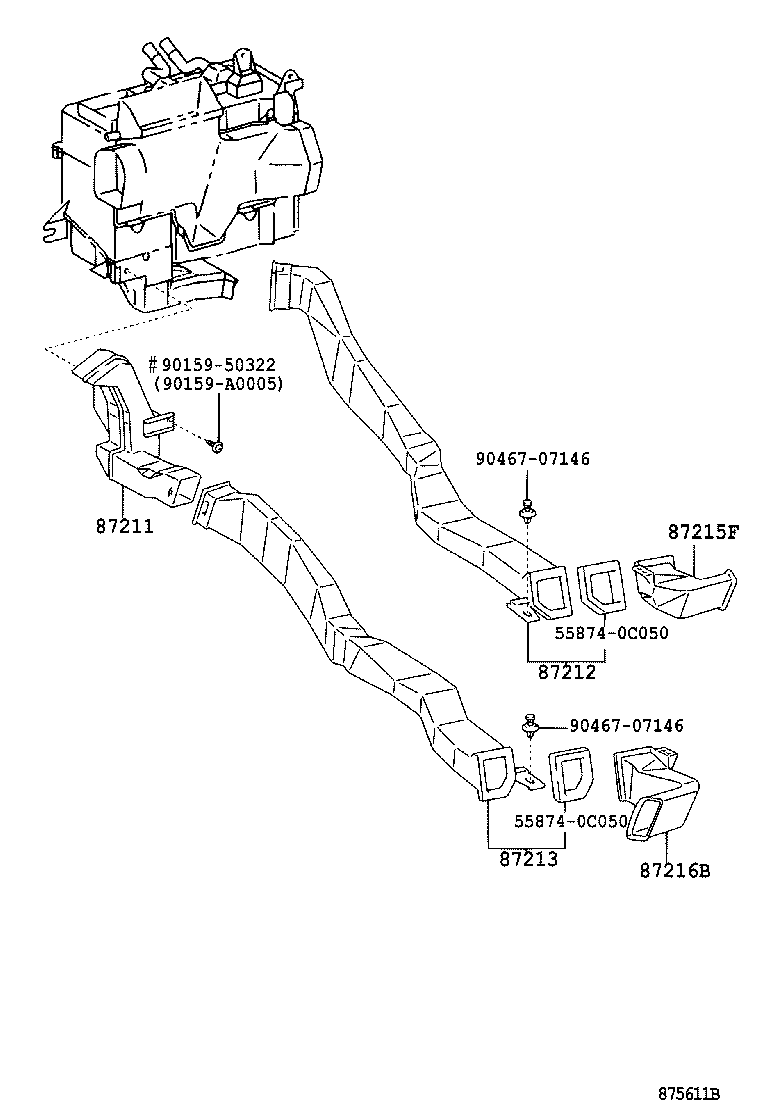

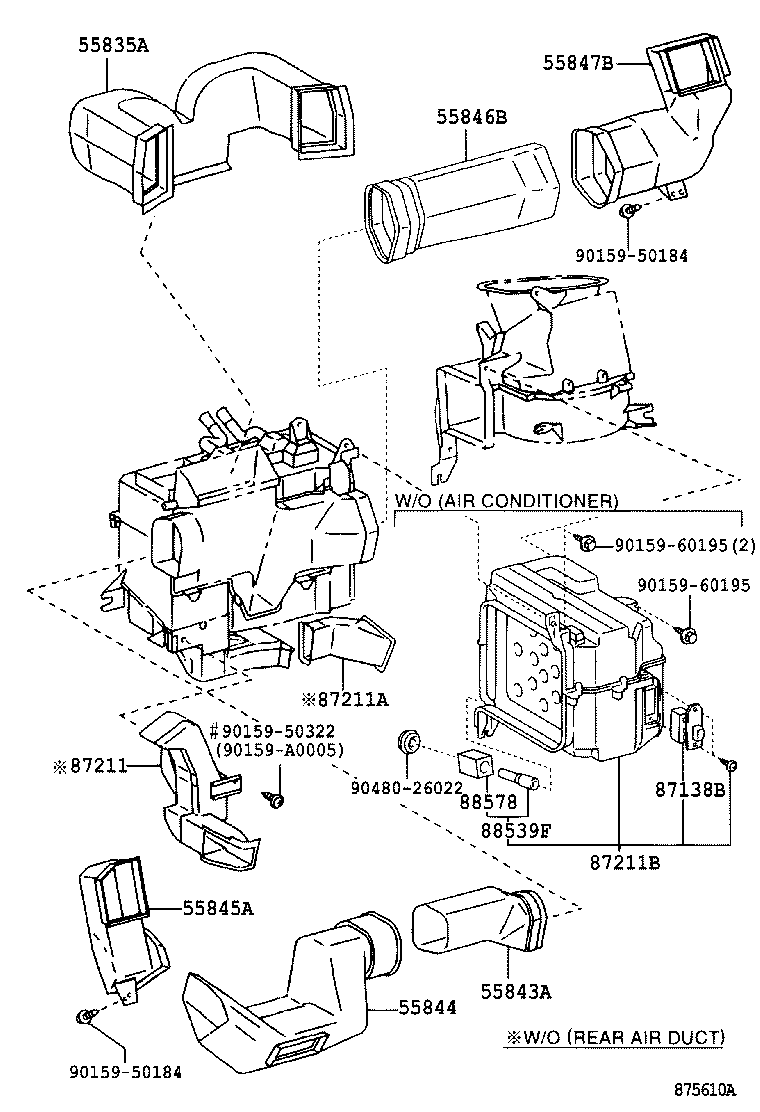

Figure 873174C 873174C 1999-02 → — Figure 873175B 873175B 1999-02 → 2002-08 Figure 875610A 875610A 2002-08 → — Figure 876478 876478 2003-10 → — Figure 875611B 875611B 2002-08 → — Figure 876479B 876479B 2003-10 → — Figure 876480A 876480A 2003-10 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216A Duct, Air, Rear NO.5
87216B Duct, Air, Rear NO.4
87218 Bracket, Rear Air Duct
87275 Duct, Floor Heater Air, NO.1 RH
87276 Duct, Floor Heater Air, NO.1 LH
88539F Hose, Drain
88578 Paking, Cooler Air Duct
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
