Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

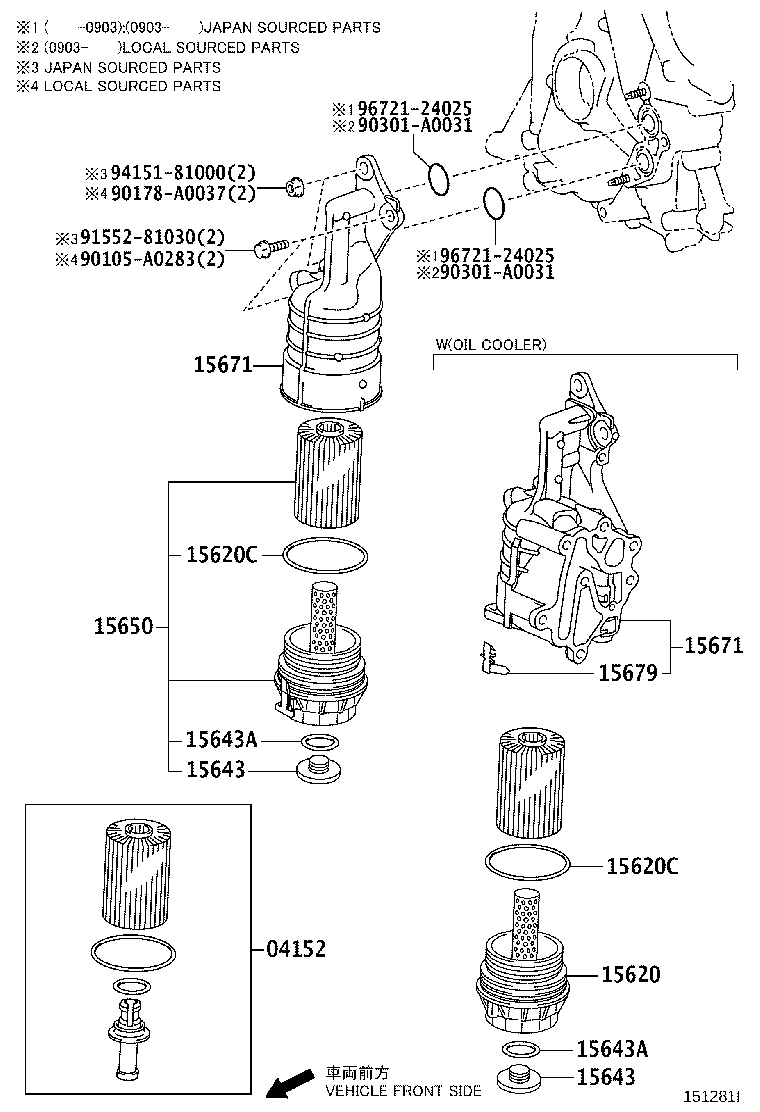

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-38020 |
Element Kit, Oil Filter
2007-01 → 2009-04
ended
|
3UR# USK5# | — | |
| 04152-38010 |
Element Kit, Oil Filter
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 04152-38020 |
Element Kit, Oil Filter
2009-04 → 2010-05
ended
|
1URFE UPK52,57;1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 04152-38020 |
Element Kit, Oil Filter
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,52,55,56,57 | — | |
| 04152-38010 |
Element Kit, Oil Filter
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 04152-38020 |
Element Kit, Oil Filter
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-38010 note |
Cap Assy, Oil Filter
2007-01 → 2009-04
ended
|
3URFE USK52,57 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2007-01 → 2009-04
ended
|
3UR# USK52,57 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2007-01 → 2009-04
ended
|
3URFE USK50,51,55,56 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2007-01 → 2009-04
ended
|
3UR# USK50,51,55,56 | — | |
| 15620-38010 |
Cap Assy, Oil Filter
2009-04 → 2010-05
ended
|
1URFE UPK52,57 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2009-04 → 2010-05
ended
|
1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15620-38010 |
Cap Assy, Oil Filter
2009-04 → 2013-08
ended
|
3UR# USK52,57 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,55,56 | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3UR# USK5# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3UR# USK5# | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2017-08 → 2019-07
ended
|
3URFBE USK56,57 | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2017-08 → 2019-07
ended
|
3URFBE USK56,57 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2007-01 → 2009-04
ended
|
3URFE USK5# | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2007-01 → 2009-04
ended
|
3UR# USK5# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2009-04 → 2010-05
ended
|
1URFE UPK52,57;1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,52,55,56,57 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-08 → —
|
3URFE USK5# | — | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-31050 note |
Plug, Oil Filter Drain
2007-01 → 2009-04
ended
|
3URFE USK5# | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2007-01 → 2009-04
ended
|
3UR# USK5# | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2009-04 → 2010-05
ended
|
1URFE UPK52,57;1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,52,55,56,57 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2017-08 → —
|
3URFE USK5# | — | |
| 15643A — Ring, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2007-01 → 2009-04
ended
|
3UR# USK5# | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2007-01 → 2009-04
ended
|
3URFE USK5# | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2009-04 → 2010-05
ended
|
1URFE UPK52,57;1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,52,55,56,57 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-08 → —
|
3URFE USK5# | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2007-01 → 2009-04
ended
|
3URFE USK50,51,55,56 | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2007-01 → 2009-04
ended
|
3UR# USK50,51,55,56 | — | |
| 15650-38010 |
Cap Assy, Oil Filter W/Elememt
2009-04 → 2010-05
ended
|
1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15650-38010 |
Cap Assy, Oil Filter W/Elememt
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,55,56 | — | |
| 15650-38020 |
Cap Assy, Oil Filter W/Elememt
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 15650-0S010 note |
Cap Assy, Oil Filter W/Elememt
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 15650-38020 |
Cap Assy, Oil Filter W/Elememt
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 15650-0S010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 15650-0S010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → —
|
3URFE USK5# | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → —
|
3URFE USK5# | — | |
| 15671 — Bracket, Oil Filter | ||||
| 15670-38010 note |
Bracket, Oil Filter
2007-01 → 2008-11
ended
|
3UR# USK50,51,55,56 | — | |
| 15670-38010 note |
Bracket, Oil Filter
2007-01 → 2008-11
ended
|
3URFE USK50,51,55,56 | — | |
| 15670-38010 note |
Bracket, Oil Filter
2007-01 → 2008-11
ended
|
3UR# USK52,57 | — | |
| 15670-38010 note |
Bracket, Oil Filter
2007-01 → 2008-11
ended
|
3URFE USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2009-04
ended
|
3URFE USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2009-04
ended
|
3UR# USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2009-04
ended
|
3URFE USK50,51,55,56 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2009-04
ended
|
3UR# USK50,51,55,56 | — | |
| 15671-38010 note |
Bracket, Oil Filter
2007-01 → 2009-04
ended
|
3URFE USK50,51,55,56 | — | |
| 15671-38010 note |
Bracket, Oil Filter
2007-01 → 2009-04
ended
|
3UR# USK50,51,55,56 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2011-09 → 2013-08
ended
|
1URFE,3UR# UPK5#,USK51,55,56 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2011-09 → 2013-08
ended
|
3UR# USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2011-09 → 2013-08
ended
|
3UR# USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2011-09 → 2013-08
ended
|
1URFE,3UR# UPK5#,USK51,55,56 | — | |
| 15670-38011 |
Bracket, Oil Filter
2009-04 → 2011-09
ended
|
3UR# USK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2009-04 → 2010-05
ended
|
1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15670-38011 |
Bracket, Oil Filter
2009-04 → 2010-05
ended
|
1URFE UPK52,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2009-04 → 2011-09
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,55,56 | — | |
| 15671-31040 |
Bracket, Oil Filter
2010-10 → 2013-08
ended
|
1GRFE GSK5# | — | |
| 15671-38010 |
Bracket, Oil Filter
2009-04 → 2013-08
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,55,56 | — | |
| 15671-38010 |
Bracket, Oil Filter
2009-04 → 2010-05
ended
|
1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2013-08 → 2017-08
ended
|
3UR# USK5# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2013-08 → 2017-08
ended
|
3UR# USK5# | — | |
| 15671-31040 |
Bracket, Oil Filter
2013-08 → 2014-09
ended
|
1GRFE GSK51 | — | |
| 15671-38010 |
Bracket, Oil Filter
2013-08 → 2017-08
ended
|
1URFE,3UR# UPK5#,USK5# | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2017-08 → 2019-07
ended
|
3URFBE USK56,57 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2017-08 → 2019-07
ended
|
3URFBE USK56,57 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15671-38010 |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK5# | — | |
| 15671-38010 |
Bracket, Oil Filter
2017-08 → 2019-07
ended
|
1URFE,3URFBE UPK5#,USK56,57 | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-01 → 2009-04
ended
|
3URFE USK52,57 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-01 → 2009-04
ended
|
3UR# USK52,57 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-01 → 2009-04
ended
|
3URFE USK50,51,55,56 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-01 → 2009-04
ended
|
3UR# USK50,51,55,56 | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2009-04 → 2010-05
ended
|
1URFE UPK52,57 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2009-04 → 2010-05
ended
|
1URFE,3URFE UPK51,55,56,USK50 D,L | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2009-04 → 2011-09
ended
|
3UR# USK52,57 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2009-04 → 2011-09
ended
|
1URFE UPK51,56 S;1URFE,3UR# UPK50,USK51,55,56 | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2011-09 → 2013-08
ended
|
3UR# USK52,57 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2011-09 → 2013-08
ended
|
1URFE,3UR# UPK5#,USK51,55,56 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2013-08 → 2015-08
ended
|
3UR# USK5# | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2013-08 → 2015-09
ended
|
3URFBE USK51,52 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-09 → 2017-08
ended
|
3UR# USK5# | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2017-08 → 2019-07
ended
|
3URFBE USK56,57 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2017-08 → —
|
3URFE USK5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
