Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

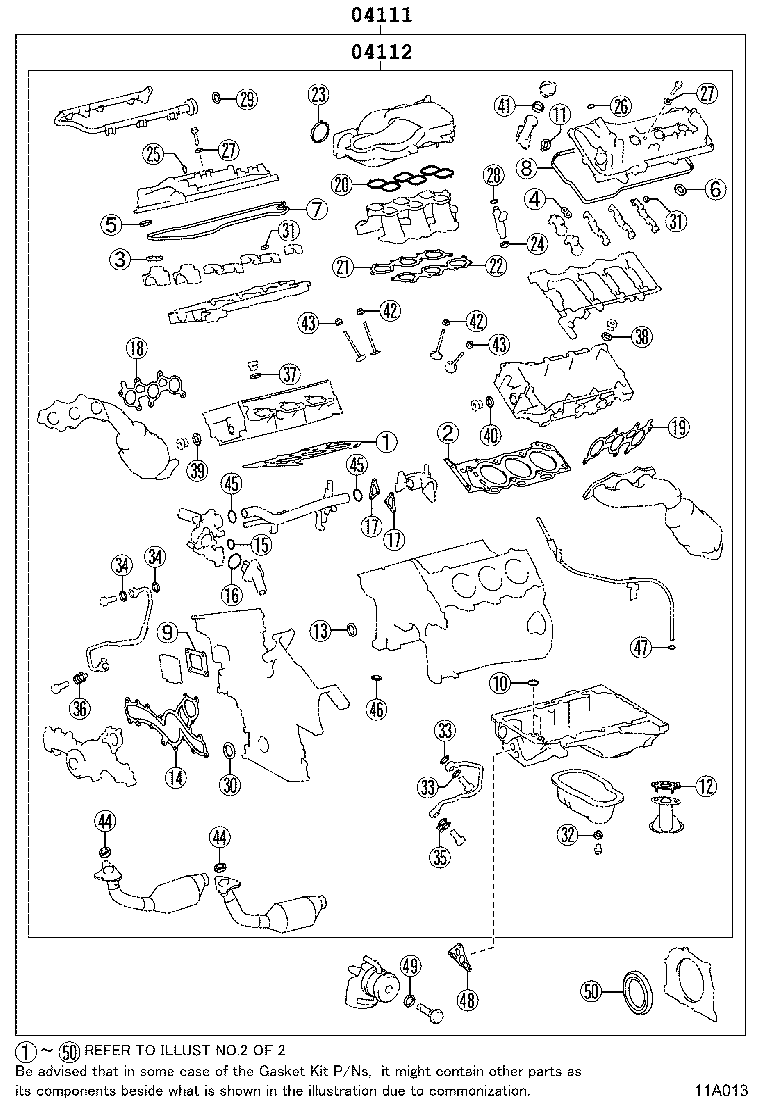

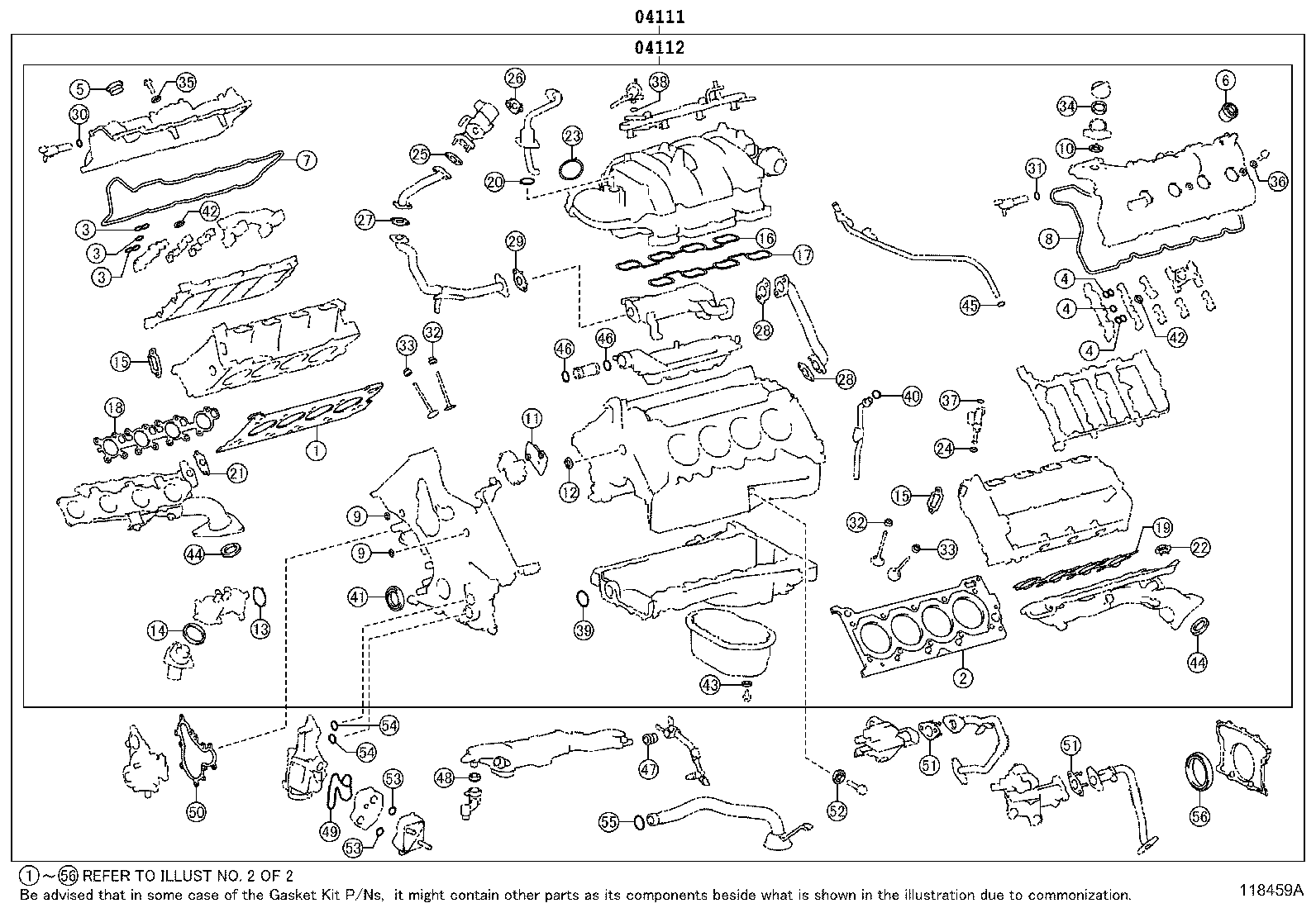

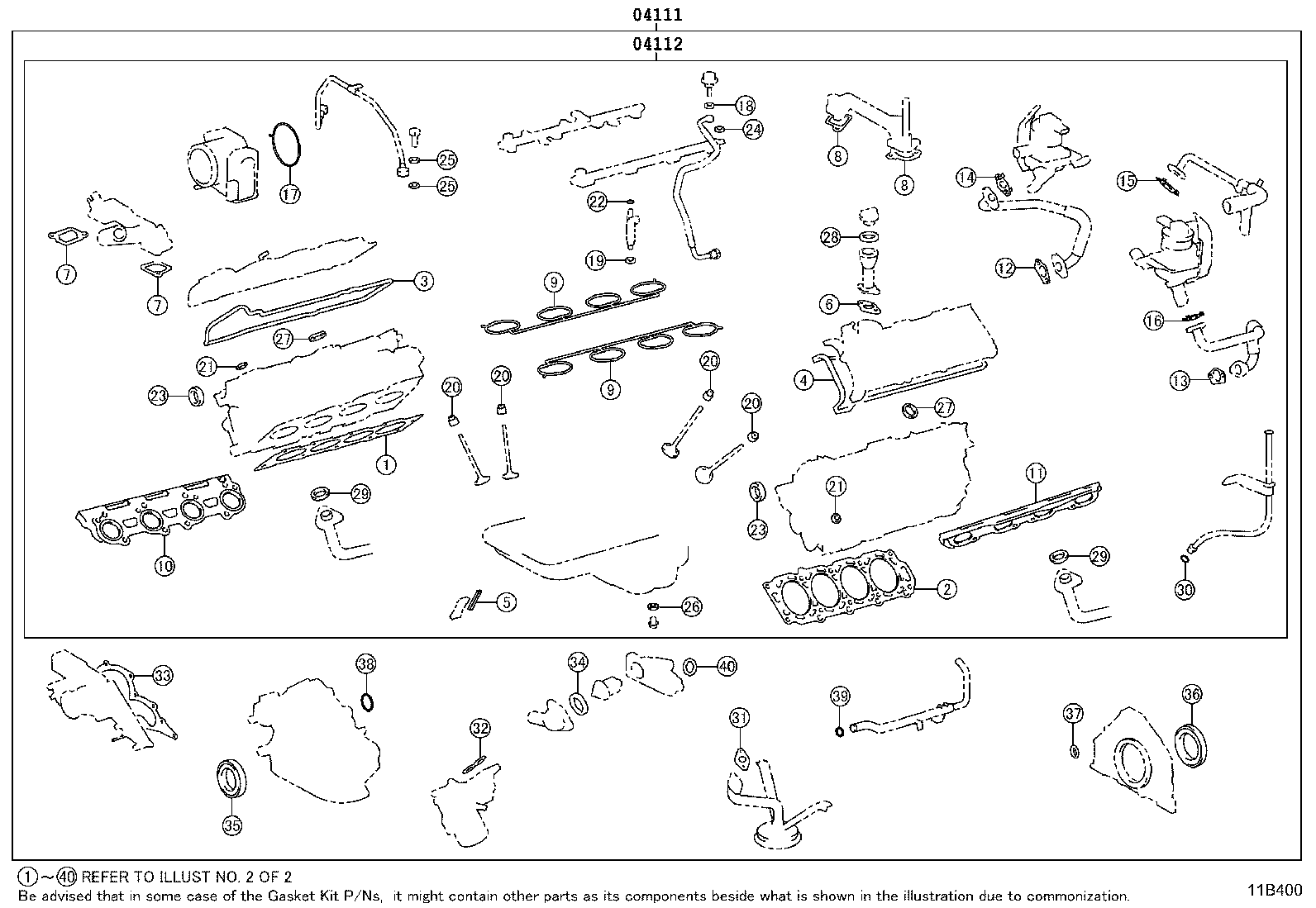

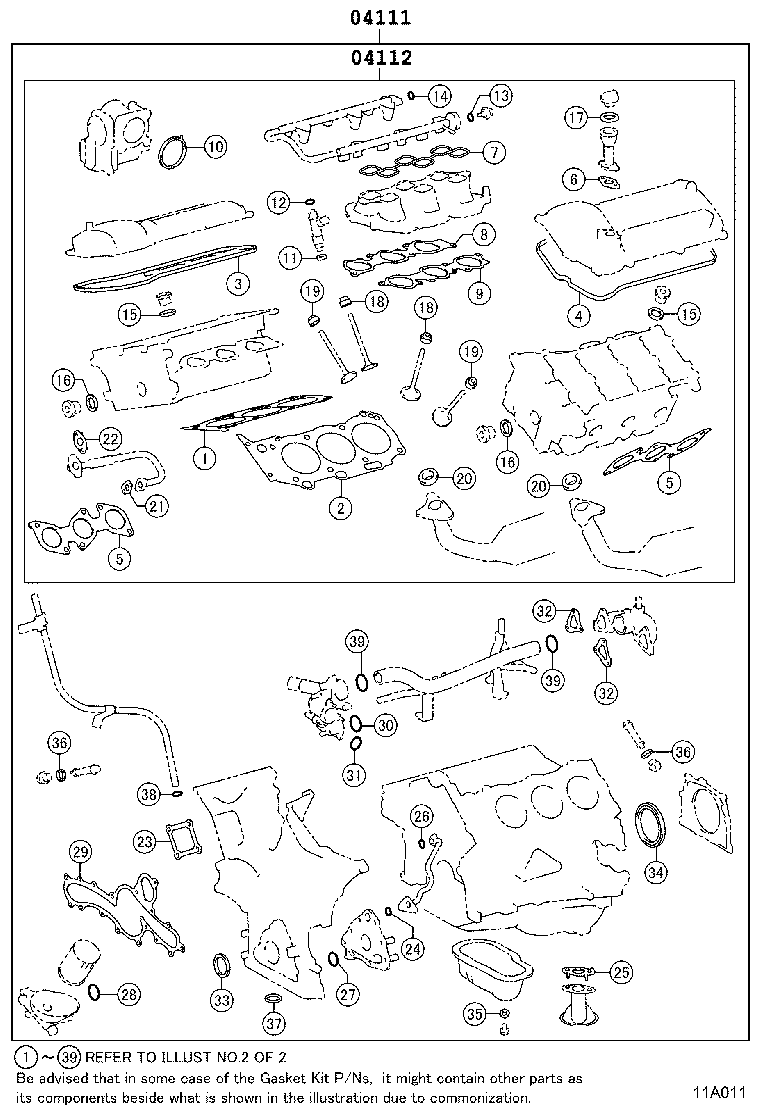

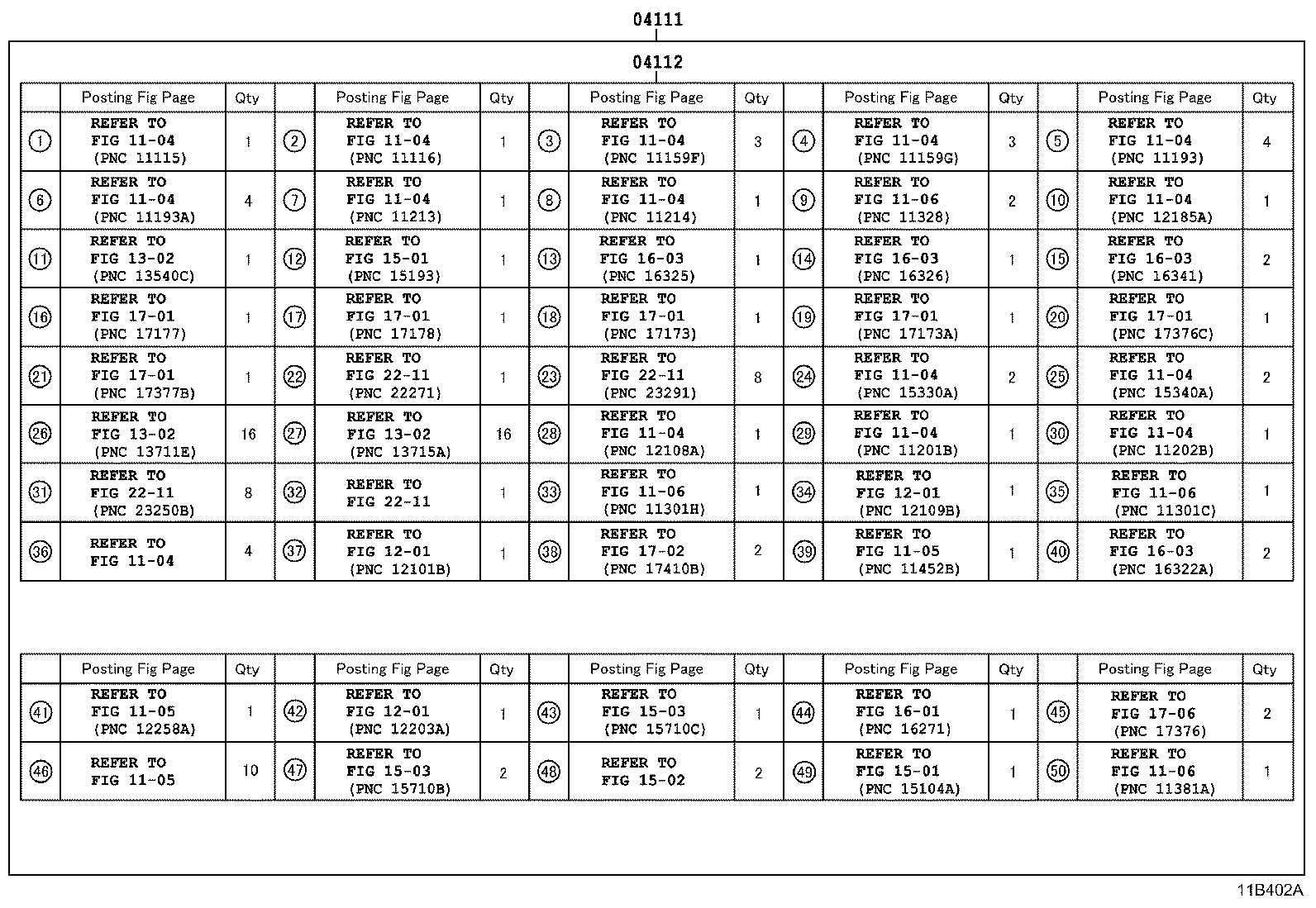

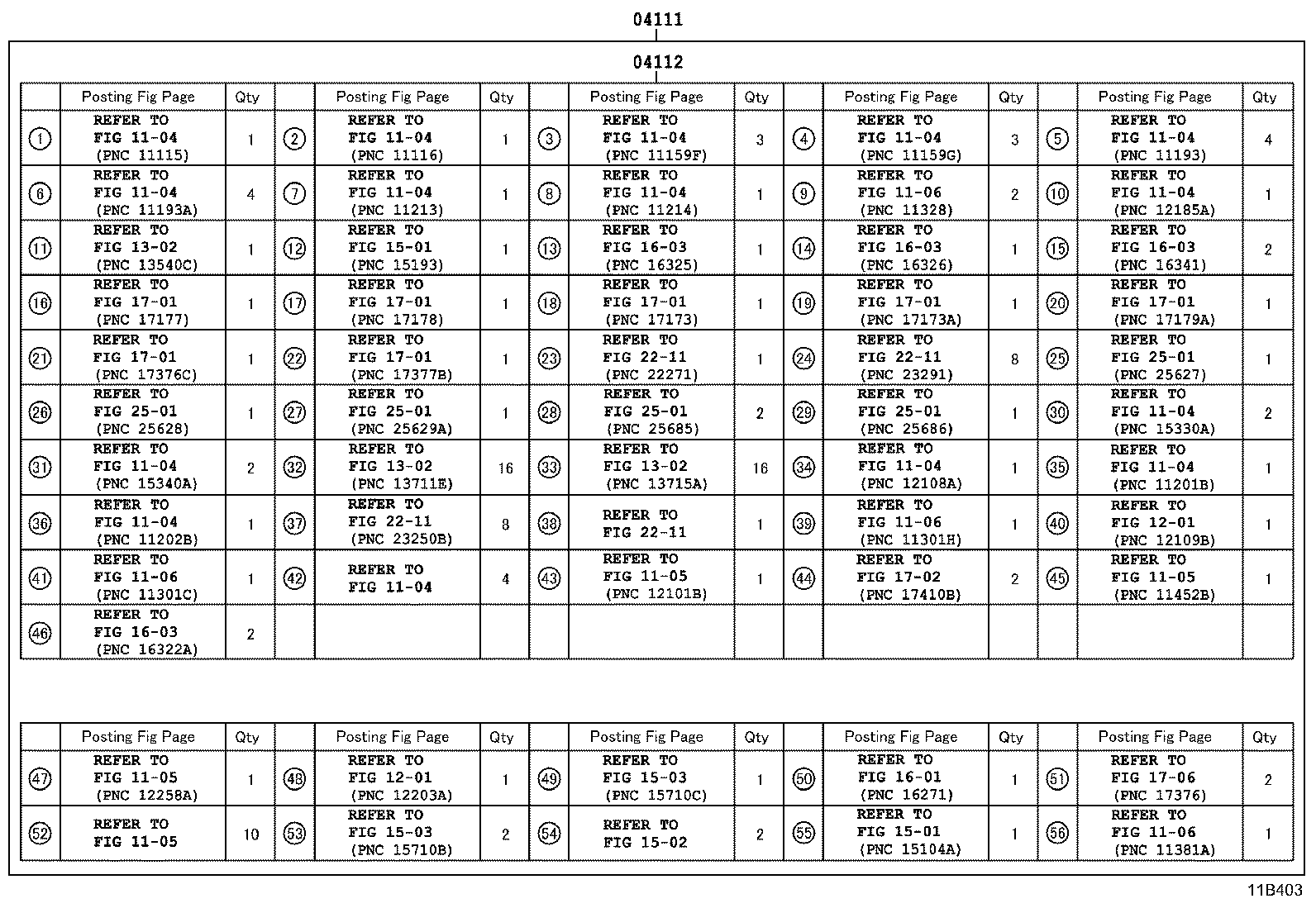

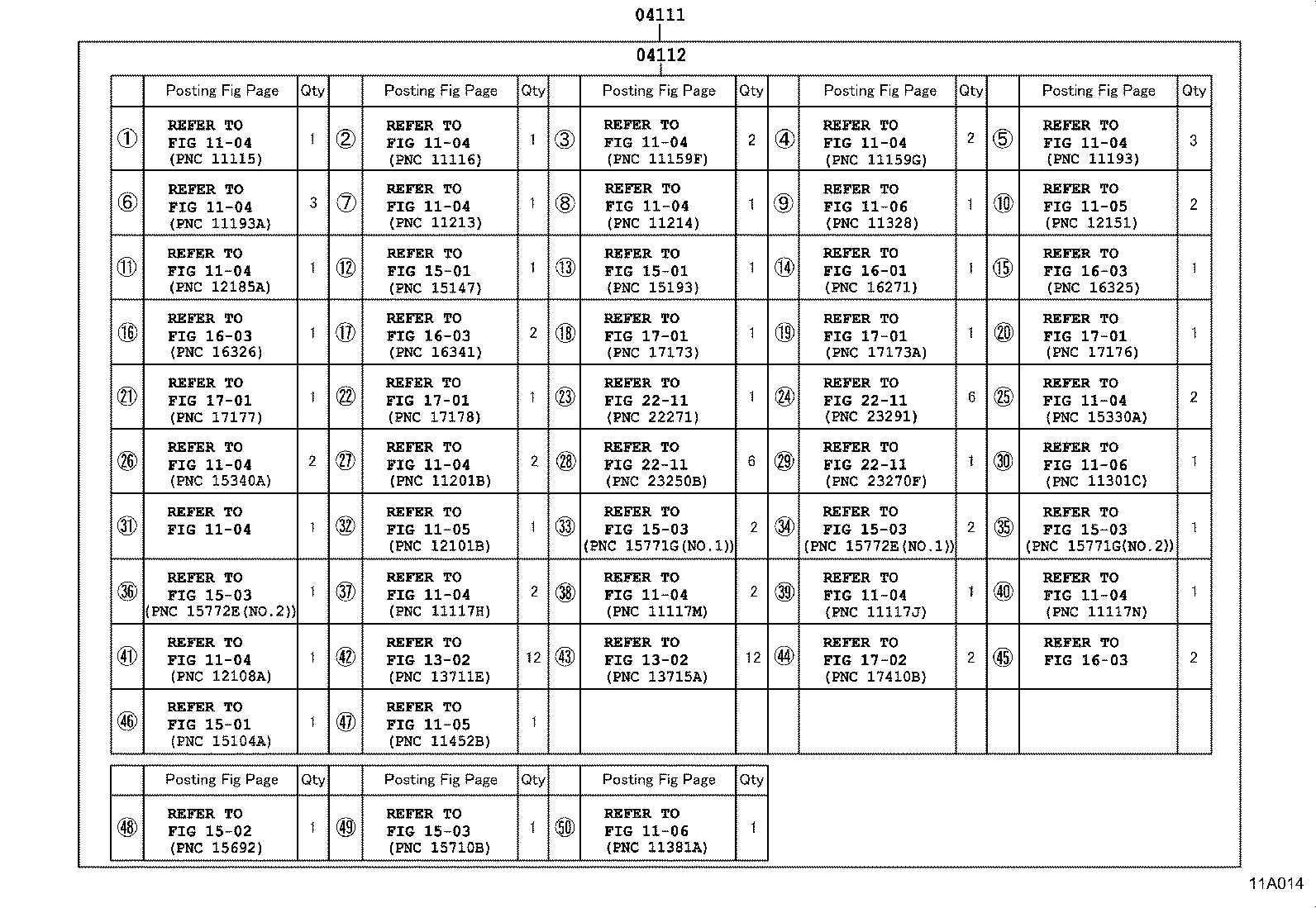

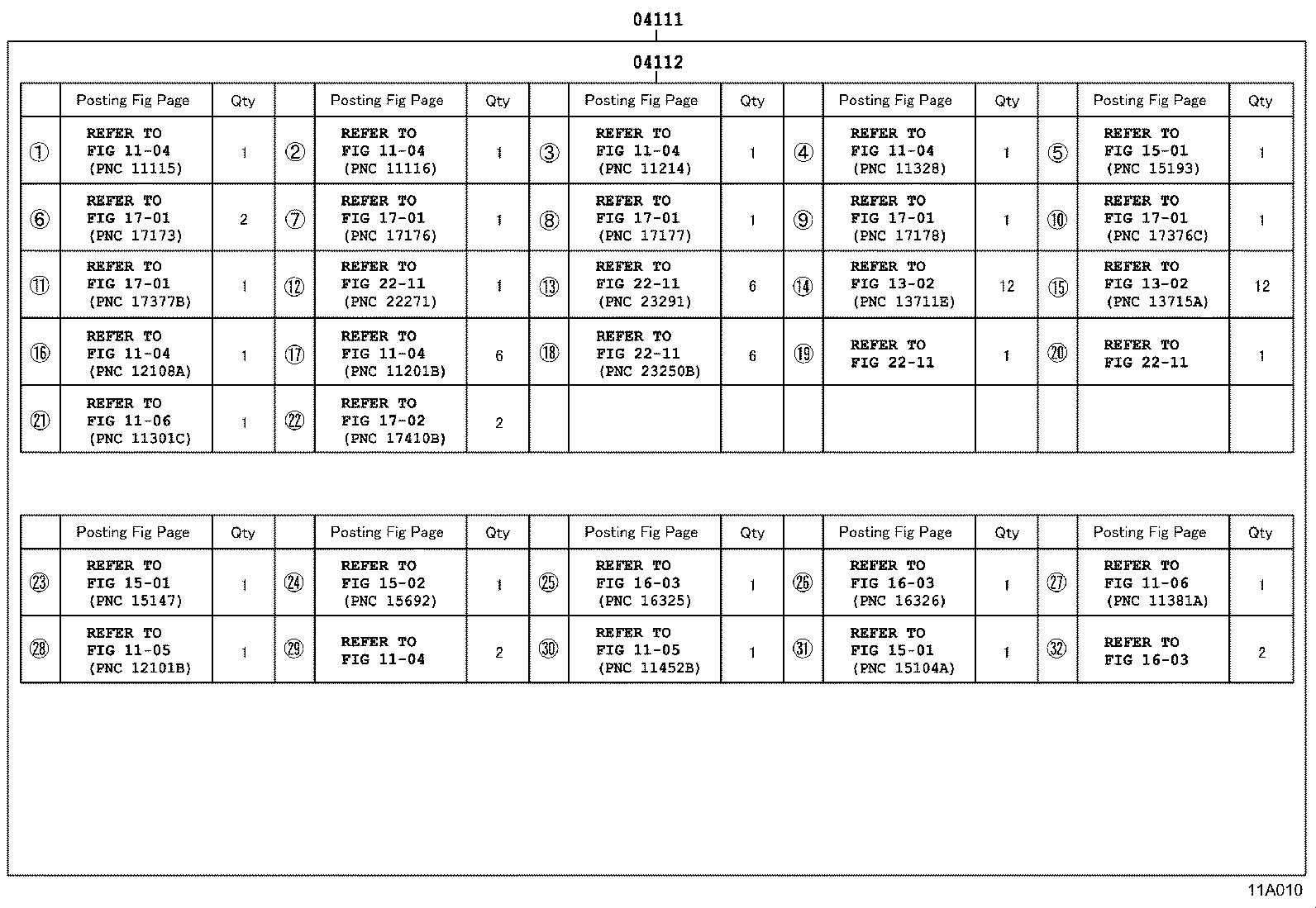

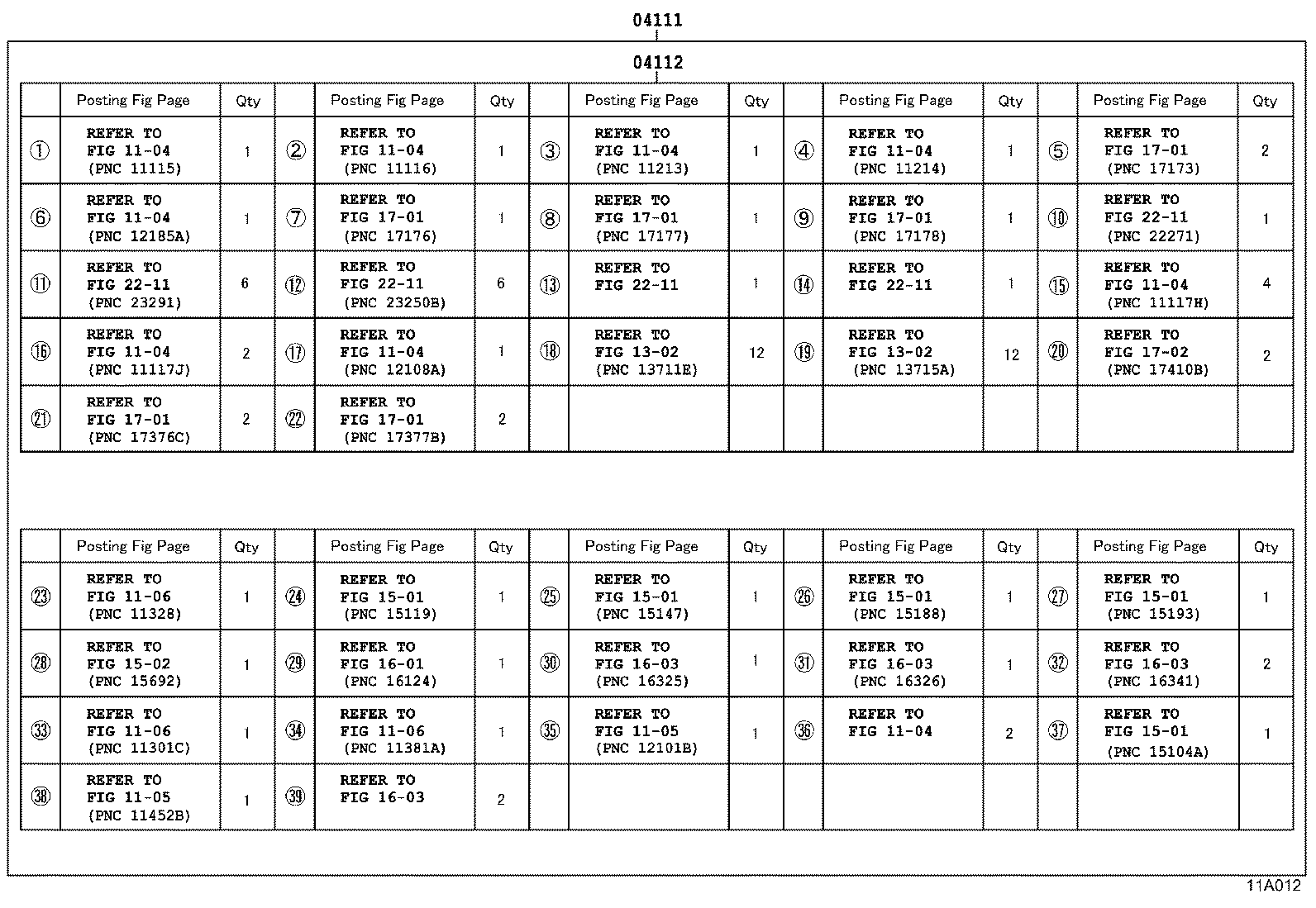

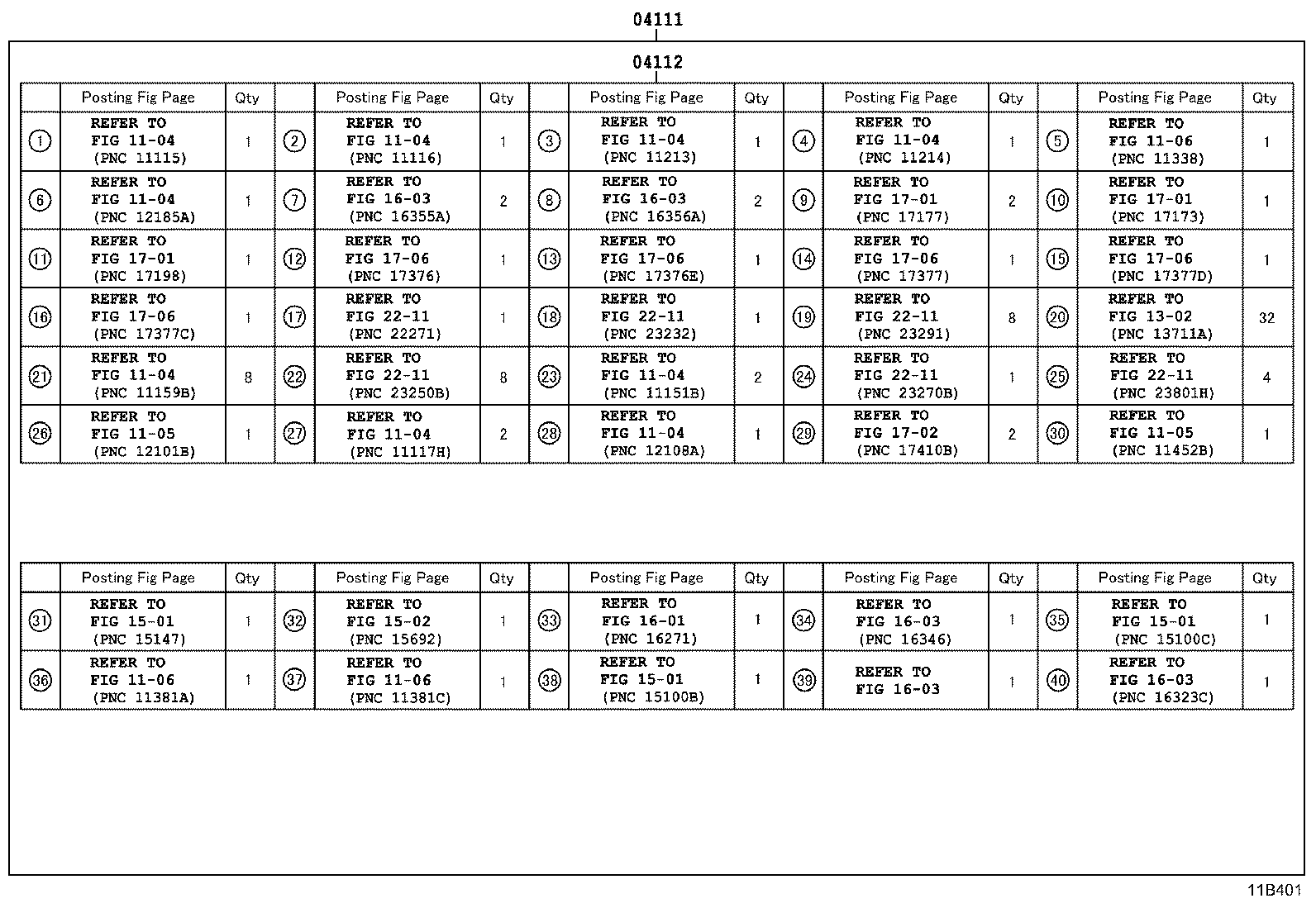

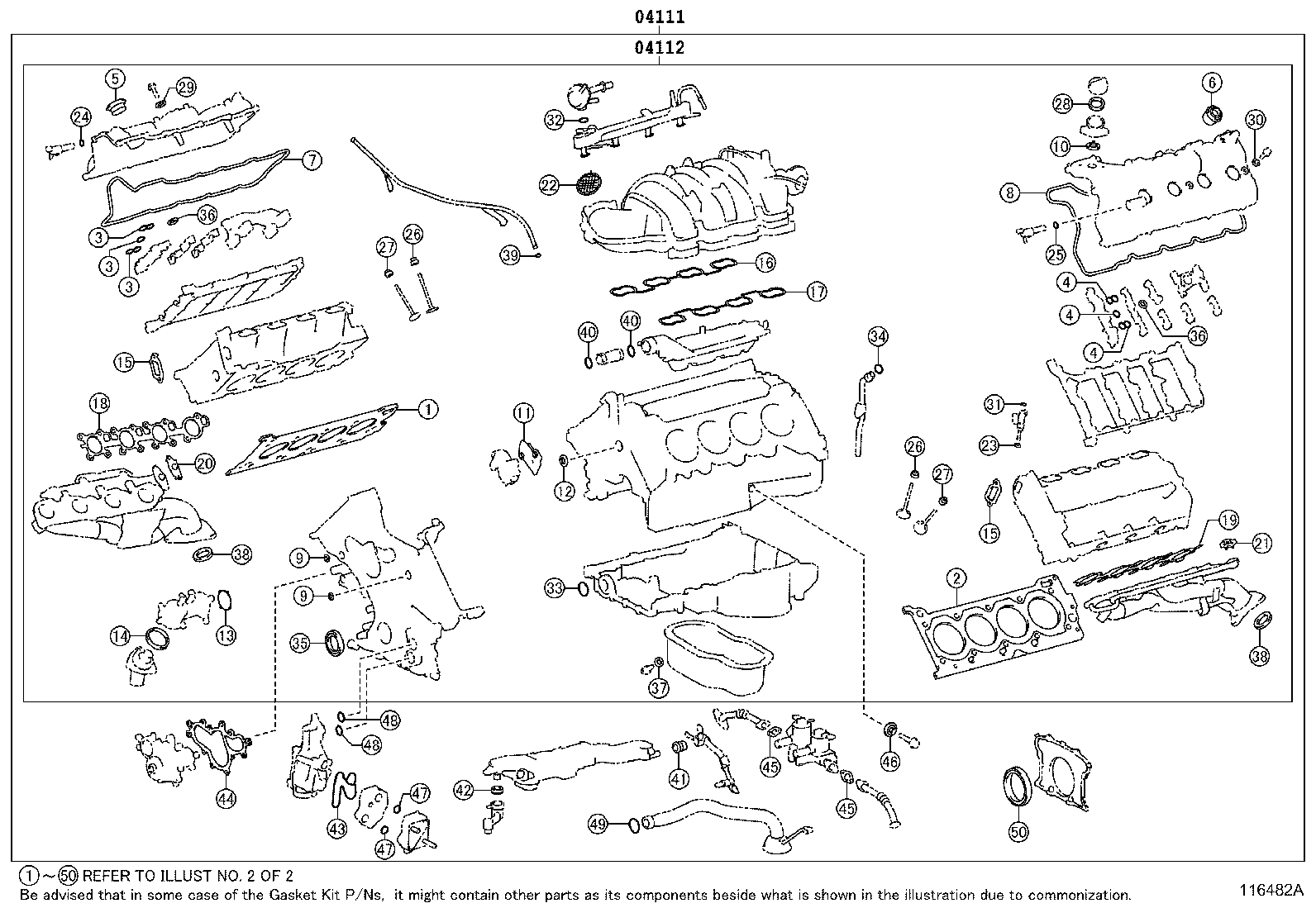

Figure 11A110 11A110 2006-11 → 2007-06 Figure 11A010 11A010 2006-11 → 2007-06 Figure 11A011 11A011 2007-06 → 2010-10 Figure 11A012 11A012 2007-06 → 2010-10 Figure 11A013 11A013 2010-10 → 2014-09 Figure 11A014 11A014 2010-10 → 2014-09 Figure 11B400 11B400 2006-11 → 2009-04 Figure 11B401 11B401 2006-11 → 2009-04 Figure 116482A 116482A 2007-01 → — Figure 11B402A 11B402A 2007-01 → — Figure 118459A 118459A 2009-04 → — Figure 11B403 11B403 2009-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
