Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 3 illustrations

Illustrations

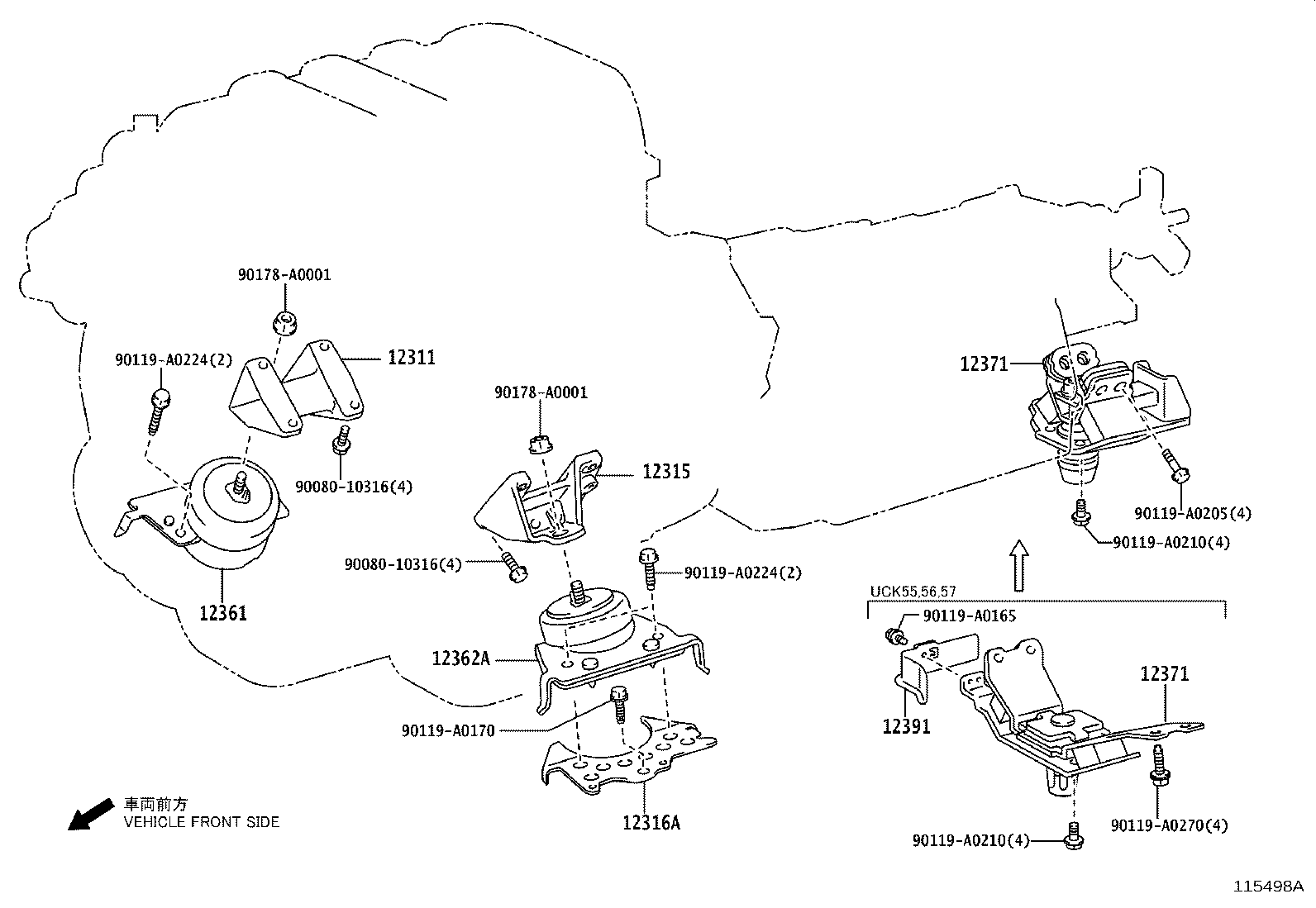

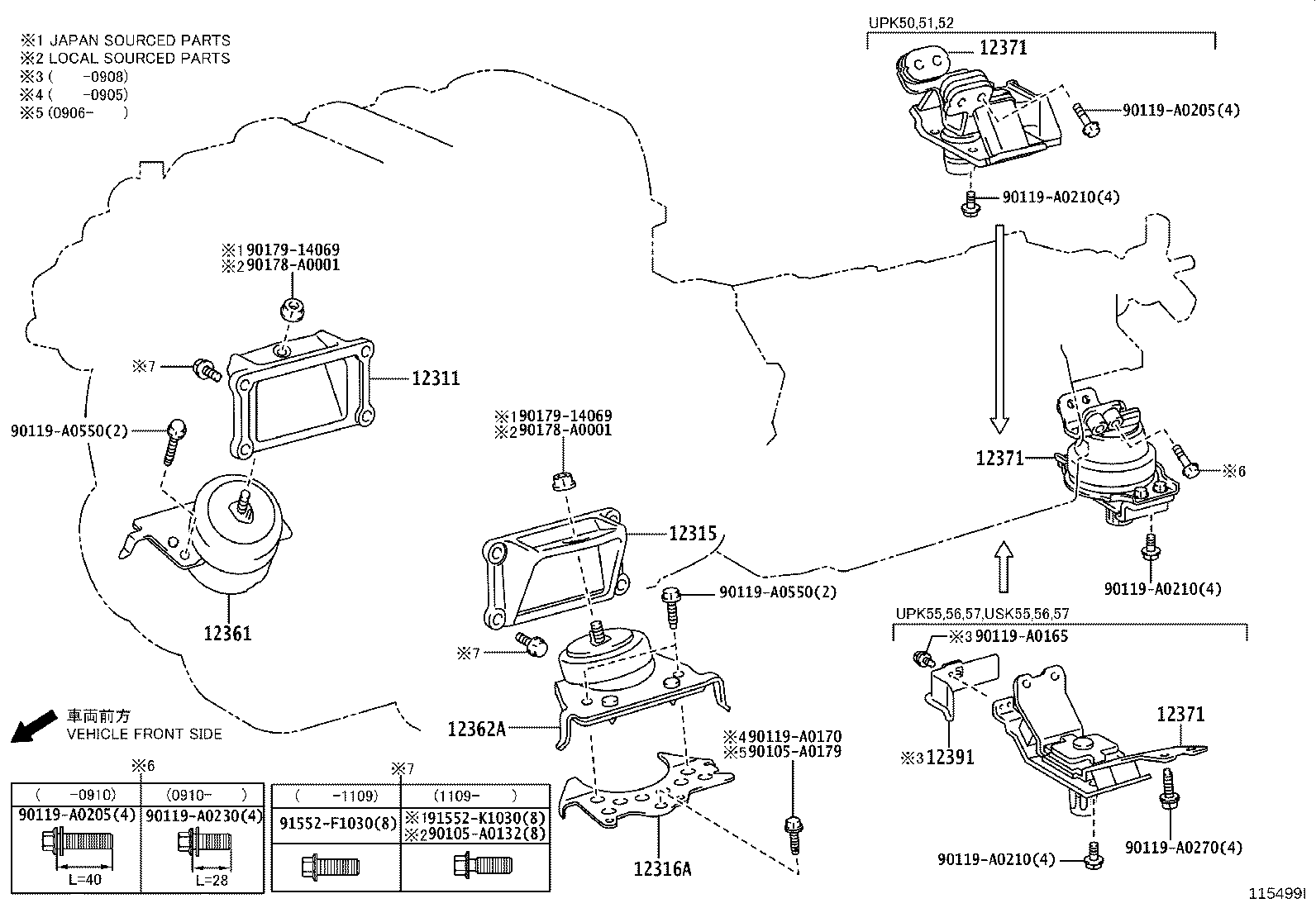

Figure 114647D 114647D 2006-11 → — Figure 115498A 115498A 2006-11 → 2009-04 Figure 115499I 115499I 2007-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12316A Bracket, Engine Mounting, FR NO.2 LH
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
