Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

18 part groups · 5 illustrations

Illustrations

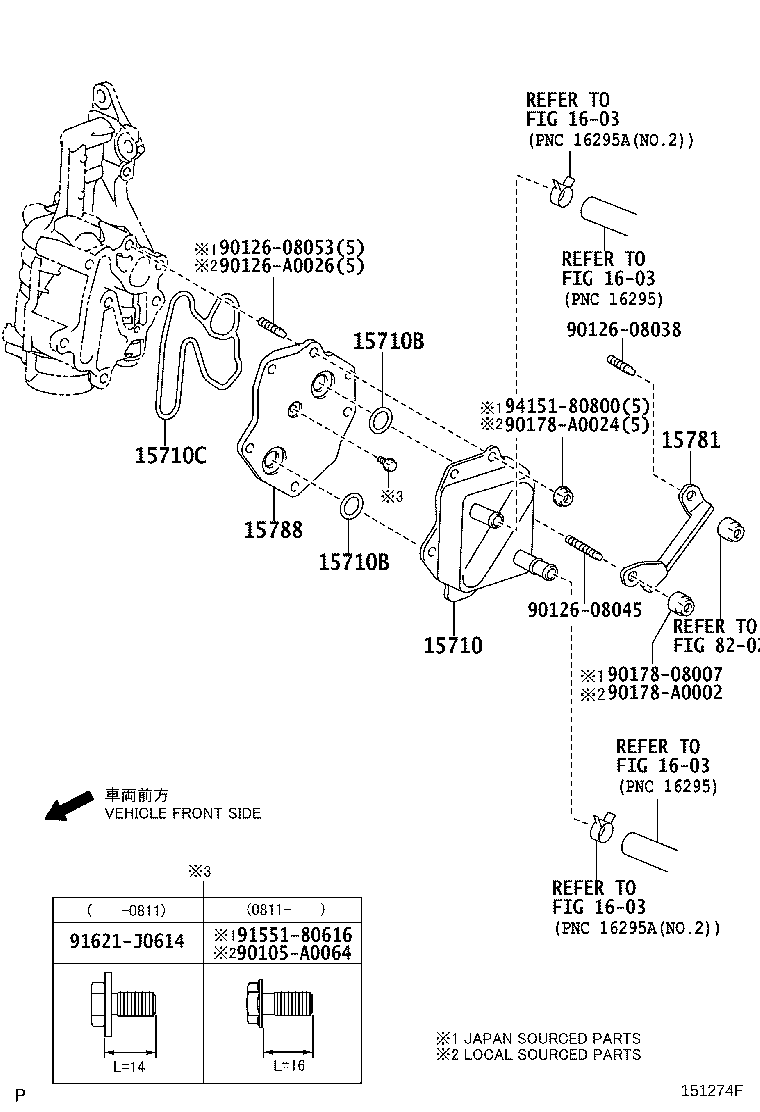

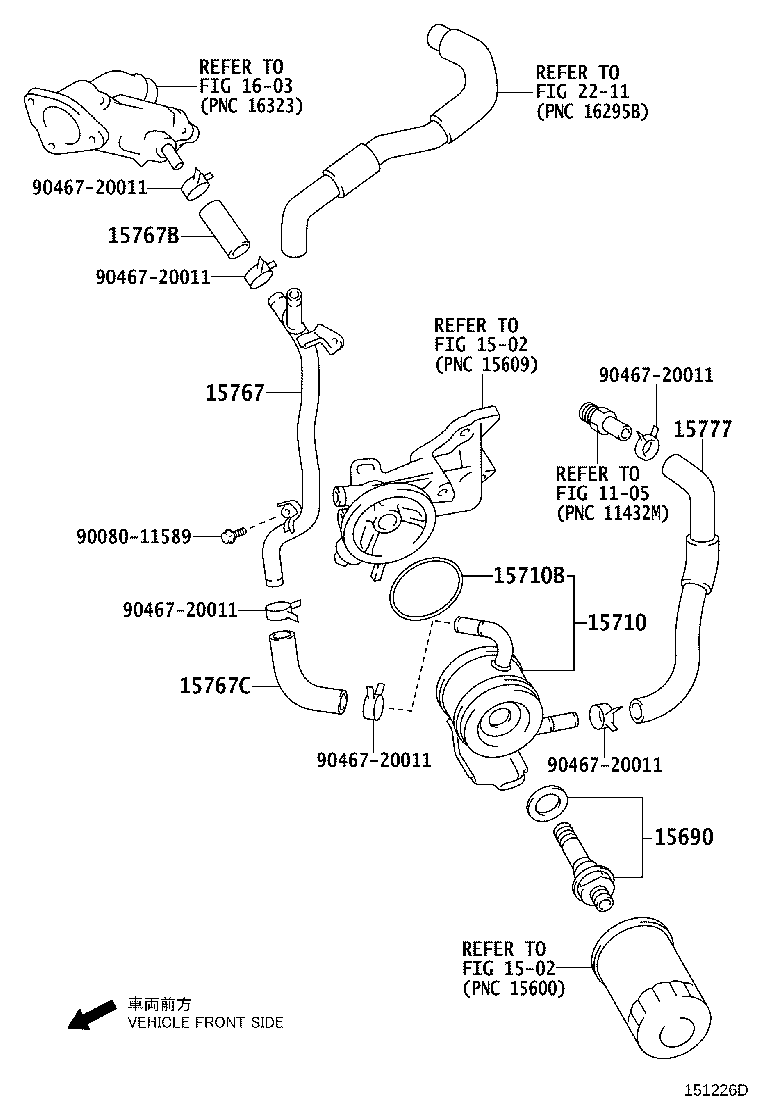

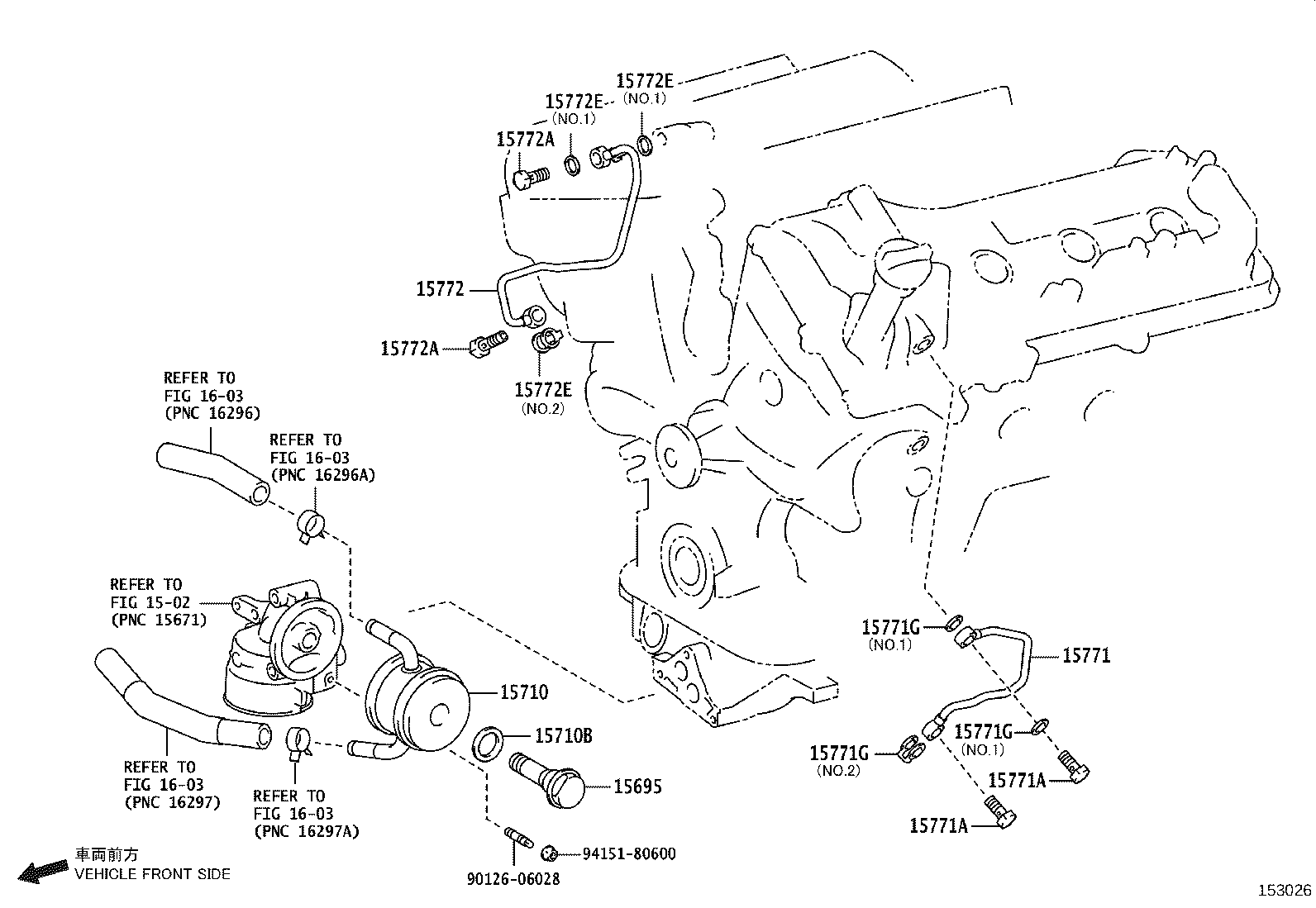

Figure 151795A 151795A 2006-11 → 2010-10 Figure 153026 153026 2010-10 → — Figure 151226D 151226D 2006-11 → 2009-04 Figure 151274F 151274F 2007-01 → — Figure 151274F 151274F 2009-04 → 2013-08

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15767 Pipe, Oil Cooler
15767B Hose, Water By-pass, NO.4
15767C Hose, Water By-pass, NO.5
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15788 Spacer, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
