Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 7 illustrations

Illustrations

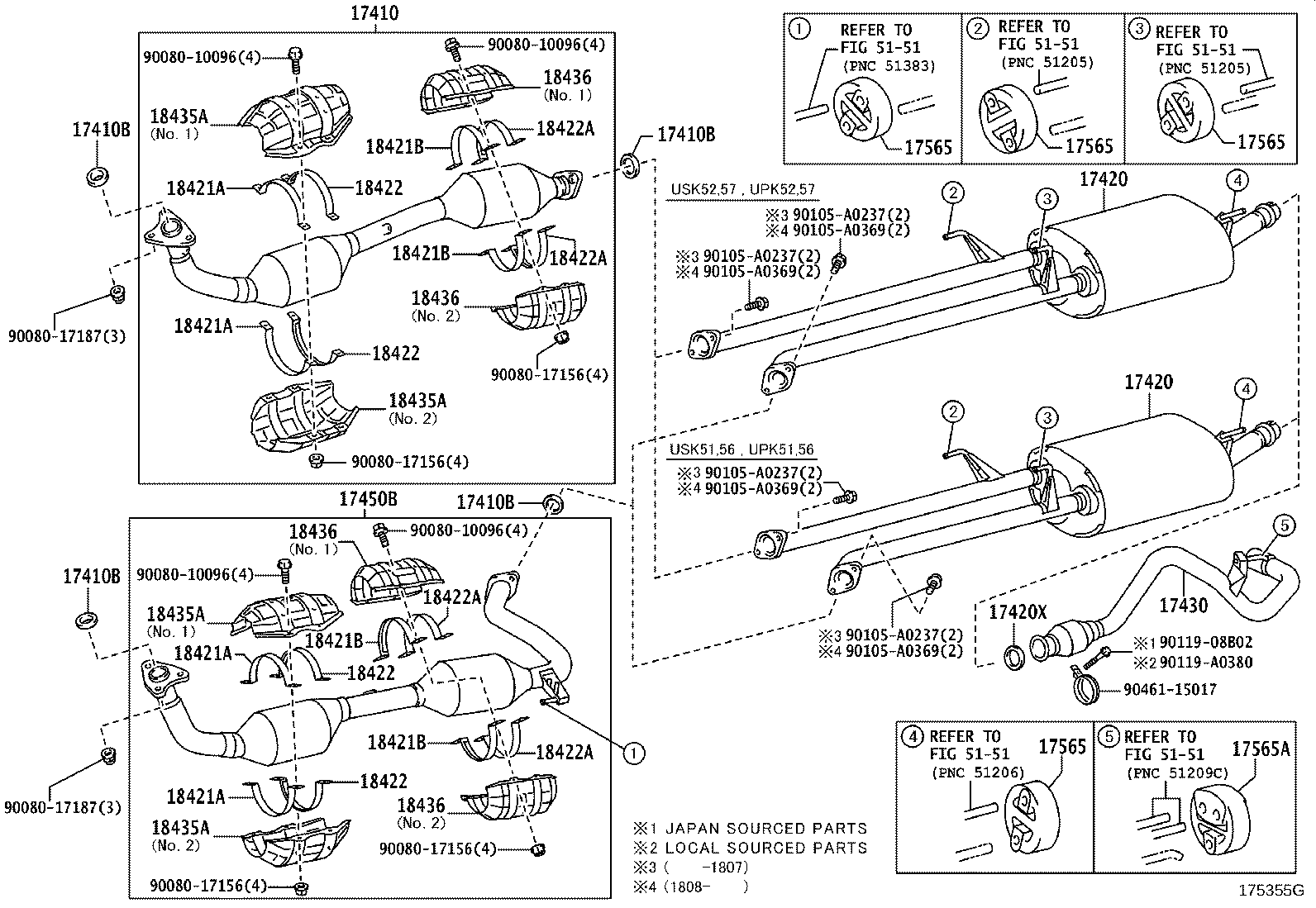

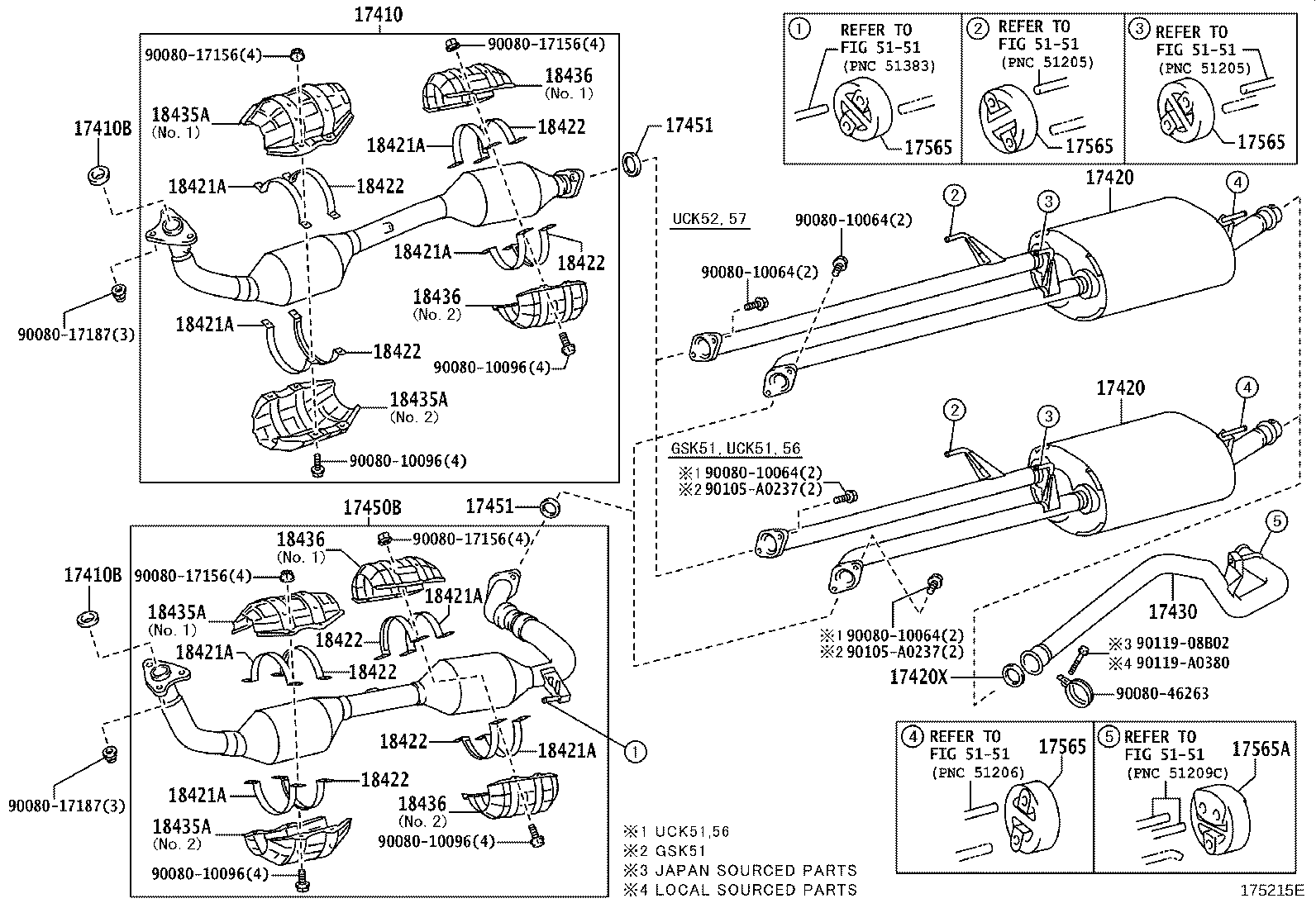

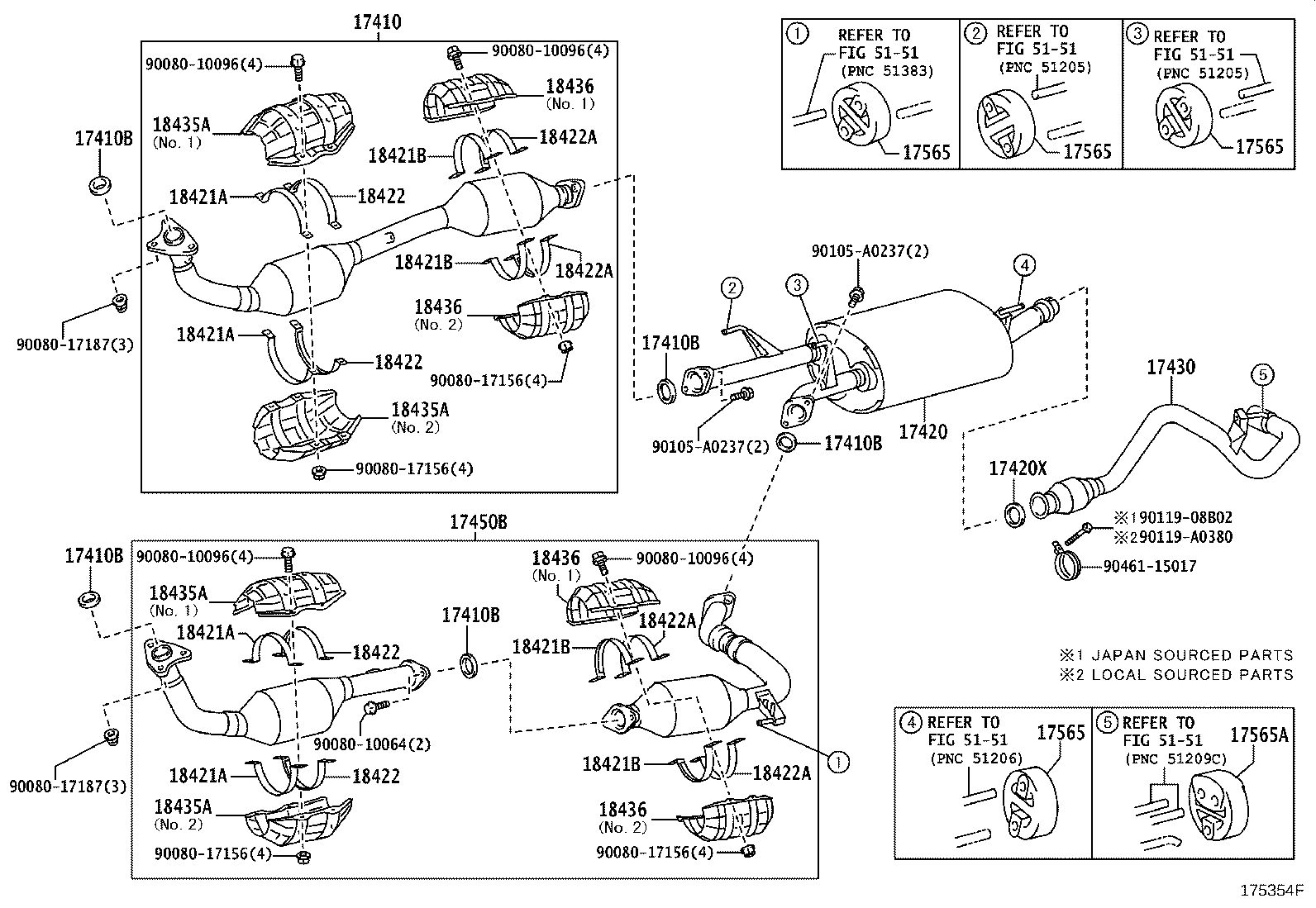

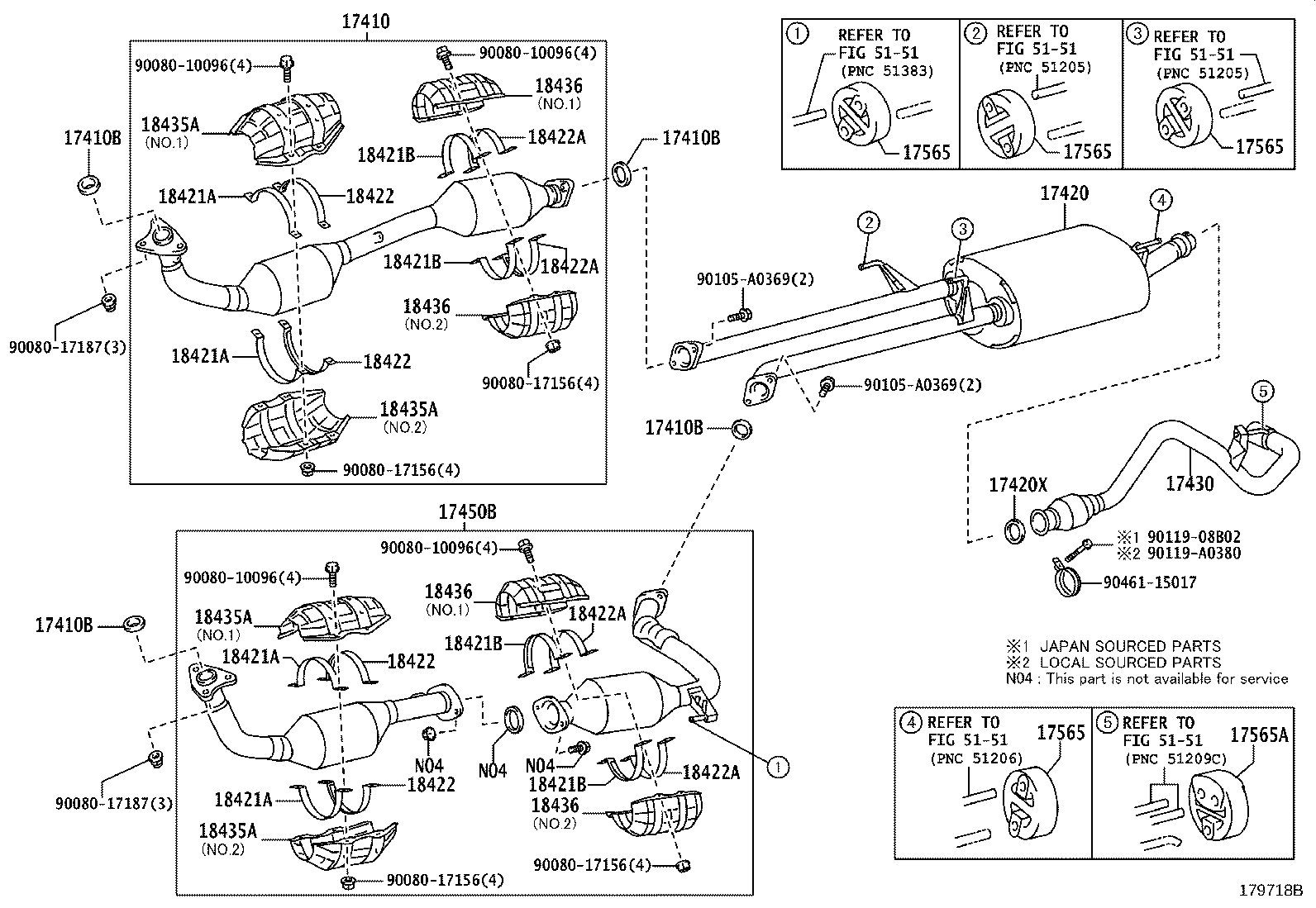

Figure 175216G 175216G 2006-11 → 2013-08 Figure 175215E 175215E 2006-11 → 2014-09 Figure 175354F 175354F 2007-01 → 2013-08 Figure 175355G 175355G 2007-01 → 2013-08 Figure 175355G 175355G 2007-01 → 2017-08 Figure 175355G 175355G 2007-01 → — Figure 179718B 179718B 2017-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
18421A Stay, Converter Protector, LH
18421B Stay, Converter Protector, NO.2
18422 Stay, Converter Protector, NO.2
18422A Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
