Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

36 part groups · 7 illustrations

Illustrations

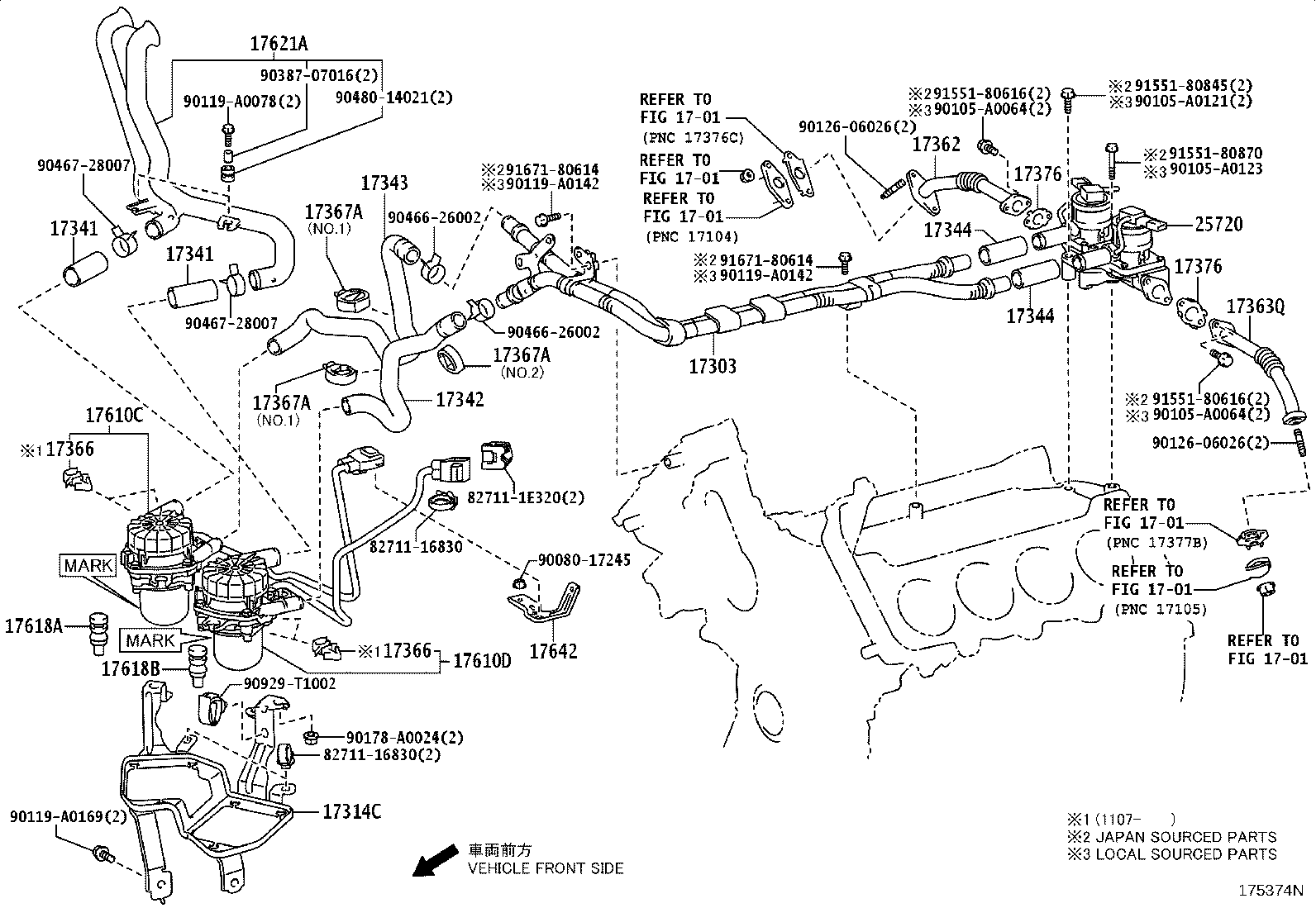

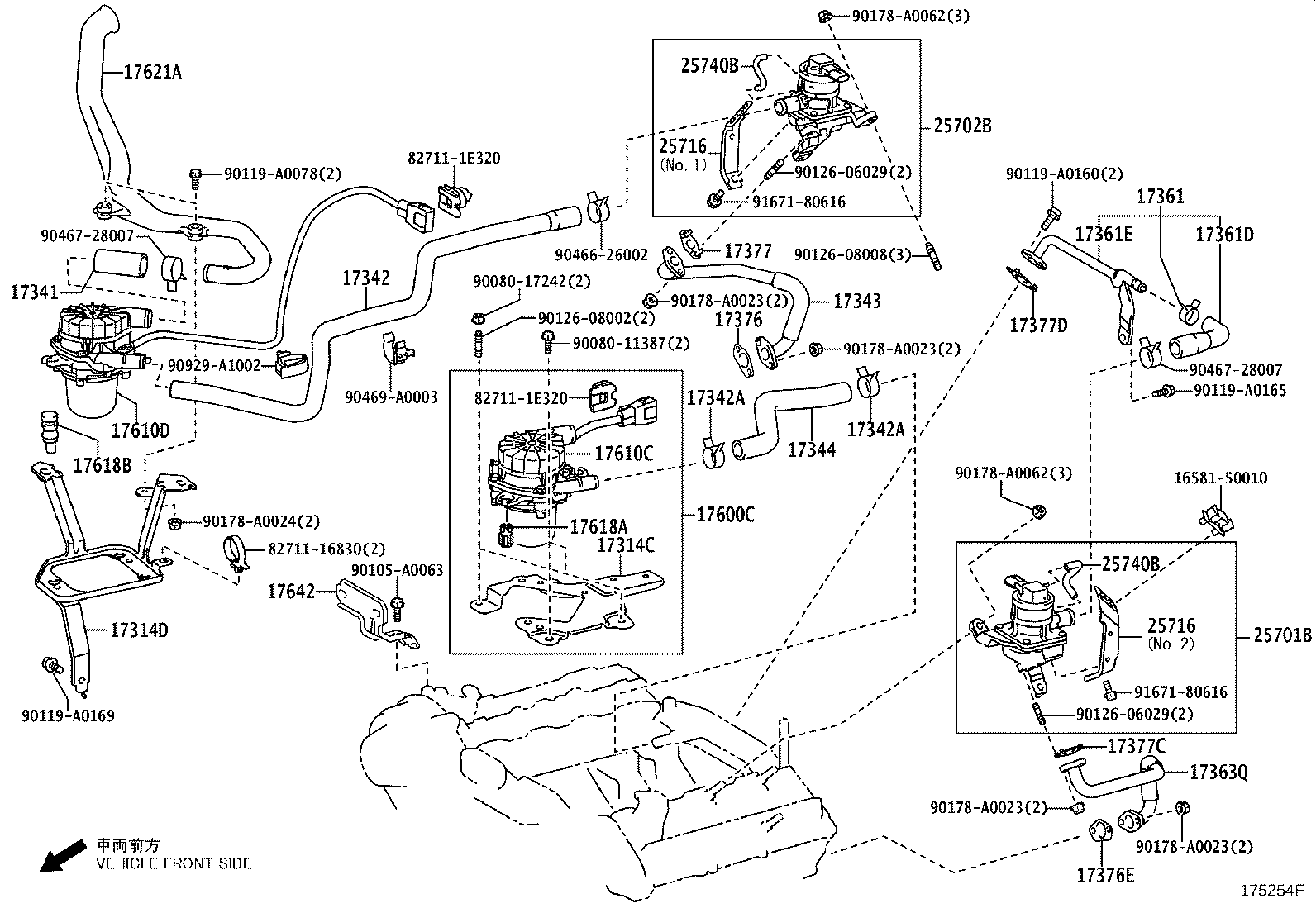

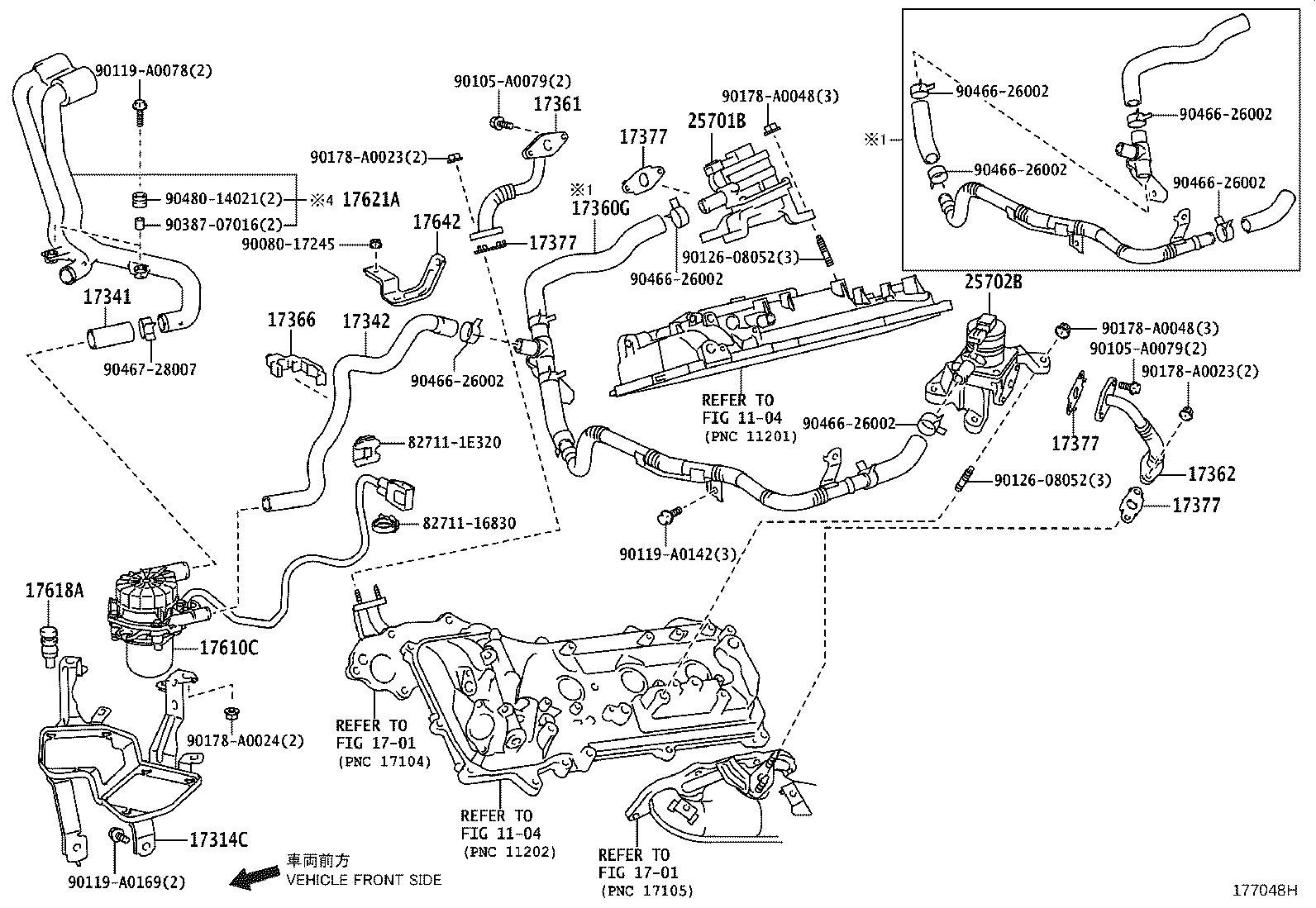

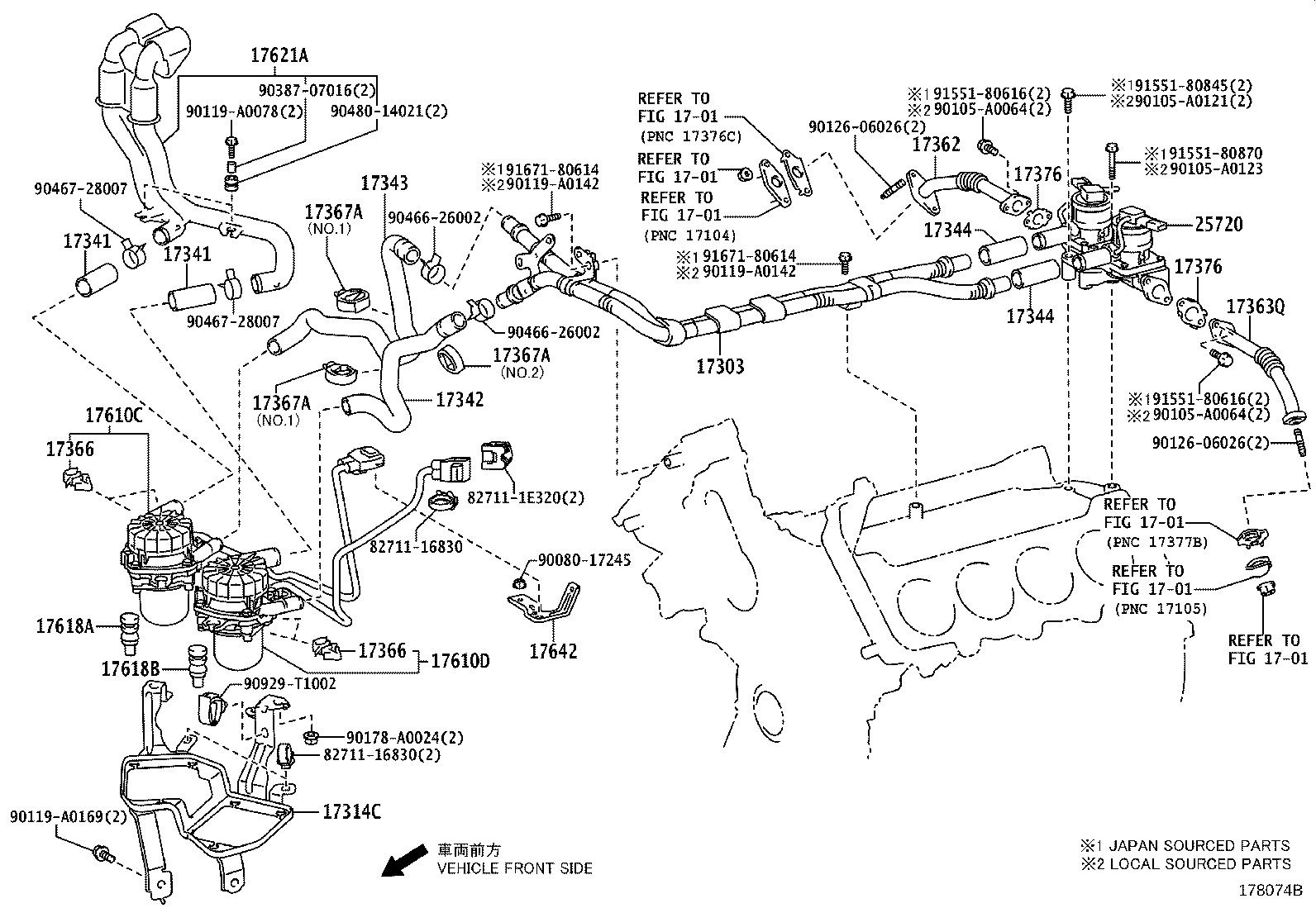

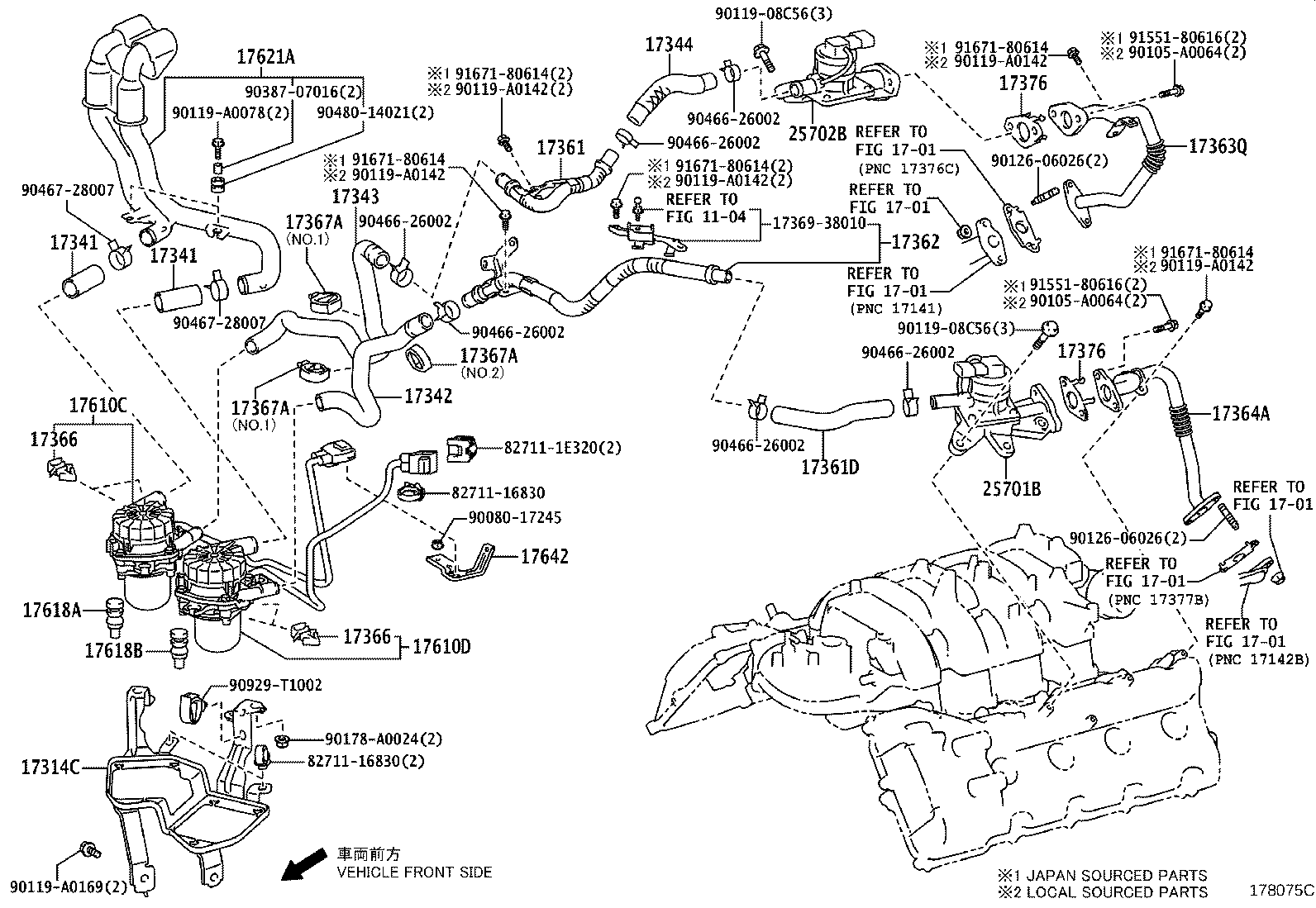

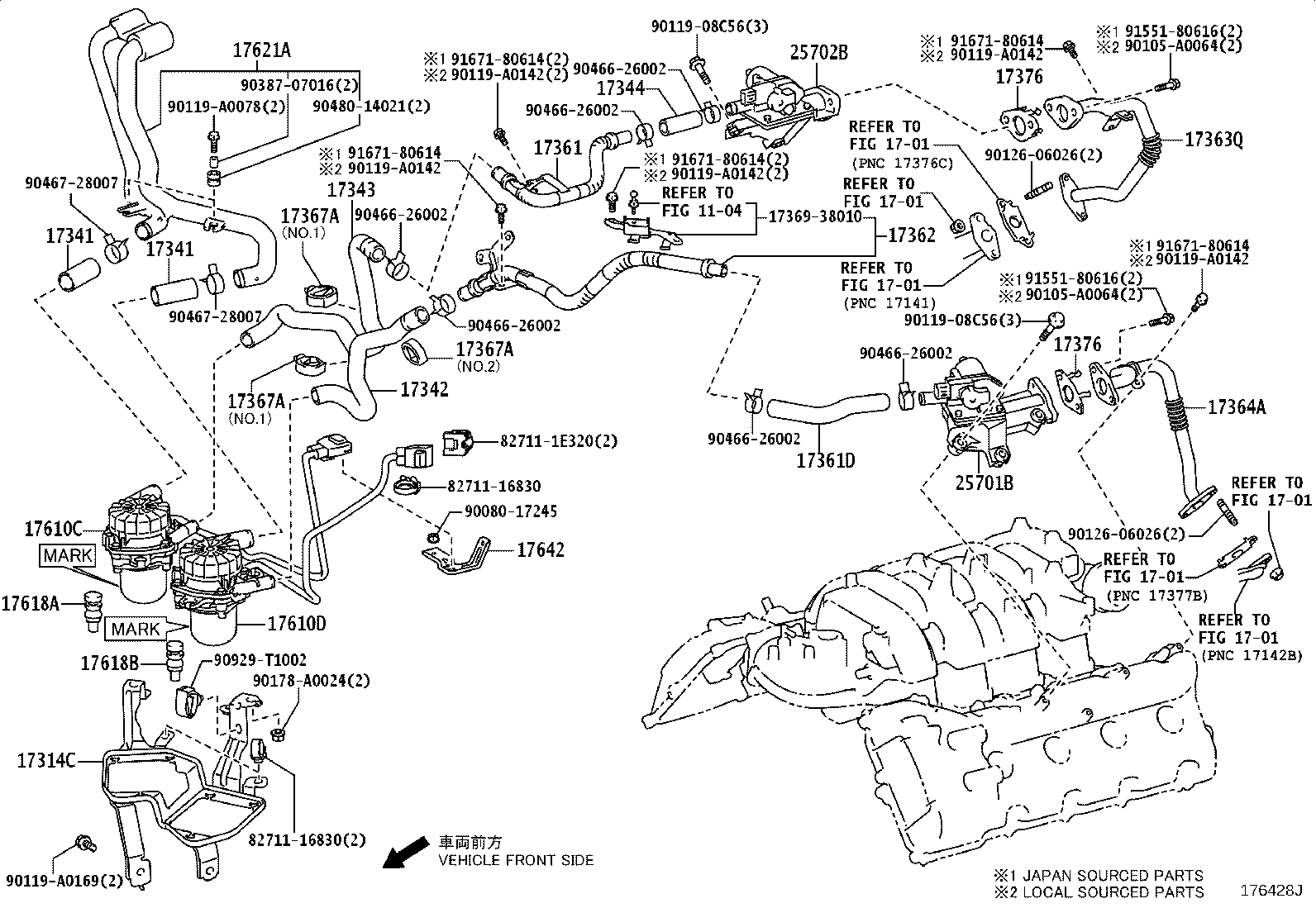

Figure 175253F 175253F 2006-11 → 2010-10 Figure 177048H 177048H 2010-10 → — Figure 175254F 175254F 2006-11 → 2009-04 Figure 175374N 175374N 2007-01 → 2013-08 Figure 178074B 178074B 2013-08 → — Figure 176428J 176428J 2009-04 → 2013-08 Figure 178075C 178075C 2013-08 → —

Part groups

PNCDescription
17303 Pipe Sub-assy, Air
17314C Bracket, Air Pump
17314D Bracket, Air Pump, NO.1
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17360G Tube Assy, Air
17361 Tube, Air
17361D Hose, NO.2(FOR AIR TUBE)
17361E Hose, NO.3(FOR AIR TUBE)
17362 Tube, Air, NO.2
17363Q Tube, Air, NO.3
17364A Tube, Air NO.4
17366 Clamp, Air Injection Hose, NO.1
17367A Clamp, Air Injection Hose, NO.2
17376 Gasket, Air Tube, NO.1
17376E Gasket, Air Tube, NO.3
17377 Gasket, Air Tube, NO.2
17377C Gasket, Air Tube, NO.4
17377D Gasket, Air Tube, NO.5
17600C Pump Assy, Air
17610C Pump Assy, Air
17610D Pump Assy, Air, NO.1
17618A Insulator, Air Pump
17618B Insulator, Air Pump, NO.1
17621A Inlet, Air Pump
17642 Bracket, Air Pump Wire
25701B Valve Set, Emission Control, NO.1
25702B Valve Set, Emission Control, NO.2
25710 Valve Assy, Air Switching
25716 Bracket, Air Switching Valve
25720 Valve Assy, Electric Air Control
25740B Hose(FOR AIR CONTROL VALVE ASSY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
