Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 6 illustrations

Illustrations

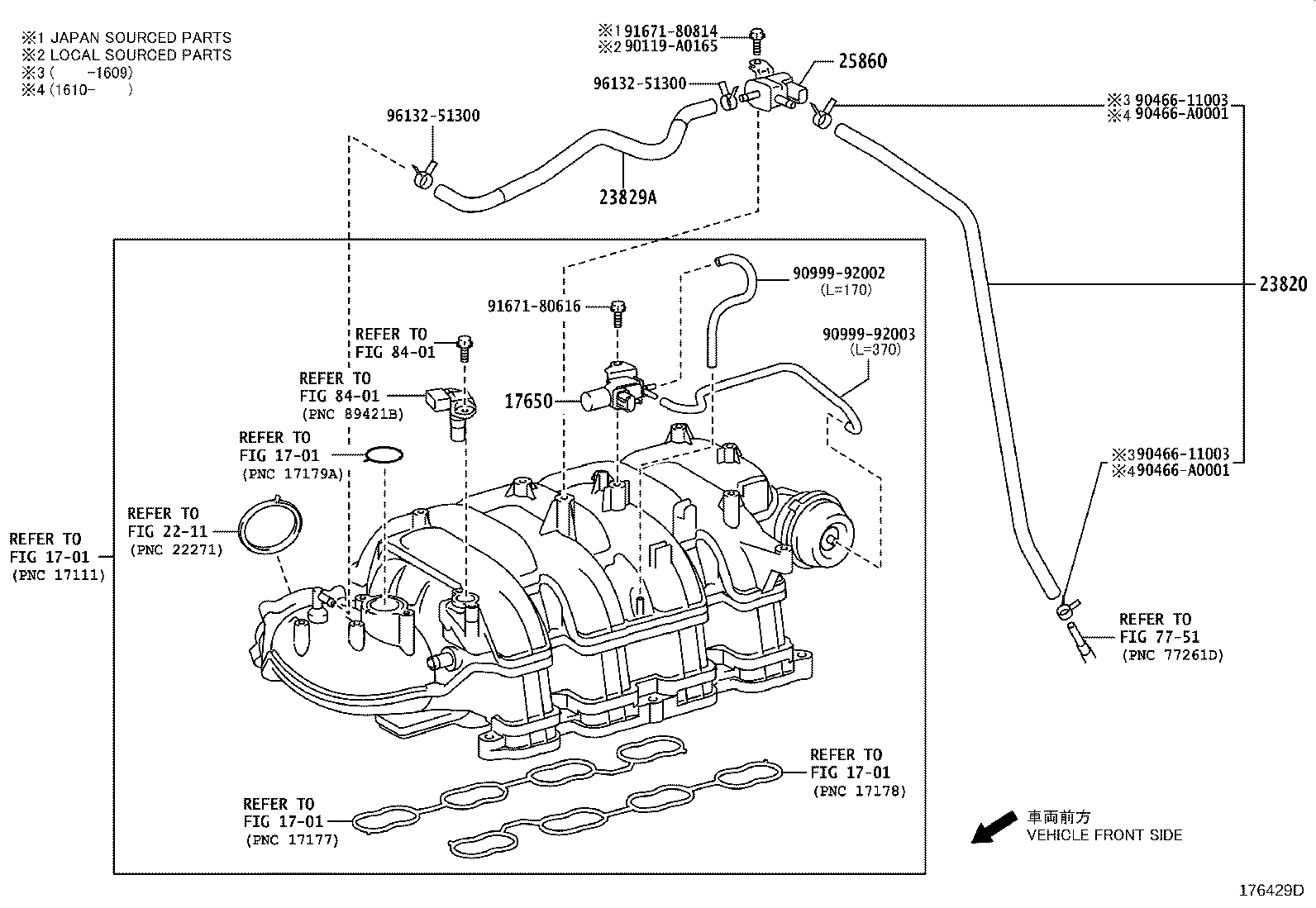

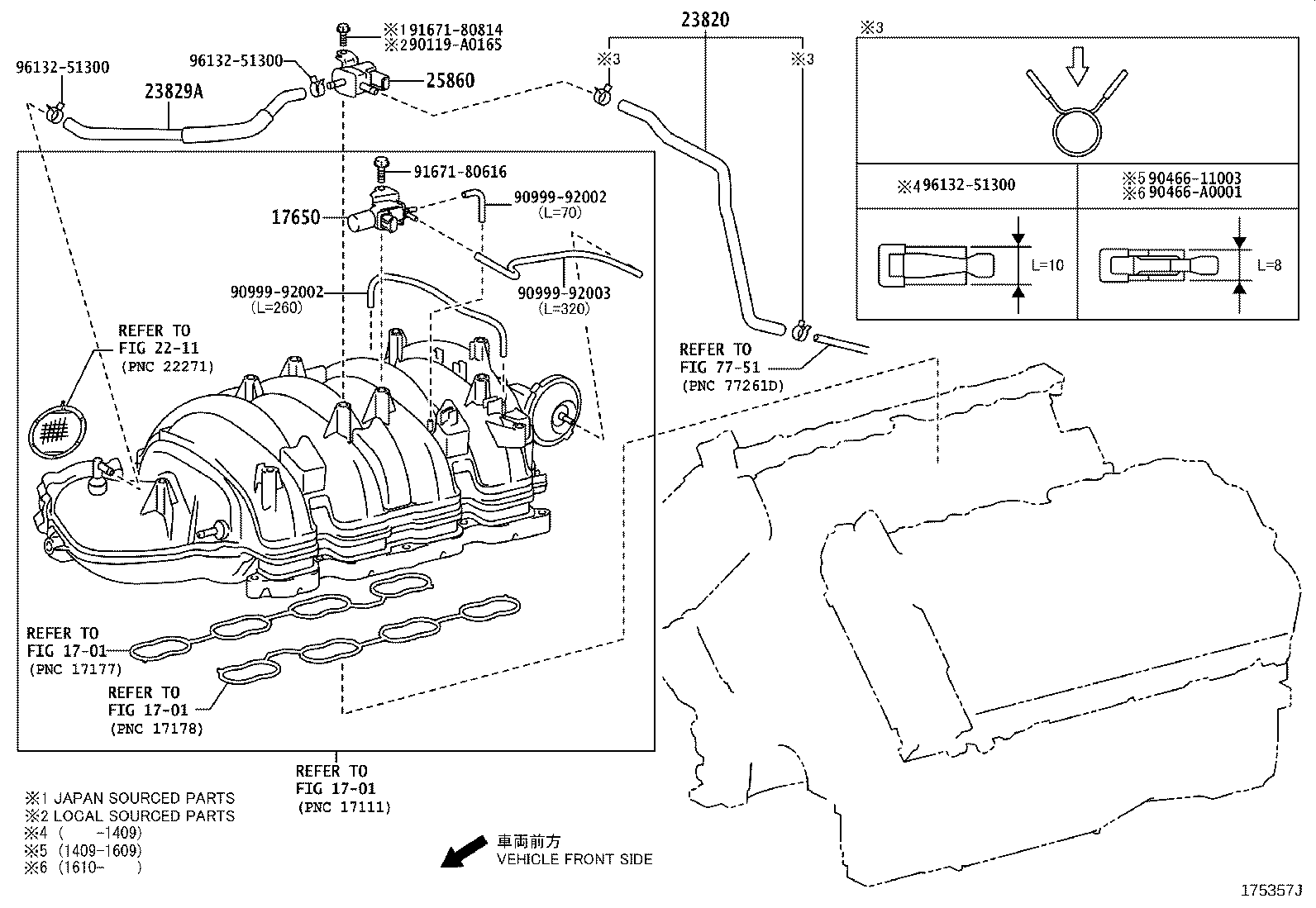

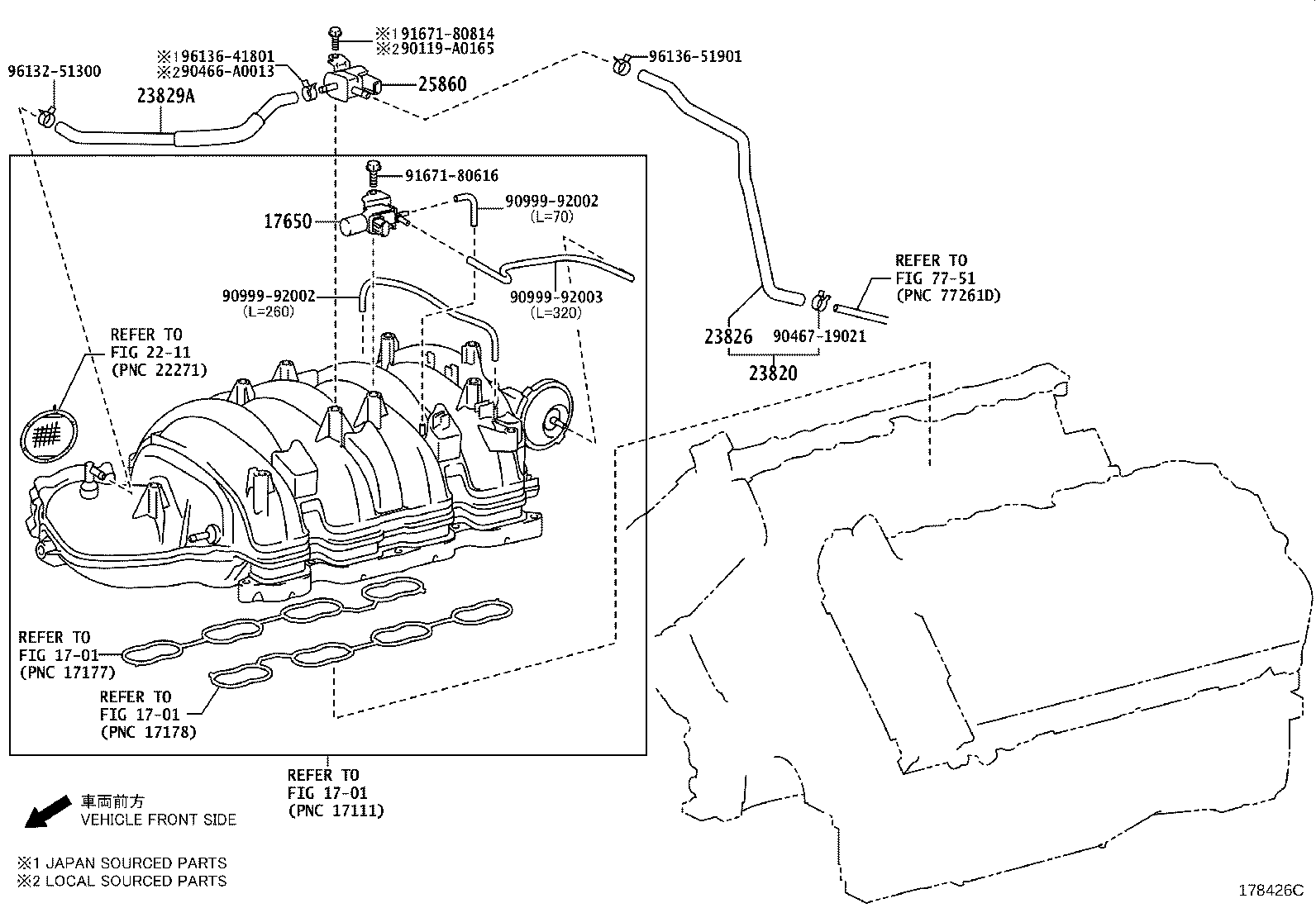

Figure 175211D 175211D 2006-11 → 2010-10 Figure 177020A 177020A 2010-10 → — Figure 175219D 175219D 2006-11 → 2009-04 Figure 175357J 175357J 2007-01 → — Figure 176429D 176429D 2009-04 → — Figure 178426C 178426C 2014-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
