Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

17 part groups · 13 illustrations

Illustrations

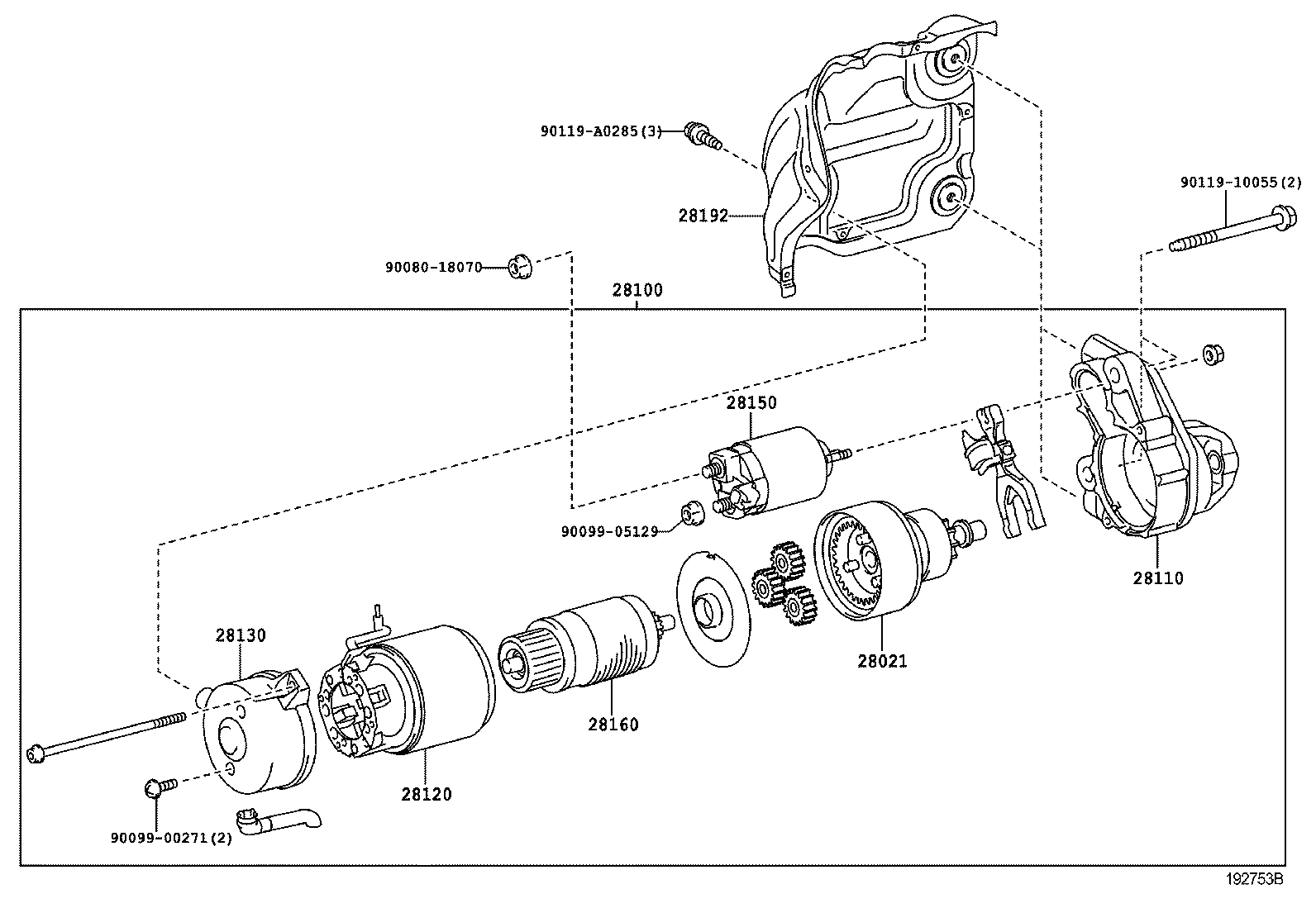

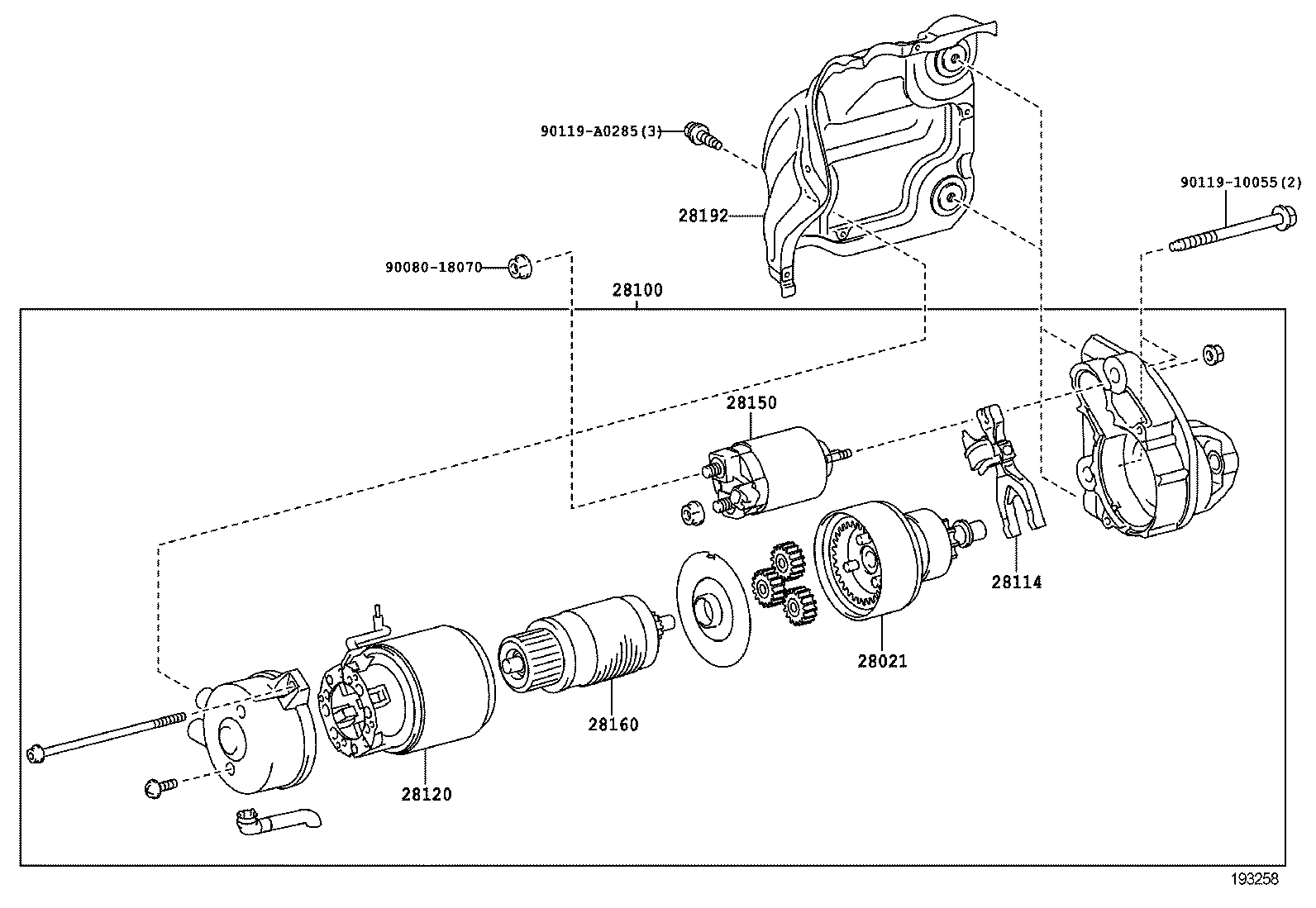

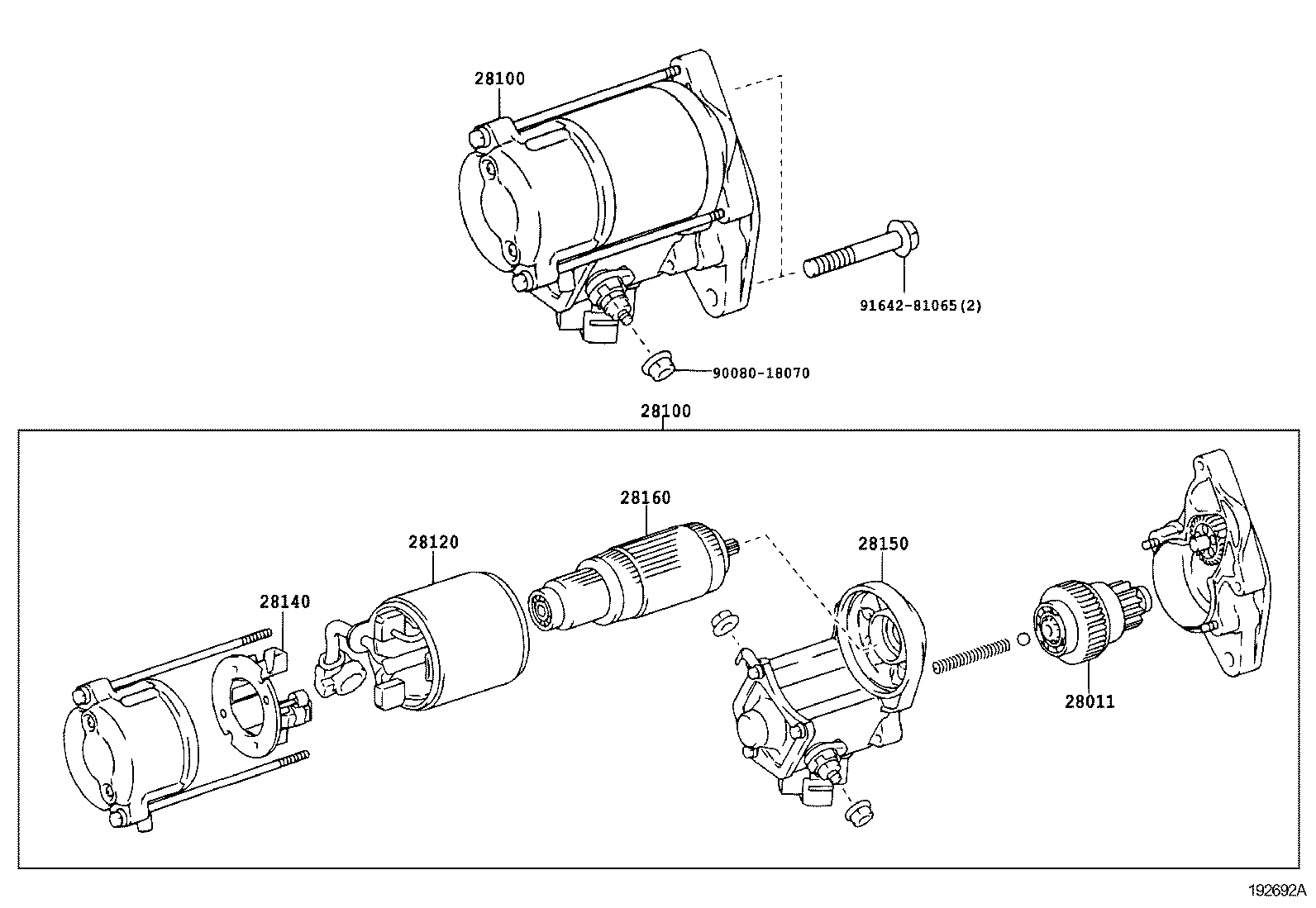

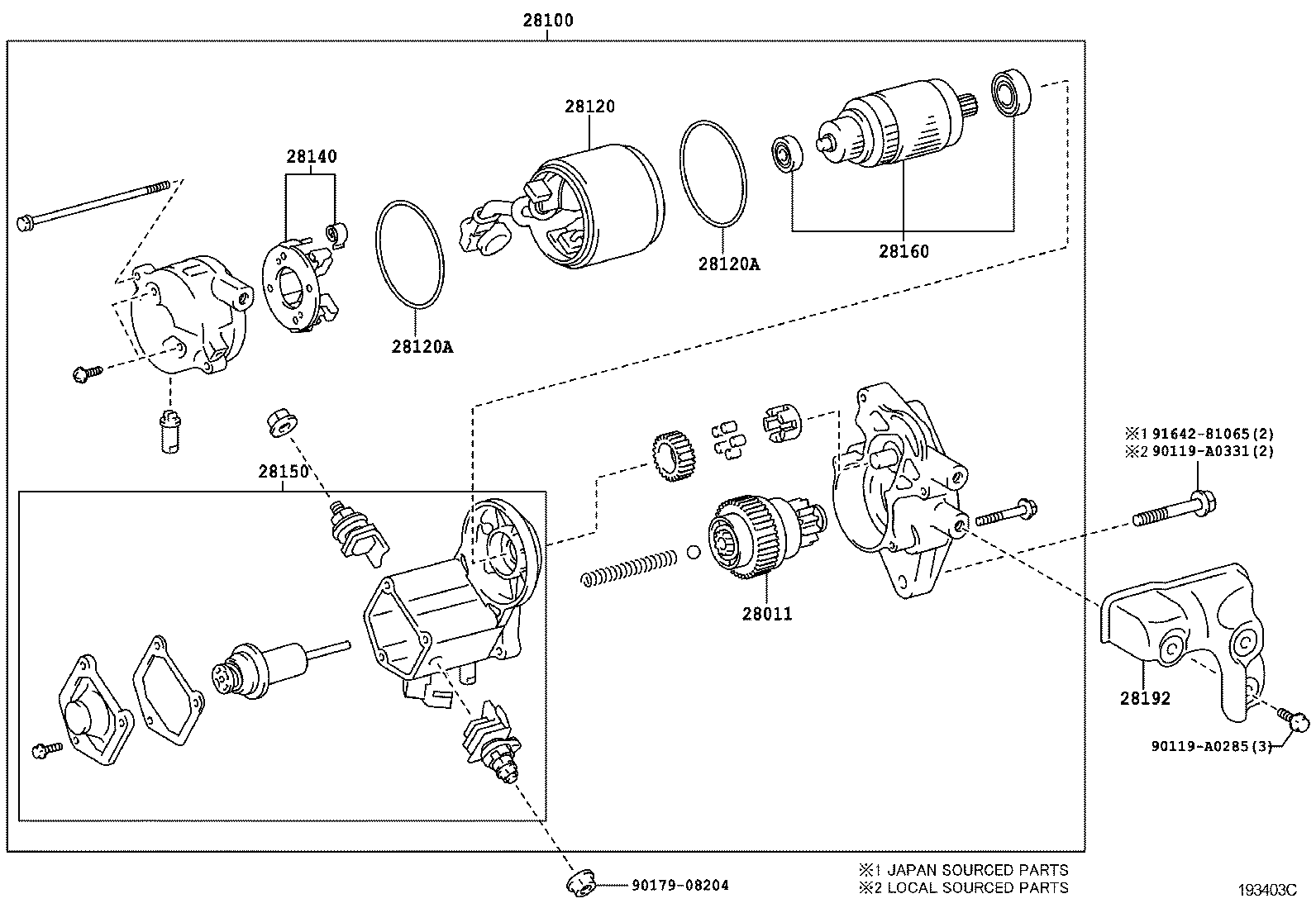

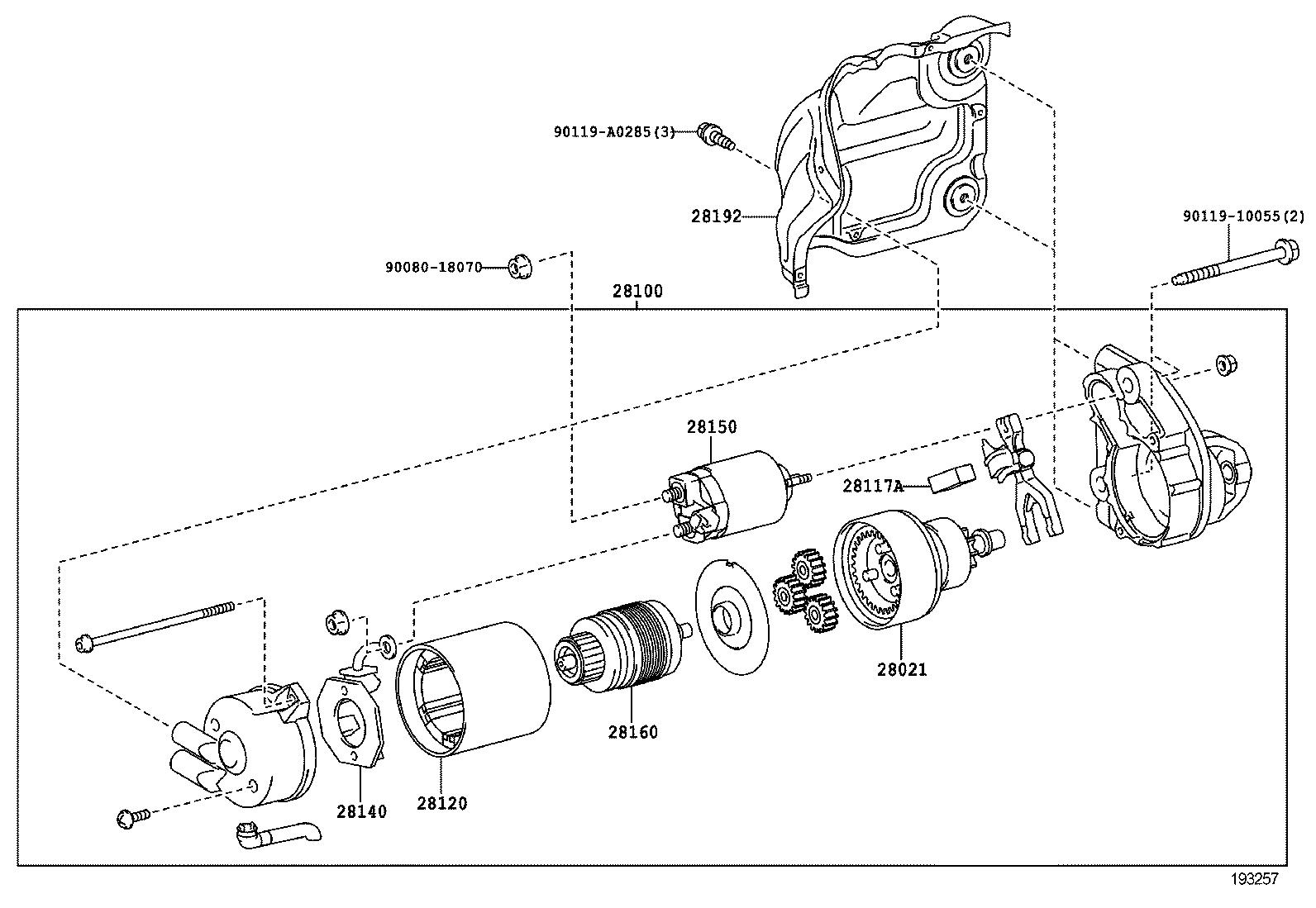

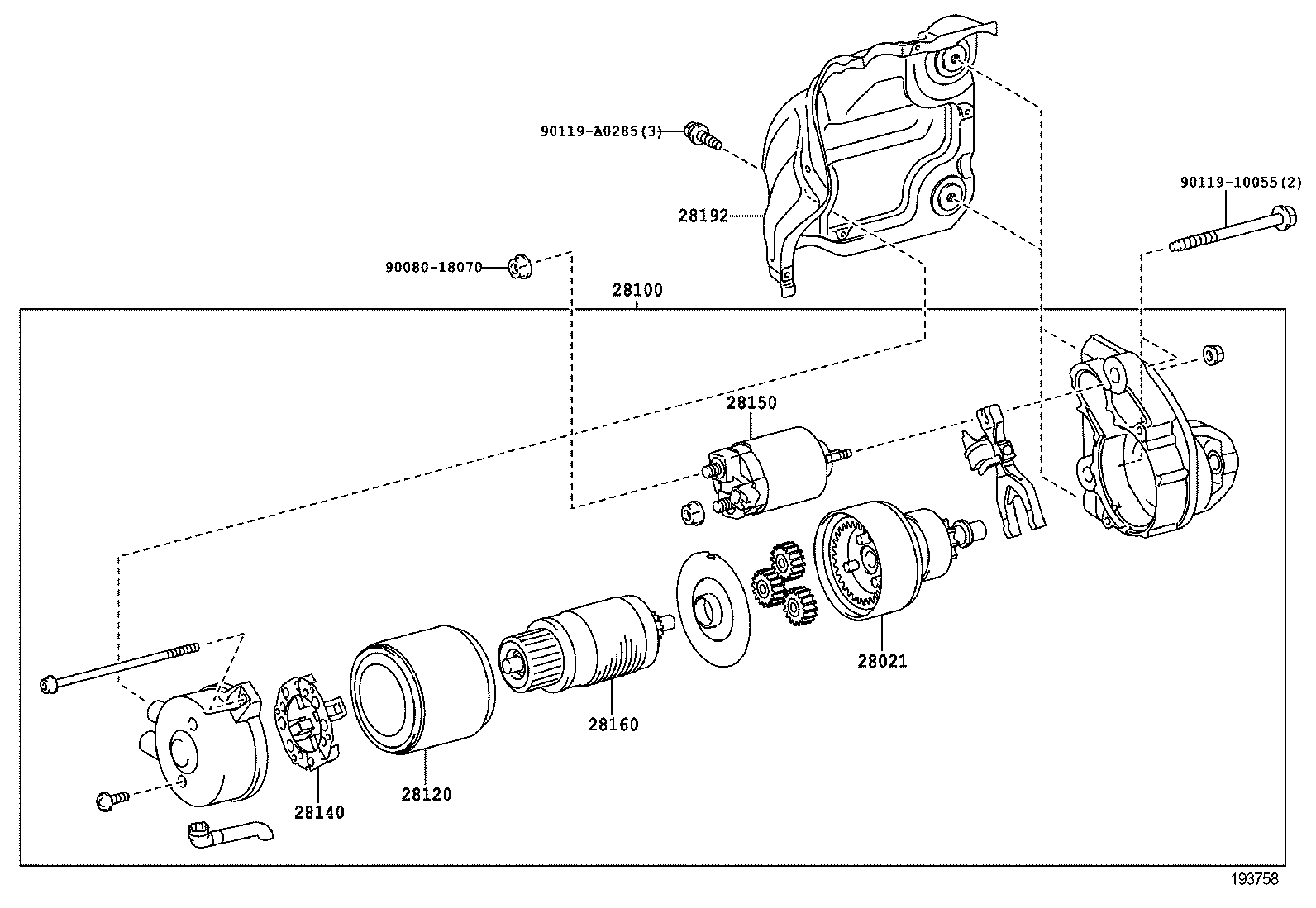

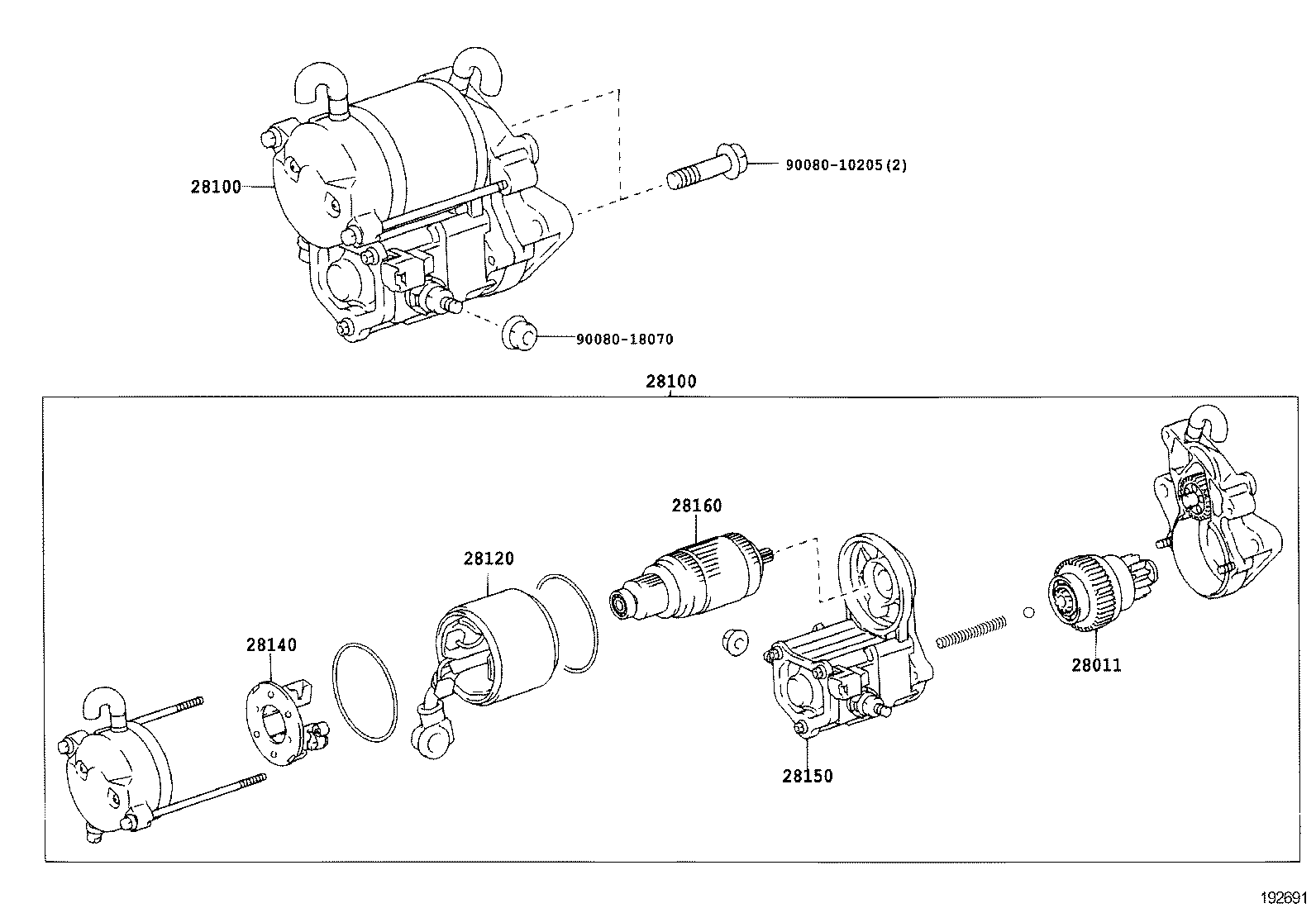

Figure 192693E 192693E 2006-11 → — Figure 192693E 192693E 2013-08 → — Figure 192692A 192692A 2006-11 → 2010-08 Figure 192691 192691 2006-11 → — Figure 192753B 192753B 2007-01 → 2011-04 Figure 193257 193257 2009-04 → — Figure 193257 193257 2017-08 → — Figure 193258 193258 2009-04 → 2011-03 Figure 193403C 193403C 2010-10 → — Figure 193403C 193403C 2013-08 → — Figure 193758 193758 2011-04 → — Figure 193758 193758 2013-08 → — Figure 193758 193758 2017-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28192 Cover, Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
