Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 5 illustrations

Illustrations

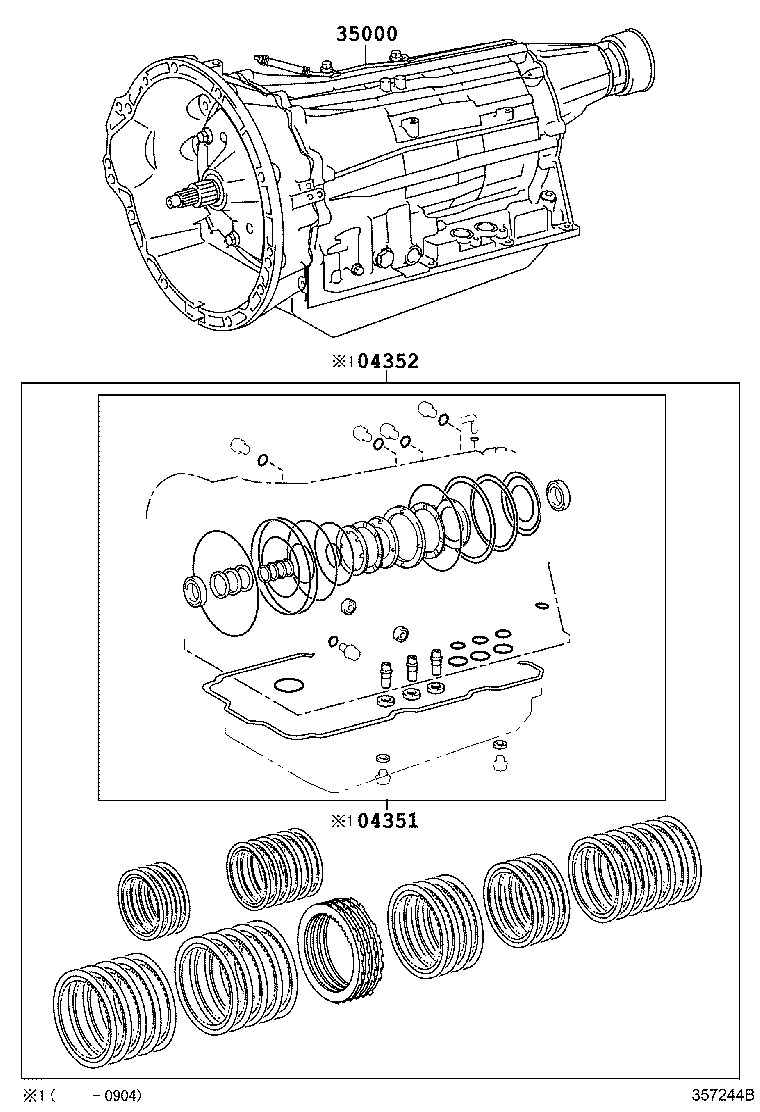

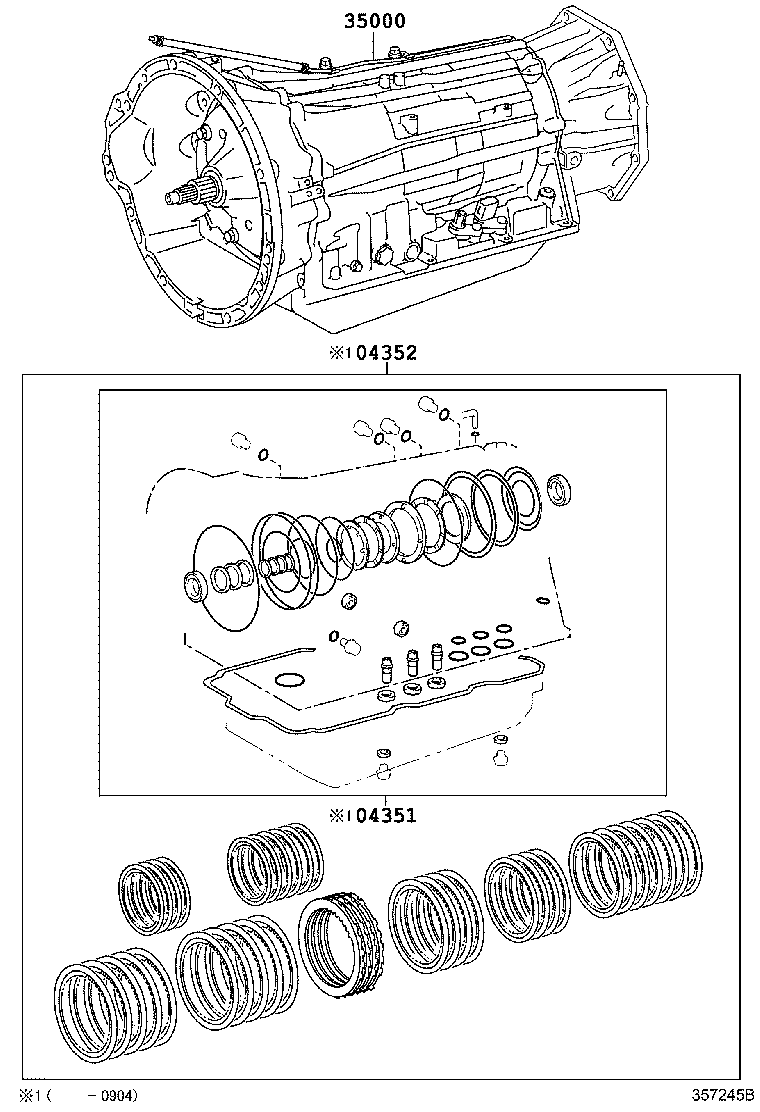

Figure 355944C 355944C 2006-11 → — Figure 357244B 357244B 2007-01 → — Figure 357245B 357245B 2007-01 → — Figure 357247A 357247A 2009-04 → — Figure 357246A 357246A 2009-04 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
04352 Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
