Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

9 part groups · 2 illustrations

Illustrations

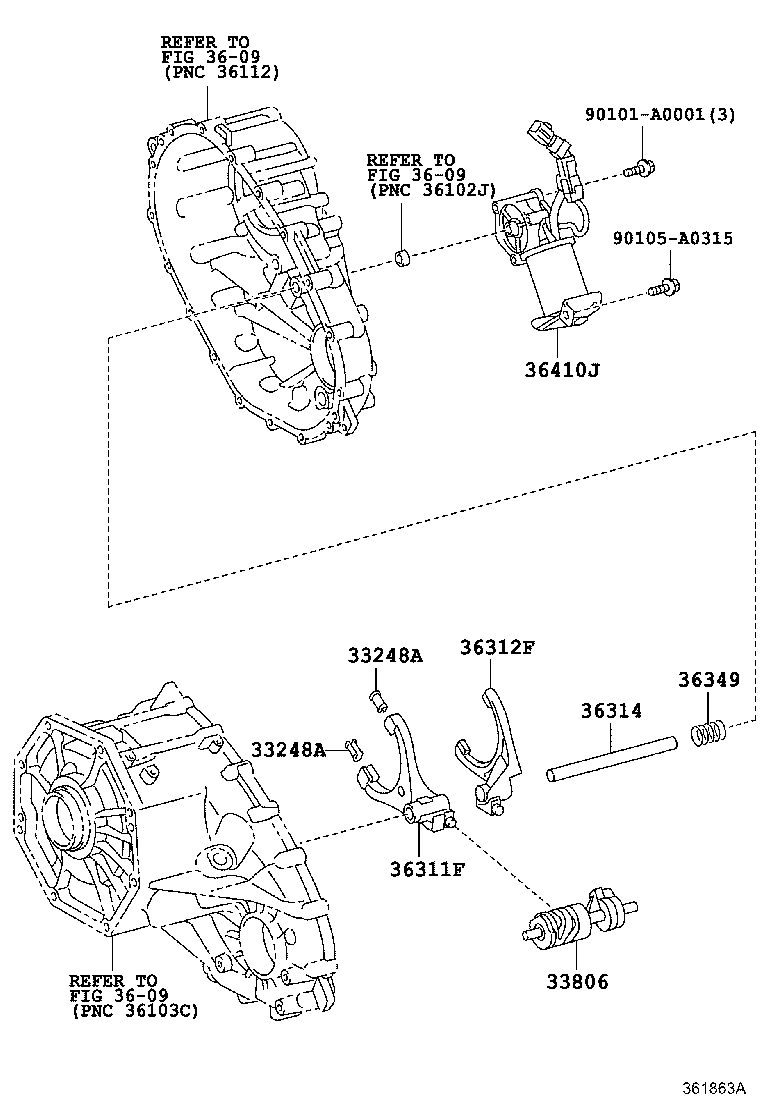

Figure 361503 361503 2006-11 → — Figure 361863A 361863A 2013-08 → —

Part groups

PNCDescription
33248A Pad, Gear Shift Fork
33806 Shaft Sub-assy, Control Select
36311F Fork, Transfer Gear Shift, NO.1
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312F Fork, Transfer Gear Shift, NO.2
36314 Shaft, Transfer High And Low Shift Fork
36349 Spring, Transfer Select Return
36410J Actuator Assy, Transfer Shift
36410N Ring, O (FOR TRANSFER SHIFT ACTUATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
