Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

14 part groups · 3 illustrations

Illustrations

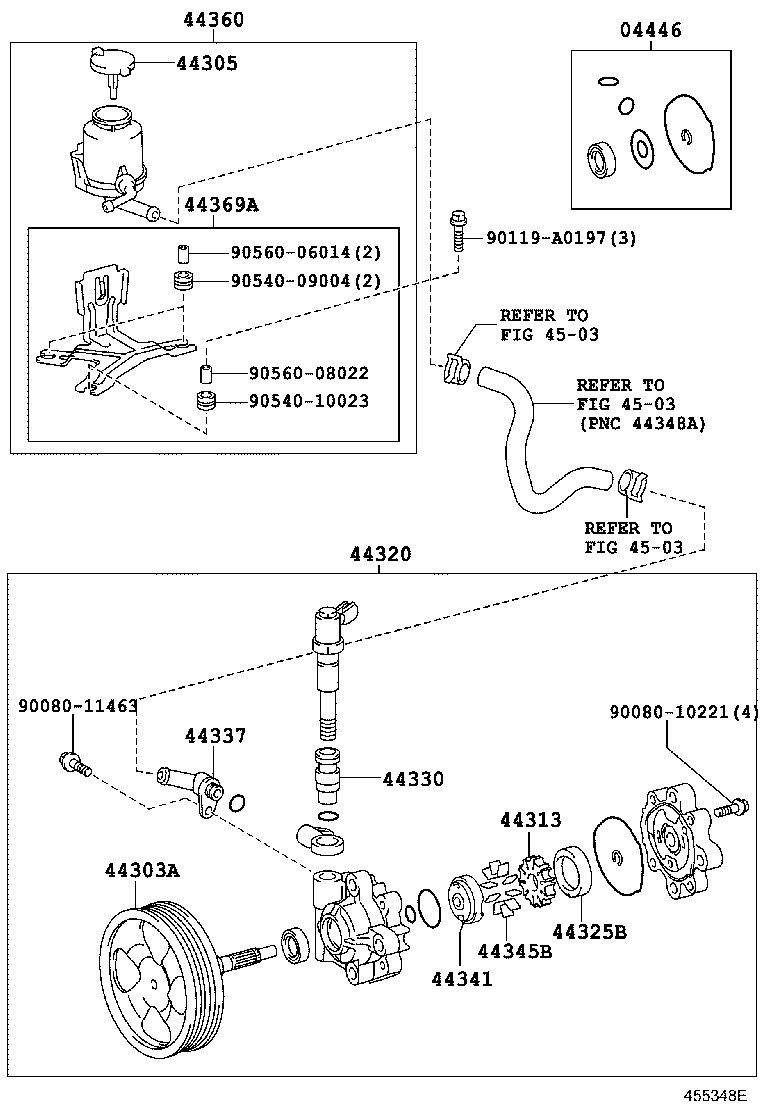

Figure 454716E 454716E 2006-11 → — Figure 454716E 454716E 2013-08 → — Figure 455348E 455348E 2009-04 → 2013-08

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44313 Rotor, Vane Pump
44320 Pump Assy, Vane
44325B Ring, Vane Pump Cam
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44341 Plate, Vane Pump Side, Front
44345B Plate, Vane Pump
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
