Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

12 part groups · 3 illustrations

Illustrations

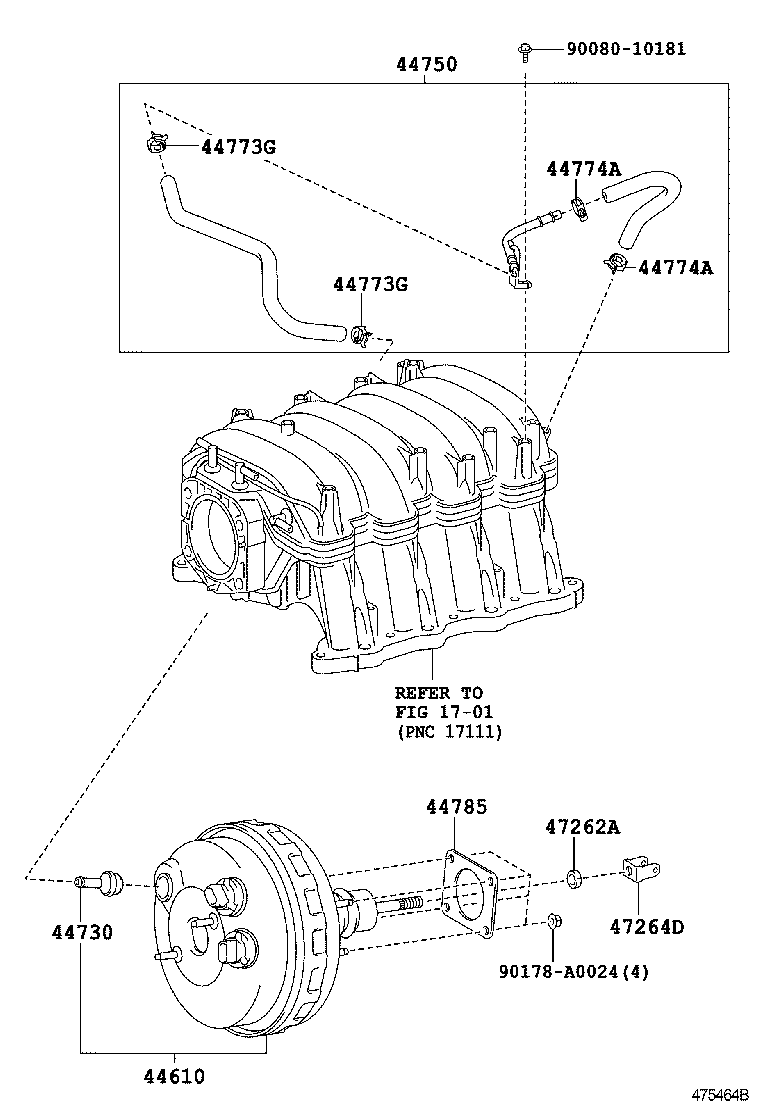

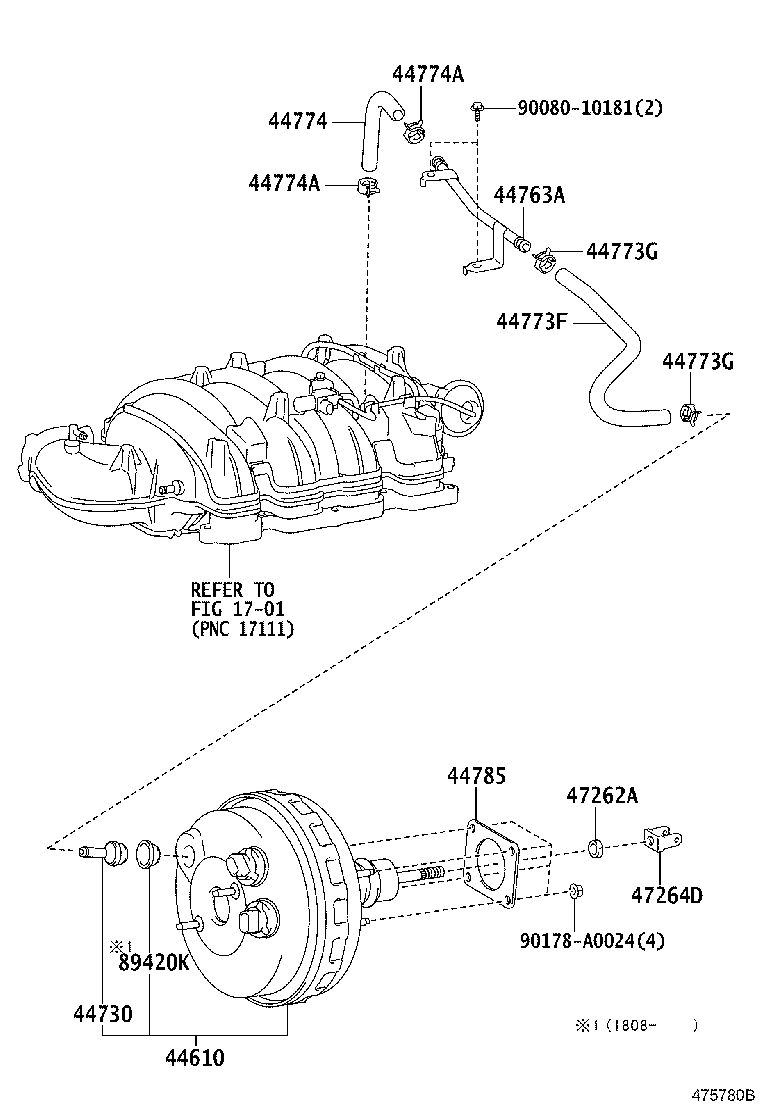

Figure 475463C 475463C 2006-11 → 2014-09 Figure 475464B 475464B 2006-11 → 2009-04 Figure 475780B 475780B 2007-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44750 Hose Assy, Vacuum
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
