Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

32 part groups · 8 illustrations

Illustrations

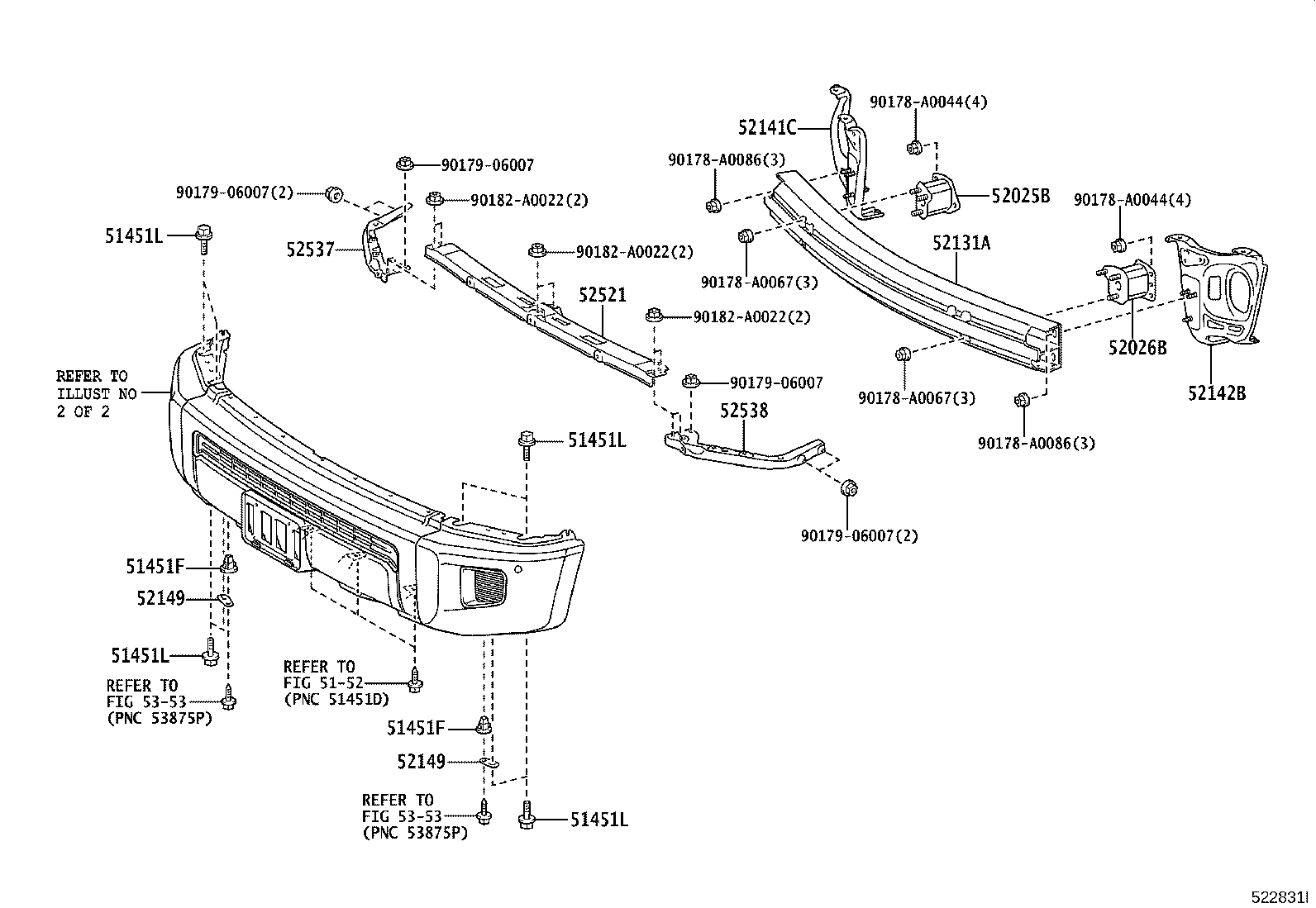

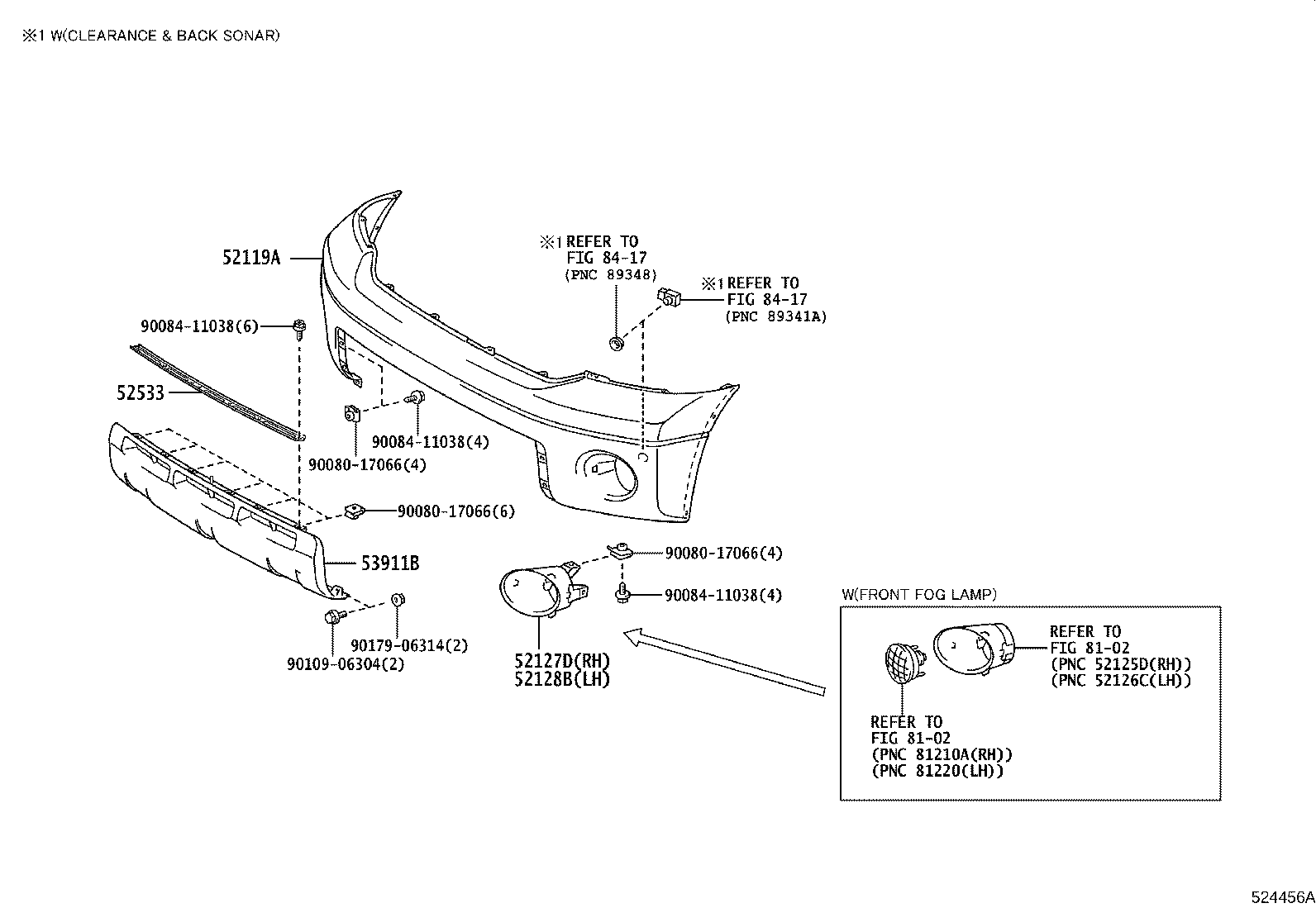

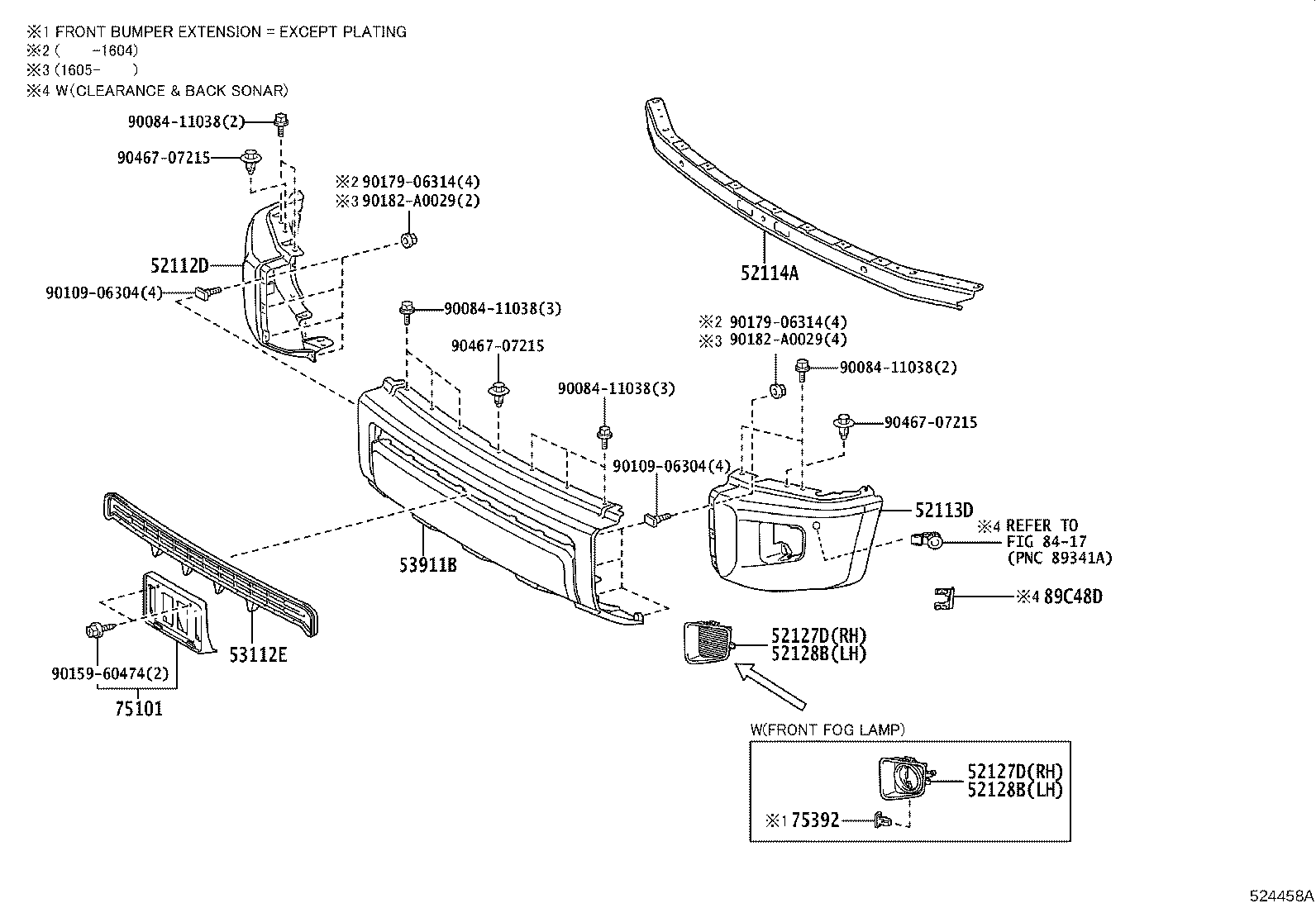

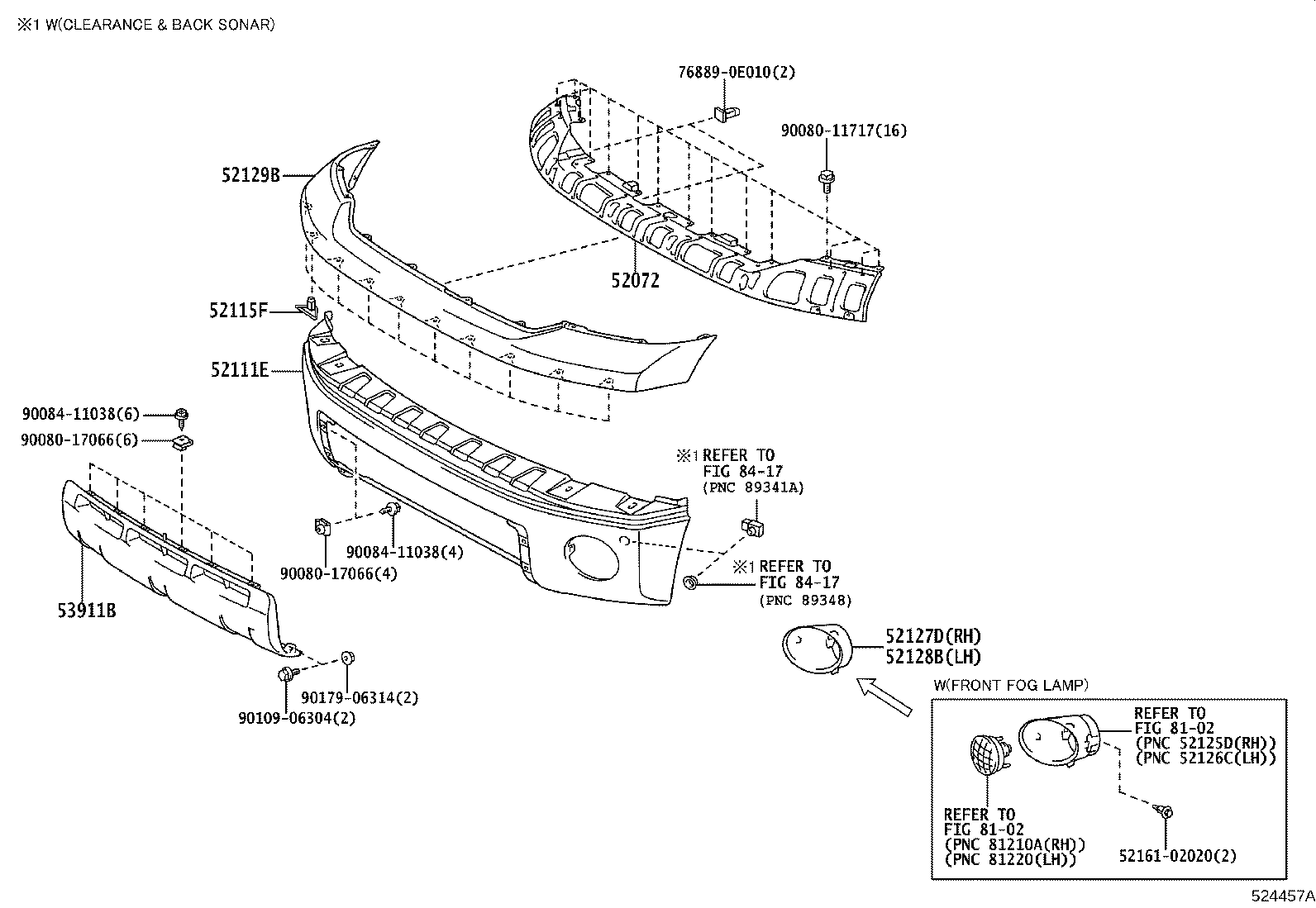

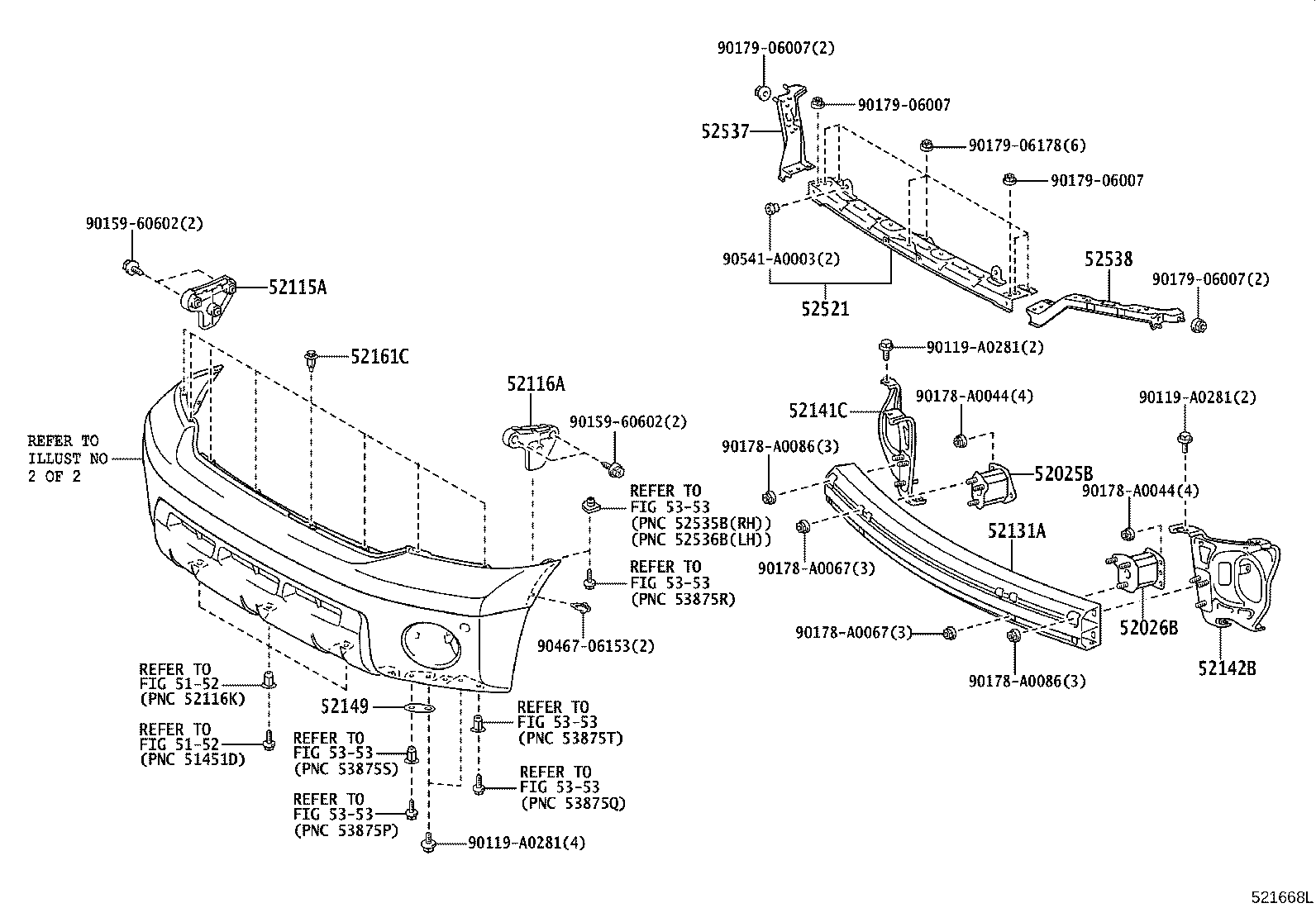

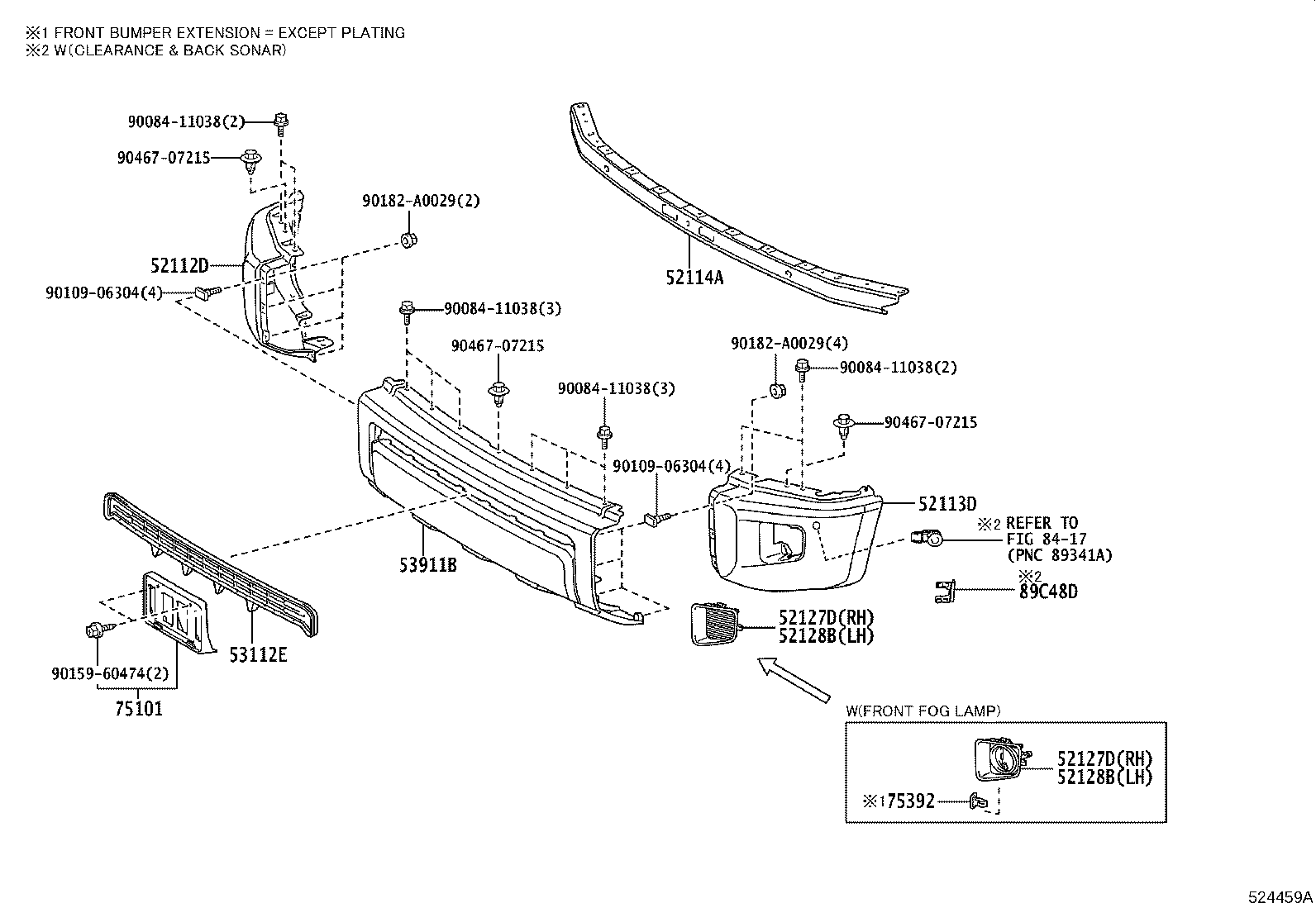

Figure 521667N 521667N 2006-11 → 2013-08 Figure 524456A 524456A 2006-11 → 2013-08 Figure 521668L 521668L 2006-11 → 2013-08 Figure 524457A 524457A 2006-11 → 2013-08 Figure 522831I 522831I 2013-08 → 2017-08 Figure 524458A 524458A 2013-08 → 2017-08 Figure 523607D 523607D 2017-08 → — Figure 524459A 524459A 2017-08 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451L Bolt, NO.1
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52072 Retainer Sub-assy, Front Bumper, Lower
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52115F Insert, Front Bumper Cover
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52143D Bracket, Front Bumper Side, RH
52149 Bracket, Front Bumper, Inner
52161C Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52533 Bracket, Front Bumper Retainer, NO.1
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
53112E Grille, Radiator, Lower NO.1
53911B Panel, Front Valance
75101 Bracket Sub-assy, Front License Plate
75392 Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
